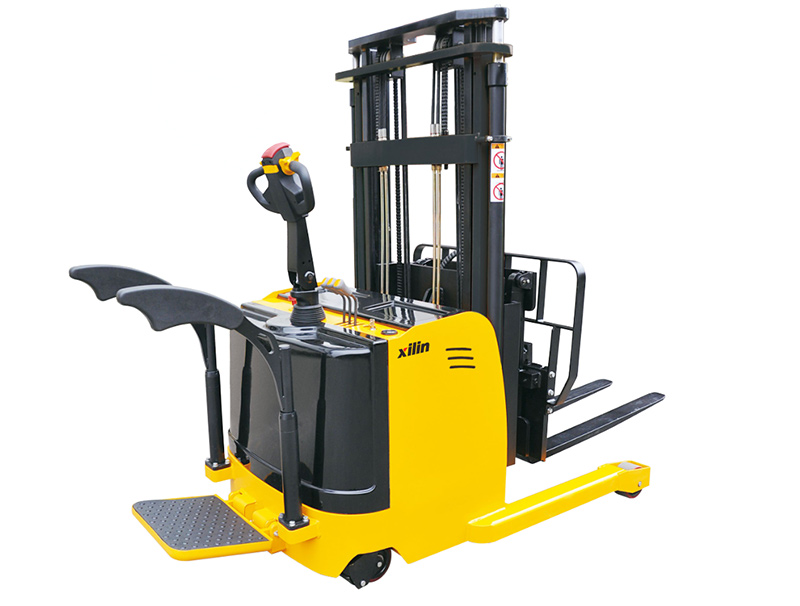

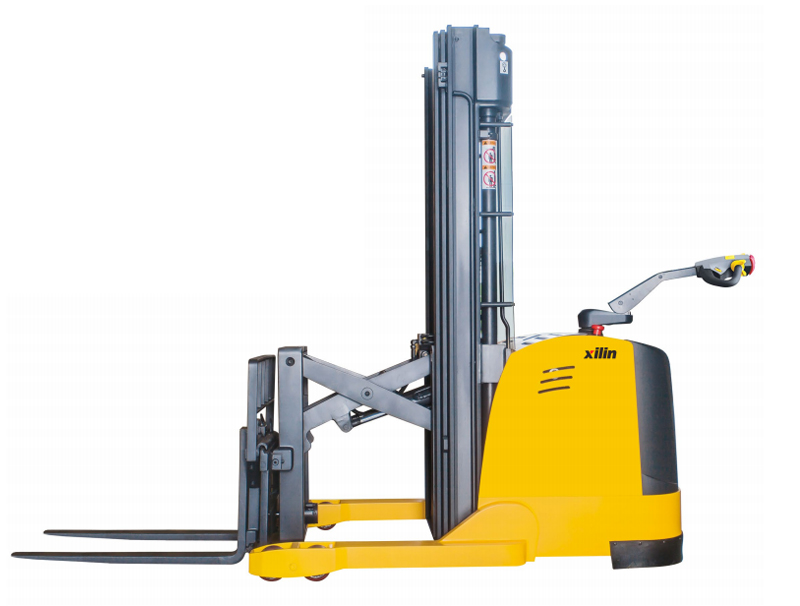

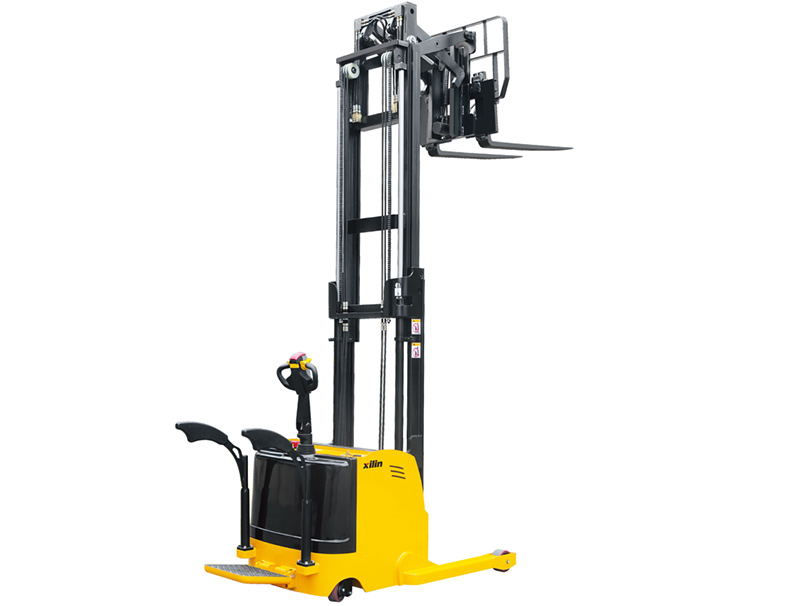

  • Multi-valve Control Type CQDH12A-I/CQDH15A-I
Model

CQDH12A-I/CQDH15A-I

Multi-valve Control Type

  • Multi-valve Control Type CQDH12A-I/CQDH15A-I

Advantage:

Compact structure are specially suit to use in very narrow Aisle warehouse.
Low gravity, ensure safety operation.
With disassemble type platform and protection arm.
Use hydraulic type multi-valve to control lifting/lowering , fork reach , fork tilting.
Use Handle to control the truck forward and backward.
The mast and frame are dividable and exchangeable.
With small turning radius , with good operation performance.
Multi function display with BDI and hour meter.
Single Scissor fork reach distance is 500mm. Option of double reach can reach 1200mm (Option for CQDH15A)

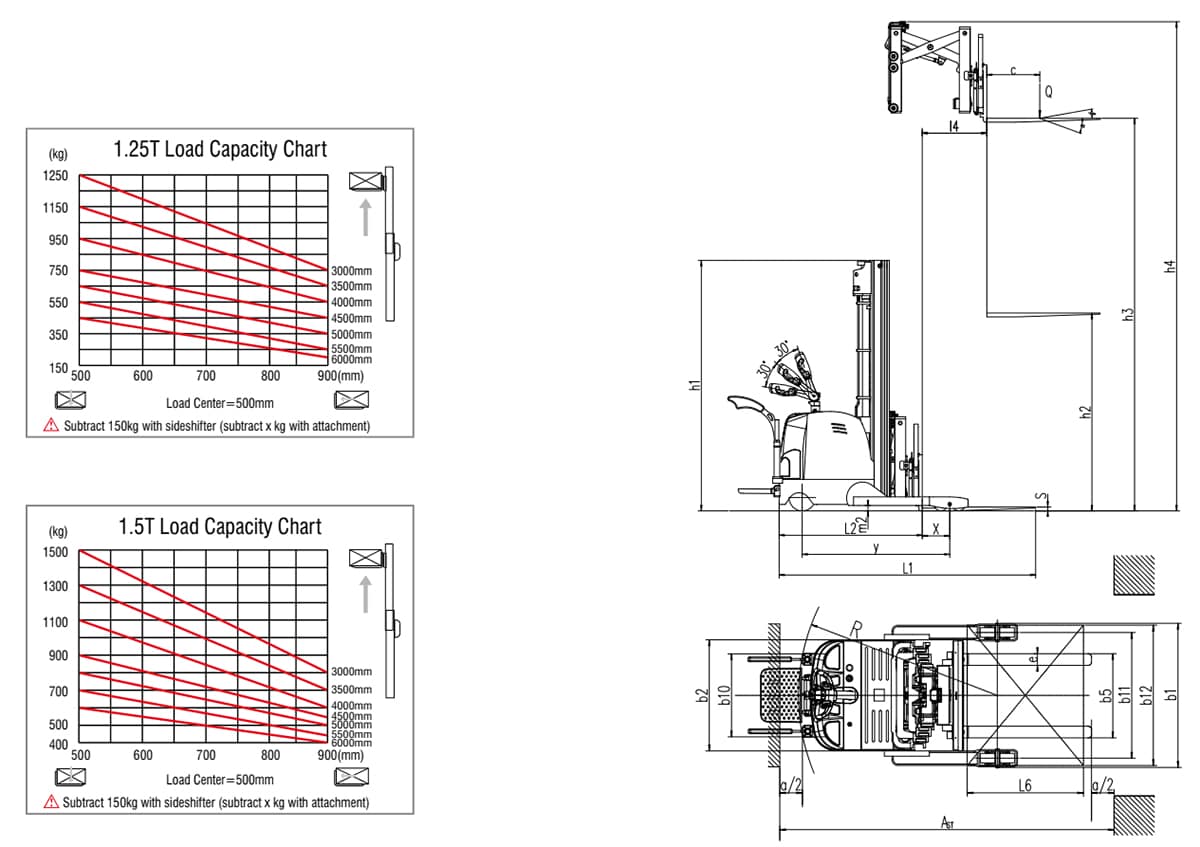

DIMENSION Drawing:

Model



Single scissor

CQDH12A-I

CQDH15A-I

Load capacity/rated load

Q(kg)

1250

1500

Load centre distance

c(mm)

500

500

Load distance,centre of drive axle to fork

x(mm)

365(double mast)/353(triple mast)

287(double mast)/315(triple mast)

Tyre size,front

mm

φ250x80+150x62

φ250x80+150x62

Tyre size,rear

mm

φ150x82x2

φ125x82X4

Wheels, number front rear(x=driven wheels)



1x+2/2

1x+2/4

Forks, tilt forward/back

°

2/5

2/5

Height, mast lowered

h1(mm)

1853/2103/2353/2603/2163/2323/2483

1869/2119/2369/2619/2179/2341/2499

Free lift

h2(mm)

~ / ~ / ~ / ~ /1575/1700/1825

 ~ / ~ / ~ / ~ /1575/1700/1825

Max. lift height

h3(mm)

2500/3000/3500/4000/4500/5000/5500

2500/3000/3500/4000/4500/5000/5500

Height, mast extended

h4(mm)

3381/3881/4381/4881/5381/5881/6381

3381/3881/4381/4881/5381/5881/6381

Overall length

l1(mm)

2327/2327/2327/2327/2340/2340/2340

2364/2364/2364/2364/2384/2384/2384

Length to face of forks

l2(mm)

1257/1270

1289(double mast)/1314(triple mast)

Overall width

b1/b2(mm)

1166-1266/950

1200-1300/950

Fork dimensions

s/e/l(mm)

35/100/1070

35/100/1070

Reach distance

l4(mm)

500

500

Aisle width, with pallet 1000x1200 crosswise

Ast(mm)

27311/27402

27421/27672

Aisle width for pallets 800x1200 lengthways

Ast(mm)

27831/27942

28061/28302

Turning radius

Wa(mm)

1658

16131/16472

Travel speed, laden/unladen

Km/h

4.5/5 / 4.8/5

4.8/5

Lift speed, laden/unladen

m/s

0.12/0.15

0.095/0.12

Lowering speed, laden/unladen

m/s

0.27/0.2

0.2/0.15

Battery voltage, nominal capacity k5

V/Ah

24/320

24/320(460)

Battery weight

kg

285

285(360)

Battery dimensions

mm

812x270x535

812x270x575

Service weight (with battery)

kg

1800/1850/1900/1900/1950/2000/2050

2250/2300/2350/2350/2500/2550/2600

* Option: Lithium battery 230AH (Charger 24V/100A)
1. For duplex mast 2000-4000mm
2. For triplex mast 4500-5500mm
Watch overview
