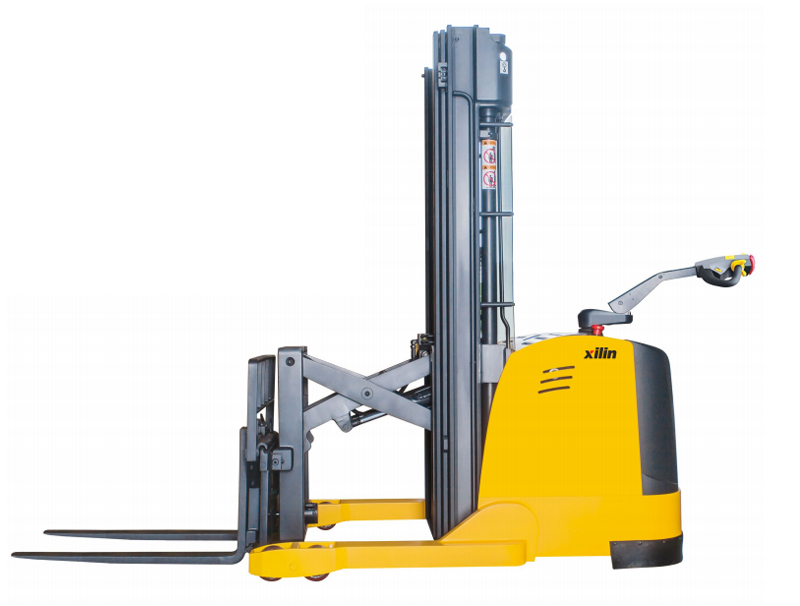

  • Walkie Type with Magnetic Valve Control  CQDH15A-II/
CQDH20A-II
Model

CQDH15A-II/ CQDH20A-II

Walkie Type with Magnetic Valve Control

  • Walkie Type with Magnetic Valve Control  CQDH15A-II/
CQDH20A-II

Advantage:

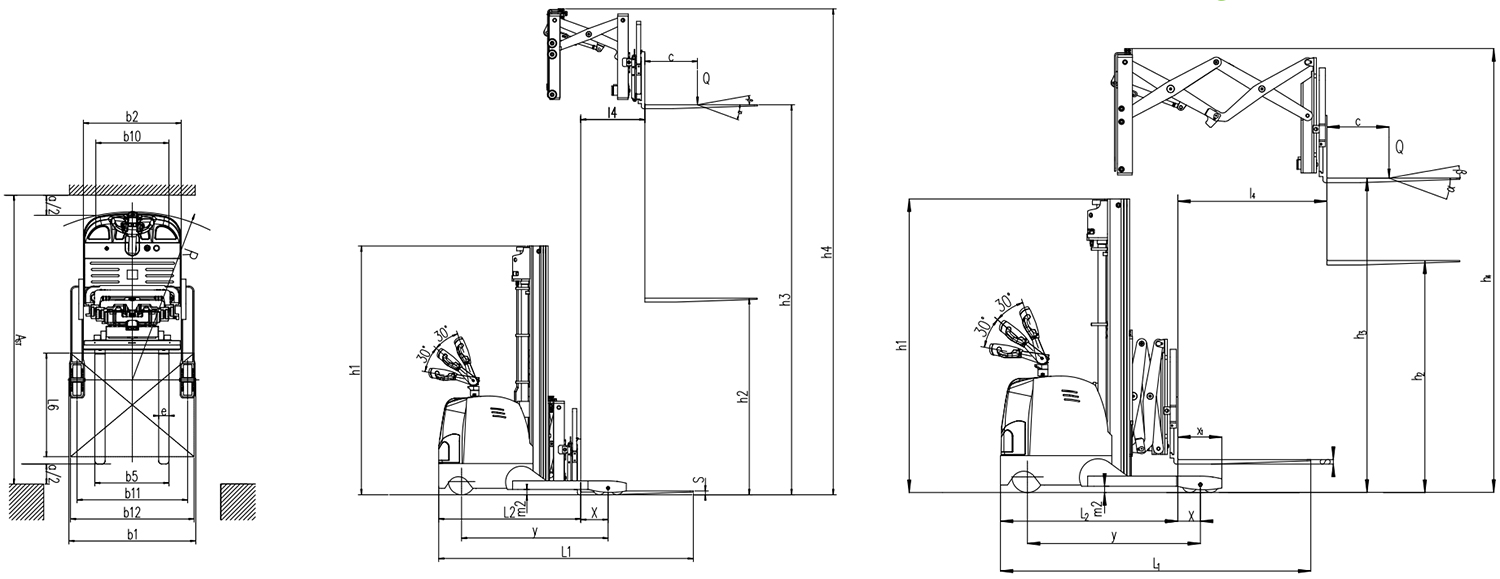

DIMENSION Drawing:

Manufacturer's type designition



CQDH15A-II (single scissor)

Drive: electric (battery type, mains, ...). diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Pedestrian

Rated capacity/rated load

Q (kg)

1500

Load centre distance

c(mm)

500

Load distance, centre of drive axle to fork

x(mm)

269

248

Wheelbase

y(mm)

1373

1393

Service weight

kg

2250/2300/2350/2400/2500/2550/2600

Axle loading, unladen front/rear

kg

901/1699

Axle loading, fork advanced, laden front/rear

kg

2705/1395

Axle loading, fork retracted, laden front/rear

kg

2505/1595

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Tyre size, front



Φ250 x 80

Tyre size, rear



Φ125x82

Additional wheels (dimensions)



Φ150x62

Wheels, number front/rear (x = driven wheels)



1x+2/4

Tread, front

b10(mm)

710

710

Tread, rear

b11(mm)

1074

1074/1154

Tilt of mast/fork carriage forward/backward



2/5

Height mast lowered

h1(mm)

1869/2119/2369/2619

2179/2341/2499

Free lift

h2(mm)

N/A

1575/1700/1825

Lift

h3(mm)

2500/3000/3500/4000

4500/5000/5500

Height mast extended

h4(mm)

3381/3881/4381/4881

5381/5881/6381

Height drawbar in driving position min./max

h14(mm)

1100/1600

Overall length

l1(mm)

2389

2430

Length to face of forks

l2(mm)

1319

1360

Overall width

b1/b2(mm)

1232/950

(1232/1292)/950

Fork dimensions DIN ISO 2331

s/e/l(mm)

35/100/1070

Fork carriage ISO 2328, class/type A, B



2A

Fork-carriage width

b3(mm)

940/990

940/990

Fork spread

b5(mm)

200-760/200-680

200-760/200-680

Distance between wheel arms/loading surfaces

b4(mm)

916

916/976

Reach distance

l4(mm)

500

Ground clearance, laden, below mast

m1(mm)

50

50

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2733

2770

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2800

2840

Turning radius

Wa(mm)

1588

1608

Length across wheel arms

l7 (mm)

1760

1780

Travel speed, laden/unladen

km/h

4.8/5.0

Lift speed, laden/unladen

m/s

0.095/0.12

Lowering speed, laden/unladen

m/s

0.20/0.15

Reaching speed, laden/unladen

m/s

0.1

0.1

Max gradeability, laden/unladen

%

5/12

5/12

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

2.2 AC

Lift motor rating at S3 15%

kW

3.3/4.5

3.3/4.5

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/320(460)

Battery weight

kg

285(360)

Sound pressure level at the driver's seat

dB (A)

75


Manufacturer's type designition



CQDH20A-II (single scissor)

Drive: electric (battery type, mains, ...). diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Pedestrian

Rated capacity/rated load

Q (kg)

2000

Load centre distance

c(mm)

500

Load distance, centre of drive axle to fork

x(mm)

265

262

Wheelbase

y(mm)

1462

1481

Service weight

kg

2450/2500/2550/2600/2700/2750/2800

Axle loading, unladen front/rear

kg

970/1830

Axle loading, fork advanced, laden front/rear

kg

3133/1667

Axle loading, fork retracted, laden front/rear

kg

2933/1867

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Tyre size, front



0250x80

Tyre size, rear



Φ125x82

Additional wheels (dimensions)



Φ150x62

Wheels, number front/rear (x = driven wheels)



1x+2/4

Tread, front

b10(mm)

710

710

Tread, rear

b11(mm)

1120

1120

Tilt of mast/fork carriage forward/backward



2/5

Height mast lowered

h1(mm)

1875/2125/2375/2625

2185/2345/2505

Free lift

h2(mm)

N/A

1575/1700/1825

Lift

h3(mm)

2500/3000/3500/4000

4500/5000/5500

Height mast extended

h4(mm)

3397/3897/4397/4897

5397/5897/6397

Height drawbar in driving position min./max

h14(mm)

1100/1600

Overall length

l1(mm)

2450

2474

Length to face of forks

l2(mm)

1380

1404

Overall width

b1/b2(mm)

1232/950

(1232/1292)/950

Fork dimensions DIN ISO 2331

s/e/l(mm)

40/100/1070

Fork carriage ISO 2328, class/type A, B



2A

Fork-carriage width

b3(mm)

940

940

Fork spread

b5(mm)

200-680

200-680

Distance between wheel arms/loading surfaces

b4(mm)

916

916/976

Reach distance

l4(mm)

500

Ground clearance, laden, below mast

m1(mm)

50

50

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2928

2950

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2996

3019

Turning radius

Wa(mm)

1779

1799

Length across wheel arms

l7 (mm)

1849

1869

Travel speed, laden/unladen

km/h

4.8/5.0

Lift speed, laden/unladen

m/s

0.08/0.12

Lowering speed, laden/unladen

m/s

0.20/0.15

Reaching speed, laden/unladen

m/s

0.1

0.1

Max gradeability, laden/unladen

%

5/12

5/12

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

2.2 AC

Lift motor rating at S3 15%

kW

4.5

4.5

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/490(525)

Battery weight

kg

380(432)

Sound pressure level at the driver's seat

dB (A)

75


Manufacturer's type designition



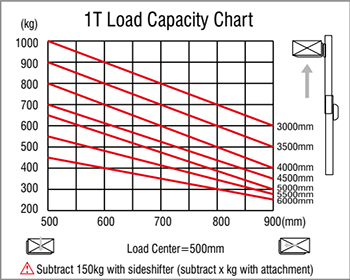

CQDH15A-II (double scissor)

Drive: electric (battery type, mains, ...). diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Pedestrian

Rated capacity/rated load

Q (kg)

1000

Load centre distance

c(mm)

500

Load distance, centre of drive axle to fork

x(mm)

150

150

Wheelbase

y(mm)

1429

1449

Service weight

kg

2250/2300/2350/2380/2530/2580/2630

Axle loading, unladen front/rear

kg

912/1718

Axle loading, fork advanced, laden front/rear

kg

2415/1212

Axle loading, fork retracted, laden front/rear

kg

2218/1412

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Tyre size, front



Φ250x80

Tyre size, rear



Φ125x82

Additional wheels (dimensions)



Φ150x62

Wheels, number front/rear (x = driven wheels)



1x+2/4

Tread, front

b10(mm)

710

710

Tread, rear

b11(mm)

1074

1074

Tilt of mast/fork carriage forward/backward



2/5

Height mast lowered

h1(mm)

1875/2125/2375/2625

2185/2345/2505

Free lift

h2(mm)

N/A

1575/1700/1825

Lift

h3(mm)

2500/3000/3500/4000

4500/5000/5500

Height mast extended

h4(mm)

3535/4035/4535/5035

5535/6035/6535

Height drawbar in driving position min./max

h14(mm)

1100/1600

Overall length

l1(mm)

2535

2555

Length to face of forks

l2(mm)

1465

1485

Overall width

b1/b2(mm)

1232/950

1232/950

Fork dimensions DIN ISO 2331

s/e/l(mm)

35/100/1070

Fork carriage ISO 2328, class/type A, B



2A

Fork-carriage width

b3(mm)

940

940

Fork spread

b5(mm)

200-680

200-680

Distance between wheel arms/loading surfaces

b4(mm)

916

916

Reach distance

l4(mm)

1200

Ground clearance, laden, below mast

m1(mm)





Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2860

2883

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

3040

3063

Turning radius

Wa(mm)

1643

1663

Length across wheel arms

l7 (mm)

1827

1847

Travel speed, laden/unladen

km/h

4.8/5.0

Lift speed, laden/unladen

m/s

0.095/0.12

Lowering speed, laden/unladen

m/s

0.20/0.15

Reaching speed, laden/unladen

m/s

0.1

0.1

Max gradeability, laden/unladen

%

5/12

5/12

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

2.2 AC

Lift motor rating at S3 15%

kW

3.3/4.5

3.3/4.5

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/320

Battery weight

kg

285

Sound pressure level at the driver's seat

dB (A)

75


Manufacturer's type designition



CQDH20A-II (double scissor)

Drive: electric (battery type, mains, ...). diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Pedestrian

Rated capacity/rated load

Q (kg)

1000

Load centre distance

c(mm)

500

Load distance, centre of drive axle to fork

x(mm)

182

178

Wheelbase

y(mm)

1462

1482

Service weight

kg

2480/2530/2580/2630/2730/2780/2830

Axle loading, unladen front/rear

kg

981/1849

Axle loading, fork advanced, laden front/rear

kg

2140/1290

Axle loading, fork retracted, laden front/rear

kg

2340/1490

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Tyre size, front



Φ250x80

Tyre size, rear



Φ125x82

Additional wheels (dimensions)



Φ150x62

Wheels, number front/rear (x = driven wheels)



1x+2/4

Tread, front

b10(mm)

710

710

Tread, rear

b11(mm)

1120

1120

Tilt of mast/fork carriage forward/backward



2/5



Height mast lowered

h1(mm)

1875/2125/2375/2625

2185/2345/2505

Free lift

h2(mm)

N/A

1575/1700/1825

Lift

h3(mm)

2500/3000/3500/4000

4500/5000/5500

Height mast extended

h4(mm)

3535/4035/4535/5035

5535/6035/6535

Height drawbar in driving position min./max

h14(mm)

1100/1600

Overall length

l1(mm)

2535

2557

Length to face of forks

l2(mm)

1393

1417

Overall width

b1/b2(mm)

1232/950

(1232/1292)/950

Fork dimensions DIN ISO 2331

s/e/l(mm)

40/100/1070

Fork carriage ISO 2328, class/type A, B



2A

Fork-carriage width

b3(mm)

940

940

Fork spread

b5(mm)

200-680

200-680

Distance between wheel arms/loading surfaces

b4(mm)

916

916/976

Reach distance

l4(mm)

1200

Ground clearance, laden, below mast

m1(mm)





Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2890

2916

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2972

2996

Turning radius

Wa(mm)

1679

1699

Length across wheel arms

l7 (mm)

1849

1869

Travel speed, laden/unladen

km/h

4.8/5.0

Lift speed, laden/unladen

m/s

0.10/0.17

Lowering speed, laden/unladen

m/s

0.20/0.13

Reaching speed, laden/unladen

m/s

0.1

0.1

Max gradeability, laden/unladen

%

5/12

5/12

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

2.2 AC

Lift motor rating at S3 15%

kW

4.5

4.5

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/490(525)

Battery weight

kg

380(432)

Sound pressure level at the driver's seat

dB (A)

75

* Option: Lithium battery 230AH (Charger 24V/100A)
Watch overview
Company Profile

NINGBO RUYI JOINT STOCK CO.,LTD.

High-end Performance and Comprehensive Service
Ningbo Ruyi was established in 1985, mainly produce Manual/Electric pallet truck, Manual/electric stacker, Reach truck, Order picker, Lift table, Tractor, Forklift and other material handling equipments.

As China Wholesale Walkie Type with Magnetic Valve Control CQDH15A-II/ CQDH20A-II Suppliers and ODM Walkie Type with Magnetic Valve Control CQDH15A-II/ CQDH20A-II company, Ningbo Ruyi adheres to the concept of synchronous development of global technology. It adopts more than 800 sets of advanced automation processes and equipment, such as laser cutting machine, plasma cutting machine, machining center, robot welding, automatic spraying line, etc. We have established a perfect quality inspection system and realized the modernization and digital detection.

"Product innovation, management innovation, quality innovation, equipment innovation, sales innovation" , making "Ruyi" to develop the world's leading industrial handling vehicle technology, seize the commanding height of handling vehicles, extend the industrial chain, strengthen and expand the "Ruyi" industrial platform, and cultivate international competitiveness.
39

YEARS

265

PATENTS

288

ENGINEERS

260,000

FACTORY SCALE

GET STARTED TODAY

We Can Help You With

there are many variations of Walkie Type with Magnetic Valve Control CQDH15A-II/ CQDH20A-II wholesale, but the majority have services for all types.

Contact Us Inquiry

Inquiry

*We respect your confidentiality and all information are protected.
