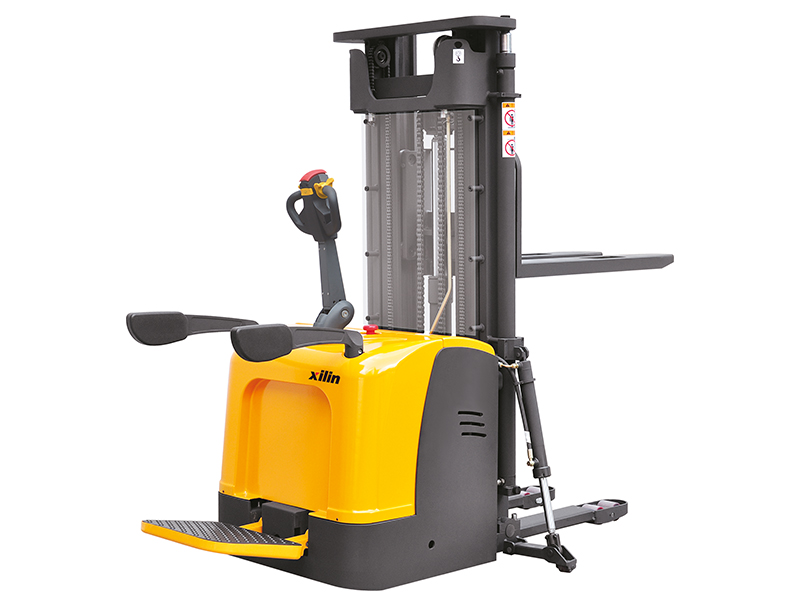

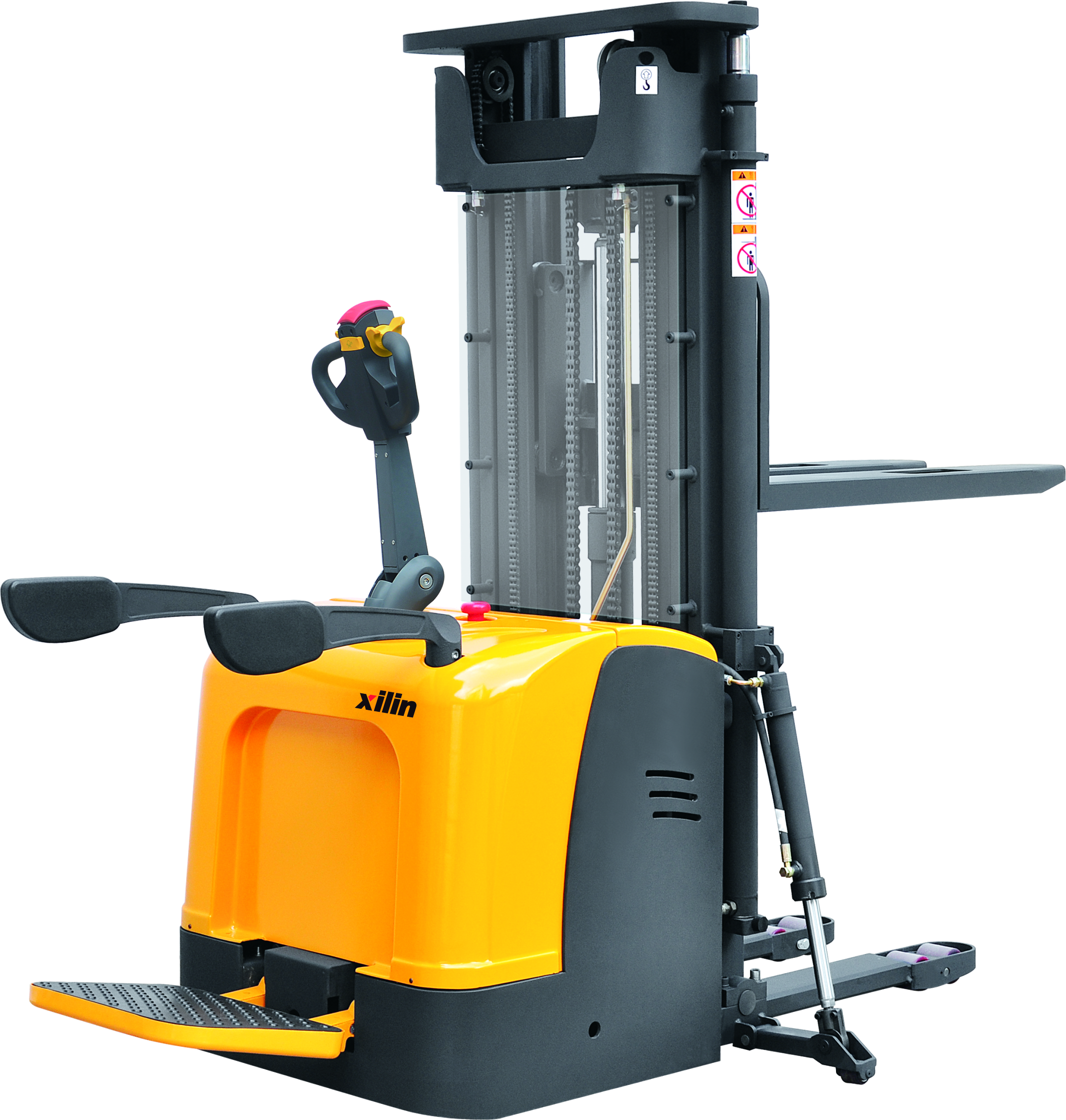

Max. lifting Height: 6. 5M
Safety And Produnctivity:
● AC Motor eliminates replacement of carbon brush.
● Multi-function display with BDI and hour meter.

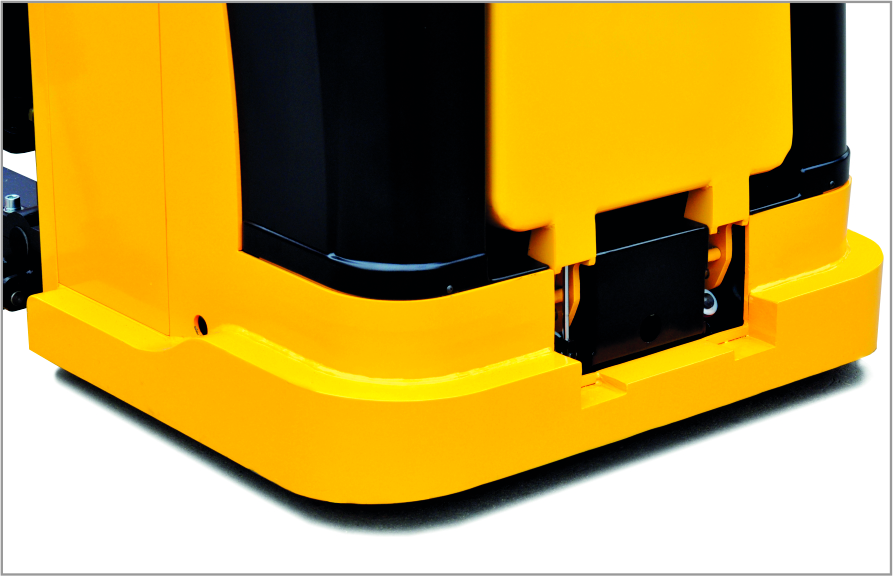

● Side way battery is easy to maintain.
● Damping cushion for low-noise operation;
● Emergency reversing device in the handle provides higher safety for the whole operation.
● Auto deceleration function makes operation more safely.
● Built-in pressure relief valve protects the trucks from overloads, increases the reliability.
● Braking applied with handle upright and horizontal position, increasing the safety of the truck.
● Emergency power disconnect switch.
● Turtle-shaped low speed switch.
● Stepless speed control.
● Supporting legs in both sides for triplex mast (Duplex mast without supporting legs).
|
Optimum Structural Design:
● Low center of gravity ensures the stable operation.
● Vertical driving wheel ensures convenient maintenance and small turning radius. Water-proof and dust-proof motor structure, keeps the braking and motor more durable and reliable.
● The mast and the frame are dividable and exchangeable.
● Full free lifting, fit for working in low roof house.
|
Serviceability:
● Low voltage protection setting prolongs the battery life time.
● The electronic components’ concentrated design simplify the circuit and makes easy access to assemble, debug and maintain,
● CANbus technology reduces wiring complexity and increase reliability.
● Hall element reduces wear components, resulting in increased component life.
|
Manufacturer's type designition |
|
CDDK20 |
CDDK20 |
Drive: electric (battery type, mains,…),diesel, petrol, fuel gas |
|
Electric |
Electric |
Operator type: hand, pedestrian, standing, seated, order-picker |
|
Standing |
Standing |
Rated capacity/rated load |
Q(kg) |
2000 |
2000 |
Load centre distance |
c(mm) |
600 |
600 |
Load distance, centre of drive axle to fork |
x(mm) |
672 |
672 |
Wheelbase |
y (mm) |
1378 |
1408 |
Service weight |
kg |
1280/1320/1350/1640/1680/1720/1730 |
1850 |
Axle loading, laden front/rear |
kg |
1890/1660 |
2090/1760 |
Axle loading, unladen front/rear |
kg |
1070/480 |
1270/580 |
Tyres: solid rubber, super elastic, pneumatic, polyurethane |
|
Polyurethane |
Polyurethane |
Tyre size, front |
|
Φ250x80 |
Φ250x80 |
Tyre size, rear |
|
Φ80x84 |
Φ80x84 |
Additional wheels (dimensions) |
|
Φ150x60 |
Φ150x60 |
Wheels, number front/rear (x = driven wheels) |
|
1x+1/4 |
1x+1/4 |
Tread, front |
b10(mm) |
540 |
540 |
Tread, rear |
b11(mm) |
404/525 |
404/525 |

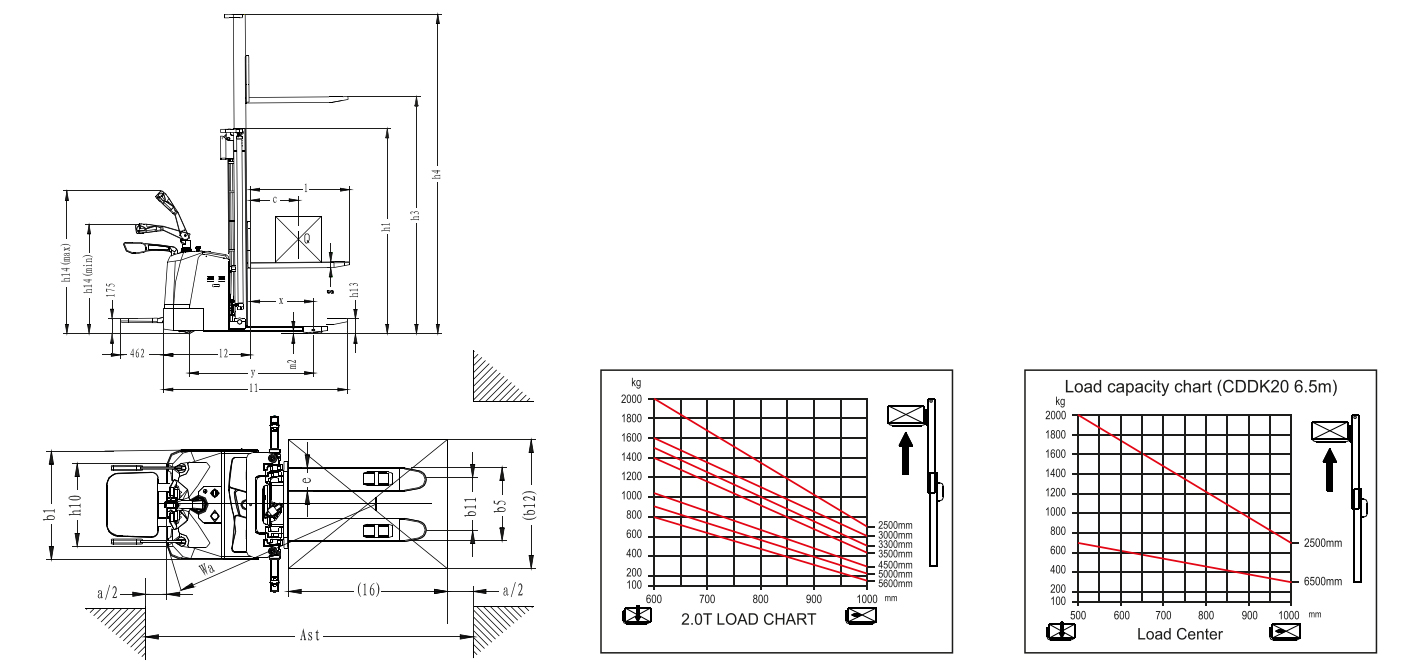

Height mast lowered |
h1(mm) |
1735/1985/2135/2235/2050/2210/2410 |
2710 |
Free lift |
h2(mm) |
1300/1550/1700/1800/1570/1740/1940 |
2240 |
Max. lift height |
h3(mm) |
2500/3000/3300/3500/4500/5000/5600 |
6500 |
Height mast extended |
h4(mm) |
2955/3455/3755/3955/5030/5510/6110 |
7050 |
Height drawbar in driving position min./max. |
h14(mm) |
1150/1450 |
1150/1450 |
Height of wheel arms |
h8(mm) |
81 |
81 |
Height lowered |
h13(mm) |
90 |
90 |
Overall length |
l1(mm) |
2020(2100) |
2100(2180) |
Length to face of forks |
l2(mm) |
950 |
950 |
Overall width |
b1/b2(mm) |
850 |
900 |
Fork dimensions DIN ISO 2331 |
s/e/l(mm) |
60/180/1070(1150) |
60/180/1070(1150) |
Fork spread |
b5(mm) |
570/695 |
570/695 |
Ground clearance, centre of wheelbase |
m2(mm) |
31 |
31 |
Aisle width for pallets 1000 x 1200 crossways |
Ast(mm) |
2535 |
2615 |
Aisle width for pallets 800 x 1200 lengthways |
Ast(mm) |
2515 |
2595 |
Turning radius |
Wa(mm) |
1655 |
1735 |
Travel speed, laden/unladen |
km/h |
7.0/7.1 |
7.0/7.1 |
Lift speed, laden/unladen |
m/s |
0.11/0.16 |
0.11/0.16 |
Lowering speed, laden/unladen |
m/s |
0.12/0.11 |
0.12/0.11 |
Max. gradeability. laden/unladen |
% |
6/15 |
6/15 |
Service brake |
|
Electromagnetic |
Electromagnetic |
Drive motor rating S2 60 min |
kW |
1.5(AC) |
1.5(AC) |
Lift motor rating at S3 15% |
kW |
3 |
3.0 |
Battery voltage/nominal capacity K5 |
(V)/(Ah) or kWh |
24/300 |
24/300 |
Battery weight |
kg |
260 |
260 |
Sound pressure level at the driver's seat |
dB (A) |
70 |
70 |
