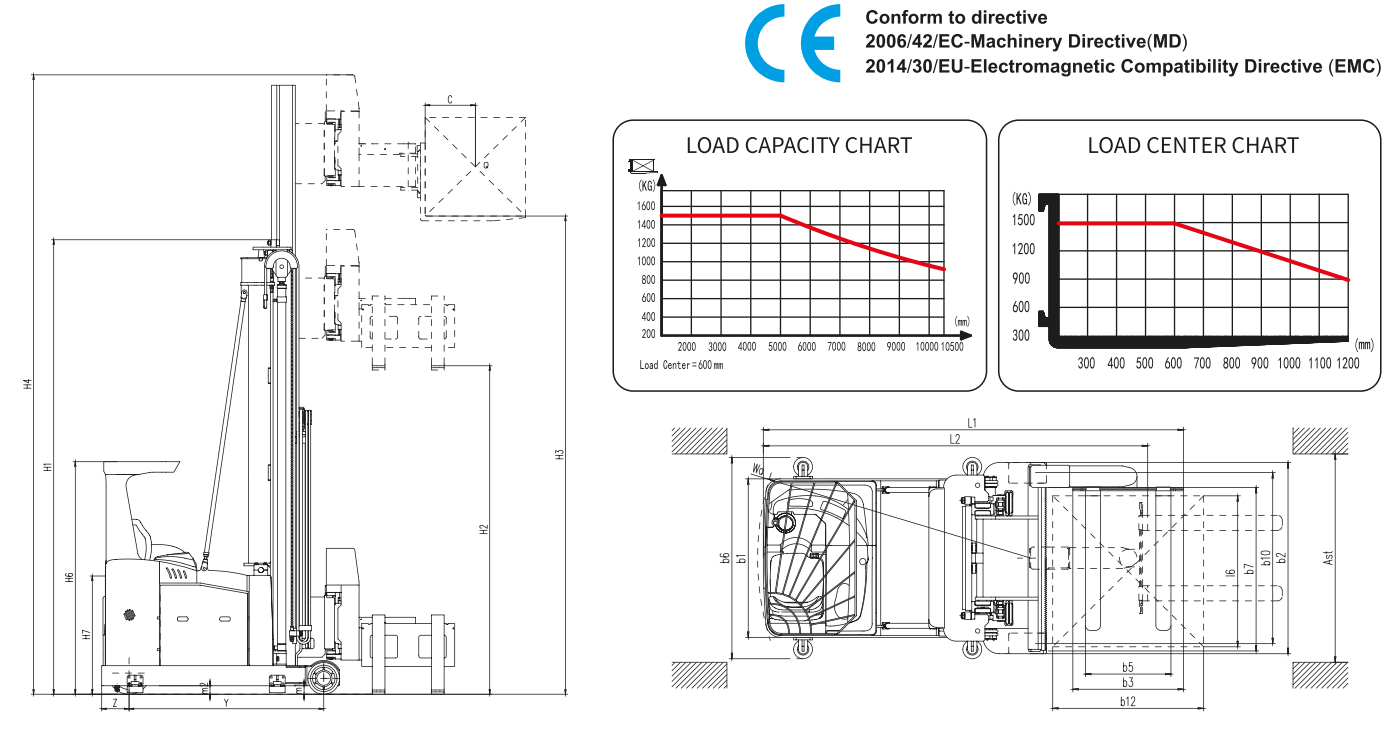

Tri-Lateral Stacker

Manufacturers type designition

OPD15

Drive: electric (battery type, mains,...), diesel, petrol, fuel gas

Electric

Operator type: hand, pedestrian, standing, seated, order-picker

Seated

Rated capacity/rated load

Q(kg)

1500

Load centre distance

c(mm)

600

Load distance, centre of drive axle to fork

x(mm)

150

Wheelbase

y(mm)

1840

Service weight

kg

6370

Axle loading, laden front/rear

kg

5800/2070

Axle loading, unladen front/rear

kg

3700/2670

Tyres: solid rubber, super elastic, pneumatic, polyurethane

Polyurethane

Tyre size, front

mm

Φ300x164

Tyre size, rear

mm

Φ406x152

Wheels, number front/rear (x = driven wheels)

2/1X

Tread, front

b10(mm)

1360

Height, mast lowered

h1(mm)

2800/3200/3600/3800/4000/4300/4640

Free lift

h2(mm)

1330/1730/2130/2330/2530/2830/3170

h2(*)(mm)

1700/2100/2500/2700/2900/3200/3540

Max. lift height

h3(mm)

5000/6200/7400/8000/8600/9500/10500

Height, mast extended

h4(mm)

5470/7670/8870/9470/10070/10970/11970

Height of overhead guard (cabin)

h6(mm)

2200

Seat height relating to SIP/stand height

h7(mm)

1120

Height of wheel arms

h8(mm)

320

Overall length

l1(mm)

3340

Length to face of forks

l2(mm)

3055

Overall width

b1/b2 (mm)

1260/1520

Fork dimensions DIN ISO 2331

s/e/l(mm)

45/125/1250

Fork carriage ISO 2328, class/type A, B

2

Fork-carriage width

b3(mm)

880

Width across guide rolls

b6(mm)

1600

Reach, lateral

b7(mm)

1300

Reach, lateral from vehicle centreline

b8(mm)

495

Ground clearance, laden, below mast

m1(mm)

80

Ground clearance, centre of wheelbase

m2(mm)

80

Turning radius

Wa(mm)

2170

Distance to swivelling-fork pivot

l8(mm)

800

Travel speed, laden/unladen

km/h

8.0/8.5

Lift speed, laden/unladen

m/s

0.20/0.30

Lowering speed, laden/unladen

m/s

0.40/0.30

Reaching speed, laden/unladen

m/s

0.15/0.15

Service brake

Electromagnetic

Drive motor rating S2 60 min

kW

7.0(AC)

Lift motor rating at S3 15%

kW

12.0(AC)

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

48/1000

Battery weight

kg

1600

Sound pressure level at the driver's seat

dB(A)

70
