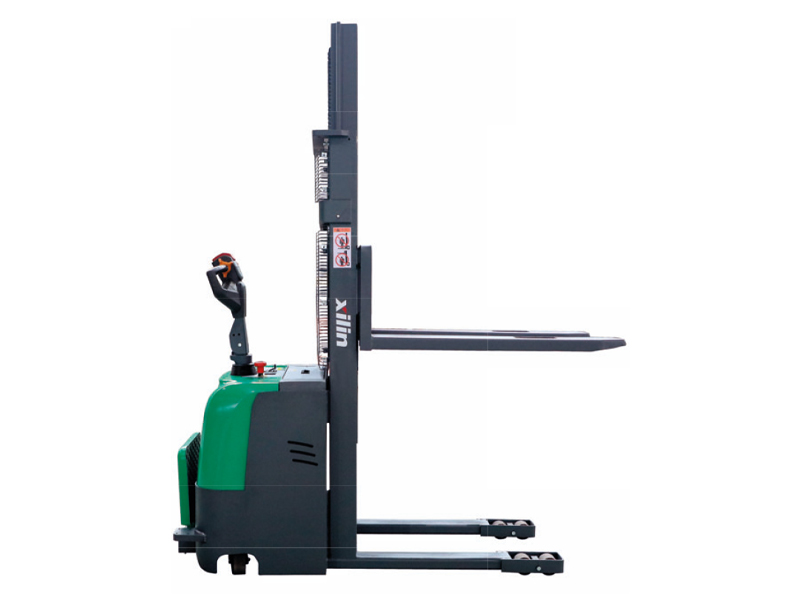

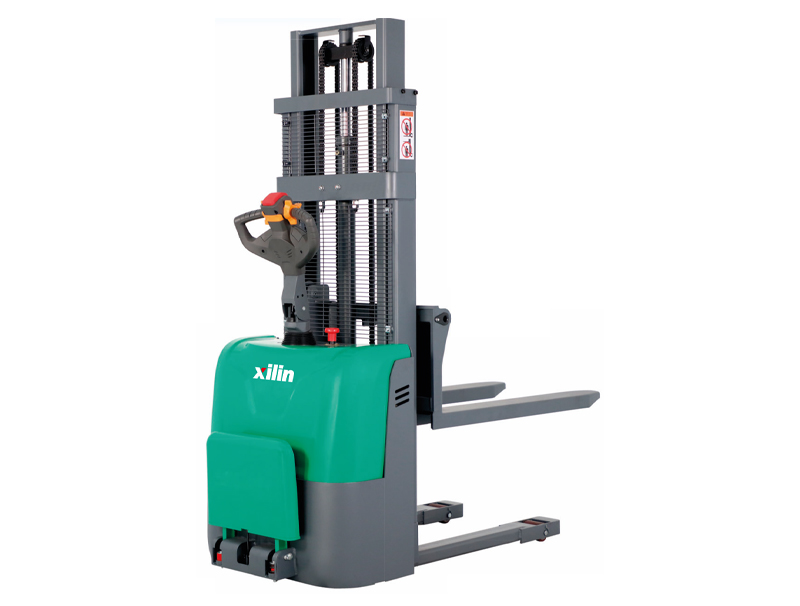

Electric Rider Stacker CDD15K-E/N / CDD20K-E/N Suppliers

home / product / Electric Stacker / Electric Reach Stacker / Electric Rider Stacker
  • Electric Rider Stacker CDD15K-E/N / CDD20K-E/N
  • Electric Rider Stacker CDD15K-E/N / CDD20K-E/N
Model

CDD15K-E/N / CDD20K-E/N

Electric Rider Stacker

  • Electric Rider Stacker CDD15K-E/N / CDD20K-E/N
  • Electric Rider Stacker CDD15K-E/N / CDD20K-E/N

Advantage:

DIMENSION Drawing:

Manufacturer's type designition CDD15K-E/N CDD20K-E/N
Drive:electric(battery type,main.,..,diesel,petrol,fuel gas Electric Electric
Operator type: hand, pedestrian, standing, seated, order-picker Pedestrian Standing

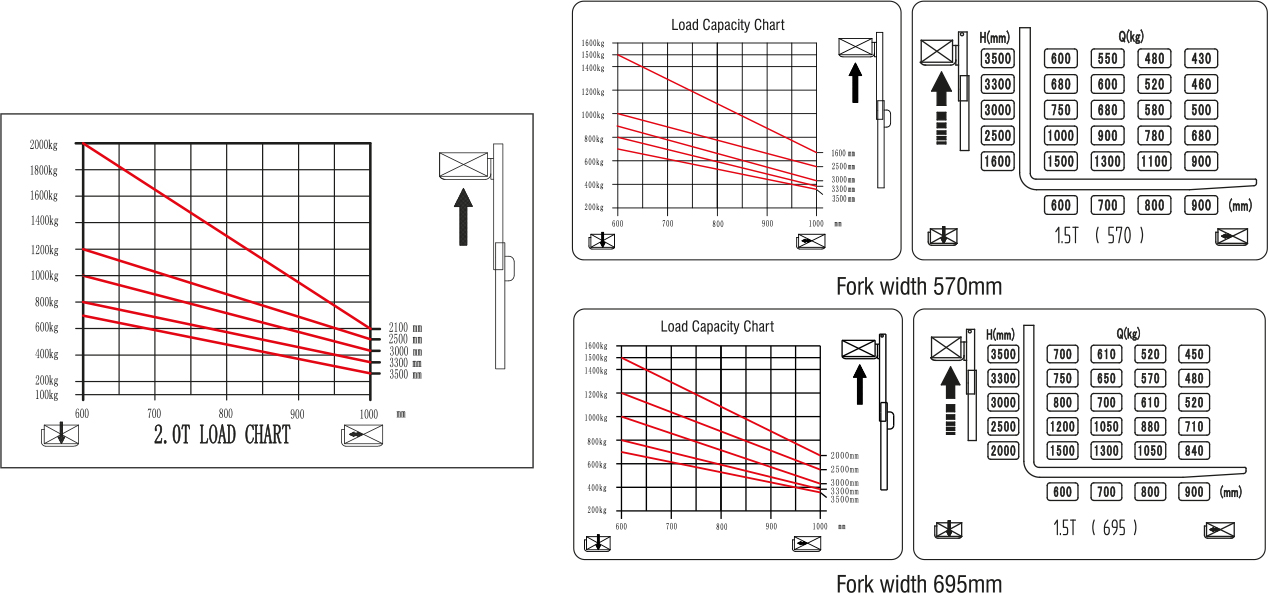

Rated capacity/rated load Q(kg) 1500  2000
Load centre distance c(mm) 600  600
Load distance, centre of drive axle to fork x(mm) 690  884
Wheelbase y(mm) 1342  1326
Service weight kg 610  900
Axle loading, laden front/rear kg 591/1498 1032/1974
Axle loading ,unladen front/rear kg 414/172 749/249
Tyres: solid rubber, superelastic ,pneumatic ,polyurethane PU PU
Tyre size, front φ195*70 φ230*70
Tyre size ,rear φ80*92 φ80*70
Additional wheels (dimensions) φ127*57 φ127*57
Wheel s,number front/rear(×=driven wheels) 1x+2/2 1x+2/4
Tread ,front b10(mm) 648  648
Trea d,rear b11(mm) 410/525 410/525
Height ,mast lowered h1(mm) 2090/1840/2090/2200/2340 1744/1994/2144/2244/2494
Free lift h2(mm) N/A N/A
Lift h3(mm) 1600/2500/3000/3300/3500 2500/3000/3300/3500/4000
Height, mast extended h4(mm) 2090/3060/3560/3860/4060 2960/3460/3760/3960/4460
Height drawbar in driving position min./max. h14(mm) 670/1300 1070/1370
Height of wheel arms h8(mm) 81  81
Height, lowered h13(mm) 90  90
Overall length 11(mm) 2175(1150) 2095(1070) 2035(1150) 1955(1070)
Length to face of forks l2(mm) 935  885
Overall width b1/b2(mm) 800  800
Fork dimensions DIN ISO 2331 s/e/I(mm) 60/142(160)/1150(1070) 60*170*1150(1070)
Fork spread b5(mm) 300-695 570/695
Ground clearance, centre of wheelbase m2(mm) 26  26
Aisle width for pallets 1000×1200 crossways Ast(mm) 2509  2518
Aisle width for pallets 800×1200 lengthways Ast(mm) 2482  2475
Turning radius Wa(mm) 1635  1665
Travel speed,laden/unladen km/h 4.5/5 5/6
Lift speed,laden/unladen m/s 0.09/0.15 0.07/0.11
Lowering speed,laden/unladen m/s 0.15/0.11 0.13/0.08
Max.gradeability,laden/unladen % 6/15 5/10
Service brake Electromagnetic Electromagnetic
Drive motor rating S260 min kW 0.65  1.2(AC)
Lift motor rating at S315% kW 2.2  2.2
Battery voltage/nominal capacity K5 (V)/(Ah)or kWh 24/105(125) 24/165 24/210
Battery weight kg 52(70) 120  175
Sound pressure level at the driver's seat dB(A) 70  70
