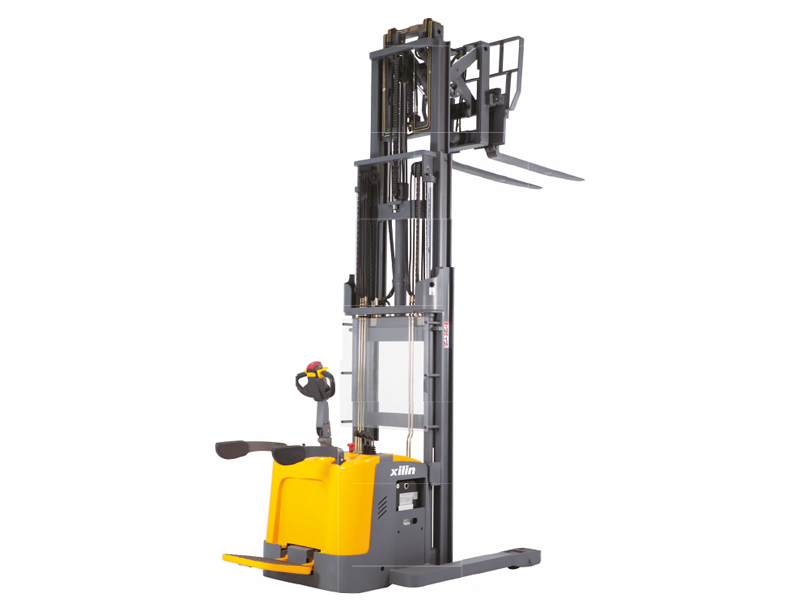

  • Rider Type with Magnetic Valve Control  CQDH15A-III
Model

CQDH15A-III

Rider Type with Magnetic Valve Control

  • Rider Type with Magnetic Valve Control  CQDH15A-III

Advantage:

STRUCTURAL:
● Reach stacker with very compact design, have different options with plat form or without platform.
● Low gravity, ensure safety operation.
● Water proof and dust proof motor structure, keeps the braking and motor more durable and reliable.
● Multi function display with BDl, hour meter and fault code.
● Vertical driving wheel ensures convenient maintenance and small turning radius.
● The mast and frame are dividable and exchangeable.
SAFETY AND EFFICIENCY
Advanced AC drive motor eliminates replacement of carbon brush, with good ramp starting performance.
Use Germany Frei handle to control driving speed, lifting/lowering speed, sideshift, fork reach and tilting.
Cylinder have safety explosion proof valve,to avoid fork dropping suddenly when oil tube is broken . ensure the safety of operator.
Automatic speed deceleration when lifting height is up 1.8M.
Mast with micro switch limit the cylinder lifting height, avoid mast shock problems.
Low voltage protection setting prolongs the battery life. (while battery less 20% only can drive no lifting)
Option EPS power steering system, makes steering more light an reliable.
SERVICE ABILITY
Platform and protection arm are disassembled, easy maintenance.
The electronic components concentrated simplifies the circuit and makes easily assemble and access.
Battery equipped with protect device, the trucks will automatic cut off power will when battery is under charging.

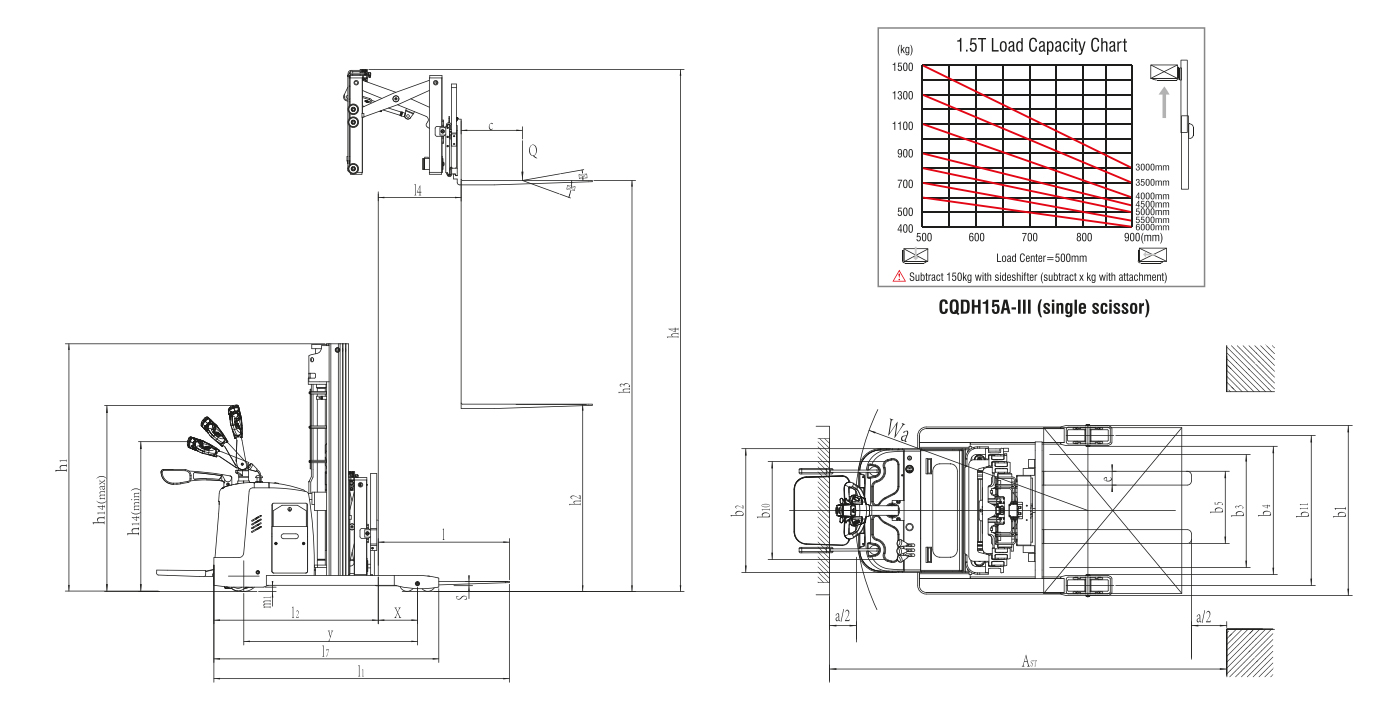

DIMENSION Drawing:

Manufacturer's type designition



CQDH15A-III (single scissor)

Drive: electric (battery type, mains, ...). diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Pedestrian

Rated capacity/rated load

Q (kg)

1500

Load centre distance

c(mm)

500

Load distance, centre of drive axle to fork

x(mm)

320

Wheelbase

y(mm)

1417

Service weight

kg

2515

Axle loading, unladen front/rear

kg

1537/978

Axle loading, fork advanced, laden front/rear

kg

907/3134

Axle loading, fork retracted, laden front/rear

kg

1488/2562

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Tyre size, front



Φ250 x 80

Tyre size, rear



Φ125x82

Additional wheels (dimensions)



Φ150x62

Wheels, number front/rear (x = driven wheels)



1x+2/4

Tread, front

b10(mm)

710

Tread, rear

b11(mm)

1086

Tilt of mast/fork carriage forward/backward



2/5

Height mast lowered

h1(mm)

2179/2341/2499

Free lift

h2(mm)

1575/1700/1825

Lift

h3(mm)

4500/5000/5500

Height mast extended

h4(mm)

5381/5881/6381

Height drawbar in driving position min./max

h14(mm)

1160/1460

Overall length

l1(mm)

2411

Length to face of forks

l2(mm)

1341

Overall width

b1/b2(mm)

1344/896

Fork dimensions DIN ISO 2331

s/e/l(mm)

35/100/1070

Fork-carriage width

b3(mm)

990

Fork spread

b5(mm)

200-760

Distance between wheel arms/loading surfaces

b4(mm)

929

Reach distance

l4(mm)

500

Ground clearance, laden, below mast

m1(mm)

35

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2796

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2856

Turning radius

Wa(mm)

1689

Length across wheel arms

l7 (mm)

1835

Travel speed, laden/unladen

km/h

6.1/6.1

Lift speed, laden/unladen

m/s

0.09/0.12

Lowering speed, laden/unladen

m/s

0.2/0.15

Reaching speed, laden/unladen

m/s

0.1

Max gradeability, laden/unladen

%

5/12

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

1.5 AC

Lift motor rating at S3 15%

kW

4.5

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/280

Battery weight

kg

285

Sound pressure level at the driver's seat

dB (A)

75

* Option: Lithium battery 230AH (Charger 24V/100A)
