  • Stand-in Electric Stacker CDD15C
Model

CDD15C

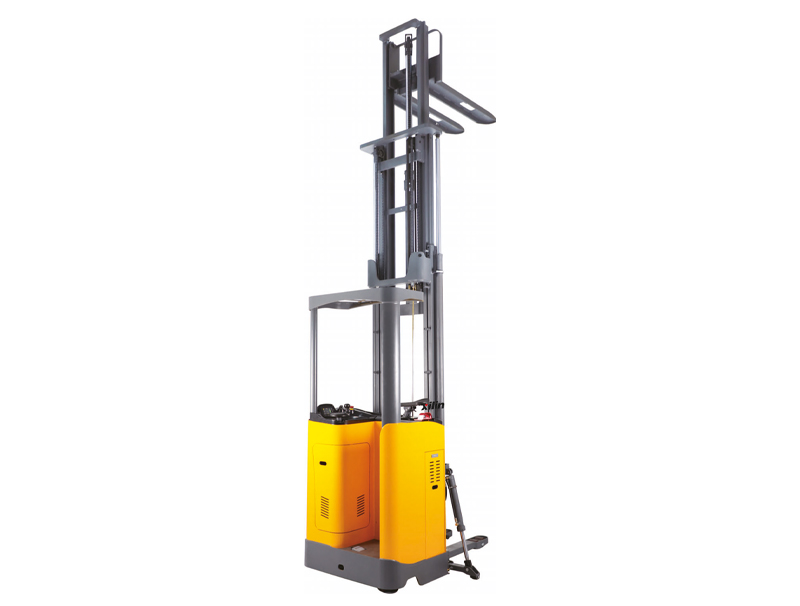

Stand-in Electric Stacker

CDD15C stand-in Electric Stacker with overhead guard with large operation compartment and stable bases, which greatly improve the operator's safety, the trucks applied with a flexible integrated Joystick with EPS,use the ergonomics design pricinple reduces working fatigue and improving the work efficiency.

  • Stand-in Electric Stacker CDD15C

Advantage:

●Humanized electric power steering (EPS) structure is able to adjust the position of the steering wheel up and down according to the different heights of the operator, which meets the comfort of
● Ithe operator to the greatest extent. The steering wheel can adjust operation positions in its plane circumference.
● Damping steering structure improves the comfort of the steering wheel through three screws.
● Comfortable armrests can be easily adjusted to all directions and angels.
● The driving wheel has the function of automatic return to center when powered on.
● Lowly mounted battery and tank decrease the center of gravity and enhance the stability of the forklift.
● Integrated operating handle is multifunctional. Its left and right ends are designed to control the driving directions. The greater angle, the faster speed.
● Hydraulic supporting legs at both sides improves the stability.
● The wide-view mast is made of high lifting special section steel imported from Germany.
● Rubber damping pads are installed under the inner mast to prevent it from hitting the bottom directly and reduce the noise.
● The oil tubing is clean. Dividable and exchangeable frame and mast are connected by screws.
● Advanced electronic and hydraulic components improves the service life and stability of the forklift. Brushless AC motor is maintenance-free. Low-voltage protection system extends the service life of the battery.
● Side-way battery makes charge, replace and maintain of the battery easy. Side door enables to repair electrical appliances and replace the driving wheel.
● Automatic speed reduction when turning rapidly and the direction of turning will be displayed on the instrument.

Multi function display Adjustable armrest Side stabilizers work simultaneousely

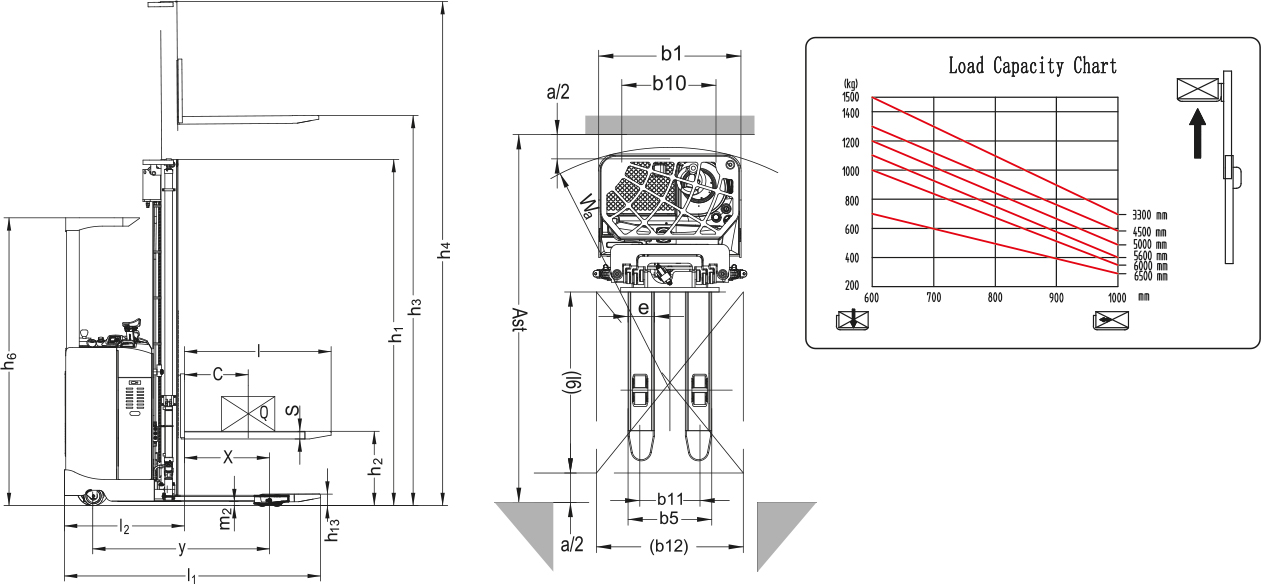

DIMENSION Drawing:

Model CDD15C
Drive type Electric  (battery)
Operator type Stand-on type
Load capacity Q(kg) 1500
Load center distance c(mm) 600
Load distance. centre of drive axle to fork x(mm) 672
Tread Y(mm) 1386
Service weight (with battery) kg 1995
Axle load, front/rear, laden kg 1722/1773
Axle load, front/rear, unladen kg 1377/618
Tyres Polyurethane wheels
Tyre size, front φ250×80
Tyre size, rear φ80×84
Balance wheel dimension φ150×47
Wheels, number front/rear(x=drive wheel) 1x+2/4
Tread, front b10(mm) 648
Tread, rear b11(mm) 405/530
Height, mast lowered h1(mm) 2050/2210/2410/2710
Free lift (optional) h2(mm) 1570/1740/1940/2240
Max. Lift height h3(mm) 4500/5000/5600/6500
Height, mast extended h4(mm) 5030/5510/6110/7050
Height of overhead guard h6(mm) 2255
Height, lowered h13(mm) 90
Overall length l1(mm) 2010/2090
Length to face of forks l2(mm) 940
Overallwidth b1(mm) 970
Fork dimension s/e/l(mm) 60/180/1070(1150)
Width overall forks b5(mm) 570/695
Ground clearance, center of wheelbase m2(mm) 31
Aisle width for pallets 1000×1200 crossways Ast(mm) 2537
Aisle width for pallets 800×1200 lengthways Ast(mm) 2467
Turning radius Wa(mm) 1653
Travel speed,laden/unladen Km/h 8.5/8.5
Lift speed,laden/unladen m/s 0.16/0.24
Lowering speed,laden/unladen m/s 0.35/0.22
Max.gradeability,laden/unladen % 44788
Service brake Electromagnetic brake
Drive motor kW 2.2(AC)
Lifting motor kW 3.2
Battery voltage/nominal capacity V/Ah 24/400
Battery weight kg 330
Battery dimensions /w/h mm 654×254×760
Sound level at driver's ear according to DIN 12053 dB(A) 75
