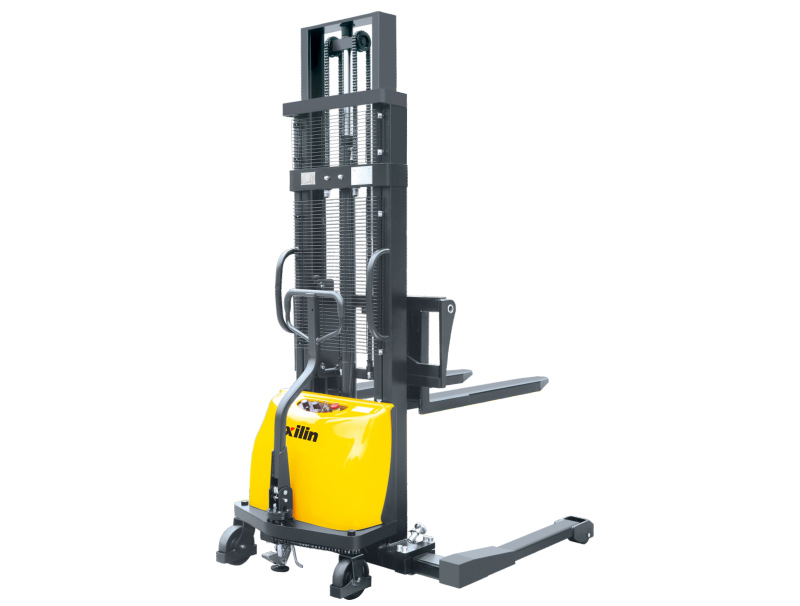

  • Semi-electric Straddle Stacker CTD10B-III/CTD15B-III
Model

CTD10B-III/CTD15B-III

Semi-electric Straddle Stacker

  • Semi-electric Straddle Stacker CTD10B-III/CTD15B-III

Advantage:

● Handle-castor chain assist steering system greatly reduces the labor intensity.
● Equipped with explosion-proof valve, against of sudden drop of forks and prevent operator from harm.
● Over-discharge protection device greatly prolongs the battery life time.
● Overall type adjustable forks, which can be lowered to the same level of the legs.
● Chain connect side wheel and handle , easy for steering.
● Easy operating foot brake.

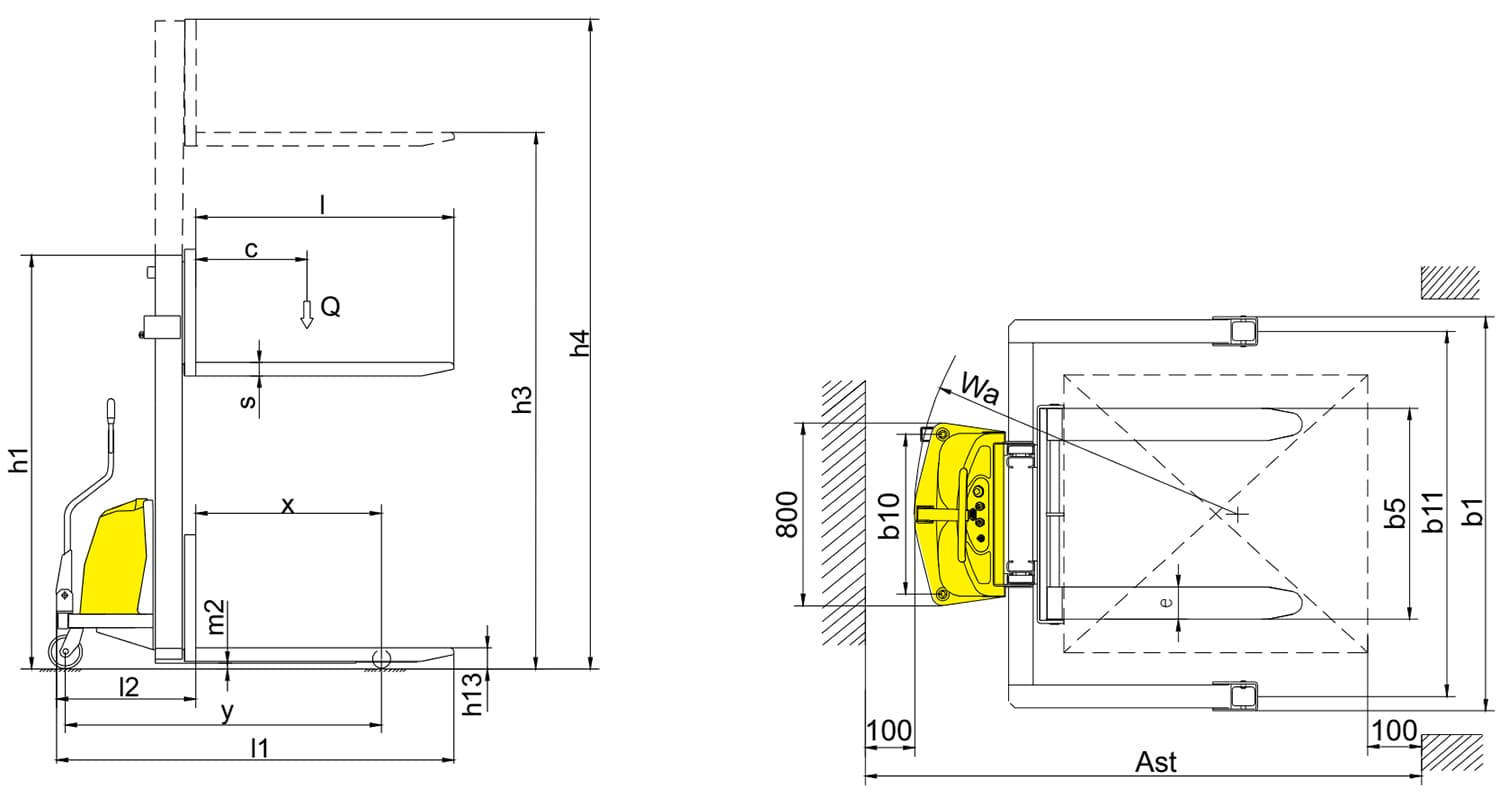

DIMENSION Drawing:





Overall forks

Manufacturer's type designition



CTD10B-III

CTD15B-III

Drive: electric (battery type, mains,…),diesel, petrol, fuel gas



Electric

Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Pedestrian

Pedestrian

Rated capacity/rated load

Q(kg)

1000

1500

Load centre distance

c(mm)

500

500

Load distance, centre of drive axle to fork

x(mm)

757

739

Wheelbase

y(mm)

1288

1368

Service weight

kg

405/460/495/545

455/525/530/600

Axle loading, laden front/rear

kg

545/915

675/1350

Axle loading, unladen front/rear

kg

345/115

390/135

Tyres: solid rubber, super elastic, pneumatic, polyurethane



NYLON

NYLON

Tyre size, front



Φ180x50

Φ180x50

Tyre size, rear



Φ98x82

Φ98x82

Wheels, number front/rear (x = driven wheels)



2/2

2/2

Tread, front

b10(mm)

700

700

Tread, rear

b11 (mm)

1016

1416

Height, mast lowered

h1 (mm)

2145/1895/2145/2395

Max. lift height

h3(mm)

1600/2500/3000/3500

Height, mast extended

h4 (mm)

2145/3100/3600/4100

Height of wheel arms

h8 (mm)

125

125

Height, lowered

h13(mm)

80

80

Overall length

l1 (mm)

1735

1835

Length to face of forks

l2 (mm)

531

629

Overall width

b1/b2 (mm)

1152-1524

1152-1524

Fork dimensions DIN ISO 2331

s/e/l (mm)

60/142/1070

60/142/1070

Fork spread

b5 (mm)

295-930

295-930

Ground clearance, centre of wheelbase

m2 (mm)

40

40

Aisle width for pallets 1000 x 1200 crossways

Ast(min)

2391

2471

Aisle width for pallets 800 x 1200 lengthways

Ast(min)

2391

2471

Turning radius

Wa(mm)

1425

1505

Lift speed, laden/unladen

m/s

0.07/0.10

0.07/0.10

Lowering speed, laden/unladen

m/s

0.15/0.12

0.12/0.15

Service brake



Mechanical brake

Mechanical brake

Lift motor rating at S3 15%

kW

1.6

2

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

12/120

12/120

Battery weight

kg

45

90

Sound pressure level at the driver's seat

dB(A)

70

70







Forged forks

Manufacturer's type designition



CTD10B-III

CTD15B-III

Drive: electric (battery type, mains,…),diesel, petrol, fuel gas



Electric

Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Pedestrian

Pedestrian

Rated capacity/rated load

Q(kg)

1000

1500

Load centre distance

c(mm)

500

500

Load distance, centre of drive axle to fork

x(mm)

796

785

Wheelbase

y(mm)

1288

1368

Service weight

kg

420/475/490/510

470/536/550/580

Axle loading, laden front/rear

kg

555/920

681/1355

Axle loading, unladen front/rear

kg

355/120

396/140

Tyres: solid rubber, super elastic, pneumatic, polyurethane



NYLON

NYLON

Tyre size, front



Φ180x50

Φ180x50

Tyre size, rear



Φ98x82

Φ98x82

Wheels, number front/rear (x = driven wheels)



2/2

2/2

Tread, front

b10(mm)

700

700

Tread, rear

b11 (mm)

1016

1416

Height, mast lowered

h1 (mm)

2145/1895/2145/2395

Max. lift height

h3(mm)

1600/2500/3000/3500

Height, mast extended

h4 (mm)

2145/3100/3600/4100

Height of wheel arms

h8 (mm)

125

125

Height, lowered

h13(mm)

80

80

Overall length

l1 (mm)

1735

1835

Length to face of forks

l2 (mm)

492

583

Overall width

b1/b2 (mm)

1152-1524

1152-1524

Fork dimensions DIN ISO 2331

s/e/l (mm)

35/100/1070

35/100/1070

Fork spread

b5 (mm)

200-800

200-800

Ground clearance, centre of wheelbase

m2 (mm)

40

40

Aisle width for pallets 1000 x 1200 crossways

Ast(min)

2391

2471

Aisle width for pallets 800 x 1200 lengthways

Ast(min)

2391

2471

Turning radius

Wa(mm)

1425

1505

Lift speed, laden/unladen

m/s

0.07/0.10

0.07/0.10

Lowering speed, laden/unladen

m/s

0.15/0.12

0.12/0.15

Service brake



Mechanical brake

Mechanical brake

Lift motor rating at S3 15%

kW

1.6

2

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

12/120

12/120

Battery weight

kg

45

90

Sound pressure level at the driver's seat

dB(A)

70

70
