U.S. Type Lift Table SP150/SP300/SP500 Suppliers

home / product / Lift Table / U.S. Type / U.S. Type Lift Table

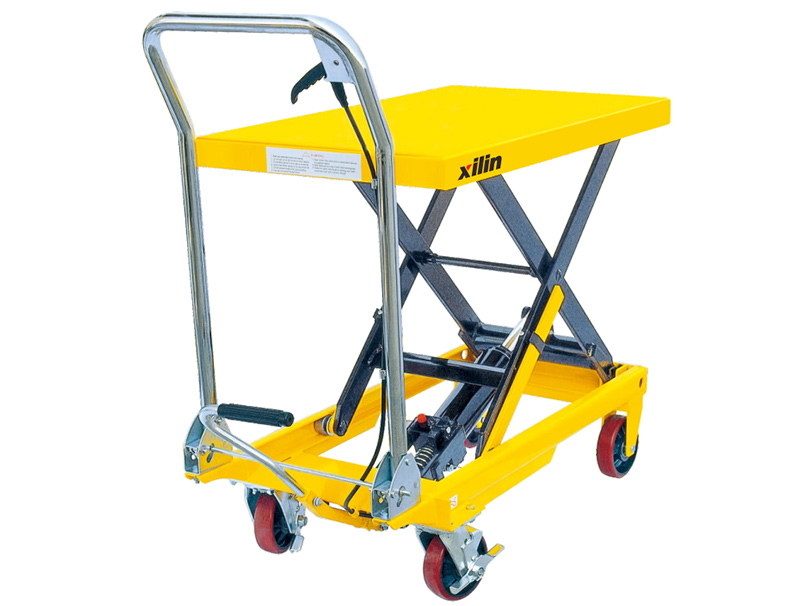

  • U.S. Type Lift Table  SP150/SP300/SP500
Model

SP150/SP300/SP500

U.S. Type Lift Table

  • U.S. Type Lift Table  SP150/SP300/SP500

Advantage:

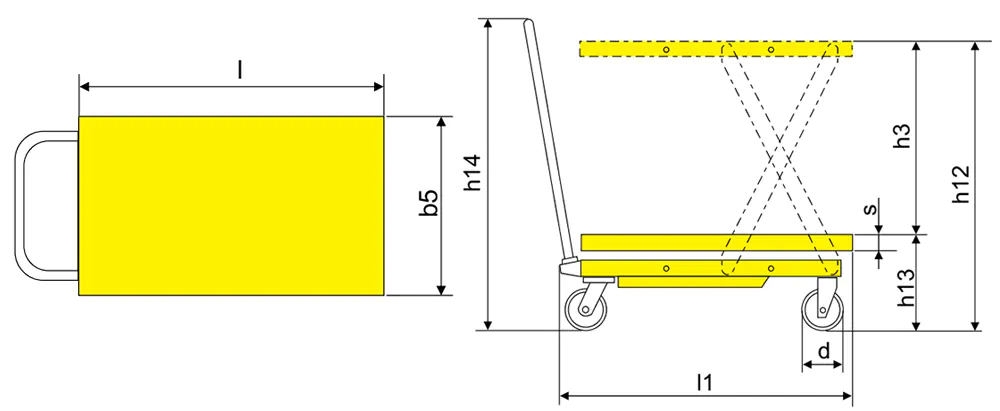

DIMENSION Drawing:

Model   SP150 SP300 SP500 SP500A* SP500B* SP500C*
Capacity kg 150 300 500 500 500 500
Max. lift height h12(mm) 740 900 900 900 1100 900
Min.height of table h13(mm) 225 280 280 305 310 305
Lifting height h3(mm) 515 620 620 595 790 595
Table size lxb5xs(mm) 700x450x35 815x500x50 815x500x50 1050x700x52 1200x800x52 1050x850x52
Total height h14(mm) 935 996 996 970 970 970
Overall length l1(mm) 770 937 937 1120 1270 1120
Foot pedal cycles to max height   ≤25 ≤32/≤45 ≤32/≤45 ≤55 ≤55 ≤55
Wheel diameter d (mm) 100 127 127 127 127 127
Qty. / 20' Container PCS 192 120 120 90 60 90
Service weight kg 42 74.5/79.5 74.5/79.5 108 120 108
Carton size mm 820x480x265 960x530x420 960x530x420 1150x730x330 1300x830x340 1150x880x330
*Model SP500A,SP500B and SP500C are different on table size and lifting height.
1KG=2.205LB 1INCH=25.40MM
