  • Counterbalanced Electric Reach Stacker CQD12W/CQD15W
Model

CQD12W/CQD15W

Counterbalanced Electric Reach Stacker

  • Counterbalanced Electric Reach Stacker CQD12W/CQD15W

Advantage:

STRUCTURAL
● Long handle structure makes it steering light and flexible.
● Two lifting cylinders placed on outer sides of the mast.
● Germany imported special steel mast.
● Vertical driving wheel, driving efficiency, easy installation & maintenance.
● Compact structure and low gravity.
SAFETY AND EFFICIENCY
● AC frequency conversion traction motor: compact structure, good performance, regenerative braking and easy maintenance.
● Tilting system forks easy for loading and stacking.
● High Storage battery ensures strong and long-lasting power.
● Meter with BDI, prolonging the battery's using time.
● The braking system combines magnetic brake and regenerative break, greatly prolongs the using life of friction plate.
● With emergency stop switch and electricity lock button, and multi-valve controlling levers, ergonomic for operation .
● The adjustable regulator valve can adjust the lowing speed of the masts.
EASY MAINTENANCE
● Magnet suction battery cover, easy for installation and maintenance.
● AC controlling system, low noise, less maintenance.

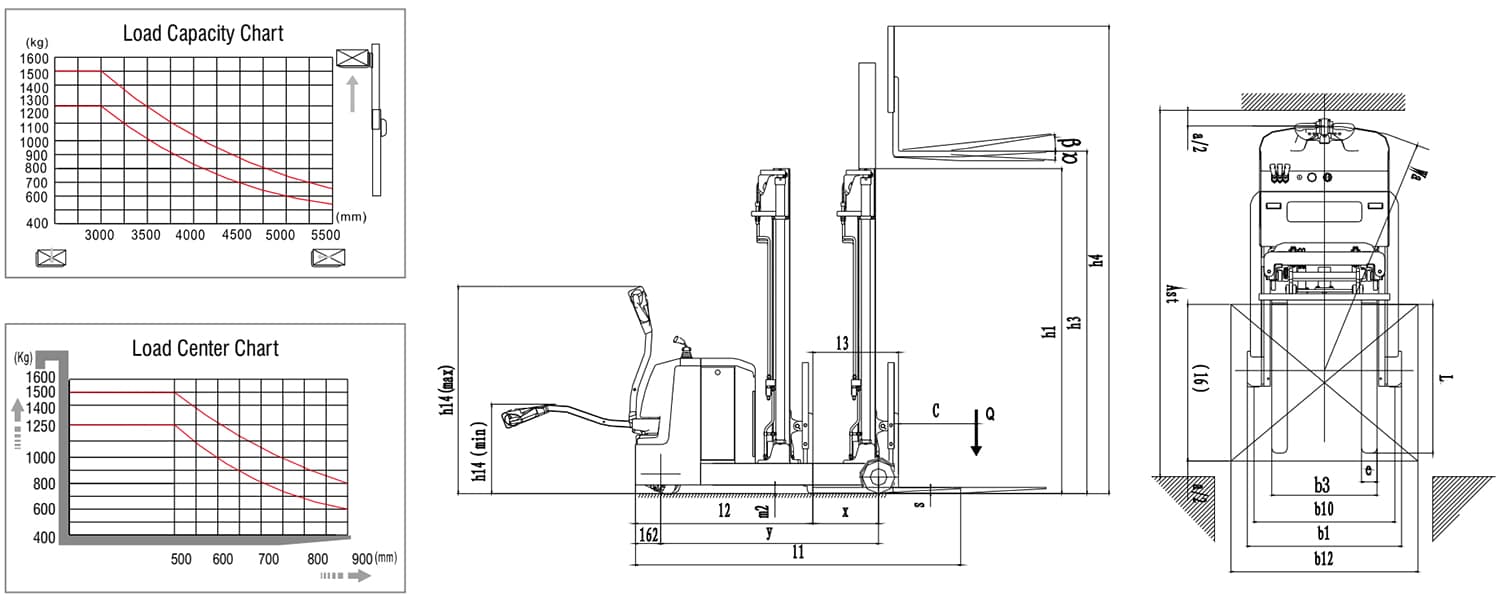

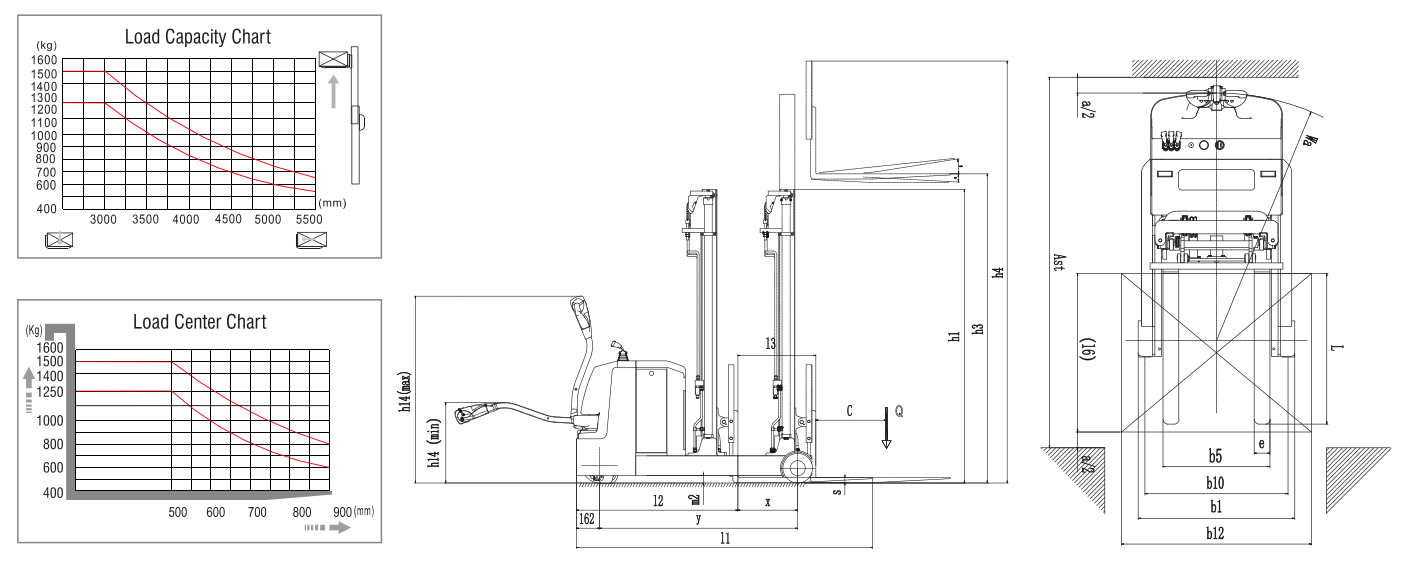

DIMENSION Drawing:

Manufacturer's type designition



CQD12W

Drive: electric (battery type, mains,…)，diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Pedestrian

Rated capacity/rated load

Q(kg)

1250

Load centre distance

c(mm)

500

Load distance, centre of drive axle to fork

x(mm)

430

Wheelbase

y(mm)

1380

Service weight

kg

1700

Axle loading, unladen front/rear

kg

1090/610

Axle loading, fork retracted, laden front/rear

kg

1100/1840

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Tyre size, front



Φ250x70

Tyre size, rear



Φ210x85

Additional wheels (dimensions)



Φ127x57

Wheels, number front/rear (x = driven wheels)



1x+2/2

Tread, front

b10(mm)

612

Tread, rear

b11(mm)

908

Tilt of mast/fork carriage forward/backward

a/b(°)

3/6

Height, mast lowered

h1(mm)

1880/2118/2400/1953/2128/2298/2495

Free lift

h2(mm)

0/0/0/1280/1480/1600/1870

Lift

h3(mm)

2500/3000/3500/4000/4500/5000/5600

Height, mast extended

h4(mm)

3500/4000/4500/5000/5500/6000/6600

Height drawbar in driving position min./max.

h14(mm)

570/1320

Overall length

l1(mm)

2080/2200/2280

Length to face of forks

l2(mm)

1130

Overall width

b1/b2(mm)

990

Fork dimensions DIN ISO 2331

s/e/l(mm)

35/100/950(1070/1150)

Fork spread

b5(mm)

200-680

Reach distance

l4(mm)

560

Ground clearance, laden, below mast

m1(mm)

55

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2500

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2620

Turning radius

Wa(mm)

1550

Travel speed, laden/unladen

km/h

5.5/6.0

Lift speed, laden/unladen

m/s

0-0.13/0-0.2

Lowering speed, laden/unladen

m/s

0-0.25/0-0.2

Max. gradeability, laden/unladen

%

6/10

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

1.2(AC)

Lift motor rating at S3 15%

kW

4.5

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/270

Battery weight

kg

260-320

Sound pressure level at the driver's seat

dB(A)

65

Manufacturer's type designition



CQD15W

Drive: electric (battery type, mains,…)，diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Pedestrian

Rated capacity/rated load

Q(kg)

1500

Load centre distance

c(mm)

500

Load distance, centre of drive axle to fork

x(mm)

520

Wheelbase

y(mm)

1500

Service weight

kg

1980

Axle loading, unladen front/rear

kg

1200/780

Axle loading, fork retracted, laden front/rear

kg

1210/2270

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Tyre size, front



Φ250x70

Tyre size, rear



Φ210x85

Additional wheels (dimensions)



Φ127x57

Wheels, number front/rear (x = driven wheels)



1x+2/2

Tread, front

b10(mm)

612

Tread, rear

b11(mm)

908

Tilt of mast/fork carriage forward/backward

a/b(°)

3/6

Height, mast lowered

h1(mm)

1880/2118/2400/1953/2128/2298/2495

Free lift

h2(mm)

0/0/0/1280/1480/1600/1870

Lift

h3(mm)

2500/3000/3500/4000/4500/5000/5600

Height, mast extended

h4(mm)

3500/4000/4500/5000/5500/6000/6600

Height drawbar in driving position min./max.

h14(mm)

570/1320

Overall length

l1(mm)

2130/2250/2330

Length to face of forks

l2(mm)

1180

Overall width

b1/b2(mm)

990

Fork dimensions DIN ISO 2331

s/e/l(mm)

35/100/950(1070/1150)

Fork spread

b5(mm)

200-680

Reach distance

l4(mm)

650

Ground clearance, laden, below mast

m1(mm)

55

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2600

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2720

Turning radius

Wa(mm)

1680

Travel speed, laden/unladen

km/h

5.5/6.0

Lift speed, laden/unladen

m/s

0-0.13/0-0.2

Lowering speed, laden/unladen

m/s

0-0.45

Max. gradeability, laden/unladen

%

6/10

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

1.2(AC)

Lift motor rating at S3 15%

kW

4.5

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/270

Battery weight

kg

260-320

Sound pressure level at the driver's seat

dB(A)

65
* Option: Lithium battery 230AH (Charger 24V/100A)
