  • Counterbalanced Electric Stacker CPD15R
Model

CPD15R

Counterbalanced Electric Stacker

  • Counterbalanced Electric Stacker CPD15R

Advantage:

STRUCTURAL
● Two lifting cylinders placed on outer sides of the mast.
● Germany imported special steel mast.
● Vertical driving wheel, driving efficiency, easy installation & maintenance.
● Compact structure and low gravity.
SAFETY AND EFFICIENCY
● AC frequency conversion traction motor: compact structure, good performance, regenerative braking and easy maintenance.
● Tilting system forks easy for loading and stacking.
● High Storage battery ensures strong and long-lasting power.
● Meter with BDI, prolonging the battery's using time.
● The braking system combines magnetic brake and regenerative break, greatly prolongs the using life of friction plate.
● With emergency stop switch and electricity lock button, and multi-valve controlling levers, ergonomic for operation .
● The adjustable regulator valve can adjust the lowing speed of the masts.
EASY MAINTENANCE
● Magnet suction battery cover, easy for installation and maintenance.
● AC controlling system, low noise, less maintenance.

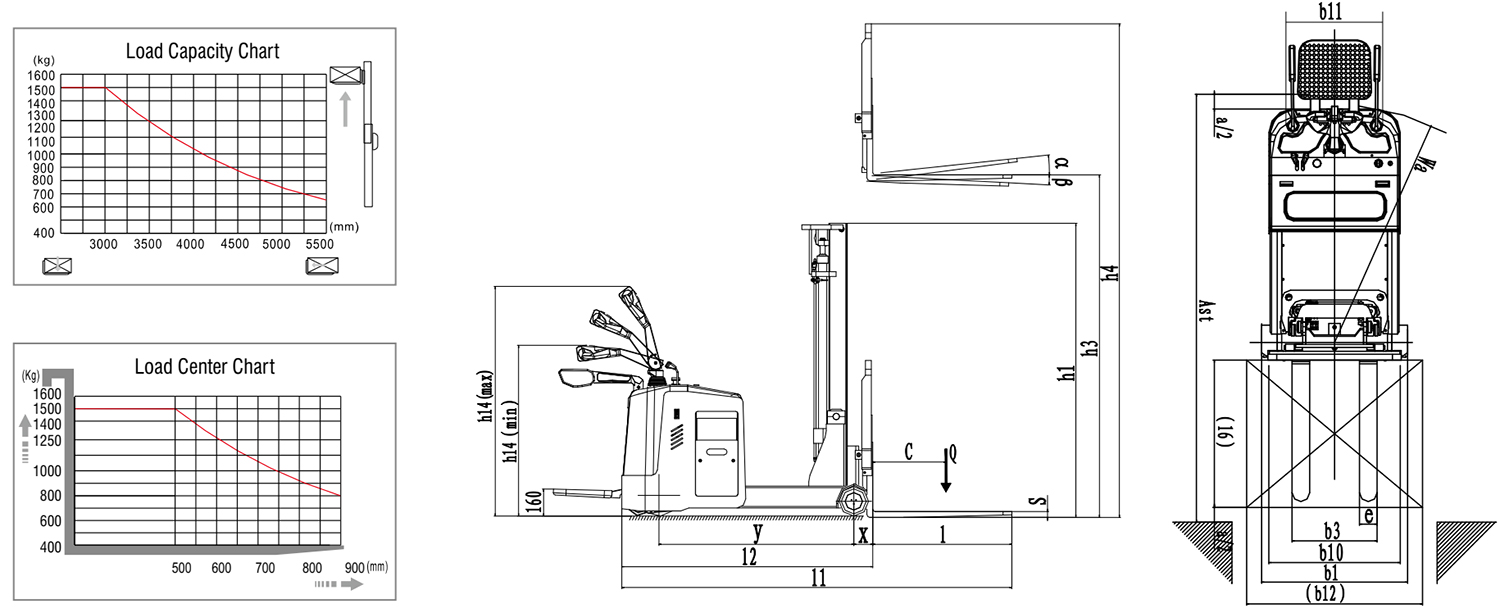

DIMENSION Drawing:

Manufacturer's type designition



CPD15R

Drive: electric (battery type, mains,...), diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Standing

Rated capacity/rated load

Q(kg)

1500

Load centre distance

c(mm)

500

Load distance, centre of drive axle to fork

x(mm)

130

Wheelbase

y(mm)

1330

Axle loading, laden front/rear

kg

420/3110

Axle loading, unladen front/rear

kg

1170/860

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Tyre size, front



Φ250x70

Tyre size, rear



Φ200x100

Additional wheels (dimensions)



Φ150x60

Wheels, number front/rear (x = driven wheels)



1X+2/2

Tread, front

b10 (mm)

890

Tread, rear

b11 (mm)

612

Tilt of mast/fork carriage forward/backward

a/b(°)

3/6

Height, mast lowered

h1(mm)

1735/1985/2235/1895/2085/2235/2435

Free lift

h2(mm)

0/0/0/1400/1500/1670/1870

Max. lift height

h3(mm)

2500/3000/3500/4000/4500/5000/5600

Height, mast extended

h4(mm)

3500/4000/4500/5000/5500/6000/6600

Height drawbar in driving position min./max.



1160/1460

Overall length

l1(mm)

2660

Length to face of forks

l2(mm)

1700

Overall width

b1/b2(mm)

990

Fork dimensions DIN ISO 2331

s/e/l(mm)

35/100/950(1070)

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2990

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

3120

Turning radius

Wa(mm)

1600

Travel speed, laden/unladen

km/h

6.0/7.0

Lift speed, laden/unladen

m/s

0-0.12/0-0.19

Lowering speed, laden/unladen

m/s

0-0.45

Max.Gradeability, laden/unladen

%

6/10

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

1.2(AC)

Lift motor rating at S3 15%

kW

4.5(DC)

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/280

Battery weight

kg

280-320

Sound pressure level at the driver's seat

dB(A)

65

Manufacturer's type designition



CPD15R(EPS)

Drive: electric (battery type, mains,...), diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Standing

Rated capacity/rated load

Q(kg)

1500

Load centre distance

c(mm)

500

Load distance, centre of drive axle to fork

x(mm)

130

Wheelbase

y(mm)

1330

Axle loading, laden front/rear

kg

420/3110

Axle loading, unladen front/rear

kg

1170/860

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Tyre size, front



Φ280x100

Tyre size, rear



Φ200x100

Additional wheels (dimensions)





Wheels, number front/rear (x = driven wheels)



1x+2

Tread, front

b10 (mm)

890

Tread, rear

b11 (mm)

0

Tilt of mast/fork carriage forward/backward

a/b(°)

3/6

Height, mast lowered

h1(mm)

1735/1985/2235/1895/2085/2235/2435

Free lift

h2(mm)

0/0/0/1400/1500/1670/1870

Max. lift height

h3(mm)

2500/3000/3500/4000/4500/5000/5600

Height, mast extended

h4(mm)

3500/4000/4500/5000/5500/6000/6600

Height drawbar in driving position min./max.



1160/1460

Overall length

l1(mm)

2660

Length to face of forks

l2(mm)

1700

Overall width

b1/b2(mm)

990

Fork dimensions DIN ISO 2331

s/e/l(mm)

35/100/950(1070)

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2990

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

3120

Turning radius

Wa(mm)

1600

Travel speed, laden/unladen

km/h

6.8/7.0

Lift speed, laden/unladen

m/s

0-0.12/0-0.19

Lowering speed, laden/unladen

m/s

0-0.45

Max.Gradeability, laden/unladen

%

8/15

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

1.5(AC)

Lift motor rating at S3 15%

kW

4.5(DC)

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/280

Battery weight

kg

280-320

Sound pressure level at the driver's seat

dB(A)

65
*Option: With EPS the drive wheel size is 280x100mm.
Lithium battery 230AH (Charger 24V/100A)
