  • Counterbalanced Electric Stacker CPD15W/CPD05W
  • Counterbalanced Electric Stacker CPD15W/CPD05W
Model

CPD15W/CPD05W

Counterbalanced Electric Stacker

  • Counterbalanced Electric Stacker CPD15W/CPD05W
  • Counterbalanced Electric Stacker CPD15W/CPD05W

Advantage:

 CPD15W:
SAFETY AND EFFICIENCY:
AC frequency conversion traction motor: compact structure, good performance, regenerative braking and easy maintenance.
Tilting system forks easy for loading and stacking.
High Storage battery ensures strong and long-lasting power.
Meter with BDI, prolonging the battery's using time.
The braking system combines magnetic brake and regenerative break, greatly prolongs the using life of friction plate.
With emergency stop switch and electricity lock button, and multi-valve controlling levers, ergonomic for operation .
The adjustable regulator valve can adjust the lowing speed of the masts.
STRUCTURAL:
Long handle structure makes it steering light and flexible.
Two lifting cylinders placed on outer sides of the mast.
Germany imported special steel mast.
Vertical driving wheel, driving efficiency, easy installation & maintenance.
Compact structure and low gravity.
EASY MAINTENANCE:
Magnet suction battery cover, easy for installation and maintenance.
AC controlling system, low noise, less maintenance.

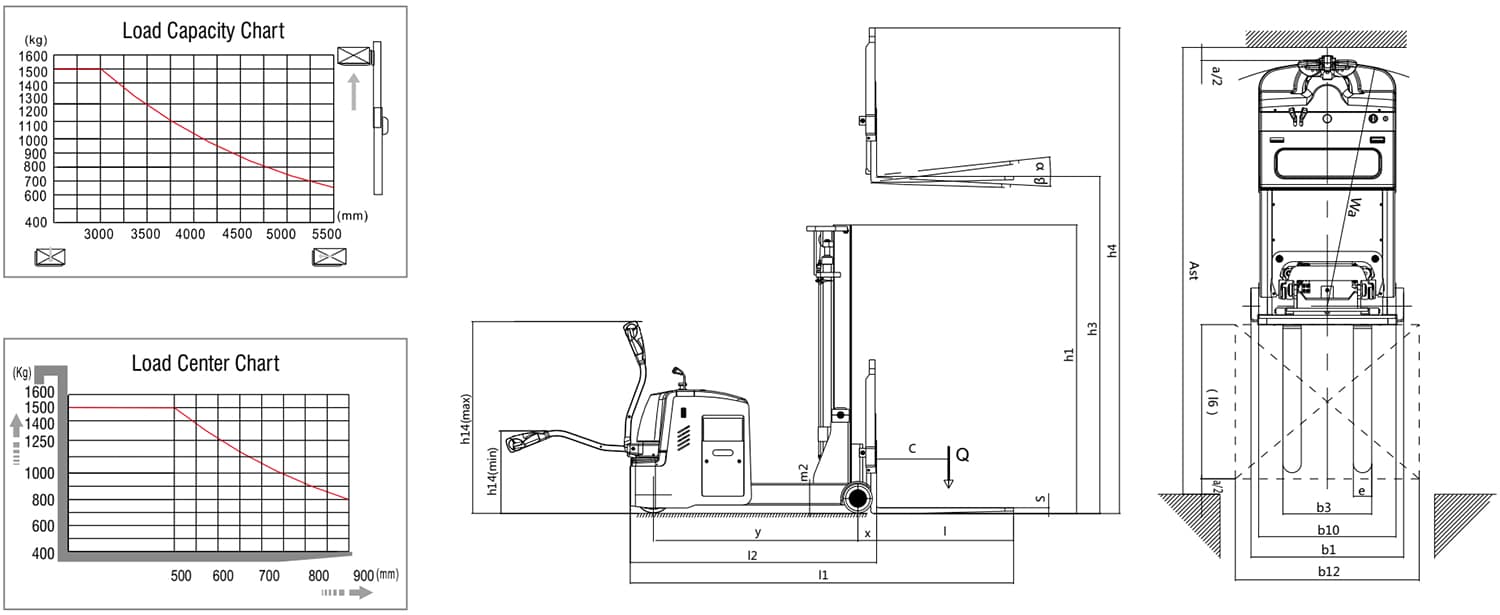

DIMENSION Drawing:

MODEL   CPD15W
Load capacity Q(kg) 1500
Load center c(mm) 500
Load distance x(mm) 130
Tyre size, front mm Φ250×70
Tyre size, rear mm Φ200×100
Balance wheel dimension mm ~
Wheels, number front rear(x = driven wheels) mm 1x/2
Forks, tilt forward/back ° 3/6
Height, mast lowered h1(mm) 1735/1985/2235/1895/2085/2235/2435
Free lift (option) h2(mm)  0 / 0 / 0 /1400/1500/1670/1870
Max. lift height h3(mm) 2500/3000/3500/4000/4500/5000/5600
Height, mast extended h4(mm) 3500/4000/4500/5000/5500/6000/6600
Height of tiller in drive position min./max. h14(mm) 730/1360
Overall length l1(mm) 2650
Length to face of fork l2(mm) 1700
Overall width b1(mm) 990
Fork dimension s/e/l(mm) 35/100/950(1070)
Width overall forks b3(mm) 220-680
Aisle width for pallets 800x1200 lengthways Ast(mm) 3070
Turning radius wa(mm) 1570
Travel speed, laden /unlanden Km/h 5.8/6
Lifting speed, laden /unlanden m/s 0-0.12/0-0.16
Lowering speed, laden /unlanden m/s 0-0.45
Battery voltage , nominal capacity K5 V/Ah 24/280
Battery weight kg 300-360
Battery dimensions (l/W/H) mm 812x270x535
service weight(with battery) kg 2080
* Option: Lithium battery 225AH (Charger 24V/100A)

MODEL



CPD05W

Load capacity

Q(kg)

500

Load center

c(mm)

400

Load distance

x(mm)

85

Tyre size, front

mm

Φ250x64

Tyre size, rear

mm

Φ195x70

Balance wheel dimension

mm

~

Wheels, number front rear(x = driven wheels)

mm

2/1X

Forks, tilt forward/back

°

1/3

Height, mast lowered

h1(mm)

2087/1552/1802/2052

Free lift (option)

h2(mm)

optional

Max. lift height

h3(mm)

1600/2000/2500/3000

Height, mast extended

h4(mm)

2240/2640/3140/3640

Height of tiller in drive position min./max.

h14(mm)

370/1300

Overall length

l1(mm)

2002

Length to face of fork

l2(mm)

1152

Overall width

b1(mm)

846

Fork dimension

s/e/l(mm)

25/100/850

Width overall forks

b3(mm)

220-645

Aisle width for pallets 800x1200 lengthways

Ast(mm)

2750

Turning radius

wa(mm)

1170

Travel speed, laden /unlanden

Km/h

4.1/4.5

Lifting speed, laden /unlanden

m/s

0.17/0.25

Lowering speed, laden /unlanden

m/s

0.14/0.14

Battery voltage , nominal capacity K5

V/Ah

24/105

Battery weight

kg

52

Battery dimensions (l/W/H)

mm

260x168x211

service weight(with battery)

kg

875

1KG=2.205LB 1INCH=25.40MM
