  • Counterbalanced Electric Reach Stacker CQD12R/CQD15R/CQD20R
Model

CQD12R/CQD15R/CQD20R

Counterbalanced Electric Reach Stacker

  • Counterbalanced Electric Reach Stacker CQD12R/CQD15R/CQD20R

Advantage:

STRUCTURAL
● Two lifting cylinders placed on outer sides of the mast.
● Germany imported special steel mast.
● Vertical driving wheel, driving efficiency, easy installation & maintenance.
● Compact structure and low gravity
SAFETY AND EFFICIENCY
● AC frequency conversion traction motor: compact structure, good performance, regenerative braking and easy maintenance.
● Tilting system forks easy for loading and stacking.
● High Storage battery ensures strong and long-lasting power.
● Meter with BDI, prolonging the battery's using time.
● The braking system combines magnetic brake and regenerative break, greatly prolongs the using life of friction plate.
● With emergency stop switch and electricity lock button, and multi-valve controlling levers, ergonomic for operation.
● The adjustable regulator valve can adjust the lowing speed of the masts.
EASY MAINTENANCE
● Magnet suction battery cover, easy for installation and maintenance.
● AC controlling system, low noise, less maintenance.

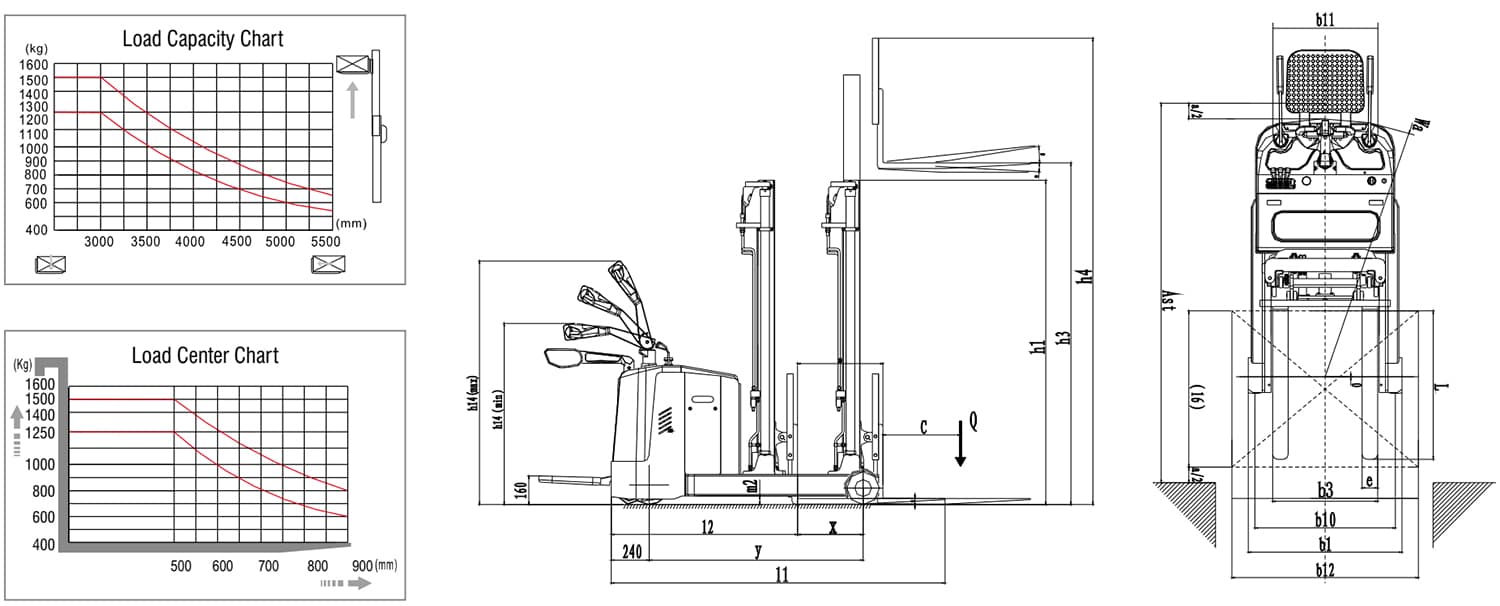

DIMENSION Drawing:

Manufacturer's type designition



CQD12R

Drive: electric (battery type, mains.…)，diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Standing

Rated capacity/rated load

Q(kg)

1250

Load centre distance

c(mm)

500

Load distance, centre of drive axle to fork

x(mm)

430

Wheelbase

y(mm)

1380

Service weight

kg

1800

Axle loading, unladen front/rear

kg

1200/600

Axle loading, fork retracted, laden front/rear

kg

1080/2020

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Tyre size, front



Φ250x70

Tyre size, rear



Φ210x85

Additional wheels (dimensions)



Φ150x60

Wheels, number front/rear (x = driven wheels)



1x+2/2

Tread, front

b10(mm)

612

Tread, rear

b11 (mm)

908

Tilt of mast/fork carriage forward/backward

a/b(°)

3/6

Height, mast lowered

h1(mm)

1880/2118/2400/1953/2128/2298/2495

Free lift

h2(mm)

0/0/0/1280/1480/1600/1870

Lift

h3(mm)

2500/3000/3500/4000/4500/5000/5600

Height, mast extended

h4(mm)

3500/4000/4500/5000/5500/6000/6600

Height drawbar in driving position min./max.

h14(mm)

1160/1460

Overall length

l1(mm)

2150/2270/2350

Length to face of forks

l2(mm)

1200

Overall width

b1/b2(mm)

990

Fork dimensions DIN ISO 2331

s/e/l(mm)

35/100/950(1070/1150)

Fork spread

b5(mm)

200-680

Reach distance

l4(mm)

560

Ground clearance, laden, below mast

m1(mm)

55

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2600

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2650

Turning radius

Wa(mm)

1650

Travel speed, laden/unladen

km/h

6.8/7.0

Lift speed, laden/unladen

m/s

0-0.13/0-0.2

Lowering speed, laden/unladen

m/s

0-0.25/0-0.2

Max. gradeability, laden/unladen

%

6/10

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

1.2(AC)

Lift motor rating at S3 15%

kW

4.5

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/270

Battery weight

kg

260-320

Sound pressure level at the driver's seat

dB (A)

65

Manufacturer's type designition



CQD15R

Drive: electric (battery type, mains.…)，diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Standing

Rated capacity/rated load

Q(kg)

1500

Load centre distance

c(mm)

500

Load distance, centre of drive axle to fork

x(mm)

520

Wheelbase

y(mm)

1480

Service weight

kg

2140

Axle loading, unladen front/rear

kg

1360/760

Axle loading, fork retracted, laden front/rear

kg

1290/2350

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Tyre size, front



Φ250x70

Tyre size, rear



Φ210x85

Additional wheels (dimensions)



Φ150x60

Wheels, number front/rear (x = driven wheels)



1x+2/2

Tread, front

b10(mm)

612

Tread, rear

b11 (mm)

908

Tilt of mast/fork carriage forward/backward

a/b(°)

3/6

Height, mast lowered

h1(mm)

1880/2118/2400/1953/2128/2298/2495

Free lift

h2(mm)

0/0/0/1280/1480/1600/1870

Lift

h3(mm)

2500/3000/3500/4000/4500/5000/5600

Height, mast extended

h4(mm)

3500/4000/4500/5000/5500/6000/6600

Height drawbar in driving position min./max.

h14(mm)

1160/1460

Overall length

l1(mm)

2250/2370/2450

Length to face of forks

l2(mm)

1240

Overall width

b1/b2(mm)

990

Fork dimensions DIN ISO 2331

s/e/l(mm)

35/100/950(1070/1150)

Fork spread

b5(mm)

200-680

Reach distance

l4(mm)

650

Ground clearance, laden, below mast

m1(mm)

55

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2700

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2750

Turning radius

Wa(mm)

1750

Travel speed, laden/unladen

km/h

6.8/7.0

Lift speed, laden/unladen

m/s

0-0.13/0-0.2

Lowering speed, laden/unladen

m/s

0.25

Max. gradeability, laden/unladen

%

6/10

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

1.2(AC)

Lift motor rating at S3 15%

kW

4.5

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/270

Battery weight

kg

260-320

Sound pressure level at the driver's seat

dB (A)

65

Manufacturer's type designition



CQD20R(EPS)

Drive: electric (battery type, mains.…)，diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Standing

Rated capacity/rated load

Q(kg)

2000

Load centre distance

c(mm)

500

Load distance, centre of drive axle to fork

x(mm)

550

Wheelbase

y(mm)

1600

Service weight

kg

2300

Axle loading, unladen front/rear

kg

1660/2640

Axle loading, fork retracted, laden front/rear

kg

1620/680

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Tyre size, front



Φ250x80

Tyre size, rear



Φ210x115

Additional wheels (dimensions)



-

Wheels, number front/rear (x = driven wheels)



1x/2

Tread, front

b10(mm)

-

Tread, rear

b11 (mm)

945

Tilt of mast/fork carriage forward/backward

a/b(°)

3/6

Height, mast lowered

h1(mm)

1880/2118/2400/1953/2128/2298/2495

Free lift

h2(mm)

0/0/0/1280/1480/1600/1870

Lift

h3(mm)

2500/3000/3500/4000/4500/5000/5600

Height, mast extended

h4(mm)

3500/4000/4500/5000/5500/6000/6600

Height drawbar in driving position min./max.

h14(mm)

1160/1460

Overall length

l1(mm)

2275/2360/2440

Length to face of forks

l2(mm)

1290

Overall width

b1/b2(mm)

1060

Fork dimensions DIN ISO 2331

s/e/l(mm)

40/100/950(1070/1150)

Fork spread

b5(mm)

200-680

Reach distance

l4(mm)

710

Ground clearance, laden, below mast

m1(mm)

55

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2800

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2830

Turning radius

Wa(mm)

1870

Travel speed, laden/unladen

km/h

7.0/7.2

Lift speed, laden/unladen

m/s

0.11/0.2

Lowering speed, laden/unladen

m/s

0-0.23/0-0.2

Max. gradeability, laden/unladen

%

10/15

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

1.2(AC)

Lift motor rating at S3 15%

kW

4.5

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/280(320/360)

Battery weight

kg

280-330

Sound pressure level at the driver's seat

dB (A)

65
*Option: With EPS the drive wheel size is 250x80mm.
Lithium battery 230AH (Charger 24V/100A)
