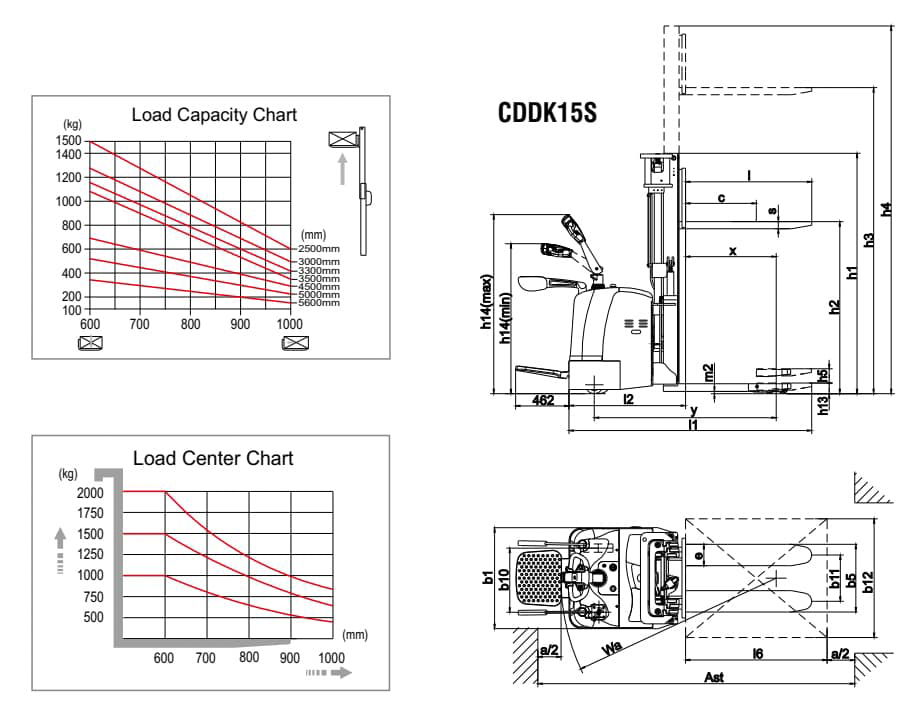

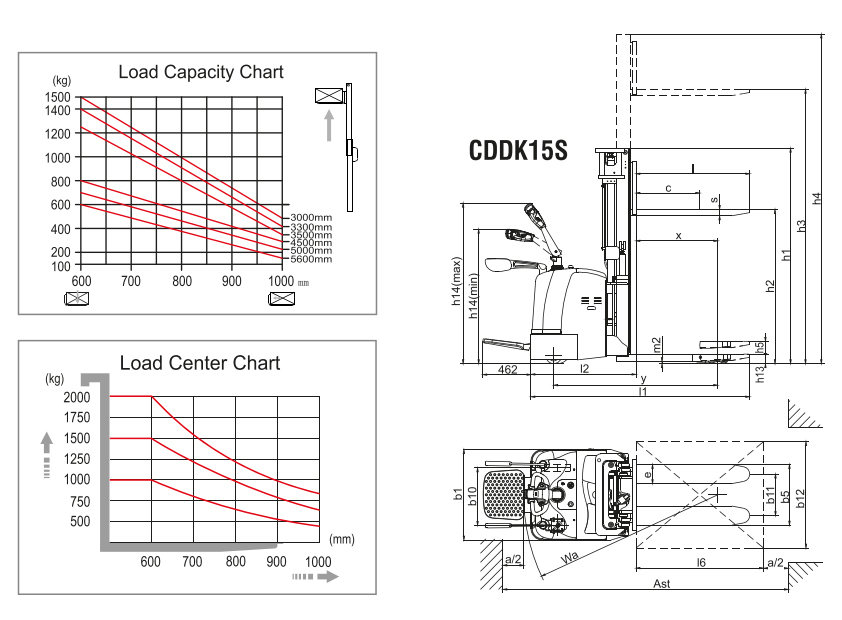

Electric Stacker with Initial Lift

Manufacturers type designition

CDDK15S

Drive: electric (battery type, mains,…),diesel, petrol, fuel gas

Electric

Operator type: hand, pedestrian, standing, seated, order-picker

Standing

Bated capacity/rated load

Q(kg)

1500

Load centre distance

c (mm)

600

Load distance, centre of drive axle to fork

x(mm)

768

Wheelbase

y(mm)

1510

Service weight

kg

Axle loading, laden front/rear

kg

1120/1640

Axle loading, unladen front/rear

kg

874/386

Tyres: solid rubber, super elastic, pneumatic, polyurethane

Polyurethane

Tyre size, front

Φ250x80

Tyre size, rear

Φ80x70

Additional wheels (dimensions)

Φ150x60

Wheels, number front/rear (x = driven wheels)

1x+1/4

Tread, front

b10(mm)

540

Tread, rear

b11(mm)

390/470

Height mast lowered

h1(mm)

1758/2008/2158/2258/2022/2182/2382

Free lift

h2(mm)

1300/1550/1700/1800/1570/1740/1940

Max lift height

h3(mm)

2500/3000/3300/3500/4500/5000/5600

Height mast extended

h4(mm)

2958/3458/3758/3958/4952/5442/6042

Initial lift

h5(mm)

120

Height drawbar in driving position min./max.

h14(mm)

1150/1450

Height of wheel arms

h8(mm)

Height lowered

h13(mm)

90

Overall length

l1(mm)

2058(2138)

Length to face of forks

l2(mm)

988

Overall width

b1/b2(mm)

850

Fork dimensions DIN ISO 2331

s/e/l(mm)

60/180/1070(1150)

Fork spread

b5(mm)

570/650

Ground clearance, centre of wheelbase

m2(mm)

17-137

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2631

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2575

Turning radius

Wa(mm)

1786

Travel speed, laden/unladen

km/h

7.0/7.1

Lift speed, laden/unladen

m/s

0.11/0.16

Lowering speed, laden/unladen

m/s

0.12/0.12

Max gradeability, laden/unladen

%

8/15

Service brake

Electromagnetic

Drive motor rating S2 60 min

kW

1.5(AC)

Lift motor rating at S3 15%

kW

3

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/240(2500-3500), 24/300 (4500-5600)

Battery weight

kg

220,260

Sound pressure level at the driver's seat

dB(A)

70
