  • Electric Stacker with Initial Lift  CDD10R-ES/CDD12R-ES
Model

CDD10R-ES/CDD12R-ES

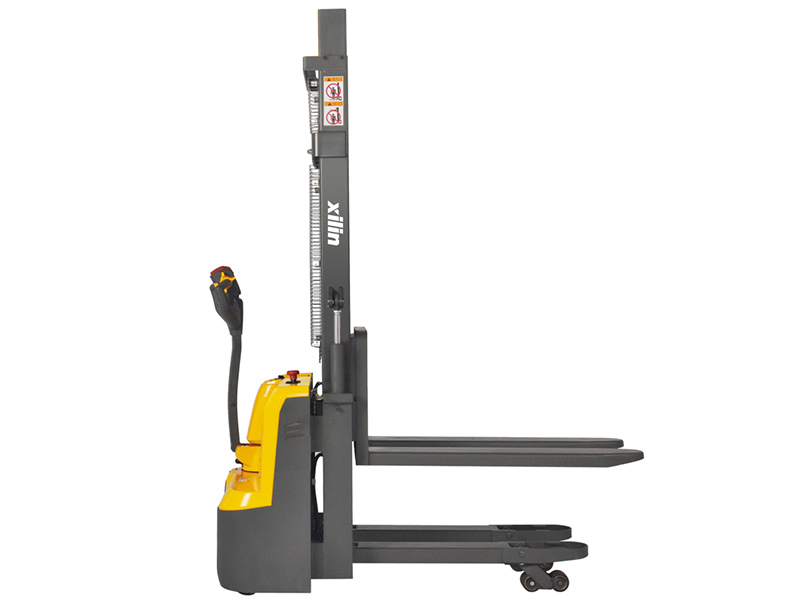

Electric Stacker with Initial Lift

This Light duty type electric stacker CDD10R-E(S) in double–pallet using, support arm lift 1000kgs, and mast lift 1000kg (total load weight max is 1000kg) . Specifically designed for intensive stocking operations at low height warehouse. It is the best solution for smoothly passing in crossing door or dock on uneven ground.
  • Electric Stacker with Initial Lift  CDD10R-ES/CDD12R-ES

Advantage:

Compact design and small dimensions , offer excellent visibility .
The 4- points support structure with side tiller, low center of gravity design with excellent stability.
Double pallet design: two pallet handled at one time, initial lift of load leg increases ground clearance to negotiate easily ramps, dock levelers and bridge .
With floor type driving wheel, offer small turning radius, dustproof waterproof motor, easy for maintenance.
With good ramp braking performance efficient electromagnetic parking brake.
BDI with low voltage cut off protection device, protect battery and prolong the battery life time .
Balance wheel height is adjustable, ensure the drive wheel life.
Low noise development with quite motor.

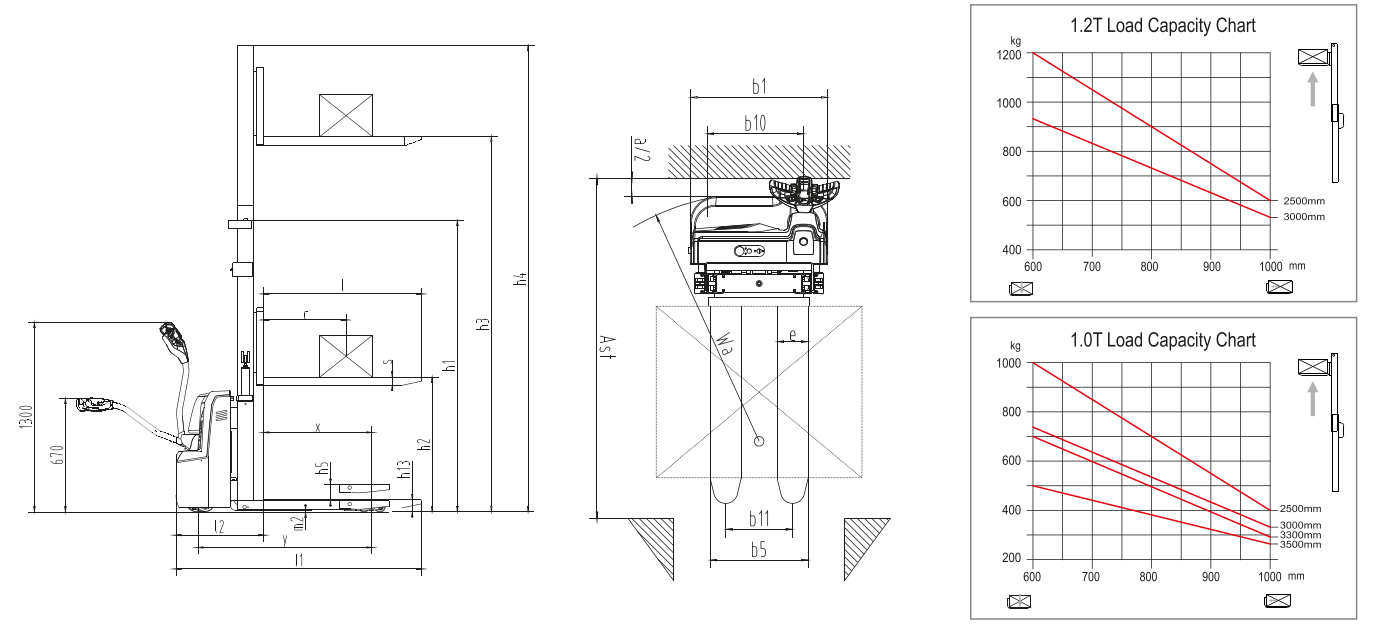

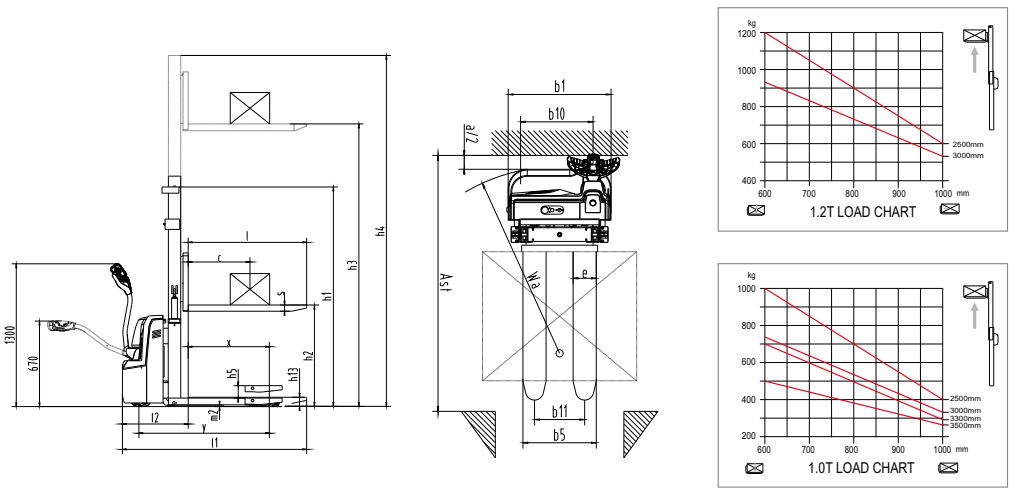

DIMENSION Drawing:

Manufacturer's type designition



CODR10R-ES

CDDR12R-ES

Drive: electric (battery type, mains,…),diesel, petrol, fuel gas



Electric

Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Pedestrian

Pedestrian

Bated capacity/rated load

Q(kg)

1000

1200

Load centre distance

c(mm)

600

600

Load distance, centre of drive axle to fork

x(mm)

788

788

Wheelbase

y(mm)

1268

1268

Service weight

kg

605/670/690/702

675/740/760/775

Axle loading, laden front/rear

kg

710/1000

814/1146

Axle loading, unladen front/rear

kg

220/490

235/525

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Polyurethane

Tyre size, front



Φ195x70

Φ195x70

Tyre size, rear



Φ80x70

Φ80x70

Additional wheels (dimensions)



Φ150x60

Φ150x60

Wheels, number front/rear (x = driven wheels)



1x+1/4

1x+1/4

Tread, front

b10(mm)

523

523

Tread, rear

b11(mm)

390

390

Height mast lowered

h1(mm)

2122/1872/2122/2272

2122/1872/2122/2272

Max lift height

h3(mm)

1600/2500/3000/3300

1600/2500/3000/3300

Height mast extended

h4(mm)

2122/3092/3592/3892

2122/3092/3592/3892

Initial lift

h5(mm)

120

120

Height drawbar in driving position min./max.

h14(mm)

670/1300

670/1300

Height of wheel arms

h8(mm)

82/202

82/202

Height lowered

h13(mm)

90

90

Overall length

l1(mm)

1709(1789)

1709(1789)

Length to face of forks

l2(mm)

639

639

Overall width

b1/b2(mm)

800

800

Fork dimensions DIN ISO 2331

s/e/l(mm)

60/180/1070(1150)

60/180/1070(1150)

Fork spread

b5(mm)

570

570

Ground clearance, centre of wheelbase

m2(mm)

17-137

17-137

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2286

2286

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2224

2224

Turning radius

Wa(mm)

1450

1450

Travel speed, laden/unladen

km/h

4.5/5.0

4.5/5.0

Lift speed, laden/unladen

m/s

0.11/0.14

0.11/0.14

Lowering speed, laden/unladen

m/s

0.12/0.12

0.12/0.12

Max gradeability, laden/unladen

%

6/15

6/15

Service brake



Electromagnetic

Electromagnetic

Drive motor rating S2 60 min

kW

0.65(DC)

0.65(DC)

Lift motor rating at S3 15%

kW

2.2

2.2

Battery voltage/nominal capacity K5

(V)/(Ah)or kWh

24/105(125)

24/105(125)

Battery weight

kg

60.8(70)

60.8(70)

Sound pressure level at the driver’s seat

dB(A)

70

70
