Model

CDD10RDS-E/ CDD12RDS-E

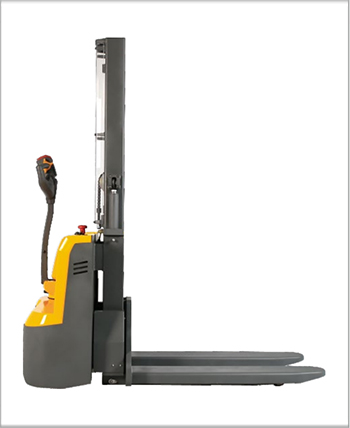

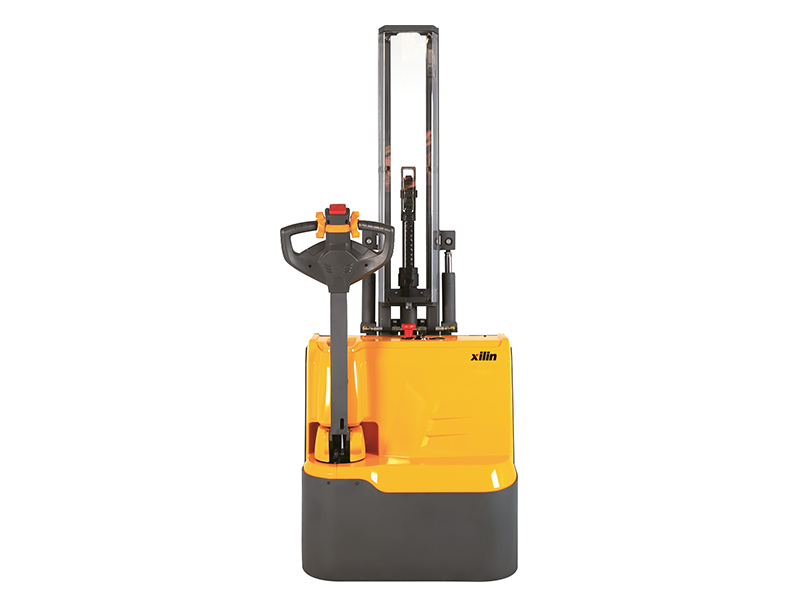

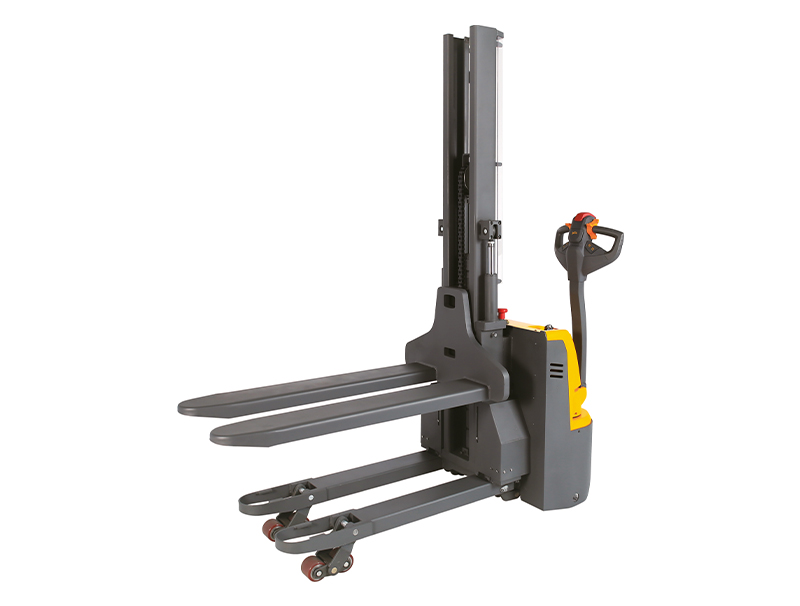

Electric Stacker with Initial Lift

CDD10RDS-E type Double Decker trucks with very small chassis widely used in narrow and confined warehouse area, such as in delivery vans and elevators.
  • Electric Stacker with Initial Lift  CDD10RDS-E/
CDD12RDS-E
  • Electric Stacker with Initial Lift  CDD10RDS-E/
CDD12RDS-E
  • Electric Stacker with Initial Lift  CDD10RDS-E/
CDD12RDS-E
  • Electric Stacker with Initial Lift  CDD10RDS-E/
CDD12RDS-E

Advantage:

Mast with excellent visibility for wide view of the forks. With double decker ,mast lift 1000kgs and support arm lift 1000kgs, total load is 1000kgs if use double pallet. Compact design With very small turning radius, offer a range of application option in very confined space.

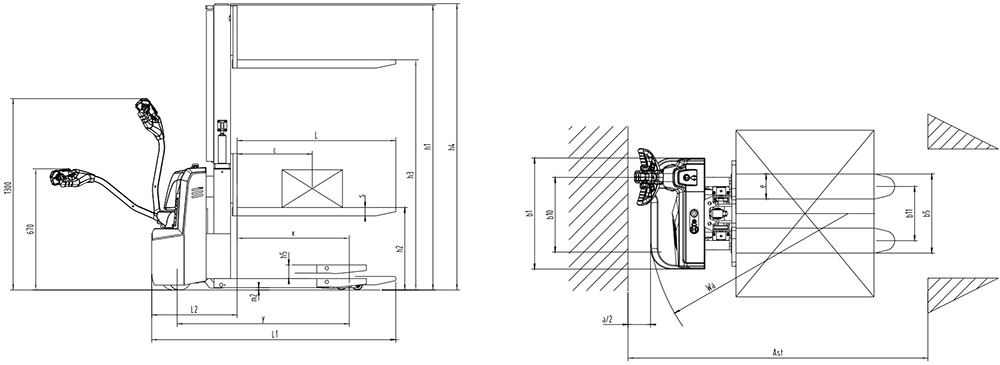

DIMENSION Drawing:

Manufacturer's type designition



CDD10RDS-E

CDD12RDS-E

Drive: electric (battery type, mains,…),diesel, petrol, fuel gas



Electric

Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Pedestrian

Pedestrian

Rated capacity/rated load

Q(kg)

1000

1200

Load centre distance

c(mm)

600

600

Load distance, centre of drive axle to fork

x(mm)

812

812

Wheelbase

y(mm)

1272

1272

Service weight

kg

640

685

Axle loading, laden front/rear

kg

1035/605

1190/695

Axle loading, unladen front/rear

kg

182/458

194/491

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Polyurethane

Tyre size, front



Φ195x70

Φ195x70

Tyre size, rear



Φ80x70

Φ80x70

Additional wheels (dimensions)



Φ150x60

Φ150x60

Wheels, number front/rear (x = driven wheels)



1x+1/4

1x+1/4

Tread, front

b10(mm)

523

523

Tread, rear

b11(mm)

390

390

Height mast lowered

h1(mm)

2050/2400

2050/2400

Max lift height

h3(mm)

1600/1950

1600/1950

Height mast extended

h4(mm)

2060/2410

2060/2410

Initial lift

h5(mm)

120

120

Height drawbar in driving position min./max.

h14(mm)

670/1300

670/1300

Height of wheel arms

h8(mm)

82/202

82/202

Height lowered

h13(mm)

90

90

Overall length

l1(mm)

1690(1770)

1690(1770)

Length to face of forks

l2(mm)

619

619

Overall width

b1/b2(mm)

800

800

Fork dimensions DIN ISO 2331

s/e/l(mm)

60/180/1070(1150)

60/180/1070(1150)

Fork spread

b5(mm)

570

570

Ground clearance, centre of wheelbase

m2(mm)

17-137

17-137

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2286

2286

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2224

2224

Turning radius

Wa(mm)

1450

1450

Travel speed, laden/unladen

km/h

4.5/5.0

4.5/5.0

Lift speed, laden/unladen

m/s

0.11/0.14

0.11/0.14

Lowering speed, laden/unladen

m/s

0.12/0.10

0.12/0.10

Max. gradeability, laden/unladen

%

6/15

6/15

Service brake



Electromagnetic

Electromagnetic

Drive motor rating S2 60 min

kW

0.65(DC)

0.65(DC)

Lift motor rating at S3 15%

kW

2.2

2.2

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/105(125)

24/105(125)

Battery weight

kg

60.8(70)

60.8(70)

Sound pressure level at the driver s seat

dB (A)

70

70
