Classic Type BF Suppliers

home / product / Hand Pallet Truck / Classic Type

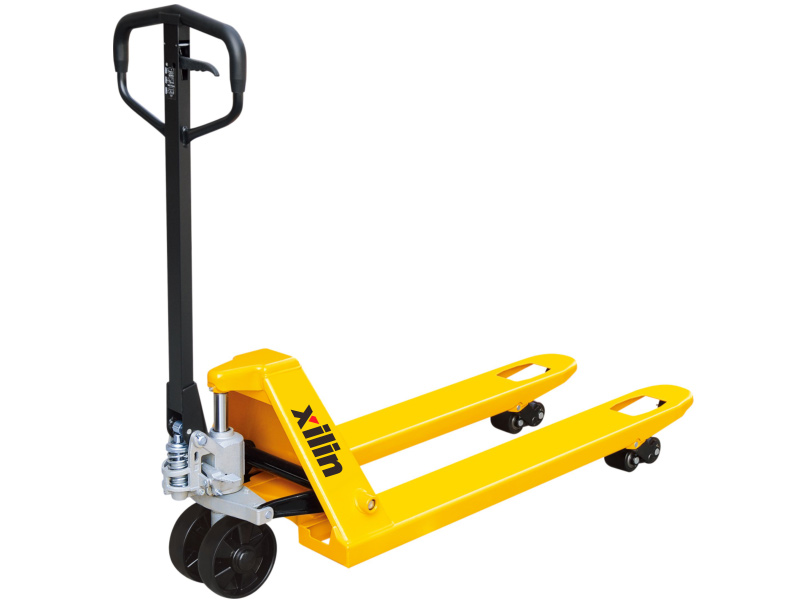

  • Classic Type BF
Model

BF

Classic Type

  • Classic Type BF

Advantage:

Innovative design, comprehensive testing and highest quality !
● Most standard and popular model with capacity 2500 - 3000kgs.
● With copping supporting NOG & strengthening ribbing under top triangle cover.
● Complete pump design with reliable leak-proof pump eliminating maintenance and extending the service time.
● 210 steering arc, and small turning radius.
● Fork Lowering speed is controllable, operated by hand control and foot pedal.
● Entry/exit roller, more freely travel.
● Equipped with over-load valve, with long service time.
● 3 position hand control - Raise, Lower, Neutral.
● 12 lubrication grease nipples on all movable parts for easy maintenance.
● Adjustable pump cap ensures a long service life.
● Ergonomic large rubber handle with three control lever.
● Option: 1) Nylon wheel, polyurethane wheel, rubber wheel, single fork roller or tandem fork rollers.
                  2) Fork length: 800mm, 900mm, 1000mm.
                  3) Foot pedal release.
                  4) Pump color: black painting, silver painting

DIMENSION Drawing:

Model



BF

Capacity

Q(kg)

2500/3000

2500/3000

Lowered fork height

h13(mm)

85

75

Steering wheel

mm

φ200

φ180

Fork wheel single

mm

φ80x93

φ74x93

Fork wheel tandem

mm

φ80x70

φ74x70

Max. lift height

h3(mm)

200

190

Total height

h14(mm)

1224

1214

Overall length

l1(mm)

1483/1533/1603

1483/1533/1603

Fork length

l(mm)

1100/1150/1220

1100/1150/1220

Width overall forks

b5(mm)

520/550/685

520/550/685

Ground clearance, centre of wheelbase

m2(mm)

40

30

Aisle width for pallets 1000x1200 crossways

Ast(mm)

1683/1733/1803

1683/1733/1803

Aisle width for pallets 800x1200 lengthways

Ast(mm)

1783/1783/1803

1783/1783/1803

Turning radius

Wa(mm)

1216/1266/1336

1216/1266/1336

Service weight

kg

60-75

60-75
