Model

BFA

Mechanical Assist Pallet Truck

Advantage:

● 90% less full loading pull strength than normal truck.
● Reverse brake function avoid the reverse sliding on the slope.

Operating Introductions:

● Lift the fork and let the handle at the neutral position.
● Pull the left power-assisted lever at the bottom position, flapping the handle, very easy to start the truck.

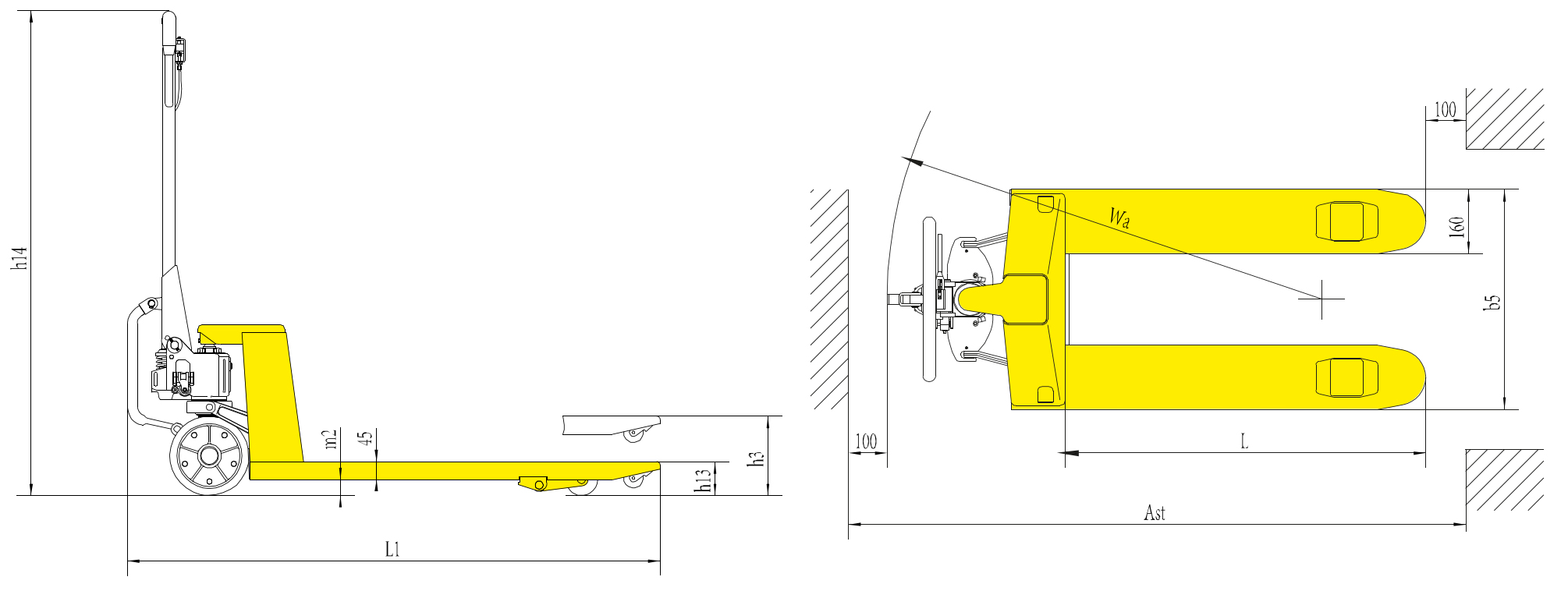

DIMENSION Drawing:

Model		BFA
Capacity	kg	2500	2500
Lowered fork height	h13(mm)	85	75
Steering wheel	mm	φ200	φ180
Fork wheel single	mm	φ80x93	φ74x93
Fork wheel double	mm	φ80x70	φ74x70
Max. lift height	mm	200	190
Height of tiller	h14 (mm)	1224	1214
Overall length	l1(mm)	1483/1533/1603	1483/1533/1603
Fork length	l(mm)	1100/1150/1220	1100/1150/1220
Width overall forks	b5(mm)	520/550/685	520/550/685
Ground clearance,center of wheelbase	m₂ (mm)	40	30
Aisle width for pallets 1000x1200 crossways	Ast(mm)	1683/1733/1803	1683/1733/1803
Aisle width for pallets 800x1200 lengthways	Ast (mm)	1783/1783/1803	1783/1783/1803
Turning radius	W(mm)	1216/1266/1336	1216/1266/1336
Service weight	kg	65-77	65-77

Related Products:

Watch overview

Company Profile

NINGBO RUYI JOINT STOCK CO.,LTD.

High-end Performance and Comprehensive Service

Ningbo Ruyi was established in 1985, mainly produce Manual/Electric pallet truck, Manual/electric stacker, Reach truck, Order picker, Lift table, Tractor, Forklift and other material handling equipments.

As China Wholesale Mechanical Assist Pallet Truck BFA Suppliers and ODM Mechanical Assist Pallet Truck BFA company, Ningbo Ruyi adheres to the concept of synchronous development of global technology. It adopts more than 800 sets of advanced automation processes and equipment, such as laser cutting machine, plasma cutting machine, machining center, robot welding, automatic spraying line, etc. We have established a perfect quality inspection system and realized the modernization and digital detection.

"Product innovation, management innovation, quality innovation, equipment innovation, sales innovation" , making "Ruyi" to develop the world's leading industrial handling vehicle technology, seize the commanding height of handling vehicles, extend the industrial chain, strengthen and expand the "Ruyi" industrial platform, and cultivate international competitiveness.
