  • Electric High Level Order Picker OPS15
  • Electric High Level Order Picker OPS15
  • Electric High Level Order Picker OPS15
Model

OPS15

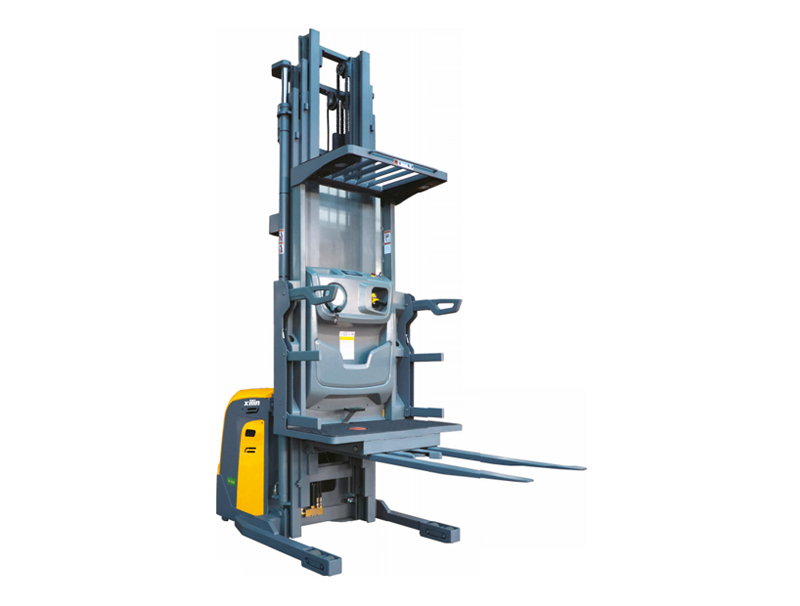

Electric High Level Order Picker

● Electric high level order picker provides safety and high efficiency order picking for high racked warehouse.
  • Electric High Level Order Picker OPS15
  • Electric High Level Order Picker OPS15
  • Electric High Level Order Picker OPS15

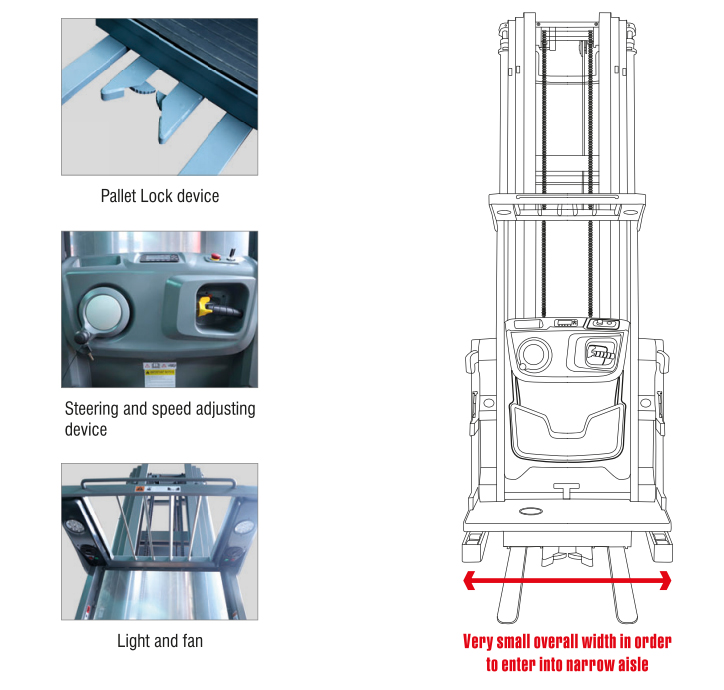

Advantage:

● Low gravity centre provides good stability.
● Advanced electric steering technology(EPS) is humanized designed, with automatic reset , height display and automatic deceleration at high lifting level.
● Finger tip control via joystick, Stepless speed control for driving, lifting and lowering speed is adjustable.
● Buffer oil cylinder: the oil cylinder will automatic decelerate when off ground 500mm, to prevent impact and lower noises.
● The mast and the frame are dividable and exchangeable.
● Low battery protection setting prolongs the battery use time.
● AC motor eliminates replacement of the carbon brush, provides good ramp starting performance and regenerative breaking functions.
● Sideway battery is convenient for exchanging and maintain.
● The mast material is the special type imported from Germany.
● The truck can automatic decelerate when quick turning.
● High performance multi-function instrument has LED light and display function.
● Multi function display, include battery status, performance, working hour, accelerator, speed, the wheel position and traveling direction.
● Press right and left keys to switch for different grades: high, normal, low, and lowest.

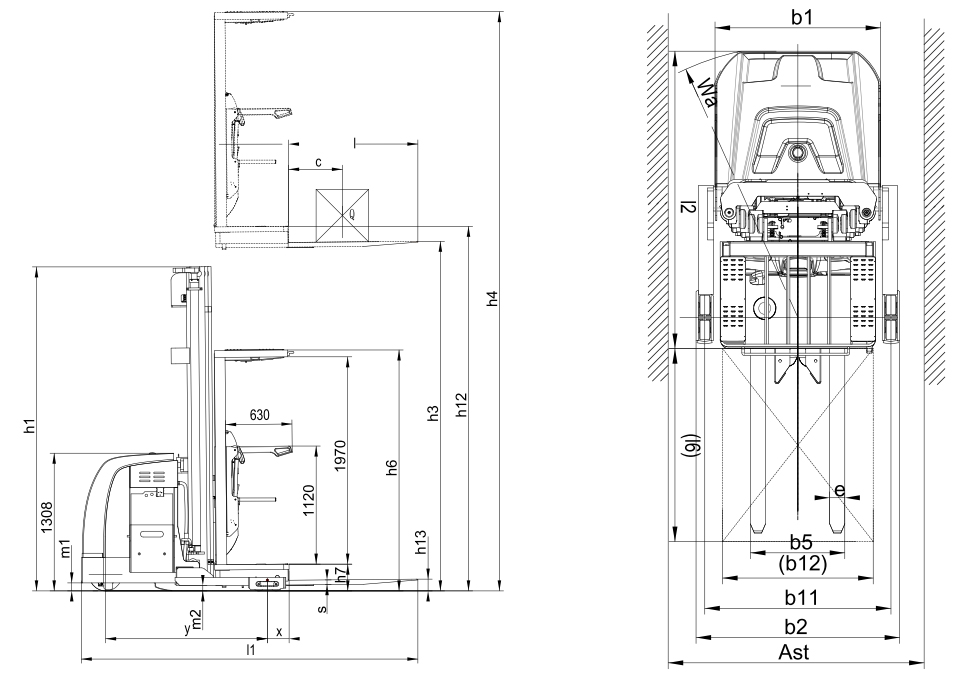

DIMENSION Drawing:

Manufacturer's type designition



OPS15

Drive: electric (battery type, mains,…diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Order-picker

Rated capacity/rated load

Q(kg)

1500

Load centre distance

c(mm)

600

Load distance, centre of drive axle to fork

x(mm)

206

Wheelbase

y(mm)

1537

Service weight

kg

3360/3650/3870

Axle loading, laden front/rear

kg

4320/1360

Axle loading, unladen front/rear

kg

1960/2220

Tyres: solid rubber, super elastic. pneumatic, polyurethane



Polyurethane

Tyre size, front



Φ310x125

Tyre size, rear



Φ128x73

Additional wheels (dimensions)



Φ150x47

Wheels, number front/rear (x = driven wheels)



1x+2/4

Tread, rear

b11(mm)

1236

Height mast lowered

h1(mm)

2410/3080/3750

Lift

h3(mm)

5000/7000/9000

Height mast extended

h4(mm)

7230/9230/11230

Height of overhead guard (cabin)

h6(mm)

2290

Seat height relating to SIP/stand height

h7(mm)

230

Height lowered

h13(mm)

80

Overall length

l1(mm)

3200

Length to face of forks

l2(mm)

1975

Overall width

b1/b2(mm)

1100/1352

Fork dimensions DIN ISO 2331

s/e/l(mm)

45/100/1220

Fork spread

b5(mm)

530/715

Ground clearance, centre of wheelbase

m2(mm)

76

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

1400

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

1400

Turning radius

Wa (mm)

1800

Travel speed, laden/unladen

km/h

7.7/8

Travel speed, laden/unladen, backwards

km/h

7.7/8

Lift speed, laden/unladen

m/s

0-0.15/0-0.28

Lowering speed, laden/unladen

m/s

0-0.28/0-0.3

Max gradeability, laden/unladen

%

5/10

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

4.5

Lift motor rating at S315%

kW

7.5

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/770(h3=5000/7000), 24/1100(h3=9000)

Battery weight

kg

610/850

Sound pressure level at the driver’s seat

dB (A)

70

* Option:
OPS15 for 5-7M Lithium battery 500AH ( Charger 24V/200A)
OPS15 for 9M Lithium battery 750AH ( Charger 24V/200A)
