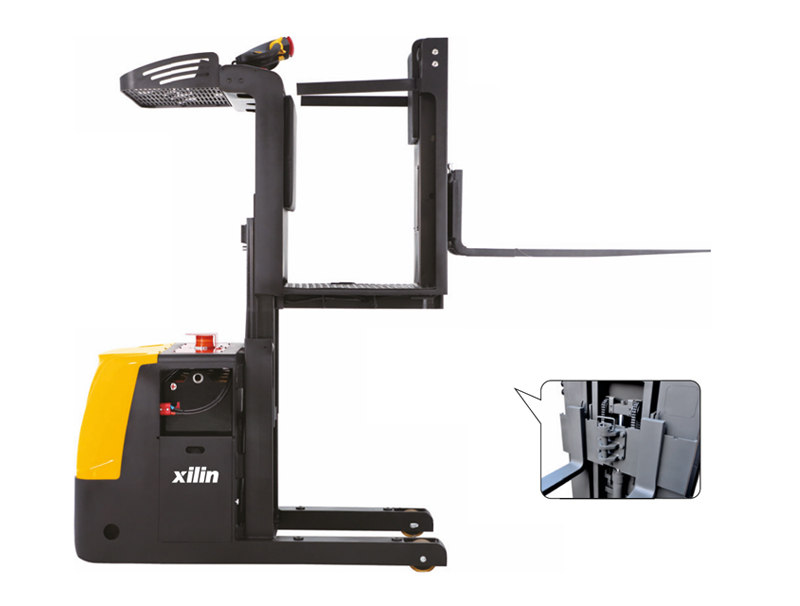

  • Electric Low Level Order Picker OPL10S
Model

OPL10S

Electric Low Level Order Picker

  • Electric Low Level Order Picker OPL10S

Advantage:

● Max.lifting height of platform is 1.2M. The capacity of loading tray is 60kg.
● Extra fork lifting&lowering control button located at the backrest of platform.
● Straight driving control at the backrest, enables operator picking orders while off the truck.
● Advanced power steering system (EPS) handle ensures effortless and highly efficient maneuverability.
● Combining of regenerative brake and electromagnetic brake provide safe and reliable brake.
● Side-way battery designs is very convenient for maintenance and replacement.
● USB charge device on the control panel which could charge phone, pad, etc.
● High propelling power to reach 10KM/H speed at full load. 10% max. gradeability enhances working efficiency and reliability.
● Advanced AC control with reliable performance is easy to maintain. Speed frequency control makes good control performance.
● Small turning radius and stepless speed control ensure the trucks can be used in narrow workplace.
● With reasonable layout of the key components, it is convenient to maintain.
● The optional of side gate protection is available.

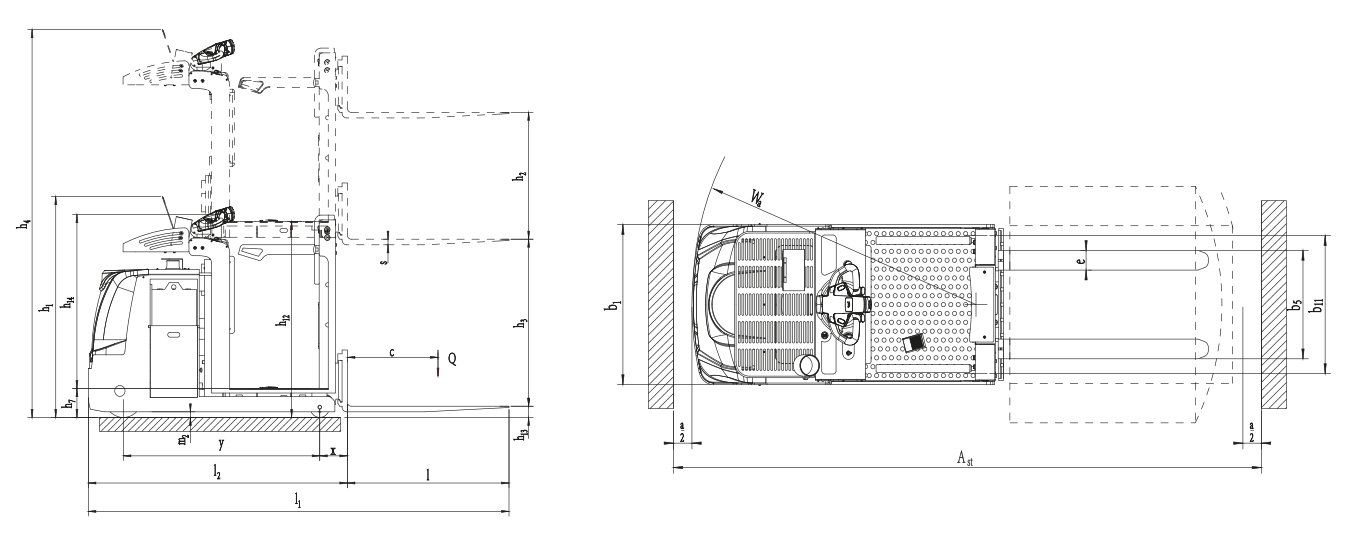

DIMENSION Drawing:

Manufacturer's type designition



OPL10S

Drive: electric (battery type, mains, ...), diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Order-picker

Rated capacity/rated load

Q (kg)

1000

Load centre distance

c (mm)

600

Load distance, centre of drive axle to fork

x (mm)

183

Wheelbase

y (mm)

1300

Service weight

kg

1660

Axle loading, laden front/rear

kg

342/2318

Axle loading, unladen front/rear

kg

944/716

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Tyre size, front



Φ250×80

Tyre size, rear



Φ128×73

Wheels, number front/rear (× = driven wheels)



1x/2

Tread, rear

b11 (mm)

700

Height, mast lowered

h1 (mm)

1375

Free lift

h2 (mm)

730

Lift

h3 (mm)

1020

Height, mast extended

h4 (mm)

2395

Seat height relating to SIP/stand height

h7 (mm)

180

Height drawbar in driving position min./max.

h14 (mm)

1083

Additional lift

h9(mm)

800

Stand height, elevated

h12 (mm)

1200

Height, lowered

h13 (mm)

70

Overall length

l1 (mm)

2785

Length to face of forks

l2 (mm)

1715

Overall width

b1/b2 (mm)

812

Fork dimensions DIN ISO 2331

s / e / l (mm)

35/100/1070

Fork spread

b5 (mm)

200-750

Ground clearance, centre of wheelbase

m2 (mm)

35

Aisle width for pallets 1000 × 1200 crossways

Ast (mm)

3058

Aisle width for pallets 800 × 1200 lengthways

Ast (mm)

3172

Turning radius

Wa (mm)

1532

Travel speed, laden/unladen

km/h

7.7/7.8

Travel speed, laden/unladen, backwards

km/h

7.7/7.8

Lift speed, laden/unladen

m/s

0.1/0.15

Lowering speed, laden/unladen

m/s

0.08/0.07

Max. gradeability, laden/unladen

%

8/15

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

1.5

Lift motor rating at S3 15%

kW

2.2

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/450

Battery weight

kg

365

Sound pressure level at the driver’s seat

dB (A)

70
