Model

CBD20Q-II/CBD25Q-II

Low Level Rider Order Picker

The Innovation type Low lever order picker with new design cover and short tiller head, more easy to operate. The powerfull driving system is suit for long distance heavy goods order picking.

Advantage:

● The compact appearance, small turning radius and ergonomic curved backrest guarantee safe and effortless operation.
● Adopting vertical driving wheel, with Electric Power Steering (EPS), flexible and agile. Equipped with AC motor capable of variable frequency control, giving outstanding performance and better user experience.
● With strong power, the traveling speed can reach 10km/h, and max. gradeability unladen 15%, ensuring high efficiency.
● Low voltage protection setting prolongs its service life. Truck can only walk, not lift while battery is less than 15%.
● Both side of the backrest equipped with operation buttons for straight travel, when person pick up cargos beside of vehicle, who can press the button to move the order picker back and forward slowly, no need to get into truck to move it .
● Sideway battery with High capacity, it is convenient for maintaining and replacement.
● Equipped with USB charging ports for easy charging of mobile devices.
● Equipped with extension brackets, folders, and storage canisters for operators to store lists, scanners, etc.

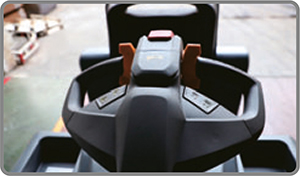

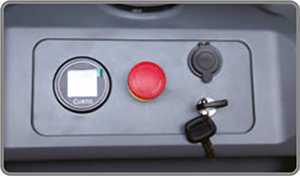

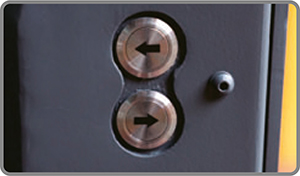

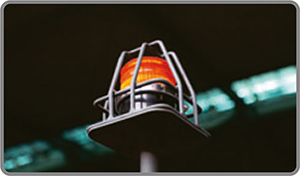

Strobe light(option)	BDI with battery discharge display, USB device	Slide function button	Standard handle with automatic return function

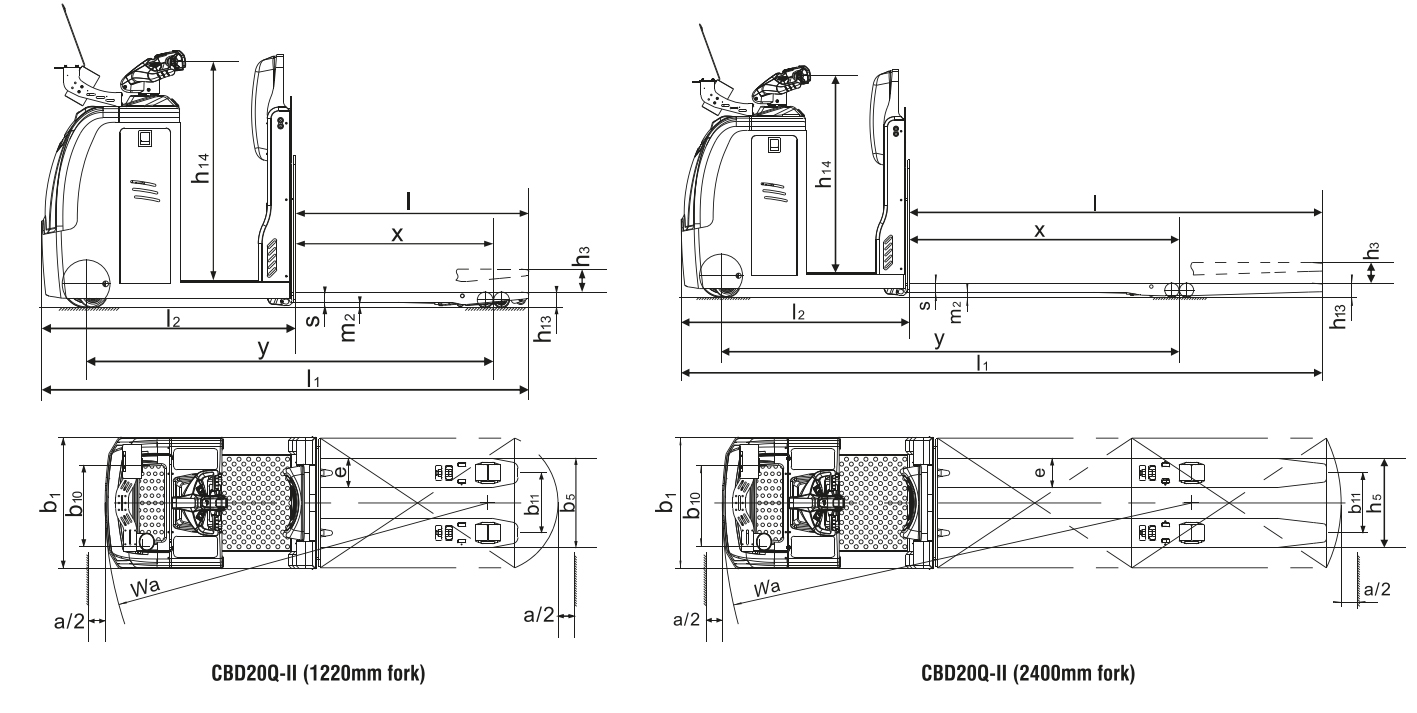

DIMENSION Drawing:

Model		CBD20Q-II (1220mm fork)	CBD20Q-II (2400mm fork)
Driving mode		Electric (battery)	Electric (battery)
Operation mode		Standing type	Standing type
Load capacity/rated load	Q(kg)	2000	2000
Load centre distance	c(mm)	600	1200
Load distance, centre of drive axle to fork	x(mm)	1034	1568
Wheel distance	Y(mm)	2130	2664
Wheels		PU	PU
Tyre size, front	mm	φ250x80(EPS)	φ250x80(EPS)
Tyre size, rear	mm	φ82x126(98)	φ82x126(98)
Additional wheel (dimension)	mm	φ150x60	φ150x60
Wheel number, front/rear(x=driving wheel)		1X+1/2(4)	1X+1/2(4)
Tread, front	b10(mm)	502	502
Tread, rear	b11(mm)	370	370
Max. lift height	h3(mm)	120	120
Height of tille in drive position min./max.	h14(mm)	1150	1150
Fork height, lowered	h13(mm)	82	82
Overall length	1(mm)	2548	3728
Length to face of forks	2(mm)	1328	1328
Overall width	b1(mm)	810	810
Fork dimensions	s/e/l(mm)	54/180/1220	54/180/2400
Width overall forks	b5(mm)	550	550
Wheelbase centre ground distance	m2(mm)	28	28
Aisle width for pallets 800x1200 lengthways	Ast(mm)	2995	4019
Turning radius	Wa(mm)	2362	2896
Travel speed,aden/unladen	km/h	10/10	10/10
Lifting speed,laden/unladen	m/s	0.035/0.045	0.035/0.045
Lowering speed,laden/unladen	m/s	0.06/0.055	0.06/0.055
Max.gradeability,laden/unladen	%	6/15	6/15
Service brake		Electromagnetic brake	Electromagnetic brake
Drive motor power	kW	3	3
Lifting motor power	kW	1.2	1.2
Battery voltage/nominal capacity	V/Ah	24/300	24/300
Battery weight	kg	250	250
Battery dimension(V/w/h)	mm	654x248x548	654x248x548
Noise level at operator's ear, according to DIN 12053	dB(A)	70	70

Model		CBD25Q-II (1220mm fork)	CBD25Q-II (2400mm fork)
Driving mode		Electric	Electric
Operation mode		Order-picker	Order-picker
Load capacity/rated load	Q(kg)	2500	2500
Load centre distance	c(mm)	600	1200
Load distance, centre of drive axle to fork	x(mm)	1034	1918
Wheel distance	Y(mm)	2130	3014
Wheels		Polyurethane	Polyurethane
Tyre size, front	mm	φ250x80	φ250x80
Tyre size, rear	mm	φ82x126(98)	φ82x126(98)
Additional wheel (dimension)	mm	φ150x60	φ150x60
Wheel number, front/rear(x=driving wheel)		1X+1/2(4)	1X+1/2(4)
Tread, front	b10(mm)	502	502
Tread, rear	b11(mm)	370	370
Max. lift height	h3(mm)	120	120
Height of tille in drive position min./max.	h14(mm)	1150	1150
Fork height, lowered	h13(mm)	82	82
Overall length	1(mm)	2548	3728
Length to face of forks	2(mm)	1328	1328
Overall width	b1(mm)	810	810
Fork dimensions	s/e/l(mm)	54/180/1220	54/180/2400
Width overall forks	b5(mm)	550	550
Wheelbase centre ground distance	m2(mm)	28	28
Aisle width for pallets 800x1200 lengthways	Ast(mm)	2995	4072
Turning radius	Wa(mm)	2362	3246
Travel speed,aden/unladen	km/h	10/10	10/10
Lifting speed,laden/unladen	m/s	0.035/0.045	0.035/0.045
Lowering speed,laden/unladen	m/s	0.06/0.055	0.06/0.055
Max.gradeability,laden/unladen	%	6/15	6/15
Service brake		Electromagnetic	Electromagnetic
Drive motor power	kW	3	3
Lifting motor power	kW	1.2	1.2
Battery voltage/nominal capacity	V/Ah	24/300(400)	24/300(400)
Battery weight	kg	250(330)	250(330)
Battery dimension(V/w/h)	mm	654x255x548(760)	654x255x548(760)
Noise level at operator's ear, according to DIN 12053	dB(A)	70	70
