Model

CBD30Q

Low Level Central Rider Order Picker

Advantage:

● Advanced electric power steering (EPS), with flexible and comfortable steering, automatic speed reduction function when turning. Comfortable for driving and controlling.

● Buffered stand on platform is with ergonomic backrest and anti-shock function to avoid operator fatigue.

● Warning lights with buzz to increase the safety of operations (option ).

● Easy & simple to operate, making handling operations more easier and efficient.

● With large capacity battery, side way battery ensure the battery quick replacement, to meet the high intensity of the handling operations.

● Powerful drive motor and control system, making the truck with strong momentum. Fully laden with 9 km/h maximun speed and 10% gradeability.

● German Frei handle with power steering system, automatic reset the wheel to the positive direction.

● Has a sliding control function, when the switch is turned on, releasing the accelerator and leave the driving position, the truck can keep driving straight for a distance slowly, easy for picking up goods. This feature can also be turned off by the switch.

● Lifting/Lowering buttons are mounted on the backrest, easy for handling operation.

Option:

● Extra long fork: 1500mm/2440mm/3660mm
● Backrest: 1220mm /1525mm/1830mm
● Electric Travel Alarm
● Beacon lamp
● On-off sliding switch
● Lifting and lowering switches on the back sid

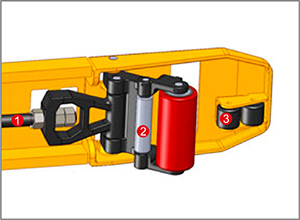

1. The straight tappet length can be precisely adjusted. 2. Equipped with Roll sleeve, making a smooth exit from the pallet. 3. Fork head fitted with double steel entry rollers, for smoothly moving into US pallets.	1. On-off sliding switch: when the switch is turned on, releasing the accelerator the truck can keep driving straight for a distance, easy for picking.	1. Option for warning light, on and off can be controlled. 2. Lifting/lowering buttons are mounted on the backrest, easy for handling operation.

DIMENSION Drawing:

Manufacturer's type designition		CBD30Q
Drive: electric (battery type, mains,..., diesel, petrol, fuel gas		Electric
Operator type: hand, pedestrian, standing, seated,order-picker		Order-picker
Rated capacity/rated load	Q(kg)	3000
Load centre distance	c(mm)	600
Load distance, centre of drive axle to fork	x(mm)	933
Wheelbase	y(mm)	2115
Service weight	kg	1150
Axle loading, laden front/rear	kg	1390/2760
Axle loading, unladen front/rear	kg	860/290
Tyres: solid rubber, superelastic, pneumatic, polyurethane		Polyurethane
Tyre size, front		φ250×80
Tyre size, rear		φ82×173
Additional wheels (dimensions)		φ127×57
Wheels, number front/rear(×=driven wheels)		1X+2/2
Tread, front	b10(mm)	620
Tread, rear	b11(mm)	455
Lift	h3(mm)	135
Height drawbar in driving position min./max.	h14(mm)	1070/1370
Height, lowered	h13(mm)	82
Overall length	l1(mm)	2570
Length to face of forks	l2(mm)	1350
Overallwidth	b1/b2(mm)	823
Fork dimensions DIN ISO 2331	s/e/l(mm)	55/230/1220
Fork spread	b5(mm)	685
Ground clearance, centre of wheelbase	m2(mm)	27
Aisle width for pallets 1000×1200 crossways	Ast(mm)	3090
Aisle width for pallets 800×1200 lengthways	Ast(mm)	2965
Turning radius	Wa(mm)	2290
Travel speed,laden/unladen	km/h	8.0/8.5
Lift speed,laden/unladen	m/s	0.025/0.035
Lowering speed,laden/unladen	m/s	0.03/0.03
Max.gradeability,laden/unladen	%	8/20
Service brake		Electromagnetic
Drive motor rating S260 min	kW	2.2
Lift motor rating at S315%	kW	2.2
Battery voltage/nominal capacity K5	(V/(Ah)or kWh	24/560
Battery weight	kg	559
Sound pressure level at the driver's seat	dB(A)	70

* Option: Lithium battery 400AH (Charger 24V/200A)
