Model

CPD10S-E/CPD15S-E

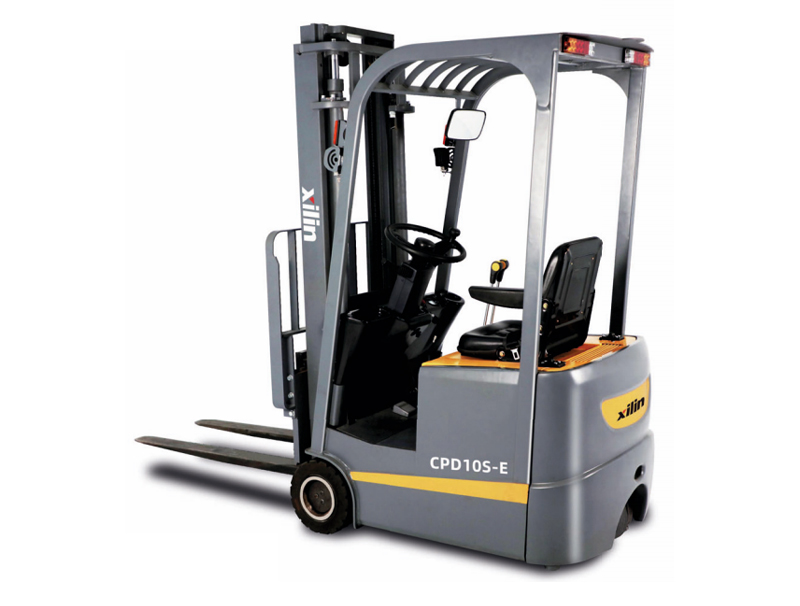

3 Wheel Electric Forklift

Advantage:

CPD10S-E

● Small turning radius
● Flexible operation
● Compact design
● Easily enter into and out of elevator

CPD15S-E

● One rear driving wheel, with a small turning radius and good pass - through capabilities.
● The compact design panels made of steel plates offer good durability.
● With a sideway battery moving system, it is easy to change the battery.
● Two lifting cylinders on both sides of the mast ensure good visibility and high stability.
● Using rubber wheels with good shockproof and low - noise properties, suitable for indoor and outdoor use on different grounds.

● Use an AC motor without brushes, free from maintenance.
● High gradeability up to 10% when fully laden.
● The electric brake is used as the parking brake, which is easy to operate and safe.
● Use hydraulic power steering for light stering and have the function of steering priority.
● Have the option of cold - storage based on a full AC control system.

CPD15S-E Wide View Mast
Type	Fork Lifting Height (H3)	Lowered height (H1)	Max Height of Mast Extended(H4)		Free Lifting Height(H2)		Tilt degree
	Fork Lifting Height (H3)	Lowered height (H1)	With backrest	Without backrest	With backrest	Without backrest	Forward	Backward
	mm	mm	mm	mm	mm	mm	Degree	Degree
2 stage mast Wide view	2500	1740	3500	3010	0	0	3	6
	3000	1980	4000	3510	0	0	3	6
	3500	2230	4500	4010	0	0	3	6
	4000	2480	5000	4510	0	0	3	6
2 stage mast with ullfre Lifting	3000	1925	4285	3510	900	1400	3	6
2 stage mast with ullfre Lifting	3500	2175	4785	4010	1175	1680	3	6
3 stage mast with ullfre Lifting	4000	1900	4850	4520	1000	1350	3	6
	4500	2090	5350	5020	1190	1450	3	6
	5000	2240	5850	5520	1340	1690	3	6
	5600	2440	6450	6120	1540	1890	3	6
	6000	2580	6850	6520	1680	2030	3	6

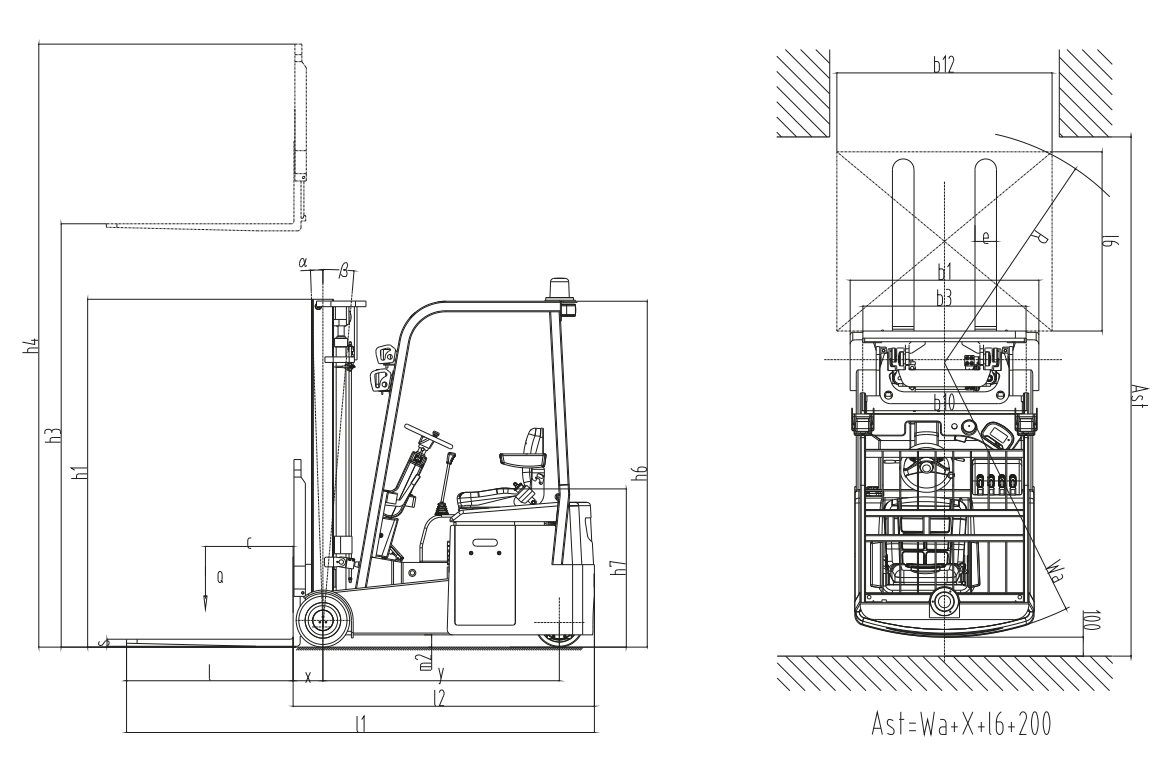

DIMENSION Drawing:

Manufacturer's type designation		CPD10S-E	CPD15S-E
Drive: electric (battery type, main,.),diesel, petrol, fuel gas		Electric	Electric
Operator type: hand, pedestrian, standing, seated,order-picker		Seated	Seated
Rated capacity/rated load	Q(kg)	1000	1500
Load centre distance	c(mm)	400	500
Load distance, centre of drive axle to fork	x(mm)	227	170
Wheelbase	y(mm)	1000	1348
Service weight	kg	1730	2500
Axle loading, laden front/rear	kg	2537/328	3280/810
Axle loading, unladen front/rear	kg	774/961	975/1625
Tyres: solid rubber, superelastic ,pneumatic ,polyurethane		Solid rubber	Solid rubber
Tyre size, front		φ305x127	φ305x145
Tyre size, rear		φ250x100	φ285x150
Wheels, number front/rear(×=driven wheels)		2/1x	2+1x
Tread, front	b10(mm)	711	912
Tread, rear	b11(mm)	0	0
Tilt of mast/fork carriage forward/backward	a/b(°)	2/4	2/5
Height, mast lowered	h1(mm)	1740/1980/2230/2480	1980(3m)
Free lift	h2(mm)	Option	Option
Lift	h3(mm)	2500/3000/3500/4000	2500-6000
Height, mast extended	h4(mm)	3540/4040/4540/5040	3500-7000
Height of overhead guard(cabin)	h6(mm)	1909	1980
Seat height relating to SIP/stand height	h7(mm)	850	885
Coupling height	h10(mm)	297
Overall length	l1(mm)	2346	2790(1070)
Length to face of forks	l2(mm)	1450	1720
Overall width	b1/b2(mm)	860	1055
Fork dimensions DIN ISO 2331	s/e/l(mm)	35/100/900	35/100/950(1070)
Fork-carriage width	b3(mm)	680	680
Ground clearance, laden, below mast	m1(mm)	70	68
Ground clearance, centre of wheelbase	m2(mm)	70	68
Aisle width for pallets 1000×1200 crossways	Ast(mm)	2790	3050
Aisle width for pallets 800×1200 lengthways	Ast (mm)	2935	3150
Turning radius	Wa(mm)	1226	1550
Travel speed,laden/unladen	km/h	6.8/7.0	6.8/7.0
Lift speed,laden/unladen	m/s	0.13/0.18	0.10/0.15
Lowering speed,laden/unladen	m/s	0.24/0.1	0.42/0.38
Max.Gradeability,laden/unladen	%	6/10	6/10
Service brake		Electromagnetic	Electromagnetic
Drive motor rating S260 min	kW	1.5(AC)	2.2(AC)
Lift motor rating at S315%	kW	2.2(DC)	4.5(DC)
Battery voltage/nominal capacity K5	(V)/(Ah)	24/200-360	24/320(400)
Battery weight	kg	180-350	285/350
Sound pressure level at the driver's seat	dB(A)	68	68
