Model

CPD20SA-16/18/20

3 Wheel Electric Forklift

Advantage:

SAFETY AND STABLITY

● Germany imported driving axle.
● Multifunctional display with using time,fault code, battery status, forklift running information.
● AC motor with regenerative braking.
● Three running modes according to different needs: low speed, moderate speed and high speed.
● Wet disk brake can make the forklift break stably, ensures high durability and safety.
● Very small turning radius is only 1552mm and minimum right angle stacking aisle is only
3220mm.

SERVICE ABILITY

● Easy maintained controller and steering potentiometer.
● Maintenance free wet disk brake.
● Lifting and driving AC motors without carbon brush free to maintain, which greatly reduce maintenance cost. And they all adopt external encoder, so the
maintenance and service is more convenient.
● BDI with overall discharge protecting system.
● Braking oil cup is installed on the instrument panel, so as to check and add braking oil conveniently.
● Side way battery box is easy to change battery. it is safety and convenient.

ERGONOMICS

● With two step pedal easy to get into the driving cab.
● Adjustable steering wheel column, the driver can adjust the position according to his need.
● Integrated light switch and steering wheel.
● ABS instrument board in the driving-box is durable and beautiful.
● The design of the controlling lever position fit the Ergonomic principles which can reduce the driver's fatigue.
● Clearly and wide view mast with good visibility.
● Emergency power cut off plug for emergency stop.

CPD20SA-16/18/20
Type	Liftng Height(H3)	Lowered height (H1)	Mast Extended Height(H4)		Free Lift Height(H2)		Mast Till Degree		Capacity
	Liftng Height(H3)	Lowered height (H1)	With backrestl	Without backrest	With backrest	Without backrest	Forward	Backward	C=600 Without sideshift
	mm	mm	mm	mm	mm	mm	deg	deg	Kg(CPD20SA-16)	Kg(CPD20SA-18)	Kg(CPD20SA-20)
2-stage mast wide view	2000	1510	3000	2570	0	0	3	6	1600	1800	2000
	2500	1720	3500	3070	0	0	3	6	1600	1800	2000
	2700	1695	3700	3270	0	0	3	6	1600	1800	2000
	3000	2010	4000	3570	0	0	3	6	1600	1800	2000
	3300	2160	4300	3870	0	0	3	6	1600	1800	2000
	3500	2260	4500	4070	0	0	3	6	1600	1800	2000
	3700	2360	4700	4270	0	0	3	6	1550	1750	1950
	4000	2510	5000	4570	0	0	3	6	1500	1700	1900
	4500	2760	5500	5070	0	0	3	6	1300	1450	1650
	4800	2910	5800	5370	0	0	3	6	1150	1350	1550
	5000	3010	6000	5570	0	0	3	6	1050	1250	1450
2-stage full free lifting	2000	1510	3000	2570	510	940	3	6	1600	1800	2000
	2500	1850	3500	3070	850	1280	3	6	1600	1800	2000
	3000	2100	4000	3570	1100	1530	3	6	1600	1800	2000
	3300	2250	4300	3870	1250	1680	3	6	1600	1800	2000
	3500	2400	4500	4070	1400	1830	3	6	1600	1800	2000
	3700	2500	4700	4270	1500	1930	3	6	1550	1750	1950
	4000	2650	5000	4570	1650	2080	3	6	1500	1700	1900
3-stage full re iting	4000	1900	5000	4570	900	1330	3	6	1500	1700	1900
	4500	2110	5500	5070	1110	1540	3	6	1300	1450	1650
	4800	2210	5800	5370	1210	1640	3	6	1150	1350	1550
	5000	2270	6000	5570	1270	1700	3	6	1050	1250	1450
	5600	2470	6600	6170	1470	1900	3	6	700	850	1050
	6000	2610	7000	6570	1610	2040	3	6	550	650	800
	6200	2670	7200	6770	1670	2100	3	6	450	500	600
	6500	2770	7500	7070	1770	2200	3	6	300	400	550
	7000	2940	8000	7570	1940	2370	3	6	100	200	350

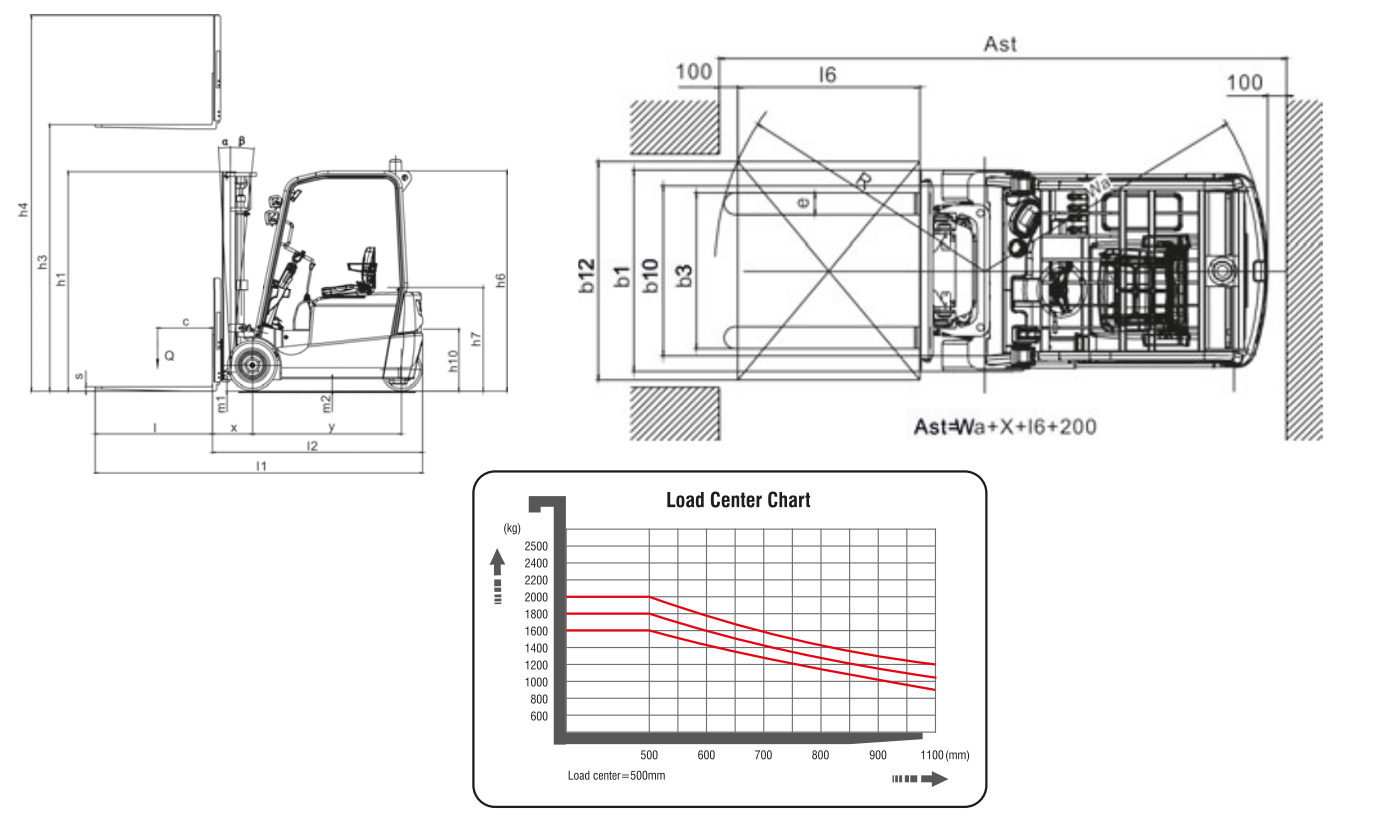

DIMENSION Drawing:

Manufacturer's type designition		CPD20SA-16	CPD20SA-18	CPD20SA-20
Drive:electric(battery type,main,..),diesel,petrol,fuel gas		Electric	Electric	Electric
Operator type:hand,pedestrian,standing,seated,order-picker		Seated	Seated	Seated
Rated capacity/rated load	Q(kg)	1600	1800	2000
Load centre distance	c(mm)	500	500	500
Load distance,centre of drive axle to fork	x(mm)	366	366	366
Wheelbase	y(mm)	1362	1362	1465
Service weight	kg	3200	3350	3500
Axle loading,laden front/rear	kg	3955/865	4166/914	4469/981
Axle loading,unladen front/rear	kg	1425/1795	1455/1826	1625/1997
Tyres:solid rubber,superelastic,pneumatic,polyurethane		Solid rubber	Solid rubber	Solid rubber
Tyre size,front		18x7-8	200/50-10	200/50-10
Tyre size,rear		15x4½-8	15x4½-8	140/55-9
Wheels,number front/rear(×=driven wheels)		2x+2	2x+2	2x+2
Tread,front	b10(mm)	920	937	937
Tread,rear	b11(mm)	165	165	188
Tilt of mast/fork cariage forward/backward	a/b(°)	3/6	3/6	3/6
Height,mast lowered	h1(mm)	2000-2660	2000-2660	2000-2660
Free lift	h2(mm)	Option	Option	Option
Lift	h3(mm)	3000-6200	3000-6200	3000-6200
Height,mast extended	h4(mm)	4050-7250	4050-7250	4050-7250
Height of overhead guard(cabin)	h6(mm)	2013	2013	2013
Seat height relating to SIP/stand height	h7(mm)	950	950	950
Coupling height	h10(mm)	560	560	560
Overall length	11(mm)	2880	3000	3100
Length to face of forks	12(mm)	1930	1930	2030
Overallwidth	b1/b2(mm)	1077	1145	1145
Fork dimensions DIN ISO 2331	s/e/I(mm)	40/100/950	40/120/1070	40/120/1070
Fork-cariage width	b3(mm)	968	968	968
Ground clearance,laden,below mast	m1(mm)	90	90	90
Ground clearance,centre of wheelbase	m2(mm)	100	100	100
Aisle width for pallets 1000×1200 crossways	Ast(mm)	3120	3120	3200
Aisle width for pallets 800×1200 lengthways	Ast(mm)	3220	3220	3300
Turning radius	Wa(mm)	1552	1552	1652
Travel speed,laden/unladen	km/h	14/14	14/14	13/13
Lift speed,laden/unladen	m/s	0.29/0.45	0.27/0.42	0.25/0.42
Lowering speed,laden/unladen	m/s	0.45/0.43	0.45/0.43	0.45/0.43
Max.Gradeability,laden/unladen	%	15/20	15/20	15/20
Service brake		Hydraulic	Hydraulic	Hydraulic
Drive motor rating S260 min	kW	2x4.75(AC)	2x4.75(AC)	2x4.75(AC)
Lift motor rating at S315%	kW	10(AC)	10(AC)	10(AC)
Battery voltage/nominal capacity K5	(V)/(Ah)	48/420(490)	48/490(560	48/560(640)
Battery weight	kg	720(760)	760(800)	800(845)
Oil volume for attachments	&/min	7.5	7.5	7.5
Sound pressure level at the driver's seat	dB(A)	68	68	68

Remark: The data is based on the lifting height 3000mm;
Lifting height from 3000mm to 6200mm are available;
Electric controller selection: INMOTION, CURTIS.
