  • Stand-up Counterbalance Forklift  CPD20SR
Model

CPD20SR

Stand-up Counterbalance Forklift

  • Stand-up Counterbalance Forklift  CPD20SR

Advantage:

SAFETY AND STABLITY
● This feature appears especially important when in or out of the container, and carrying goods in congested area and narrow aisle. Standing type design with wide view ,clear visibility.
● Imported drive wheel and mast.
● With multi-function LED display with BID can be programmed, include battery discharge, faulty code, drive direction, hour meter, brake situation etc.
● Advanced AC control system offers strong driven ability. No brush with generative brake.
● Offers three type driven speed : low speed, normal speed, high speed. You may choice according to different request.
● Muiti-function type joy stick can control forward, reverse, mast lifting/lowering, tiling and sideshift etc .easy to operate.
● Germany made magnetic multi-valve, with proportional valve and offers adjustable lifting/lowering speed.
● Wet disc brake.
● With small turning radius 1440mm and aisle width smallest is 3060mm.
ERGONOMICS
● With adjustable armrest, comfortable and stable. Suit for different height driver using.
● Large compartment for standing, with foot relax plate, can effectively relax foot while static operation.
● The standing platform has a good shock absorption, conform to ergonomic design to make the operation more comfortable.
● The adjustable armrest and seat provides padded support to ensure the hand comfortable and stable, and meet different requirements for the operators.
SERVICE ABILITY
● Easy reach to electrical system while open the front cover, easy for maintenance.
● Driving motor and lifting motor are all with AC system, brushless easy to maintain, external encoder is easy to replace.
● Sideway moving battery with lock system it is convenience for maintenance.
● Lifting function will be cut off while battery discharge is over 80%.
● The multi-function display with error code can easy to check troubles of truck.
OFFERS 6 TYPE CONTROL SPEED
● System Controlled Hydraulic Speeds: The hydraulic system automatically controls tilt and stable side-shift speed to increase forklift stability and operator onfidence.
● Travel Speed Control: truck can automatically controls travel speeds and braking based on fork height and other operating conditions.
● Cornering Speed Control: the truck will automatically adjust travel speed when steering.
● Ramp Speed Control: The intelligent control system can maintains holds truck stopped on the ramp until the operator start travel forward at a constant speed.
● Safe Speed Control: The forklift will slow down automatically if the foot of the operator places out of the standing platform.
● Lift/lower Speed Control: The operator can adjust the lift and lower speed by control handle.
Option
● Reading light
● Electric fan
● Sideshift and other accessories of the forklift

Mast Data(CPD20SR-16&18)

Type

Lifting

Height(H3)

Lowered

height(H1)

Max Height of Mast

Extended(H4)

Free Lifting

Height (H2)

Mast Till Degree

Capacity

With

backrest

Without

backrest

With

backrest

Without

backrest

Forward

Backward

C=600 Without sideshift

mm

mm

mm

mm

mm

mm

deg

deg

kg(CPD20SR-16)

kg(CPD20SR-18)

2-stage mast

wide view

3000

2030

4220

3570

1600

1800

3300

2180

4520

3870

1600

1800

3500

2280

4720

4070

1600

1800

3700

2380

4920

4270

1550

1750

4000

2530

5220

4570

1450

1650

4500

2830

5720

5120

1250

1400

2-stage full

free lifting

3000

2030

4220

3570

810

1390

1600

1800

3300

2180

4520

3870

960

1540

1600

1800

3500

2280

4720

4070

1060

1640

1600

1800

3700

2380

4920

4270

1160

1740

1400

1700

4000

2530

5220

4570

1310

1940

1350

1650

3-stage full

free lifting

4800

2135

6020

5395

960

1610

1020

1120

5000

2193

6220

5597

1018

1666

950

1060

5600

2393

6820

6197

1218

1866

800

860

6000

2527

7220

6597

1352

2000

700

760

6500

2694

7720

7098

1518

2166

500

550

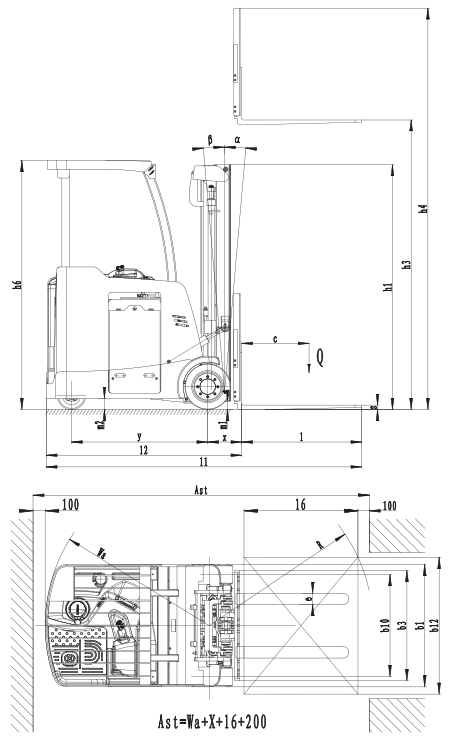

DIMENSION Drawing:

Manufacturer's type designition   CPD20SR-16 CPD20SR-18
Drive:electric (battery type,mains,...),diesel,petrol,fuel gas   Electric Electric
Operator type:hand,pedestrian,standing,seated,order-picker   Standing Standing
Rated capacity/rated load Q(kg) 1600  1800
Load centre distance c(mm) 600  600
Load distance,centre of drive axle to fork x(mm) 310  310
Wheelbase y(mm) 1200  1260
Service weight kg 3060  3250
Axle loading,laden front/rear kg 4780/830(4.8m) 4880/910
Axle loading,unladen front/rear kg 2130/1880(4.8m) 2260/1930
Tyres:solid rubber,superelastic,pneumatic,polyurethane   Solid rubber Solid rubber
Tyre size,front   16x7x10.5 16x7x10.5
Tyre size,rear   10x5x6.5 10x5x6.5
Wheels,number front/rear(×=driven wheels)   2x+2 2x+2
Tread,front b10(mm) 896  896
Tread,rear b11(mm) 176  176
Tilt of mast/fork carriage forward/backward a/b(°) 5/5 5/5
Height,mast lowered h1(mm 2215-2610 2215-2610
Free lift h2(mm) 960-1350 960-1350
Lift h3(mm) 4800-6000 4800-6000
Height,mast extended h4(mm 6055-7255 6055-7255
Height of overhead guard(cabin) h6(mm) 2220  2220
Seat height relating to SIP/stand height h7(mm) 230  230
Overall length 11(mm) 2700  2760
Length to face of forks 12(mm) 1780  1840
Overallwidth b1/b2(mm) 1075  1075
Fork dimensions DIN ISO 2331 s/e/I(mm) 40/100/920(1070) 40/100/920(1070)
Fork-cariage width b3(mm) 968  968
Ground clearance,laden,below mast m1(mm) 70  70
Ground clearance,centre of wheelbase m2(mm) 90  90
Aisle width for pallets 1000×1200 crossways Ast(mm) 3060  3120
Aisle width for pallets 800×1200 lengthways Ast(mm) 3160  3220
Turning radius Wa(mm) 1440  1500
Travel speed,laden/unladen km/h 11.5/12.0 11.5/12.0
Travel speed,laden/unladen,backwards km/h 11.5/12.0 11.5/12.0
Lift speed,laden/unladen m/s 0.28/0.40 0.26/0.40
Lowering speed,laden/unladen m/s 0.4/0.4 0.4/0.4
Gradeability,laden/unladen % 10/15 10/15
Max.Gradeability,laden/unladen % 10/12 10/12
Service brake   Electromagnetic Electromagnetic
Drive motor rating S260 min kW 2X4.5(AC) 2X4.5(AC)
Lift motor rating at S315% kW 10.0(AC) 10.0(AC)
Battery voltage/nominal capacity K5 (V)/(Ah) 36/800 36/900
Battery weight kg 920-980 1100-1160
Operating pressure for attachments bar 16  16
Oil volume for attachments {/min 7.5  7.5
Sound pressure level at the driver's seat dB(A) 68  68
Remark: The data is based on the lifting height 4800mm; Lifting height from 3000mm to 6500mm are available;
