Electric Forklift Truck

home / product / Electric Forklift / Electric Forklift Truck
Model

FB16R/FB20R FB25R/FB30R/FB35R

Electric Forklift Truck

Advantage:

SAFETY AND STABILITY :
● Improved efficiency most popular H type driving axle, optimized structure layout and improvedefficiency.
● High power and large torque AC driving motor, large diameter body to export larger torque, heat radiating groove reserved for better heat texchange in case of extra-long-time use.
● Multifunctional display with using time, fault code, battery status, forklift running information.
● AC driving motor without brush, free of maintenance; low electric current, silent driving.
● Low gravity center thanks to relocated battery, greatly reinforcing steering stability.
● Steering circuit preference, to ensure safety in every turn when steering and lifting in the same time, and to save energy.
● Dual-controller design, one driving controller, the other control steering and lifting.
● Metal housing for better protection.
● Full LED light.
ERGONOMICS :
● Optimized structure creates a large and comfortable operating room.
● Adjustable steering wheel column, the driver can adjust the position according to his need.
● Integrated light switch and steering wheel.
● Clear and wide view mast with good visibility.
● Intelligent mast collapse buffering.
SERVICE ABILITY:
● Easy maintained controller and steering potentiometer.
● Brushless lifting and driving motor, reduced cost of ownership; external encoder, easy to replace and service.
● Over discharge protecting system: while the battery discharges less than 20%, the instrument warming light will turn on.
● Braking oil cup installed on the instrument panel, convenient to check and add braking oil.
OPTIONAL:
● Side-way battery box
● Electromagnetic valve
● Shock-absorbing chair, with power disconnect function
● Dual-front-wheels
● Adjustable lifting motor speed system
● Cold storage application
● Lithium battery

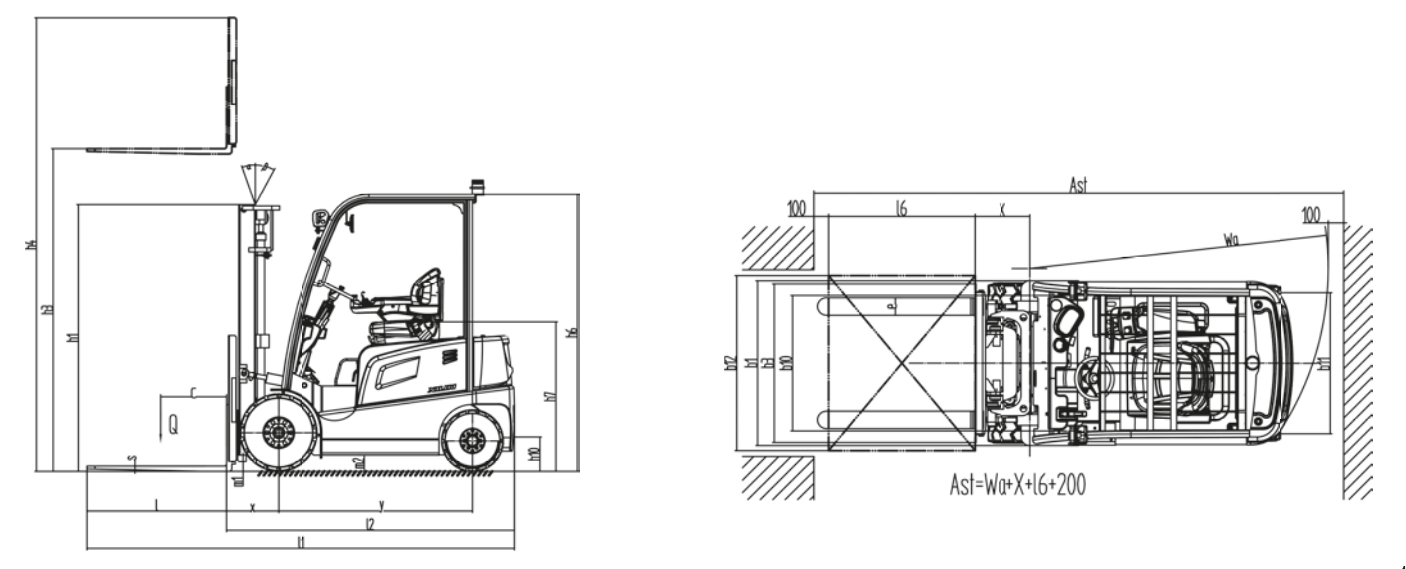

DIMENSION Drawing:

Model   FB16R (Semi-AC type) FB16R (Full AC type)
Power   electric electric
Operation type   seated seated
Capacity/rated load Q(kg) 1600 1600
Load centre distance c(mm) 500 500
Lift height h3(mm) 3000~6000 3000~6000
Load distance, centre of drive axle to fork x(mm) 395 395
Wheelbase Y(mm) 1360 1360
Service weight (with battery) kg 3100 3100
Axle loading, laden front/rear kg 4715/600 4815/685
Axle loading, unladen front/rear kg 1400/1700 1400/1700
Tyre type   pneumatic/solid pneumatic/solid
Tyre size, front mm 6.50-10 6.50-10
Tyre size, rear mm 5.00-8 5.00-8
Wheels, number front rear (x=driven wheels)   2x/2 2x/2
Tread, front b10(mm) 930 930
Tread, rear b11(mm) 920 920
Tilt of mast/fork carriage forward/backward Grad 5/10 5/10
Height, mast lowered h1(mm) 2015-2610 2015-2610
Height, mast extended h4(mm) 4067-7067 4067-7067
Height of overheard guard (cabin) h6(mm) 2100 2100
Seat height/stand height h7(mm) 1040 1040
Height of traction bolt h10(mm) 260 260
Overall length l1(mm) 3000 3000
Length to face of forks l2(mm) 2080 2080
Overall width b1(mm) 1130 1130
Fork dimensions s/e/l(mm) 35/120/920 35/120/920
Fork carriage DIN 15173, class/type A,B   2A 2A
Fork-carriage width b3(mm) 1088 1088
Ground clearance, laden, below mast m1(mm) 105 105
Ground clearance, centre of wheelbase m2(mm) 115 115
Aisle width for pallets 1000x1200 crossways Ast(mm) 3500 3500
Aisle width for pallets 800x1200 lengthways Ast(mm) 3700 3700
Turning radius Wa(mm) 1980 1980
Travel speed, laden/unladen Km/h 12/13 12/13
Lift speed, laden/unladen mm/s 0.26/0.35 0.26/0.35
Lowering speed, laden/unladen mm/s 0.36/0.42 0.36/0.42
Max. gradeability, laden/unladen % 15/20 15/20
Battery voltage, nominal capacity K5 V/Ah 48/420(375,480) 48/420(480)
Battery weight Kg 650 650
Driving control system   AC AC
Model   FB20R-1 (Semi-AC type) FB20R-2 (Full AC type)
Power   electric electric
Operation type   seated seated
Capacity/rated load Q(kg) 2000 2000
Load centre distance c(mm) 500 500
Lift height h3(mm) 3000~6000 3000~6000
Load distance, centre of drive axle to fork x(mm) 395 395
Wheelbase Y(mm) 1480 1480
Service weight (with battery) kg 3315 3500
Axle loading, laden front/rear kg 4715/600 4815/685
Axle loading, unladen front/rear kg 1545/1770 1635/1865
Tyre type   pneumatic/solid pneumatic/solid
Tyre size, front mm 6.50-10 6.50-10
Tyre size, rear mm 5.00-8 5.00-8
Wheels, number front rear (x=driven wheels)   2x/2 2x/2
Tread, front b10(mm) 930 930
Tread, rear b11(mm) 920 920
Tilt of mast/fork carriage forward/backward Grad 5/10 5/10
Height, mast lowered h1(mm) 2015-2610 2015-2610
Height, mast extended h4(mm) 4050-7050 4067-7067
Height of overheard guard (cabin) h6(mm) 2100 2100
Seat height/stand height h7(mm) 1040 1040
Height of traction bolt h10(mm) 260 260
Overall length l1(mm) 3270 3270
Length to face of forks l2(mm) 2200 2200
Overall width b1(mm) 1130 1130
Fork dimensions s/e/l(mm) 40/120/1070 40/120/1070
Fork carriage DIN 15173, class/type A,B   2A 2A
Fork-carriage width b3(mm) 1088 1088
Ground clearance, laden, below mast m1(mm) 105 105
Ground clearance, centre of wheelbase m2(mm) 115 115
Aisle width for pallets 1000x1200 crossways Ast(mm) 3600 3600
Aisle width for pallets 800x1200 lengthways Ast(mm) 3800 3800
Turning radius Wa(mm) 2080 2080
Travel speed, laden/unladen Km/h 12/13 12/13
Lift speed, laden/unladen mm/s 0.24/0.36 0.28/0.32
Lowering speed, laden/unladen mm/s 0.36/0.42 0.36/0.42
Max. gradeability, laden/unladen % 15/20 15/20
Battery voltage, nominal capacity K5 V/Ah 48/450(500.560.630) 48/500(560.630)
Battery weight Kg 680 760
Driving control system   AC AC
Model   FB25R-1 (Semi-AC type) FB25R-2 (Full AC type)
Power   electric electric
Operation type   seated seated
Capacity/rated load Q(kg) 2500 2500
Load centre distance c(mm) 500 500
Lift height h3(mm) 3000~6000 3000~6000
Load distance, centre of drive axle to fork x(mm) 445 445
Wheelbase Y(mm) 1480 1480
Service weight (with battery) kg 4050 4150
Axle loading, laden front/rear kg 5807/743 5857/793
Axle loading, unladen front/rear kg 1829/2221 1859/2246
Tyre type   pneumatic/solid pneumatic/solid
Tyre size, front mm 23X9-10 23X9-10
Tyre size, rear mm 18X7-8 18X7-8
Wheels, number front rear (x=driven wheels)   2x/2 2x/2
Tread, front b10(mm) 970 970
Tread, rear b11(mm) 970 970
Tilt of mast/fork carriage forward/backward Grad 5/10 5/10
Height, mast lowered h1(mm) 2050-2710 2050-2710
Height, mast extended h4(mm) 4067-7067 4050-7050
Height of overheard guard (cabin) h6(mm) 2100 2100
Seat height/stand height h7(mm) 1040 1040
Height of traction bolt h10(mm) 260 260
Overall length l1(mm) 3310 3310
Length to face of forks l2(mm) 2240 2240
Overall width b1(mm) 1200 1200
Fork dimensions s/e/l(mm) 40/120/1070 40/120/1070
Fork carriage DIN 15173, class/type A,B   2A 2A
Fork-carriage width b3(mm) 1160 1160
Ground clearance, laden, below mast m1(mm) 110 110
Ground clearance, centre of wheelbase m2(mm) 110 110
Aisle width for pallets 1000x1200 crossways Ast(mm) 3700 3700
Aisle width for pallets 800x1200 lengthways Ast(mm) 3900 3900
Turning radius Wa(mm) 2180 2180
Travel speed, laden/unladen Km/h 12/13 12/13
Lift speed, laden/unladen mm/s 0.24/0.36 0.26/0.3
Lowering speed, laden/unladen mm/s 0.36/0.42 0.36/0.42
Max. gradeability, laden/unladen % 13/14 13/14
Battery voltage, nominal capacity K5 V/Ah 48/500(560.630) 48/560(630)
Battery weight Kg 760/880/1055 880/1055
Driving control system   AC AC
Model   FB30R (Semi-AC type) FB35R (Full AC type)
Power   electric electric
Operation type   seated seated
Capacity/rated load Q(kg) 3000 3500
Load centre distance c(mm) 500 500
Lift height h3(mm) 3000 3000
Load distance, centre of drive axle to fork x(mm) 460 460
Wheelbase Y(mm) 1640 1640
Service weight (with battery) kg 4800 5200
Axle loading, laden front/rear kg 5807/743 5857/793
Axle loading, unladen front/rear kg 2314/2486 2300/2900
Tyre type   pneumatic/solid pneumatic/solid
Tyre size, front mm 23X9-10 23X10-12
Tyre size, rear mm 18X7-8 200/50-10
Wheels, number front rear (x=driven wheels)   2x/2 2x/2
Tread, front b10(mm) 1040 1040
Tread, rear b11(mm) 950 950
Tilt of mast/fork carriage forward/backward Grad 5/10 5/10
Height, mast lowered h1(mm) 2100 2100
Height, mast extended h4(mm) 4100 4100
Height of overheard guard (cabin) h6(mm) 2160 2160
Seat height/stand height h7(mm) 1070 1070
Height of traction bolt h10(mm) 260 260
Overall length l1(mm) 3550 3550
Length to face of forks l2(mm) 2470 2540
Overall width b1(mm) 1265 1302
Fork dimensions s/e/l(mm) 45/125/1070 50/125/1070
Fork carriage DIN 15173, class/type A,B   3A 3A
Fork-carriage width b3(mm) 1150 1150
Ground clearance, laden, below mast m1(mm) 115 115
Ground clearance, centre of wheelbase m2(mm) 120 120
Aisle width for pallets 1000x1200 crossways Ast(mm) 3900 3960
Aisle width for pallets 800x1200 lengthways Ast(mm) 4100 4160
Turning radius Wa(mm) 2225 2285
Travel speed, laden/unladen Km/h 12/13 12/13
Lift speed, laden/unladen mm/s 0.25/0.4 0.21/0.4
Lowering speed, laden/unladen mm/s 0.36/0.42 0.36/0.42
Max. gradeability, laden/unladen % 13/14 13/14
Battery voltage, nominal capacity K5 V/Ah 80/400(450.500) 80/400(450.500)
Battery weight Kg 1100/1245/1383 1100/1245/1383
Driving control system   AC AC
* Option: FB20R Lithium battery 350AH (Charger 48V/100A)
FB25R Lithium battery 450AH (Charger 48V/200A)
Remark: The data is based on the lifting height 3000mm; Lifting height from 3000mm to 6000mm are available;
Electric controller selection (1)standard: Enpower (2)Option: Curtis, Inmotion, ZAPI.
