Model

CSD16/CSD20

4-Directional Forklift

Advantage:

● CSD 4-directional forklift has multiple functions. It can move forwards, backwards and sideways in both directions. Compared with ordinary forklift truck, CSD's most distinguishing and incomparable feature lies in its excellent flexibility, convenience and maneuverability, it is quite flexible when carrying long loads moving sideways.

● Motor & control system features a low noise, no pollution emission and is green and environment-friendly.

● Most advanced AC variable-frequency control system. AC motor provides the truck a more stable performance and quality, allows high efficiency , low energy consumption and motor maintain free.

● Adopt dual motor drive and double steering system, which allows the truck to drive forwards, backwards, sideways. The operator can freely select appropriate functions according to different working environment and situation.

● Shift between frontal and sideways travel, this function is controlled by prepared program of the electric control system. It has the power-on automatic detection function, if the truck is shut off or incident power failure occurs, the control system will do detection automatically while energizing again, and allow the truck restore to its original state in a very short time.

● Multi-function instrument displaying the battery power, work hour, fault self-diagnosing and alarm. Operator can know the truck conditions quickly, make trouble shooting and maintenance faster and easier.

Model	Max.ifting heifht(h3)	Height,mast lowered(h¹)	Height,mast extended (h4)	Free lifting(h2)
	Max.ifting heifht(h3)	Height,mast lowered(h¹)	Height,mast extended (h4)	With overhead guard	Without overhead guard
	mm	mm	mm	mm	mm
CSD16/CSD20	3000	2090	3800	0	0
	3500	2340	4300	0	0
	4000	2590	4800	0	0
	4500	2150	5300	1500	1500
	5000	2240	5800	1650 1650
	6200	2640	7000	2050 2050

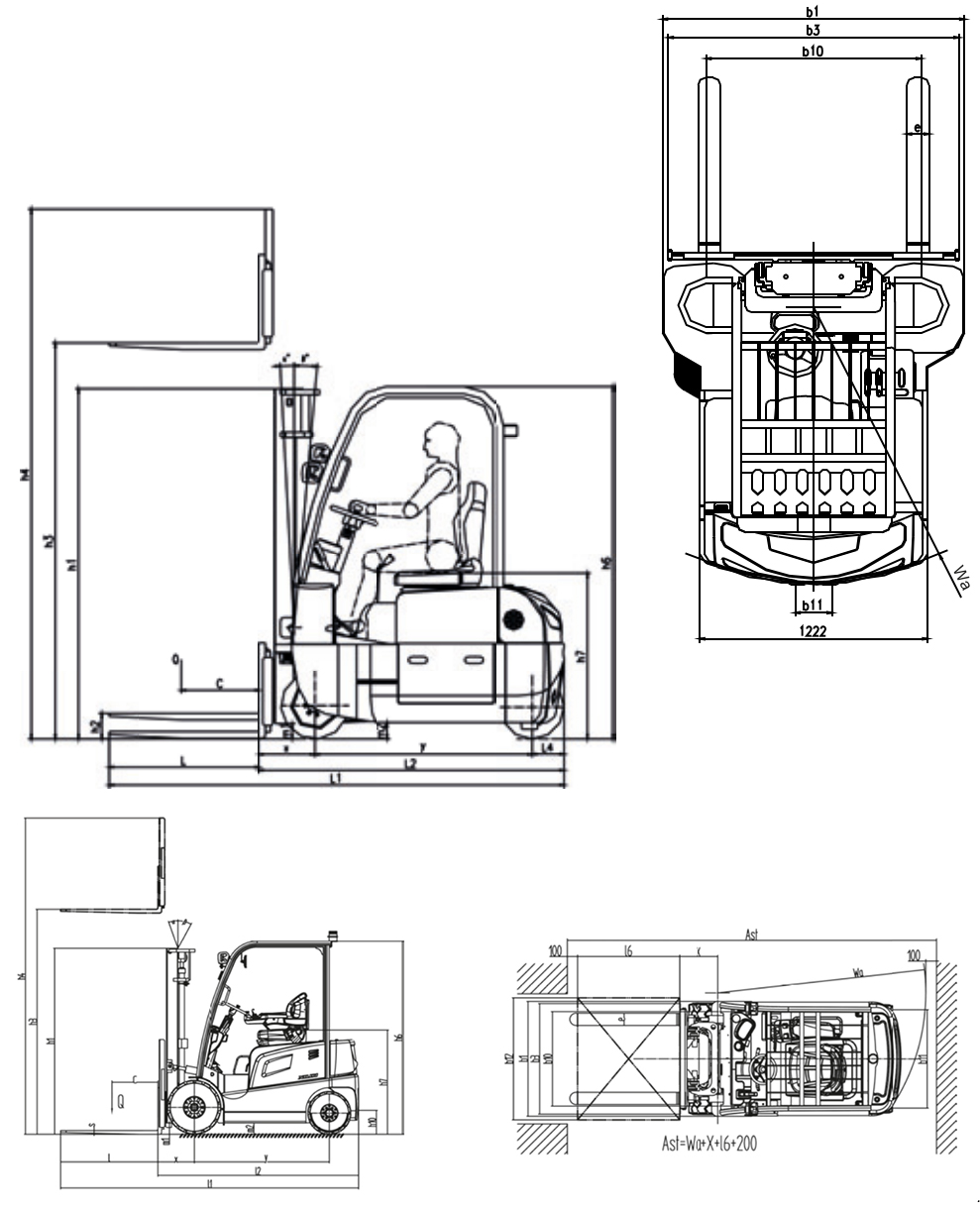

DIMENSION Drawing:

Manufacturer's type designition		CSD16	CSD20
Drive:electric (battery type,mains,...),diesel,petrol,fuel gas		Electric	Electric
Operator type:hand,pedestrian,standing,seated,order-picker		Seated	Seated
Rated capacity/rated load	Q(kg)	1600	2000
Load centre distance	c(mm)	500	500
Load distance,centre of drive axle to fork	x(mm)	330	350
Wheelbase	y(mm)	1300	1350
Service weight	kg	3600	4300
Axle loading,laden front/rear	kg	4472/628	5620/680
Axle loading,unladen front/rear	kg	1950/1650	2360/1940
Tyres:solid rubber,superelastic,pneumatic,polyurethane		Polyurethane	Polyurethane
Tyre size,front		406X152	406X152
Tyre size,rear		15X4(1/2)-8	15X4(1/2)-8
Wheels,number front/rear (×=driven wheels)		2x/2	2x/2
Tread,front	b10(mm)	1133	1133
Tread,rear	b11(mm)	199	199
Tilt of mast/fork carriage forward/backward	a/b(°)	3/5	3/5
Height,mast lowered	h1(mm)	2090	2090
Free lift	h2(mm)	0	0
Lift	h3(mm)	3000	3000
Height,mast extended	h4(mm)	3800	3800
Height of overhead guard(cabin)	h6(mm)	2100	2100
Seat height relating to SIP/stand height	h7(mm)	990	990
Coupling height	h10(mm)	560	560
Overall length	l1(mm)	2890	2940
Length to face of forks	l2(mm)	1820	1870
Overallwidth	b1/b2(mm)	1622	1622
Fork dimensions DIN ISO 2331	s/e/l(mm)	35X100X1070	40X100X1070
Fork-carriage width	b3(mm)	1560	1560
Ground clearance,laden,below mast	m1(mm)	90	90
Ground clearance,centre of wheelbase	m2(mm)	100	100
Aisle width for pallets 1000×1200 crossways	Ast(mm)	3150	3150
Aisle width for pallets 800×1200 lengthways	Ast(mm)	3280	3280
Turning radius	Wa(mm)	1500	1540
Travel speed,laden/unladen	km/h	10/10	10/10
Lift speed,laden/unladen	m/s	0.29/0.45	0.29/0.45
Lowering speed,laden/unladen	m/s	0.45/0.43	0.45/0.43
Gradeability,laden/unladen	%	15/20	15/20
Drive motor rating S260 min	kW	2x5.0(AC)	2x5.0(AC)
Lift motor rating at S315%	kW	8.2(AC)	8.2(AC)
Battery voltage/nominal capacity K5	(V)(Ah)	48/490	48/490
Battery weight	kg	900	900
Sound pressure level at the driver's seat	dB(A)	68	68
