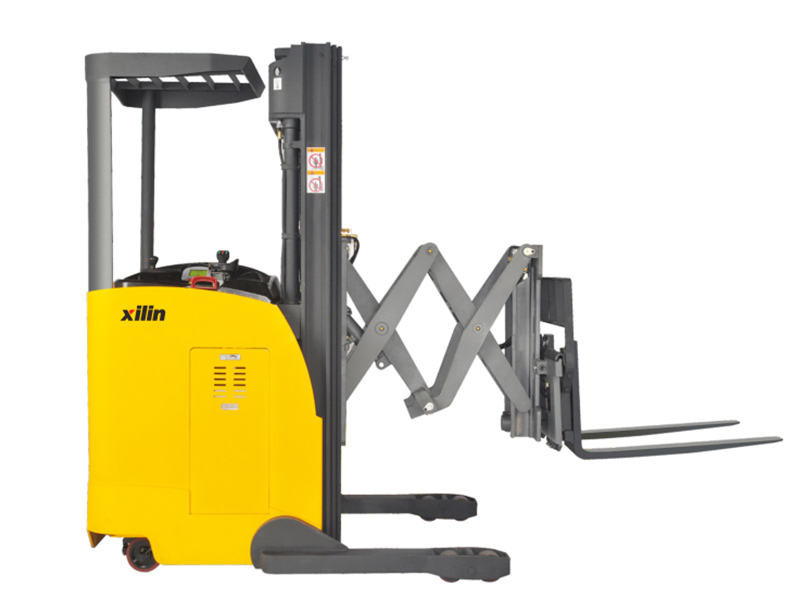

  • Electric Fork Reach Truck  CQDH15C/CQDH18C
  • Electric Fork Reach Truck  CQDH15C/CQDH18C
  • Electric Fork Reach Truck  CQDH15C/CQDH18C
  • Electric Fork Reach Truck  CQDH15C/CQDH18C
Model

CQDH15C/CQDH18C

Electric Fork Reach Truck

  • Electric Fork Reach Truck  CQDH15C/CQDH18C
  • Electric Fork Reach Truck  CQDH15C/CQDH18C
  • Electric Fork Reach Truck  CQDH15C/CQDH18C
  • Electric Fork Reach Truck  CQDH15C/CQDH18C

Advantage:

SAFETY AND STABILITY
● Advanced AC control system eliminating the motor brushes and directional contactor, which makes the minimal maintenance requirements.
● Stepless speed control Intelligentized regenerative brake system: increase overall truck performance by decreasing battery charge intervals.
● Equipped with adjustable hand-rest, adapted to different operator.
● Multi-function display: battery status, hour meter, fault indicator etc.
● Two sides-way battery with roll-out system is very convenient to replace batteries.
● Damping cushion for low-noise operation.
● Built-in pressure relief valve protects the trucks from overloads.
● Emergency power disconnect.
STRUCTURAL
● Low center of gravity ensures the stable operation.
● Vertical driving wheel has a small turning radius and easy to maintain. The motor structure is water-proof and dust-proof.
● The scissor reach forks is operated by electric controller, which makes operation stable and no impact.
SERVICEABILITY
● Low battery protection setting prolongs the battery use time.
● CANbus technology reduces wiring complexity and increase reliability.
● All pivot points have grease fitting and serviceable bushing, reducing component wear and extending component life.
● The back cover is easy to open for maintenance and adjustment of parts of valve, oil tube and electronic parts.
Option:
● Straddle legs
● Double scissors
● Double front wheels
● Full free lift masts
● Side shift

DIMENSION Drawing:

CQDH15C (single scissor)
CQDH18C (single scissor)

Manufacturer's type designition



CQDH15C (single scissor)

Drive: electric (battery type, mains,...), diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Standing

Rated capacity/rated load



1500

Load centre distance

c(mm)

500

Load distance, centre of drive axle to fork

x(mm)

334

309

Wheelbase

y(mm)

1435

1435

Service weight

kg

2450/2500/2560

2700/2800/2900/3000

Axle loading, unladen front/rear

kg

1040/1960

Axle loading, fork advanced, laden front/rear

kg

2950/1550

Axle loading, fork retracted, laden front/rear

kg

2750/1750

Tyres: solid rubber, superelastic. pneumatic, polyurethane



Polyurethane

Tyre size, front



Φ250x100

Tyre size, rear



Φ125x82

Additional wheels (dimensions)



Φ160x60

Wheels, number front/rear (x = driven wheels)



1x+2/4

Tread, front

b10(mm)

673

673

Tread, rear

b11(mm)

1164

1164/1224

Tilt of mast/fork carriage forward/backward

a/b (°)

2/5

Height, mast lowered

h1(mm)

2125/2375/2625

2185/2345/2505/2675

Free lift

h2(mm)

N/A

1575/1700/1825/2000

Max. lift height

h3(mm)

3000/3500/4000

4500/5000/5500/6000

Height, mast extended

h4(mm)

3881/4381/4881

5381/5881/6381/6881

Height of overhead guard (cabin)

h6(mm)

2246

Overall length

l1(mm)

2409

2435

Length to face of forks

l2(mm)

1339

1365

Overall width

b1/b2(mm)

1322/1040

1322-1382/1040

Fork dimensions DIN ISO 2331

s/e/l(mm)

35/100/1070

Fork carriage ISO 2328, class/type A, B



2A

Fork-carriage width

b3(mm)

940/990

940/990

Fork spread

b5(mm)

200-760/200-680

200-760/200-680

Distance between wheel arms/loading surfaces

b4(mm)

1006

1006/1066

Reach distance

l4(mm)

500

Ground clearance, laden, below mast

m1(mm)

49

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2814

2839

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2871

2902

Turning radius

Wa(mm)

1718

1718

Length across wheel arms

l7(mm)

1848

Travel speed, laden/unladen

km/h

6.5/7.0

Lift speed, laden/unladen

m/s

0.135/0.16

Lowering speed, laden/unladen

m/s

0.15/0.20

Reaching speed, laden/unladen

m/s

0.1

0.1

Max. gradeability, laden/unladen

%

5/12

5/12

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

2.2 AC

Lift motor rating at S3 15%

kW

4.5

4.5

Battery voltage/nominal capacity K5

(V)/(Ah)or kWh

24/420(560)

Battery weight

kg

340(425)

Sound pressure level at the driver's seat

dB(A)

75


Manufacturer's type designition



CQDH15C (single scissor)

Drive: electric (battery type, mains,...), diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Standing

Rated capacity/rated load



1500

Load centre distance

c(mm)

500

Load distance, centre of drive axle to fork

x(mm)

246

246

Wheelbase

y(mm)

1522

1522

Service weight

kg

3130/3180/3230

3370/3470/3570/3670/3770

Axle loading, unladen front/rear

kg

1306/2464

Axle loading, fork advanced, laden front/rear

kg

3420/1850

Axle loading, fork retracted, laden front/rear

kg

3220/2050

Tyres: solid rubber, superelastic. pneumatic, polyurethane



Polyurethane

Tyre size, front



Φ250x100

Tyre size, rear



Φ125x82

Additional wheels (dimensions)



Φ160x60

Wheels, number front/rear (x = driven wheels)



1x+2/4

Tread, front

b10(mm)

673

673

Tread, rear

b11(mm)

1140

1140

Tilt of mast/fork carriage forward/backward

a/b (°)

2/5

Height, mast lowered

h1(mm)

2125/2375/2625

2185/2345/2505/2675/2840

Free lift

h2(mm)

N/A

1575/1700/1825/2000/2125

Max. lift height

h3(mm)

3000/3500/4000

4500/5000/5500/6000/6500

Height, mast extended

h4(mm)

3900/4400/4900

5400/5900/6400/6900/7400

Height of overhead guard (cabin)

h6(mm)

2246

Overall length

l1(mm)

2615

Length to face of forks

l2(mm)

1518

Overall width

b1/b2(mm)

1298/1040

Fork dimensions DIN ISO 2331

s/e/l(mm)

35/100/1070

Fork carriage ISO 2328, class/type A, B



2A

Fork-carriage width

b3(mm)

940

940

Fork spread

b5(mm)

200-680

200-680

Distance between wheel arms/loading surfaces

b4(mm)

982

982

Reach distance

l4(mm)

500

Ground clearance, laden, below mast

m1(mm)

49

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2956

2956

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

3027

3027

Turning radius

Wa(mm)

1791

1791

Length across wheel arms

l7(mm)

1923

Travel speed, laden/unladen

km/h

6.5/7.0

Lift speed, laden/unladen

m/s

0.27/0.4

Lowering speed, laden/unladen

m/s

0.45/0.36

Reaching speed, laden/unladen

m/s

0.1

0.1

Max. gradeability, laden/unladen

%

5/12

5/12

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

3.0(AC)

Lift motor rating at S3 15%

kW

10.0(AC)

Battery voltage/nominal capacity K5

(V)/(Ah)or kWh

36/700

Battery weight

kg

810

Sound pressure level at the driver's seat

dB(A)

75


Manufacturer's type designition



CQDH15C (double scissor)

Drive: electric (battery type, mains,...), diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Standing

Rated capacity/rated load



1000

Load centre distance

c(mm)

500

Load distance, centre of drive axle to fork

x(mm)

159

135

Wheelbase

y(mm)

1435

1435

Service weight

kg

2480/2530/2590

2730/2830/2930/3030

Axle loading, unladen front/rear

kg

1050/1980

Axle loading, fork advanced, laden front/rear

kg

2662/1368

Axle loading, fork retracted, laden front/rear

kg

2462/1568

Tyres: solid rubber, superelastic. pneumatic, polyurethane



Polyurethane

Tyre size, front



Φ250x100

Tyre size, rear



Φ125x82

Additional wheels (dimensions)



Φ160x60

Wheels, number front/rear (x = driven wheels)



1x+2/4

Tread, front

b10(mm)

673

673

Tread, rear

b11(mm)

1164

1164/1224

Tilt of mast/fork carriage forward/backward

a/b (°)

2/5

Height, mast lowered

h1(mm)

2125/2375/2625

2185/2345/2505/2675

Free lift

h2(mm)

N/A

1575/1700/1825/2000

Max. lift height

h3(mm)

3000/3500/4000

4500/5000/5500/6000

Height, mast extended

h4(mm)

4035/4535/5035

5535/6035/6535/7035

Height of overhead guard (cabin)

h6(mm)

2246

Overall length

l1(mm)

2585

2609

Length to face of forks

l2(mm)

1491

1515

Overall width

b1/b2(mm)

1322/1040

1322-1382/1040

Fork dimensions DIN ISO 2331

s/e/l(mm)

35/100/1070

Fork carriage ISO 2328, class/type A, B



2A

Fork-carriage width

b3(mm)

940/990

940/990

Fork spread

b5(mm)

200-760/200-680

200-760/200-680

Distance between wheel arms/loading surfaces

b4(mm)

1006

1006/1066

Reach distance

l4(mm)

1200

Ground clearance, laden, below mast

m1(mm)

49

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2915

 2971

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

3034

3056

Turning radius

Wa(mm)

1718

1718

Length across wheel arms

l7(mm)

1848

Travel speed, laden/unladen

km/h

6.5/7.0

Lift speed, laden/unladen

m/s

0.135/0.16

Lowering speed, laden/unladen

m/s

0.15/0.20

Reaching speed, laden/unladen

m/s

0.1

0.1

Max. gradeability, laden/unladen

%

5/12

5/12

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

2.2 AC

Lift motor rating at S3 15%

kW

4.5 | 4.5

Battery voltage/nominal capacity K5

(V)/(Ah)or kWh

24/420(560)

Battery weight

kg

340(425)

Sound pressure level at the driver's seat

dB(A)

75

1.Normal Lifting speed
2.Normal lowering speed
3.High Lifting speed (3 times higher than normal type)
4.High Lowering speed (3 times higher than normal type)

Manufacturer's type designition



CQDH18C (single scissor)

Drive: electric (battery type, mains,...), diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Standing

Rated capacity/rated load

Q (kg)

1800

Load centre distance

c(mm)

600

Load distance, centre of drive axle to fork

x(mm)

246

Wheelbase

y(mm)

1522

Service weight



3310/3360/3410

3550/3650/3750/3850/3950

Axle loading, unladen front/rear

kg

1270/2380

Axle loading, fork advanced, laden front/rear

kg

3480/1970

Axle loading, fork retracted, laden front/rear

kg

3330/2120

Tyres: solid rubber, superelastic, pneumatic, polyurethane



Polyurethane

Tyre size, front



Φ280x100

Tyre size, rear



Φ125x82

Additional wheels (dimensions)



Φ160x60

Wheels, number front/rear (x = driven wheels)



1x+2/4

Tread, front

b10(mm)

673

Tread, rear

b11(mm)

1140

Tilt of mast/Tork carriage forward/backward



2/5

Height, mast lowered

h1(mm)

2125/2375/2625

2185/2345/2505/2675/2835

Free lift

h2(mm)

N/A

1575/1700/1825/2000/2125

Max. lift height

h3(mm)

3000/3500/4000

4500/5000/5500/6000/6500

Height, mast extended

h4(mm)

3900/4400/4900

5400/5900/6400/6900/7381

Height of overhead guard (cabin)

h6(mm)

2246

Overall length

l1(mm)

2716

Length to face of forks

l2(mm)

1618

Overall width

b1/b2(mm)

1298/1040

Fork dimensions DIN ISO 2331

s/e/l(mm)

40/100/1070

Fork carriage ISO 2328, class/type A. B



2A

Fork-carriage width

b3(mm)

940

940

Fork spread

b5(mm)

200-680

200-680

Distance between wheel arms/loading surfaces

b4(mm)

982

982

Reach distance

l4(mm)

500

Ground clearance, laden, below mast

m1(mm)

49

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

3013

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

3085

Turning radius

Wa(mm)

1848

Length across wheel arms

l7(mm)

2023

Travel speed, laden/unladen

km/h

6.5/7.0

Lift speed, laden/unladen

m/s

0.20/0.30

Lowering speed, laden/unladen

m/s

0.32/0.312

Reaching speed, laden/unladen

m/s

0.1

0.1

Max. gradeability, laden/unladen

%

5/12

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

3.0(AC)

Lift motor rating at S3 15%

kW

10.0(AC)

Battery voltage/nominal capacity K5

(VV(Ah) or kWh

36/700

Battery weight

kg

810

Sound pressure level at the driver's seat

dB(A)

75

Watch overview
Company Profile

NINGBO RUYI JOINT STOCK CO.,LTD.

High-end Performance and Comprehensive Service
Ningbo Ruyi was established in 1985, mainly produce Manual/Electric pallet truck, Manual/electric stacker, Reach truck, Order picker, Lift table, Tractor, Forklift and other material handling equipments.

As China Wholesale Electric Fork Reach Truck CQDH15C/CQDH18C Suppliers and ODM Electric Fork Reach Truck CQDH15C/CQDH18C company, Ningbo Ruyi adheres to the concept of synchronous development of global technology. It adopts more than 800 sets of advanced automation processes and equipment, such as laser cutting machine, plasma cutting machine, machining center, robot welding, automatic spraying line, etc. We have established a perfect quality inspection system and realized the modernization and digital detection.

"Product innovation, management innovation, quality innovation, equipment innovation, sales innovation" , making "Ruyi" to develop the world's leading industrial handling vehicle technology, seize the commanding height of handling vehicles, extend the industrial chain, strengthen and expand the "Ruyi" industrial platform, and cultivate international competitiveness.
39

YEARS

265

PATENTS

288

ENGINEERS

260,000

FACTORY SCALE

GET STARTED TODAY

We Can Help You With

there are many variations of Electric Fork Reach Truck CQDH15C/CQDH18C wholesale, but the majority have services for all types.

Contact Us Inquiry

Inquiry

*We respect your confidentiality and all information are protected.
