  • Electric Fork Reach Truck Double Scissor CQDH20C
Model

CQDH20C

Electric Fork Reach Truck Double Scissor

  • Electric Fork Reach Truck Double Scissor CQDH20C

Advantage:

SAFETY AND PRODUCTIVITY
● Powered by a large AC drive motor, no need to replace carbon brush, excellent inclined ramp starting performance.
● EPS as standard, presenting a light and relaxing steering experience in every turn.
● Two model function can control the speed of lift and lowering.
● Low center of gravity, excellent stability during operation.
● Small turning radius, good turning performance.
● The speed of driving and lifting is controllable simultaneously.
● Shock absorber system reduces the operation noise in great deal.
● Wide view mast and clear visibility.
● With full free lifting, able to work in confined space.
● Imported proportional hydraulic valve, adjustable speed for lifting/lowering.
● Multi-function display: battery status, hour meter, fault code, slow running state, etc.

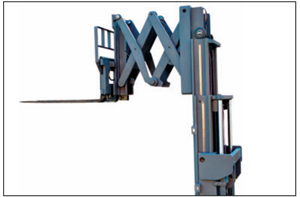

● 1000mm reaching distance with double scissors.
● The mast fixed with the frame, when forks move forward, the mast becomes the balance weight.
● Advanced 36V electric control system, smaller electric current, ensuring the reliability of the battery system.
● High speed of lifting and lowering, 300% faster than normal type truck.
STRUCTURAL
● Side way battery, easy to replace and service.
● CANbus technology reduces wiring complexity, making the line clear and orderly. increases the truck's reliability and easy to repair.
● The mast can be separated.

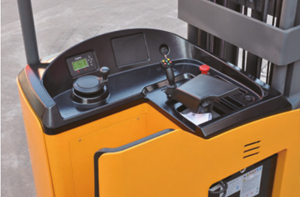

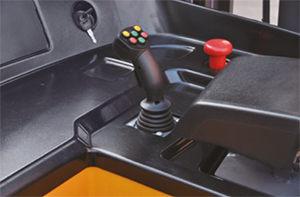

Joystick Controller
Finger-operated joystick controller, designed for smooth and precise control of multiple functions.		 Electric Power Steering
Electric Power Steering as standard feature, with smart steering wheel present a light and relaxing steering experience in operation.

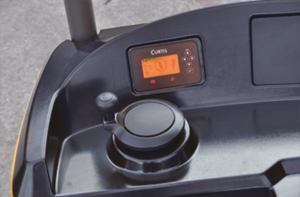

Curtis controller and display
36volt CURTIS AC control system, smaller electric current to ensure the reliability of the battery system.
Multi-function display for battery status, hour meter, fault code, slow running state, etc.		 Heavy mast steel
IC type heavy gauge mast steel from Germany, met with RUYI's structure design and construction, delivers powerful performance and superior reliability.

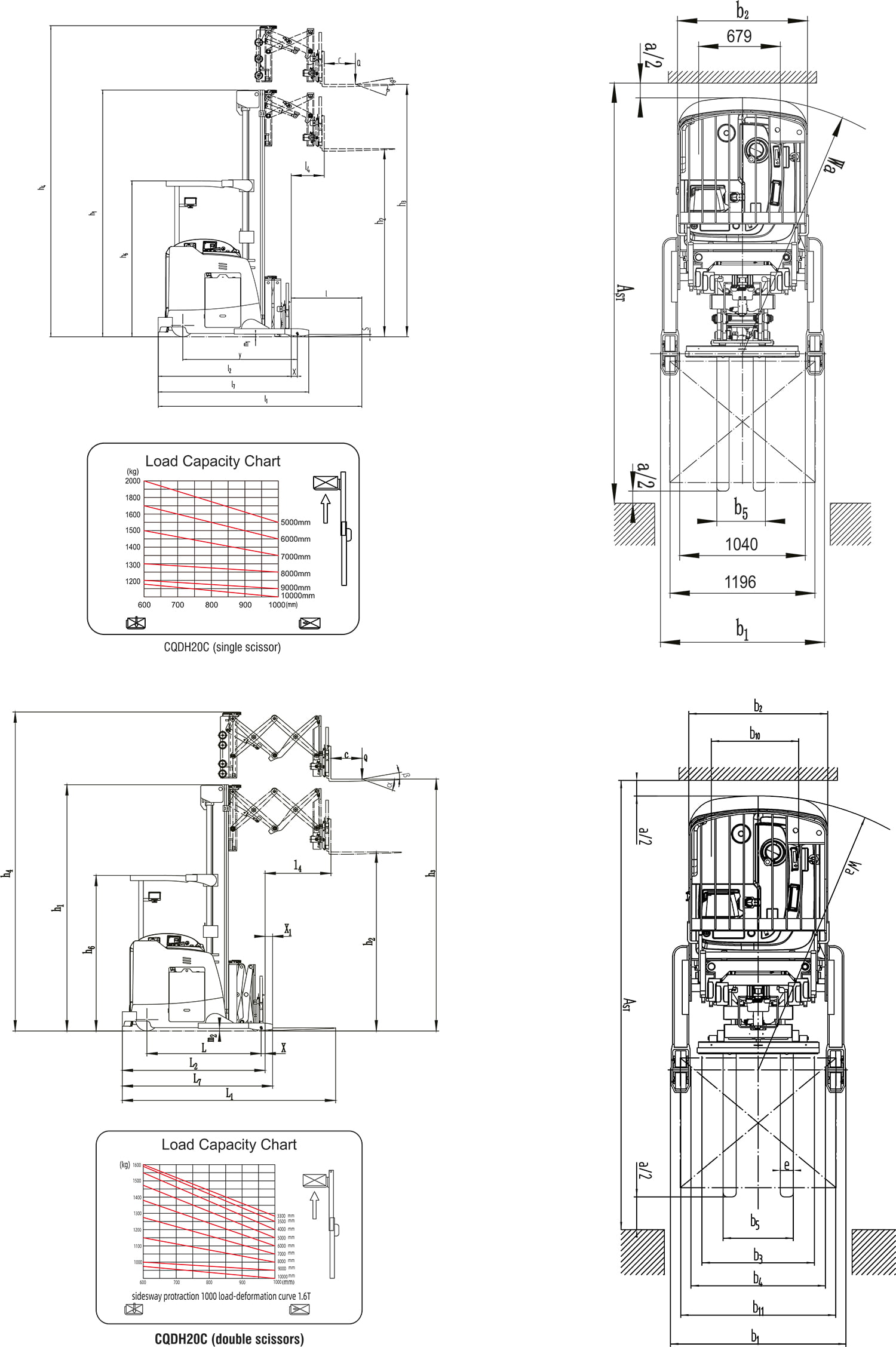

DIMENSION Drawing:

Manufacturer's type designition



CQDH20C (single scissor)

Drive: electric (battery type, mains,...), diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Standing

Rated capacity/rated load

Q(kg)

2000

Load centre distance

c(mm)

600

Load distance, centre of drive axle to fork

x(mm)

155

Wheelbase

y(mm)

1750

Service weight

kg

4700/5000/5100/5200/5300/5600

Axle loading, unladen front/rear

kg

2000/3600

Axle loading, fork advanced, laden front/rear

kg

4843/2757

Axle loading, fork retracted, laden front/rear

kg

4643/2957

Tyres: solid rubber, superelastic, pneumatic, polyurethane



Polyurethane

Tyre size, front



Φ343x140

Tyre size, rear



Φ125x82

Additional wheels (dimensions)



Φ160x60

Wheels, number front/rear (x = driven wheels)



1x+2/4

Tread, front

b10(mm)

679

Tread, rear

b11(mm)

1196

Tilt of mast/fork carriage forward/backward

a/b(0)

2/5

Height, mast lowered

h1(mm)

2365/2763/2933/3366/3743

Free lift

h2(mm)

1460/1858/2028/2460/2838

Lift

h3(mm)

4500/6000/6500/7670/9000

Height, mast extended

h4(mm)

5396/6896/7396/8570/9896

Height of overhead guard (cabin)

h6(mm)

2362

Overall length

l1(mm)

2985/3034

Length to face of forks

l2(mm)

1915/1964

Overall width

b1/b2(mm)

1352/1070

Fork dimensions DIN ISO 2331

s/e/l(mm)

40/100/1070

Fork carriage ISO 2328, class/type A, B



2A

Fork-carriage width

b3(mm)

940

Fork spread

b5(mm)

200-680

Distance between wheel arms/loading surfaces

b4(mm)

1036

Reach distance

l4(mm)

500

Ground clearance, laden, below mast

m1(mm)

40

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

3329/3500

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

3419/3520

Turning radius

Wa(mm)

2040/2145

Length across wheel arms

l7(mm)

2284

Travel speed, laden/unladen

km/h

10.5/11.0

Lift speed, laden/unladen

m/s

0.29/0.29

Lowering speed, laden/unladen

m/s

0.45/0.45

Reaching speed, laden/unladen

m/s

0.1

Max. gradeability, laden/unladen

%

10/15

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

7.0(AC)

Lift motor rating at S3 15%

kW

14.0(AC)

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

36/700(1000)

Battery weight

kg

790(1200)

Sound pressure level at the driver's seat

dB(A)

75

Manufacturer's type designition



CQDH20C (double scissor)

Drive: electric (battery type, mains,...), diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Standing

Rated capacity/rated load

Q(kg)

1600

Load centre distance

c(mm)

600

Load distance, centre of drive axle to fork

x(mm)

178

Wheelbase

y(mm)

1720

Service weight

kg

4830/4930/5030/5130/5230/5330/5430/5530/5800

Axle loading, unladen front/rear

kg

1880/3500

Axle loading, fork advanced, laden front/rear

kg

4480/2550

Axle loading, fork retracted, laden front/rear

kg

4295/2735

Tyres: solid rubber, superelastic, pneumatic, polyurethane



Polyurethane

Tyre size, front



Φ343x140

Tyre size, rear



Φ125x82

Additional wheels (dimensions)



Φ160x60

Wheels, number front/rear (x = driven wheels)



1x+2/4

Tread, front

b10(mm)

679

Tread, rear

b11(mm)

1196

Tilt of mast/fork carriage forward/backward

a/b(0)

2/5

Height, mast lowered

h1(mm)

2365/2522/2763/2933/3130/3368/3743/4113/4285/4625

Free lift

h2(mm)

1225/1395/1720/1890/2170/2322/2756/3080/3250/3590

Lift

h3(mm)

44500/5000/6000/6500/7000/7700/9000/10000/10500/11500

Height, mast extended

h4(mm)

5500/6000/7000/7500/8000/8600/10000/11000/11500/12500

Height of overhead guard (cabin)

h6(mm)

2362

Overall length

l1(mm)

2897

Length to face of forks

l2(mm)

1827

Overall width

b1/b2(mm)

1352/1070

Fork dimensions DIN ISO 2331

s/e/l(mm)

40/100/1070

Fork carriage ISO 2328, class/type A, B



2A

Fork-carriage width

b3(mm)

940

Fork spread

b5(mm)

200-680

Distance between wheel arms/loading surfaces

b4(mm)

1036

Reach distance

l4(mm)

1000

Ground clearance, laden, below mast

m1(mm)

50

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

3230

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

3302

Turning radius

Wa(mm)

2005

Length across wheel arms

l7(mm)

2179

Travel speed, laden/unladen

km/h

10.5/11.0

Lift speed, laden/unladen

m/s

0.29/0.29

Lowering speed, laden/unladen

m/s

0.45/0.45

Reaching speed, laden/unladen

m/s

0.1

Max. gradeability, laden/unladen

%

10/15

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

7.0(AC)

Lift motor rating at S3 15%

kW

14.0(AC)

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

36/1000

Battery weight

kg

1200

Sound pressure level at the driver's seat

dB(A)

75

Manufacturer's type designition



CQDH20C (double scissor)

Drive: electric (battery type, mains,...), diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Standing

Rated capacity/rated load

Q(kg)

1600

Load centre distance

c(mm)

600

Load distance, centre of drive axle to fork

x(mm)

178

Wheelbase

y(mm)

1580

Service weight

kg

4430/4530/4630/4730/4830/4930

Axle loading, unladen front/rear

kg

1710/3220

Axle loading, fork advanced, laden front/rear

kg

4155/2375

Axle loading, fork retracted, laden front/rear

kg

3990/2540

Tyres: solid rubber, superelastic, pneumatic, polyurethane



Polyurethane

Tyre size, front



Φ343x140

Tyre size, rear



Φ125x82

Additional wheels (dimensions)



Φ160x60

Wheels, number front/rear (x = driven wheels)



1x+2/4

Tread, front

b10(mm)

679

Tread, rear

b11(mm)

1196

Tilt of mast/fork carriage forward/backward

a/b(0)

2/5

Height, mast lowered

h1(mm)

2365/2522/2763/2933/3130/3368/3743

Free lift

h2(mm)

1225/1395/1720/1890/2170/2322/2756

Lift

h3(mm)

4500/5000/6000/6500/7000/7700/9000

Height, mast extended

h4(mm)

5500/6000/7000/7500/8000/8600/10000

Height of overhead guard (cabin)

h6(mm)

2362

Overall length

l1(mm)

2757

Length to face of forks

l2(mm)

1687

Overall width

b1/b2(mm)

1352/1070

Fork dimensions DIN ISO 2331

s/e/l(mm)

40/100/1070

Fork carriage ISO 2328, class/type A, B



2A

Fork-carriage width

b3(mm)

940

Fork spread

b5(mm)

200-680

Distance between wheel arms/loading surfaces

b4(mm)

1036

Reach distance

l4(mm)

1036

Ground clearance, laden, below mast

m1(mm)

50

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

3090

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

3162

Turning radius

Wa(mm)

1865

Length across wheel arms

l7(mm)

2039

Travel speed, laden/unladen

km/h

10.5/11.0

Lift speed, laden/unladen

m/s

0.29/0.29

Lowering speed, laden/unladen

m/s

0.45/0.45

Reaching speed, laden/unladen

m/s

0.1

Max. gradeability, laden/unladen

%

10/15

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

7.0(AC)

Lift motor rating at S3 15%

kW

14.0(AC)

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

36/700

Battery weight

kg

810

Sound pressure level at the driver's seat

dB(A)

75
* Option : (1) For 5-7M: Lithium battery 36V/500AH ( Charger 36V/100A)
(2) For 9-10M: Lithium battery 36v/700AH ( Charger 36V/200A)
