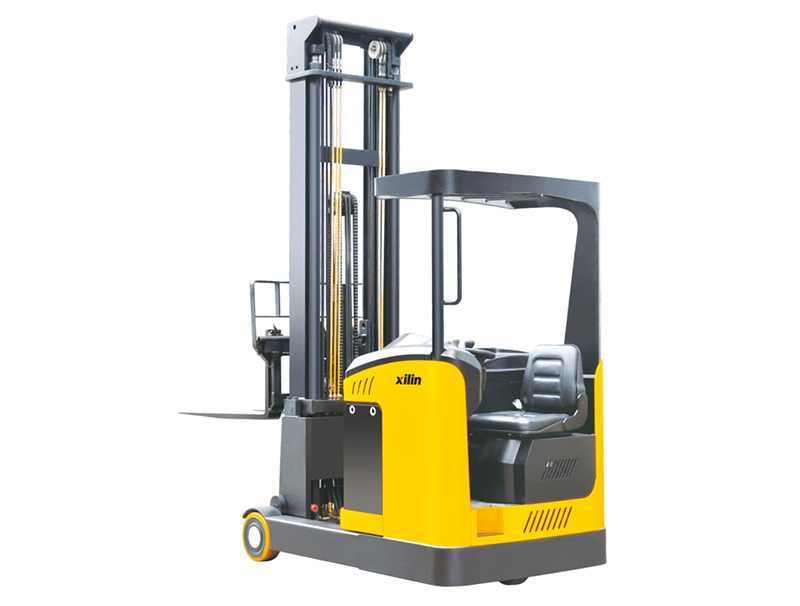

  • Electric Reach Truck  CQD15
Model

CQD15

Electric Reach Truck

Max.lift height:8000MM
  • Electric Reach Truck  CQD15

Advantage:

Standard
● AC control system.
● Powering steering system (EPS).
● Multi-function display can show: Brake status, Driving direction, Hour meter, Driving speed, Fault code, etc.
● Manual multi-valve.
● Adjustable speed for forks lifting/lowering mast forward/backward and side shift right/left.
● German ZF brand gear box.
● Adjustable steering wheel.
● With traveling speed limited device when forks at high level.
● Electronic height limited device.
Option
● Electronic multi valve.
● Finger-tip control stick.
● Side shift.
● Height selection and height position system.
● LCD display and camera (LCD for cold storage are available).
● Travel/back-up flashing lights.
● Side-way battery.

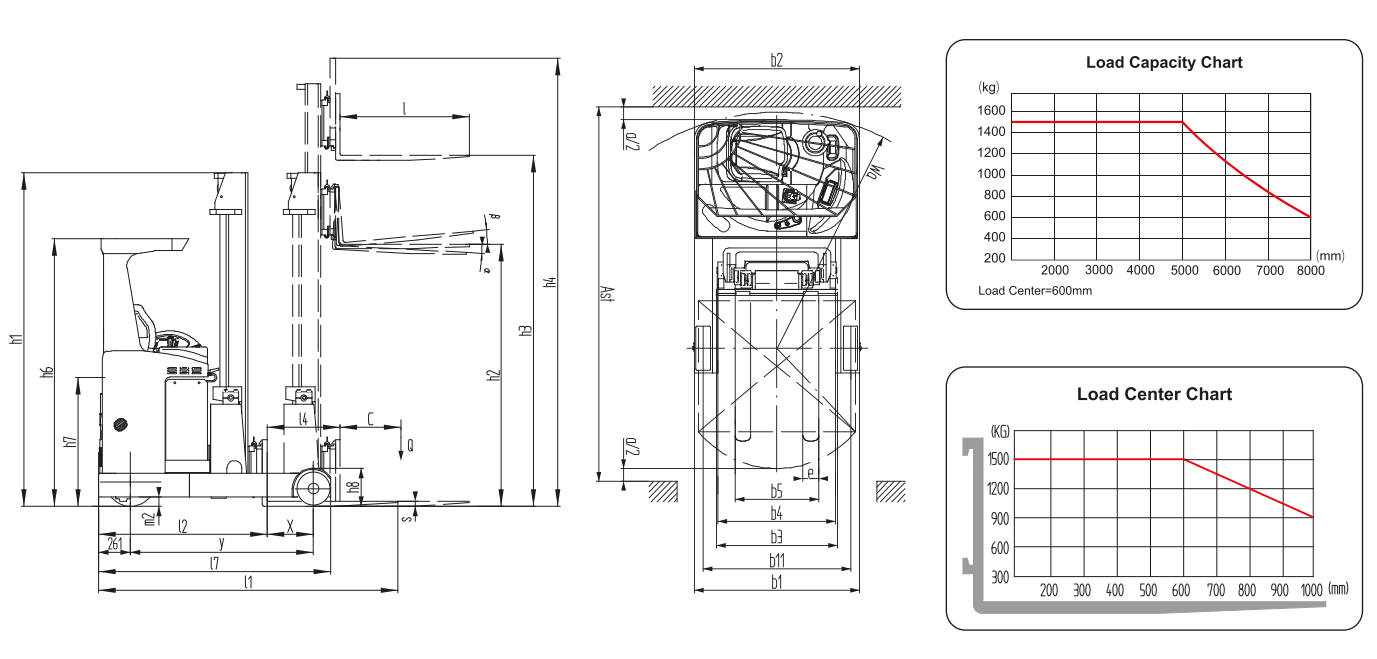

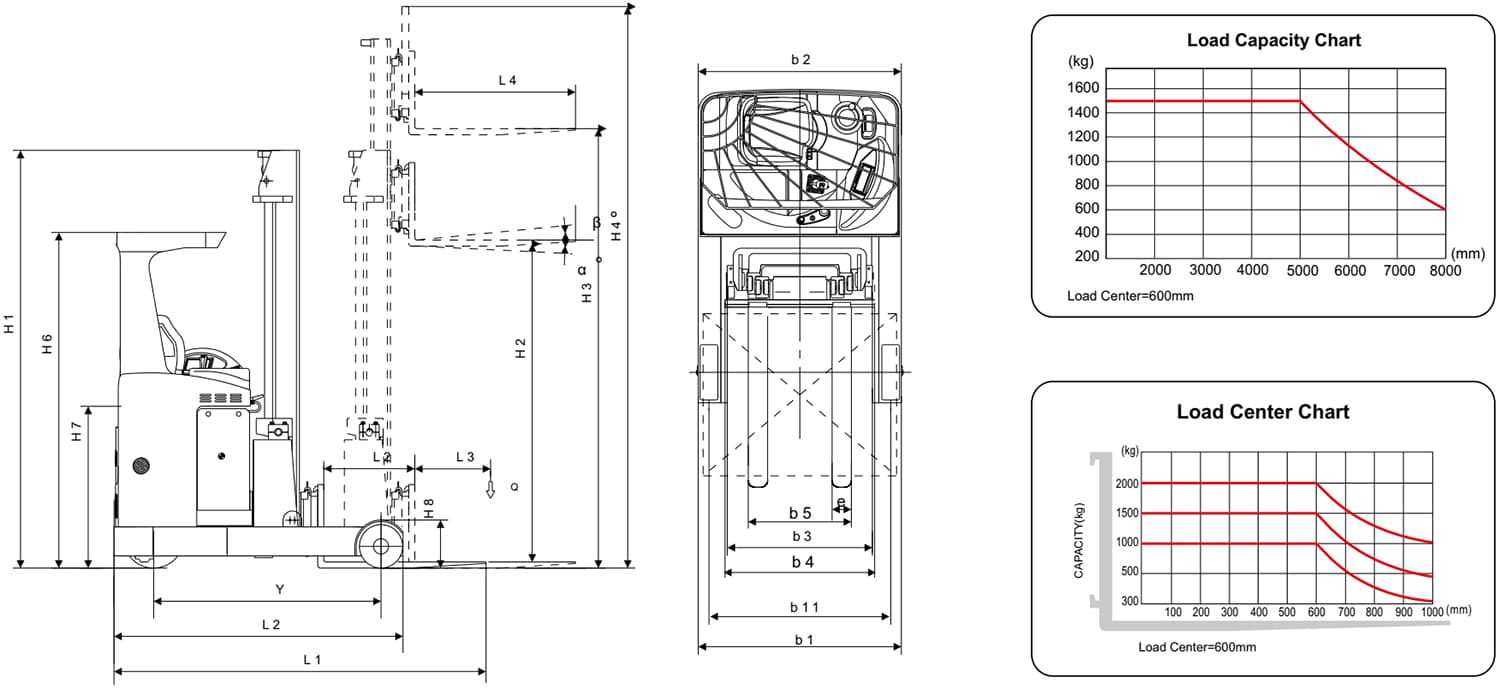

DIMENSION Drawing:

Manufacturer's type designition



CQD15

Drive: electric (battery type, mains,...), diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Seated

Rated capacity/rated load

Q(kg)

1500

Load centre distance

c(mm)

600

Load distance, centre of drive axle to fork

x(mm)

365

Wheelbase

y(mm)

1500

Service weight

kg

34101)

Axle loading, unladen front/rear

kg

2017/13931)

Axle loading, fork advanced, laden front/rear

kg

1050/38601)

Axle loading, fork retracted, laden front/rear

kg

1830/30801)

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Tyre size, front

mm

Φ310x125

Tyre size, rear

mm

Φ285x110

Wheels, number front/rear (x = driven wheels)



1X/2

Tread, rear

b11(mm)

1090

Tilt of mast/fork carriage forward/backward

a/b(°)

2/2(fork)

Height, mast lowered

h1(mm)

2090/2340/2740/2240/2740/3190/3390

Free lift

h2(mm)

0/0/0/1440/1940/2390/2590

h (*)(mm)

0/0/0/1700/2100/2500/2700

Max. lift height

h3(mm)

3000/3500/4000/5000/6200/7400/8000

Height, mast extended

h4(mm)

3800/4300/4800/5800/7000/8200/8800

Height of overhead guard (cabin)

h6(mm)

2140

Overall length

l1(mm)

2433

Length to face of forks

l2(mm)

1300

Overall width

b1/b2 (mm)

1200/1200

Fork dimensions DIN ISO 2331

s/e/l(mm)

35/100/1070

Fork carriage ISO 2328, class/type A, B



2A

Fork-carriage width

b3(mm)

928

Fork spread

b5(mm)

680

Distance between wheel arms/loading surfaces

b4(mm)

840

Reach distance

;4(mm)

550

Ground clearance, laden, below mast

m1(mm)

80

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2880

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2930

Turning radius

Wa(mm)

1780

Length across wheel arms

l7(mm)

1880

Travel speed, laden/unladen

km/h

8.0/8.3

Lift speed, laden/unladen

m/s

0.24/0.3

Lowering speed, laden/unladen

m/s

0.45/0.36

Reaching speed, laden/unladen

m/s

0.1/0.1

Max. gradeability, laden/unladen

%

10/10

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

3.0(AC)

Lift motor rating at S3 15%

kW

8.2(AC)

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

48/400

Battery weight

kg

640

Sound pressure level at the driver’s seat

dB(A)

70

(*) means without backrest
1) when lift height is 8 meters
* Option: Lithium battery 350AH (Charger 48V/100A)
