Model

CQDH18C

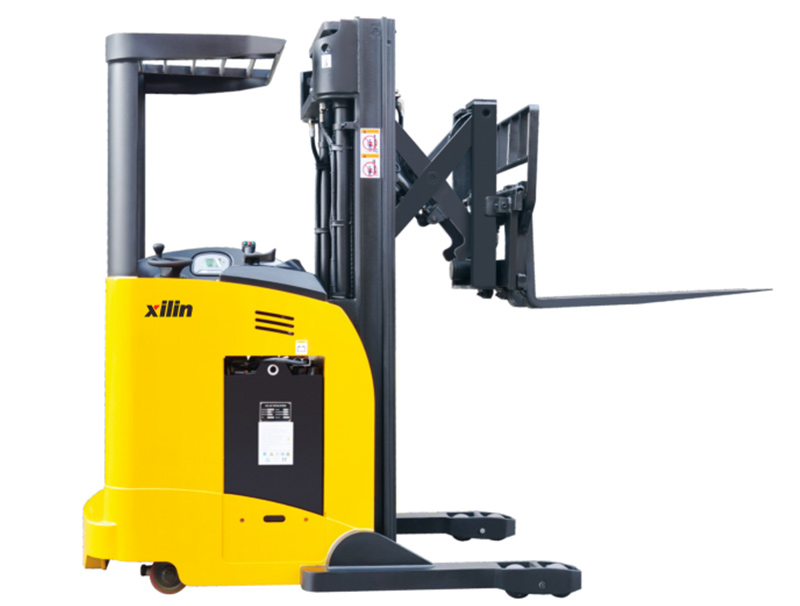

Electric Fork Reach Truck

Advantage:

SAFETY AND STABILITY：

● AC motor drive with high efficiency, no need to replace carbon brush, very good ramp starting performance.
● Two model function can control the speed of lift and lowering.
● Low center of gravity, excellent stability for operation.
● Small turning radius, good turning performance.
● With advanced variable frequency AC motor free maintenance and excellent performance.
● Can control the speed of driving and lifting in the same time.
● Shock absorber system support good noise reduction.
● Wide view mast and clear visibility.
● With full free lifting, can work in the limited roof environment.
● Import proportional hydraulic valve, adjustable speed for lifting/lowering.
● Multi-function display: battery status, hour meter, fault code, slow running state, etc
● Big power controller (350A) with big power electric motor(10KW), support excellent reliability.
● Double scissors reach fork let the reach distance up to 1000mm.
● The mast fixed with the frame, when fork move forward, the mast can become the balance weight, reduce the total service weight.

● With advanced 36V electric control system, smaller electric current, ensure the reliability of the battery system.
● High speed of lifting and lowering, 300% faster than normal type truck.

STRUCTURAL：

● Side way battery is very convenient to do maintenance and replace batteries.
● CANbus technology reduces wiring complexity, making the line clear and orderly. increases the truck's reliability and easy to repair.
● The Mast can be separate from the frame, very good interchangeability (option).

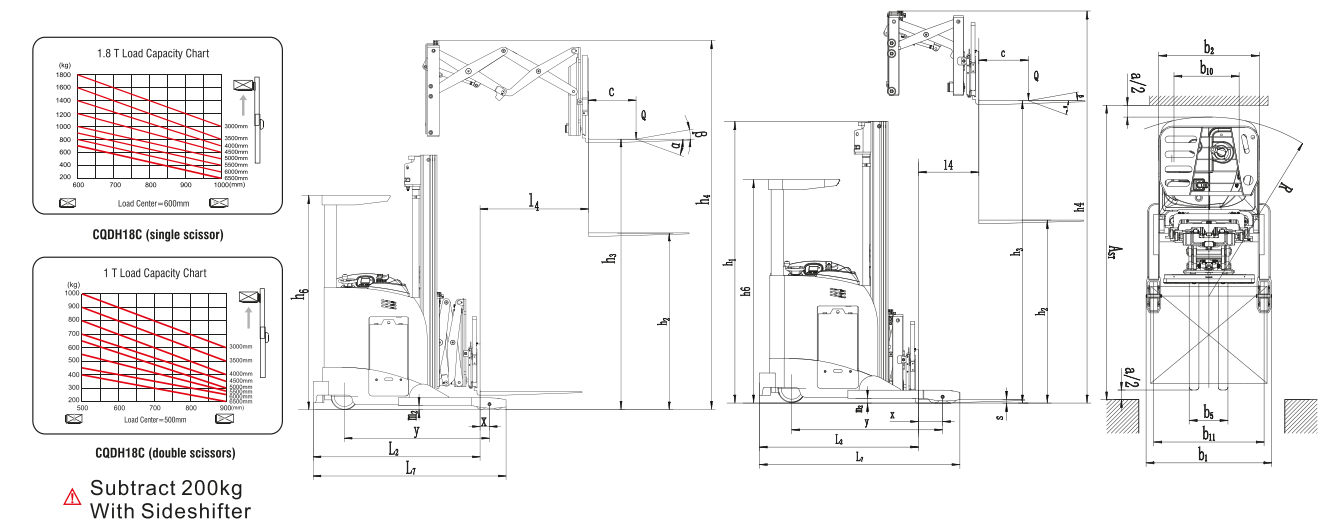

DIMENSION Drawing:

Manufacturer's type designition		CQDH18C(single scissor)
Drive:electric (battery type,mains,...,diesel,petrol,fuel gas		Electric
Operator type:hand,pedestrian,standing,seated,order-picker		Standing
Rated capacity/rated load	Q(kg)	1800
Load centre distance	c(mm)	600
Load distance,centre of drive axle to fork	x(mm)	246
Wheelbase	y (mm)	1522
Service weight	kg	3310/3360/3410 3550/3650/3750/3850/3950
Axle loading,unladen front/rear	kg	1270/2380
Axle loading,fork advanced,laden front/rear	kg	3480/1970
Axle loading,fork retracted,laden front/rear	kg	3330/2120
Tyres:solid rubber,superelastic,pneumatic,polyurethane		Polyurethane
Tyre size,front		φ280×100
Tyre size,rear		φ125x82
Additional wheels (dimensions)		φ160x60
Wheels,number front/rear(×=driven wheels)		1x+2/4
Tread,front	b10(mm)	673
Tread,rear	b11(mm)	1140
Tilt of mast/fork carriage forward/backward	a/b(°)	2/5
Height,mast lowered	h1(mm)	2125/2375/2625	2185/2345/2505/2675/2835
Fre lift	h2(mm)	N/A	1575/1700/1825/2000/2125
Max lift height	h3(mm)	3000/3500/4000	4500/5000/5500/6000/6500
Height,mast extended	h4(mm)	3900/4400/4900	5400/5900/6400/6900/7381
Height of overhead guard(cabin)	h6(mm)	2246
Overall length	l1(mm)	2716
Length to face of forks	l2(mm)	1618
Overall width	b1/b2(mm)	1298/1040
Fork dimensions DIN ISO 2331	s/e/l(mm)	40/100/1070
Fork carriage ISO 2328, class/type A,B		2A
Fork-carriage width	b3(mm)	940	940
Fork spread	b5(mm)	200-680	200-680
Distance between wheel arms/loading surfaces	b4(mm)	982	982
Reach distance	l4(mm)	500
Ground clearance,laden,below mast	m1(mm)	49
Aisle width for palles 1000×1200 crossways	Ast(mm)	3013
Aisle width for pallets 800×1200 lengthways	Ast(mm)	3085
Turning radius	Wa(mm)	1848
Length across wheel arms	l7(mm)	2023
Travel speed,laden/unladen	km/h	6.5/7.0
Lift speed,laden/unladen	m/s	0.20/0.30
Lowering speed,laden/unladen	m/s	0.32/0.312
Reaching speed,laden/unladen	m/s	0.1	0.1
Max.gradeability,laden/unladen	%	5/12
Service brake		Electromagnetic
Drive motor rating S260 min	kW	3.0(AC)
Lift motor rating at S315%	kW	10.0(AC)
Battery voltage/nominal capacity K5	(V/(Ah)or kWh	36/700
Battery weight	kg	810
Sound pressure level at the driver's seat	dB(A)	75

Manufacturer's type designition		CQDH18C(double scissor)
Drive:electric (battery type,mains,...,diesel,petrol,fuel gas		Electric
Operator type:hand,pedestrian,standing,seated,order-picker		Standing
Rated capacity/rated load	Q(kg)	1000
Load centre distance	c(mm)	600
Load distance,centre of drive axle to fork	x(mm)	123	99
Wheelbase	y (mm)	1522
Service weight	kg	3410/3460/3560	3700/3800/39000/4000/4100
Axle loading,unladen front/rear	kg	1322/2478
Axle loading,fork advanced,laden front/rear	kg	3083/1717
Axle loading,fork retracted,laden front/rear	kg	2933/1867
Tyres:solid rubber,superelastic,pneumatic,polyurethane		Polyurethane
Tyre size,front		φ280×100
Tyre size,rear		φ125x82
Additional wheels (dimensions)		φ160x60
Wheels,number front/rear(×=driven wheels)		1x+2/4
Tread,front	b10(mm)	673
Tread,rear	b11(mm)	1140
Tilt of mast/fork carriage forward/backward	a/b(°)	2/5
Height,mast lowered	h1(mm)	2125/2375/2625	2185/2345/2505/2675/2840
Fre lift	h2(mm)	N/A	1575/1700/1825/2000/2125
Max lift height	h3(mm)	3000/3500/4000	4500/5000/5500/6000/6500
Height,mast extended	h4(mm)	4035/4535/5035	5535/6035/6535/7035/7535
Height of overhead guard(cabin)	h6(mm)	2246
Overall length	l1(mm)	2585/2820
Length to face of forks	l2(mm)	1726/1750
Overall width	b1/b2(mm)	1298/1040
Fork dimensions DIN ISO 2331	s/e/l(mm)	40/100/1070
Fork carriage ISO 2328, class/type A,B		2A
Fork-carriage width	b3(mm)	940	940
Fork spread	b5(mm)	200-680	200-680
Distance between wheel arms/loading surfaces	b4(mm)	982	982
Reach distance	l4(mm)	1200
Ground clearance,laden,below mast	m1(mm)	49
Aisle width for palles 1000×1200 crossways	Ast(mm)	3110/3131
Aisle width for pallets 800×1200 lengthways	Ast(mm)	3197/3220
Turning radius	Wa(mm)	1848
Length across wheel arms	l7(mm)	2023
Travel speed,laden/unladen	km/h	6.5/7.0
Lift speed,laden/unladen	m/s	0.20/0.30
Lowering speed,laden/unladen	m/s	0.32/0.312
Reaching speed,laden/unladen	m/s	0.1	0.1
Max.gradeability,laden/unladen	%	5/12
Service brake		Electromagnetic
Drive motor rating S260 min	kW	3.0(AC)
Lift motor rating at S315%	kW	10.0(AC)
Battery voltage/nominal capacity K5	(V/(Ah)or kWh	36/700
Battery weight	kg	810
Sound pressure level at the driver's seat	dB(A)	75
