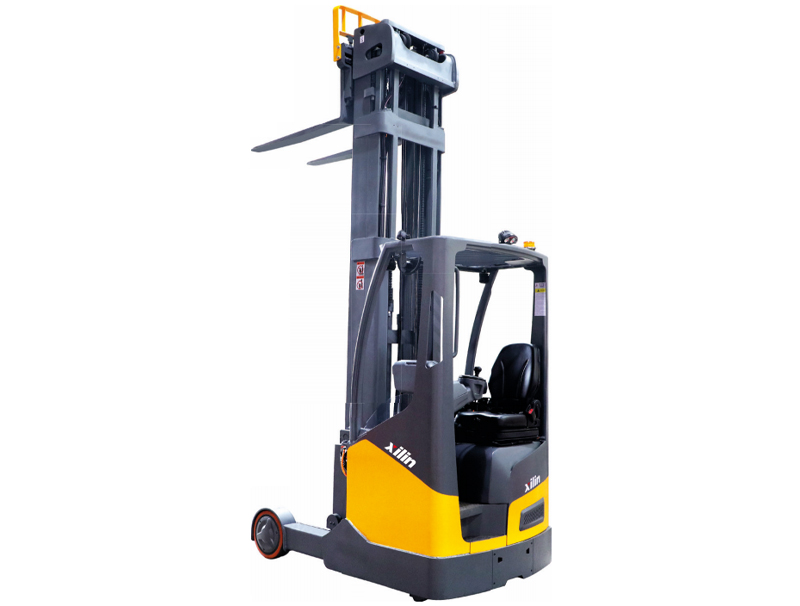

CQD16-Li is a newly developed Li-ion oriented mode, with a compact body and new appearance design, It is suitable for a very narrow aisles warehouse using, which is ideal model for handling, transporting and stacking in large warehouses and supermarkets.
● The console panel is adjustable up/down, forward/back.
● The integrated console is convenient to operate.
● The mast system is newly designed and the overall offset design with width 690mm, narrower 767mm than CQD20-D, the operation compartment is much more wider.
● Standard with Integral sideshift, which has low loss of load with less weight loss.
● The oil pipe adopts polyurethane pipe with German imported, which has the properties of oil resistance, wear resistance, aging resistance, and stretch resistance.
● The cabin roof adopts a new design, which will have better views.
● With Sunken operation panel guarantees better operating views.
● FULL AC control system with Inmotion controller.
● All electric parts are used integrated modular design, it is easy for installation/maintenance.
● Adopt CAN communication technology, detect motor speed, temperature and other information in real time to achieve closed-loop control.
● Driving Gear box is KORDEL made in GERMANY.
● AC type variable frequency traction motor, which have intelligently optimized steering speed control system: The system analyzes the tire angle, driving direction and steering direction, and then automatically adjusts the speed to achieve maximum safety performance.
● The integrated console is convenient to operate.
● The mast system is newly designed and the overall offset design with width 690mm, narrower 767mm than CQD20-D, the operation compartment is much more wider.
● Standard with Integral sideshift, which has low loss of load with less weight loss.
● The oil pipe adopts polyurethane pipe with German imported, which has the properties of oil resistance, wear resistance, aging resistance, and stretch resistance.
● The cabin roof adopts a new design, which will have better views.
● With Sunken operation panel guarantees better operating views.
● FULL AC control system with Inmotion controller.
● All electric parts are used integrated modular design, it is easy for installation/maintenance.
● Adopt CAN communication technology, detect motor speed, temperature and other information in real time to achieve closed-loop control.
● Driving Gear box is KORDEL made in GERMANY.
● AC type variable frequency traction motor, which have intelligently optimized steering speed control system: The system analyzes the tire angle, driving direction and steering direction, and then automatically adjusts the speed to achieve maximum safety performance.
● The hydraulic pump motor and proportional valve control system, all hydraulic function operations (lifting/lowering, mast moving, sideshift) can be controlled proportionally．
● Large-screen color instrument, real-time display of vehicle speed, working mode, working time, battery power, wheel angle and faults and other information.
● With ID and or password login interface.
● With height positioning system, you can select the different height to stop at the racking height automatically.
● Large-screen color instrument, real-time display of vehicle speed, working mode, working time, battery power, wheel angle and faults and other information.
● With ID and or password login interface.
● With height positioning system, you can select the different height to stop at the racking height automatically.
