Model

CQD20-D

DELUXE SERIES REACH TRUCK

CQD20-D adopts the new design concept, the whole truck shape is simple and clear, the line is full and smooth, fitful with public aesthetics.
Believe this model can bring you special, most comfortable and deluxe operation experience.

Advantage:

Safe & Reliable :
● Height limit function: when the fork is lifted to the maximum height, the lifting motor will automatically cut off power to ensure the safety of lifting;
● High speed limit function, when the fork lifting is greater than the free lifting height, the driving speed will be automatically reduced to ensure the safety of high-level operation;
● The turning speed limit function automatically reduces the speed according to the turning angle when the vehicle turns, ensuring the safety of the forklift when turning;
● The mast reach speed will be slow down when the mast to the end, in order to ensure the stability of mast;
● The service brake is operated by hydraulic braking and regenerative braking at the same time, with short braking distance, no inertial impact, safety and reliability；
● The parking brake adopts electromagnetic braking, which acts automatically after parking, and has the function of anti sliding on the ramp;
● Equipped with OPS as standard to ensure the operator’s safety;
● CANbus technology is adopted to detect the motor speed, temperature and other information in real time to realize closed-loop control;
● AC frequency conversion control technology enables stepless speed regulation control for driving, lifting and steering, which is accurate and reliable;
● Equipped with warning lights + headlights as standard to ensure safe operation under the condition of insufficient light;
● The foot pedal position is designed with an off position pedal to ensure the safety of the operator's feet.
OPTION: ASC function(Active Sway Control)

Standard :
● INMOTION controller
● Driving Motor: 6.5Kw(AC)
● Lifting Motor: 8.2Kw(AC)
● EPS

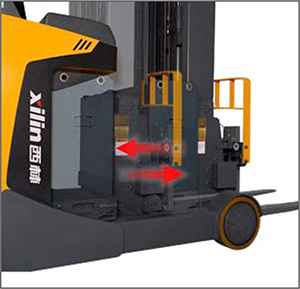

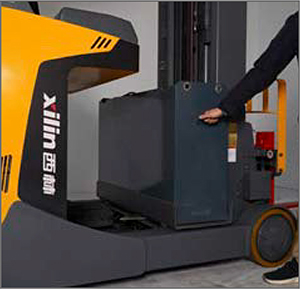

● Lead-acid battery 48V/500AH(side-way design)
● Gear box: Germany KORDEL
● Integral side shifter
● Fork tilting

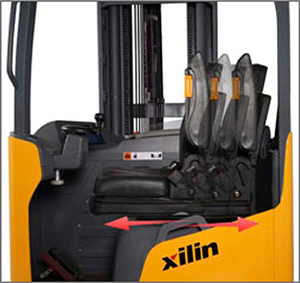

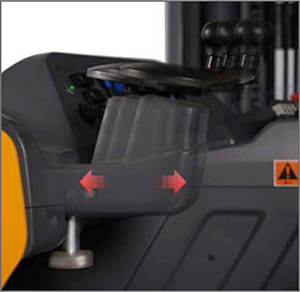

● High-level seat
● Imported mast material
● LED warning light & front light
● Height-positioning system

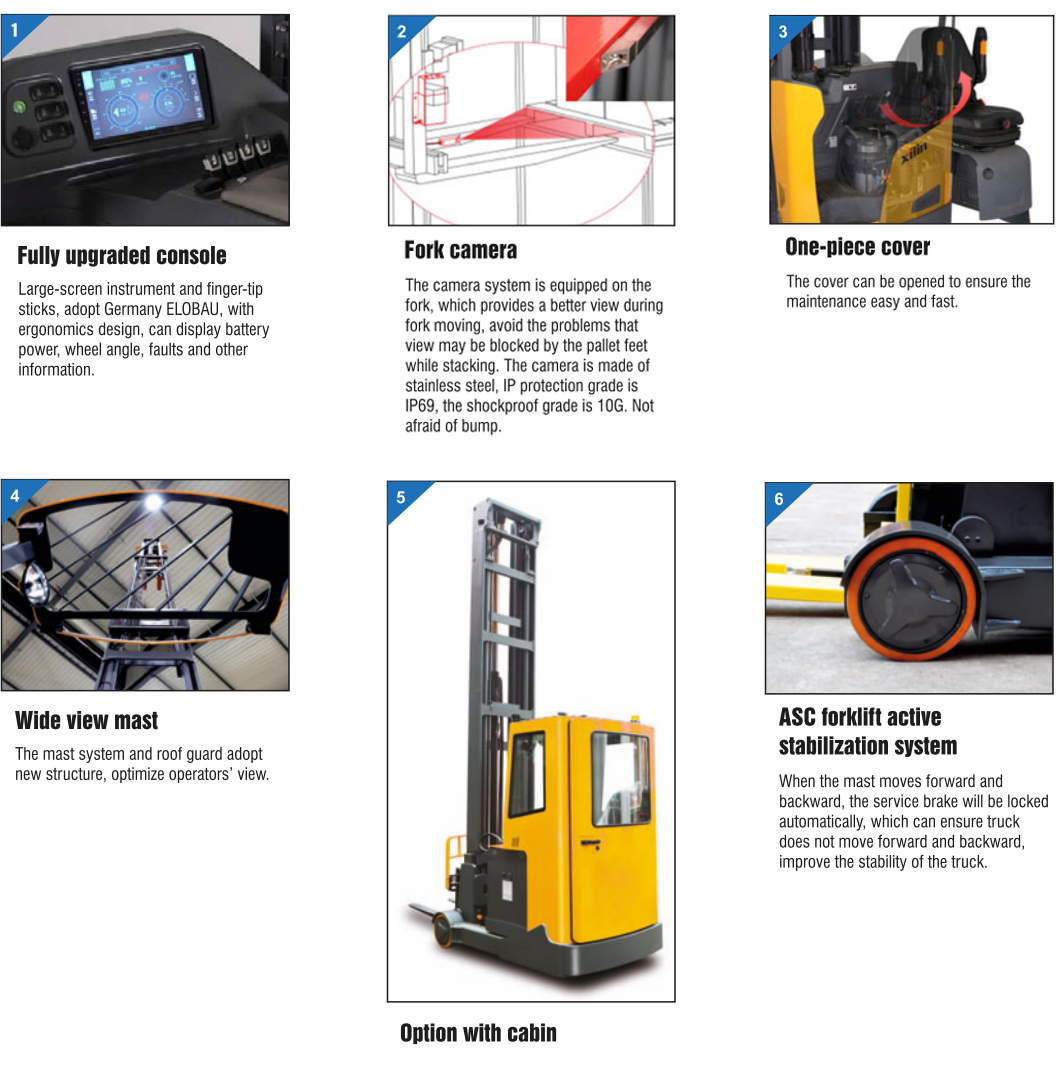

Optional :
● Camera system
● LED back lights
● Lithium battery(48V/350AH & 48V/400AH & 48V/450AH)
● Electro-magnetic operation
● Bigger capacity of lifting motor: 12Kw

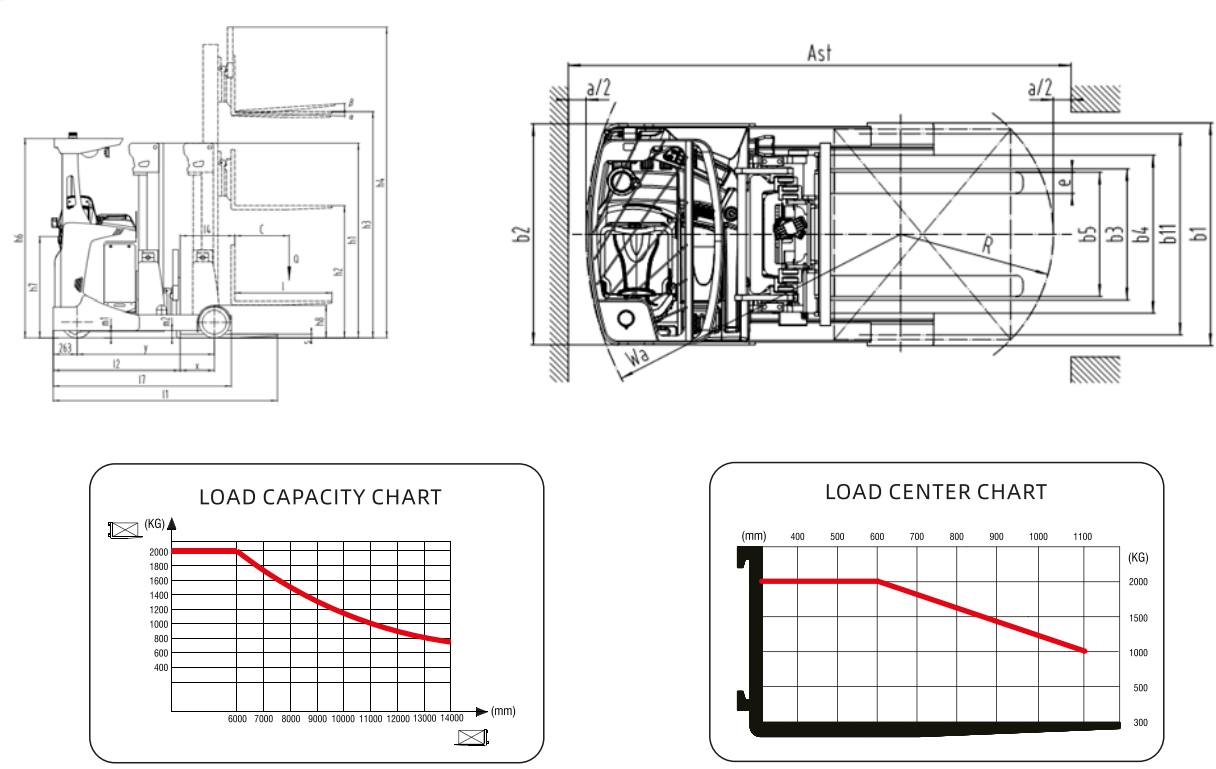

DIMENSION Drawing:

Manufacturer's type designition		CQD20-D (Lift height≤9.5meters)	CQD20-D (9.5meters, <lift height≤12.5meters)
Drive: electric (battery type, mains, ...), diesel, petrol, fuel gas		Electric	Electric
Operator type: hand, pedestrian, standing, seated, order-picker		Seated	Seated
Rated capacity/rated load	Q(kg)	2000	2000
Load centre distance	c(mm)	600	600
Load distance, centre of drive axle to fork	x(mm)	377	377
Wheelbase	y(mm)	1510	1510
Service weight	kg	3605	4750
Axle loading, unladen front/rear	kg	2245/1360	2958/1792
Axle loading, fork advanced, laden front/rear	kg	727/4878	875/5875
Axle loading, fork retracted, laden front/rear	kg	2030/3575	2444/4306
Tyres: solid rubber, superelastic, pneumatic, polyurethane		Polyurethane	Polyurethane
Tyre size, front	mm	Φ343x140	Φ343x140
Tyre size, rear	mm	Φ340x114	Φ340x114
Wheels, number front/rear (x = driven wheels)		1X/2	1X/2
Tread, rear	b11(mm)	1146	1196
Tilt of mast/fork carriage forward/backward	a/b (°)	2/4	2/4
Height mast lowered	h1(mm)	2240/2490/2740/2340/2740/3190/3390/3590/3890	4190/4490/4790/4956
Free lift	h2(mm)	0/0/0/1400/1800/2250/2450/2650/2950	3250/3550/3850/4016
Free lift	h2(*)(mm)	0/0/0/1736/2136/2536/2736/2936/3236	3600/3900/4200/4366
Max. lift height	h3(mm)	3000/3500/4000/5000/6200/7400/8000/8600/9500	10200/11100/12000/12500
Height mast extended	h4(mm)	3940/4440/4940/5940/7140/8340/8940/9540/10440	11140/12040/12940/13440
Height of overhead guard (cabin)	h6(mm)	2210	2210
Overall length	l1 (mm)	2466	2466
Length to face of forks	l2(mm)	1396	1396
Overall length	b1/b2(mm)	1270/1260	1345/1260
Fork dimensions DIN ISO 2331	s/e/l(mm)	40/120/1070	40/120/1070
Fork carriage ISO 2328, class/type A, B		2B	2B
Fork-carriage width	b3(mm)	928	928
Fork spread	b5(mm)	708	708
Distance between wheel arms/loading surfaces	b4(mm)	900	900
Reach distance	l4(mm)	600	600
Ground clearance, laden, below mast	m1(mm)	80	80
1 Aisle width for pallets 1000 x 1200 crossways	Ast(mm)	2849	2849
2 Aisle width for pallets 800 x 1200 lengthways	Ast(mm)	2899	2899
Turning radius	Wa(mm)	1783	1783
Length across wheel arms	l7(mm)	1960	1960
Travel speed, laden/unladen	km/h	10.5/11	10.5/11
Lift speed, laden/unladen	m/s	0.29/0.45	0.29/0.45
Lowering speed, laden/unladen	m/s	0.5/0.5	0.5/0.5
Reaching speed, laden/unladen	m/s	0.12/0.12	0.12/0.12
Max. gradeability, laden/unladen	%	10/10	10/10
Service brake		Electromagnetic	Electromagnetic
Drive motor rating S2 60 min	kW	6.5(AC)	6.5(AC)
Lift motor rating al S3 15%	kW	8.2(AC)	8.2(AC)
Battery voltage/nominal capacity K5	(V)/(Ah) or kWh	48/500	48/500
Battery weight	kg	870	870
Sound pressure level at the driver's seat	dB(A)	65	65

(*) means without backrest

Option: 1) Big power motor with quick lift

2) Acid Battery 48V/600AH, 48V/800AH, 48V/930AH

3) Lithium battery 48V/400AH, 48V/450AH, 48V/600AH, 48V/800AH
