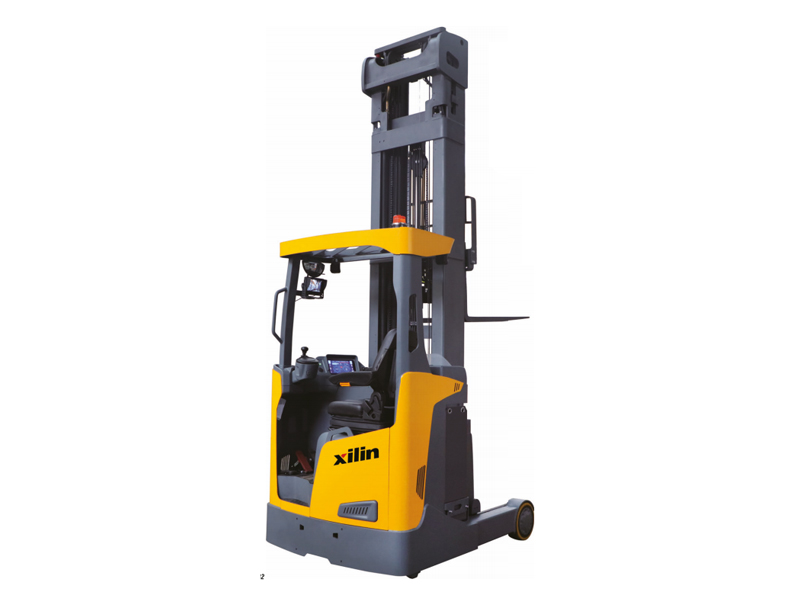

Electric Reach Truck CQD16-DNA Suppliers

home / product / Narrow Aisle Truck / Electric Reach Truck
  • Electric Reach Truck CQD16-DNA
  • Electric Reach Truck CQD16-DNA
  • Electric Reach Truck CQD16-DNA
  • Electric Reach Truck CQD16-DNA
Model

CQD16-DNA

Electric Reach Truck

  • Electric Reach Truck CQD16-DNA
  • Electric Reach Truck CQD16-DNA
  • Electric Reach Truck CQD16-DNA
  • Electric Reach Truck CQD16-DNA

Advantage:

DIMENSION Drawing:

Manufacturer's type designition   CQD16-D
Drive: electric (battery type, mains,..), diesel, petrol, fuel gas   Electric
Operator type: hand, pedestrian, standing, seated,order-picker   Seated
Rated capacity/rated load Q(kg) 1600
Load centre distance c(mm) 600
Load distance, centre of drive axle to fork x(mm) 391
Wheelbase y(mm) 1420
Tyres: solid rubber, superelastic, pneumatic, polyurethane   Polyurethane
Tyre size, front mm φ343×140
Tyre size, rear mm φ285×100
Additional wheels (dimensions) mm  -
Wheels, number front/rear(×=driven wheels)   1x/2
Tread, front b10(mm)  -
Tread, rear b11(mm) 1146
Tilt of mast/fork carriage forward/backwards a/b(°) 2/4
Height, mast lowered h1(mm) 2240/2490/2740/2340/2400/2480/2740/3190/3390/3590/3890
Free lift h2(mm) 0/0/0/1345/1405/1485/1745/2195/2395/2595/2895
Lift h3(mm) 3000/3500/4000/5000/5300/5500/6200/7400/8000/8600/9500
Height, mast extended h4(mm) 3965/4465/4965/5965/6565/6465/7165/8365/8965/9565/10465
Height of overhead guard (cabin) h6(mm) 2210
Overall length l1 (mm) 2362
Height, mast lowered l2(mm) 1292
Overall width b1/b2(mm) 1260/1270
Fork dimensions DIN ISO 2331 s/e/l(mm) 40/120/1070
Fork carriage ISO 2328, class/type A, B   2B
Fork-carriage width b3(mm) 911
Fork spread b5(mm) 748
Distance between wheel arms/loading surfaces b4(mm) 900
Reach distance l4(mm) 585
Ground clearance, laden, below mast m1(mm) 88
Aisle width for pallets1000×1200 crossways Ast(mm) 2740
Aisle width for pallets 800×1200 lengthways Ast(mm) 2780
Turning radius Wa(mm) 1683
Length across wheel arms l7(mm) 1843
Travel speed,laden/unladen km/h 13/14
Lift speed,laden/unladen m/s 0.29/0.45(0.35/0.45)
Lowering speed,laden/unladen m/s 0.50/0.42
Reaching speed,laden/unladen m/s 0.12/0.12
Max.gradeability,laden/unladen % 10/10
Service brake   Electromagnetic
Drive motor rating S260 min kW 6.5(AC)
Lift motor rating at S3 15% kW 8.2/(12)(AC)
Battery voltage/nominal capacity K5 (V)/(Ah)or kWh 48/420
Battery weight kg 650
Sound pressure level at the driver's seat dB(A) 65
