Very Narrow Aisle Truck(Man-up) OPTS15 Suppliers

home / product / Narrow Aisle Truck / Very Narrow Aisle Truck(Man-up)
  • Very Narrow Aisle Truck(Man-up)  OPTS15
  • Very Narrow Aisle Truck(Man-up)  OPTS15
  • Very Narrow Aisle Truck(Man-up)  OPTS15
  • Very Narrow Aisle Truck(Man-up)  OPTS15
  • Very Narrow Aisle Truck(Man-up)  OPTS15
Model

OPTS15

Very Narrow Aisle Truck(Man-up)

  • Very Narrow Aisle Truck(Man-up)  OPTS15
  • Very Narrow Aisle Truck(Man-up)  OPTS15
  • Very Narrow Aisle Truck(Man-up)  OPTS15
  • Very Narrow Aisle Truck(Man-up)  OPTS15
  • Very Narrow Aisle Truck(Man-up)  OPTS15

Advantage:

● Designed with 3-point support structure, low central gravity, great steering stability and small turning radius.
● 2 sets of energy regeneration system to save energy and lower cost independently.
● Lifting mast with high torsion resistance lifts up surplus load and reduces its shaking.
● Full AC driving control technology provides stronger power and higher efficiency.
● Intelligent management system and CAN-Bus system are able to meet various needs, making the truck secure and reliable.
● Multi-axis control technology promotes work efficiency.
● Self-balancing control technology with high central gravity over loading shows fine stability of the truck.
● Interlock control between height and speed during travelling ensures the truck's dynamic stability.
● Multi-level security alarming system includes laser anti collision sensor, emergency stop, audible and visible alarms to make sure both personal and machinery security around.
● Ergonomic handle eases the operation. Powerful and multi-functional LCD instrument cluster at the middle of the operating bridge.
● Adopt an operating bridge with adjustable tilt angle and height to meet ideal position of the operator by adjusting the seat back and forth.
● Imported & well known branded driving wheel, EM controlling valve, controller, contactor, steering potentiometer, etc.
● 3 speed modes: slow, medium, fast are optional for different work conditions.
● On-board diagnostic system ensures relevant maintenance and prompt repair.
Standard configuration
1 Duplex mast 12 Germany driving wheel
2 Fork length 950 13 Metal stamping left and right side panels and hood
3 Hydraulic control system with magnetic valve 14 Emergency power off switch
4 High performance and high torque AC drive motor 15 Reversing buzzer
5 High performance and large torque oil pump motor 16 Imported connectors
6 Platform adjustable mechanism for up and down, front and rear 17 Sports terminal intelligent buffer
7 Multifunction LCD combination instrument (including soft keys) 18 Rear mirror
8 LED side light、LED instruction light、LED reading light 19 CANbus system
9 Seat with cushion with safety belt 20 Italy imported low noise gear pump
10 with three Curtis controller for driving, steering and lifting. 21 Sideway Battery 80V/560AH
11 integrated front pedal. 22 Charger 80v/80AH

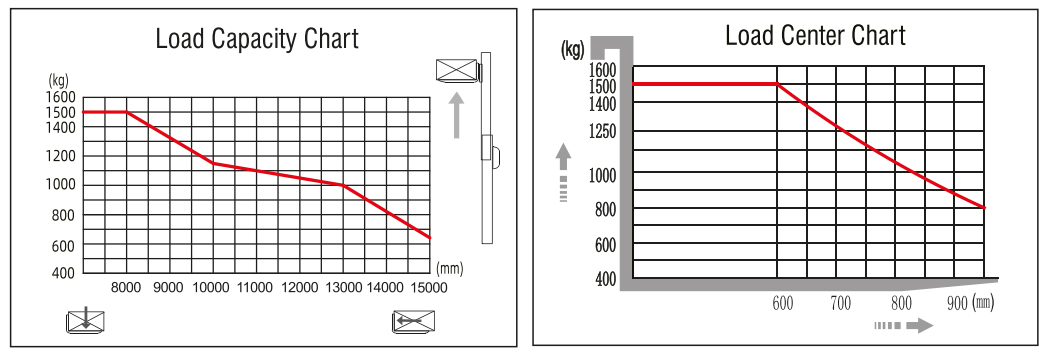

Rated Load Capacity
Rated Load Cap. Lifting height limited to 7000 mm 1500kg
Rated Load Cap. Lifting height limited from 7000 to 10020mm 1100kg
Load Center 600mm

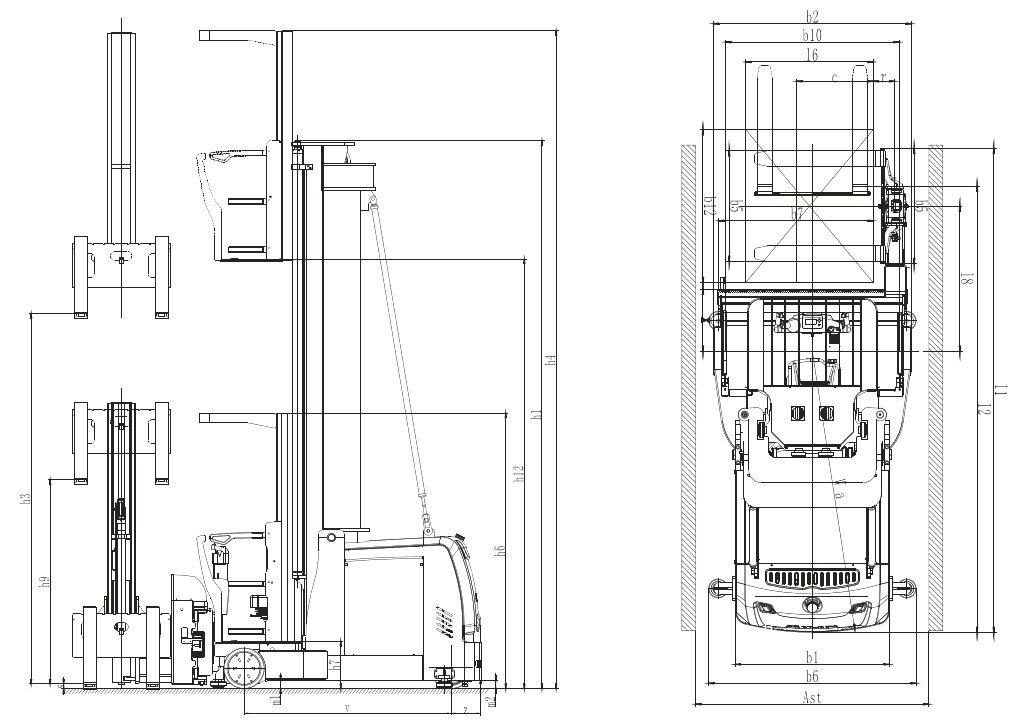

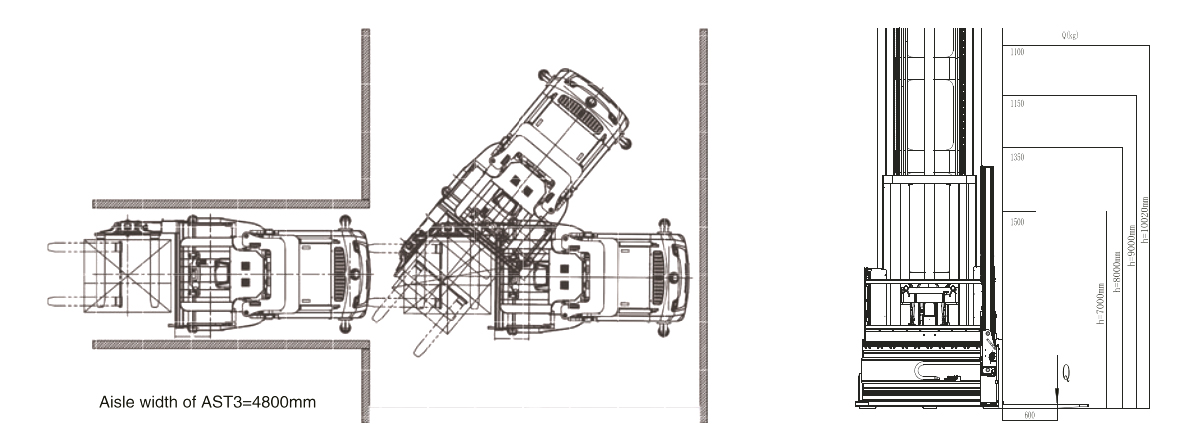

DIMENSION Drawing:

Model



0PTS15(9.2M)

OPTS15(10M)

OPTS15(10.5M)

0PTS15(13M)

Power



ELECTRIC

ELECTRIC

ELECTRIC

ELECTRIC

Operation type



TRI-LATERAL-REACH TRUCK

TRI-LATERAL-REACH TRUCK

TRI-LATERAL-REACH TRUCK

TRI-LATERAL-REACH TRUCK

Load capacity / Rated load

Q(kg)

1500

1500

1500

1500

Load capacity at max height



950kg

900kg

850kg

600kg

Load centre distance

c(mm)

600

600

600

600

Load distance, centre of drive axle to fork

x(mm)

485±10

485±10

485±10

485±10

Wheelbase

y(mm)

1928±20

1928±20

1928±20

2248±20

Contre drive wheel/Counter weight

z(mm)

280

280

280

280

Service weight incl. battery (see line 6.5)

kg

8405

8705

8805

98559

Axle loading, laden front / rear

kg

7790/2115 lengthways

7940/2265 lengthways

7990/2315 lengthways

8540/3015 lengthways

Axle loading, unladen front / rear

kg

4980/3425

5130/3575

5180/3625

5730/4775

Tyre size, front

PU

380x192

380x192

380x192

380x192

Tyre size, rear

PU

400x160

400x160

400x160

400x160

Wheels, number front/rear (x = driven wheels)



2/1x

2/1x

2/1x

2/1x

Front wheel distance

b10(mm)

1362±10

1362±10

1362±10

1362±10

Closed height of mast

hi (mm)

5098±20

5498±20

5748±20

5212±20

Lifing height

h3(mm)

7460

8260

8760

11260

Overall height mast extended

h4(mm)

10128±20

10928±20

11428±20

13928±20

Height of overhead guard

h6(mm)

2564±20

2564±20

2564±20

2564±20

Platform height

h7(mm)

442±10

442±10

442±10

442±10

Auxiliary lifting height

h9(mm)

1740

1740

1740

1740

Platform height, lifted

h12(mm)

7902±20

8702±20

9202±20

11702 ±20

Overall length (unladen)

11 (mm)

3805±20

3805±20

3805±20

4125±20

Truck body length, w/o fork

I2(mm)

3470±20

3470±20

3470±20

3390±20

Overall width

b1/b2(mm)

1210/1555

1210/1555

1210/1555

1210/1555

Fork dimensions

s/e/l(mm)

40x120x1070

40x120x1070

40x120x1070

50x120x1070

Fork carriage ISO 2328, class / type A, B



2/B

2/B

2/B

2/B

Fork carriage width

b3(mm)

908

908

908

908

Width over forks

b5(mm)

870

870

870

870

Width across guide roller

b6(mm)

1630

1630

1630

1630

Side extended distance

b7(mm)

1300±20

1300±20

1300±20

1300±20

Side extended distance to center of truck

b8(mm)

480

480

480

480

Ground clearance, laden, under mast

m1(mm)

80

80

80

80

Ground clearance, centre of wheelbase

m2(mm)

80

80

80

80

Aisle width for pallets 1200 x 1200

Ast(mm)

1700

1700

1700

1700

Aisle width for pallets 1200 x 800

Ast3(mm)

4200

4200

4200

4520

Turning radius

Wa(mm)

2220±20

2220±20

2220±20

2540±20

Front axle to fork turning center distance

l8(mm)

1150

1150

1150

1150

Total lifting height

h3+h9(mm)

9200

10000

10500

13000

Max pick up height

h12+1600(mm)

9502±20

10302±20

10802±20

12302±20

Distance from fork rotation center to front overhang

l8-x(mm)

650

650

650

650

Pallet width

b12(mm)

1200

1200

1200

1200

Pallet length

l6(mm)

1000

1000

1000

1000

Net width of cabin

mm

420

420

420

420

Net height of cabin

mm

2070±20

2070±20

2070±20

2070±20

Overall width of cabin

b9(mm)

1430±10

1430±10

1430±10

1430±10

Rotating front extension carriage width

b14(mm)

1488

1488

1488

1488

Cantilever width

l10(mm)

175

175

175

175

Distance from fork pivot to fork carrige

r(mm)

155

155

155

155

Travel speed, laden / unladen

km/h

10/10

10/10

10/10

10/10

Lift speed, laden / unladen

mm/s

280/300

280/300

280/300

300/320

Lowering speed, laden / unladen

mm/s

320/300

320/300

320/300

320/300

Moving speed, laden / unladen

mm/s

190/200

190/200

190/200

190/200

Service brake



regenerative brake

regenerative brake

regenerative brake

regenerative brake

Parking brake



electro megentic

electro megentic

electro megentic

electro megentic

Drive motor rating S2 60 min

KW

7.5(AC)

7.5(AC)

7.5(AC)

7.5(AC)

Lift motor rating at S3 15%

KW

20(AC)

20(AC)

20(AC)

20(AC)

Pressure of system

bar

200

200

200

200

Battery acc. to DIN 43531 /35 / 36 A, B, C, no



4PZS560

4PZS560

4PZS560

5PZS600(700)

Battery voltage, nominal capacity K5

V/Ah

80/560

80/560

80/560

80/600(700)

Battery weight

kg

1480(1450-1510)

1480(1450-1510)

1480(1450-1510)

1780(1750-1810)

Traction control type



AC

AC

AC

AC

Sound level at driver's ear according to EN 12 053 dB (A)

Db(A)

68

68

68

68

Steering



EPS

EPS

EPS

EPS

* Option: Lithium battery 80V/550AH (Charger 80V/200A)
