Model

CQD20H

Electric Reach Truck

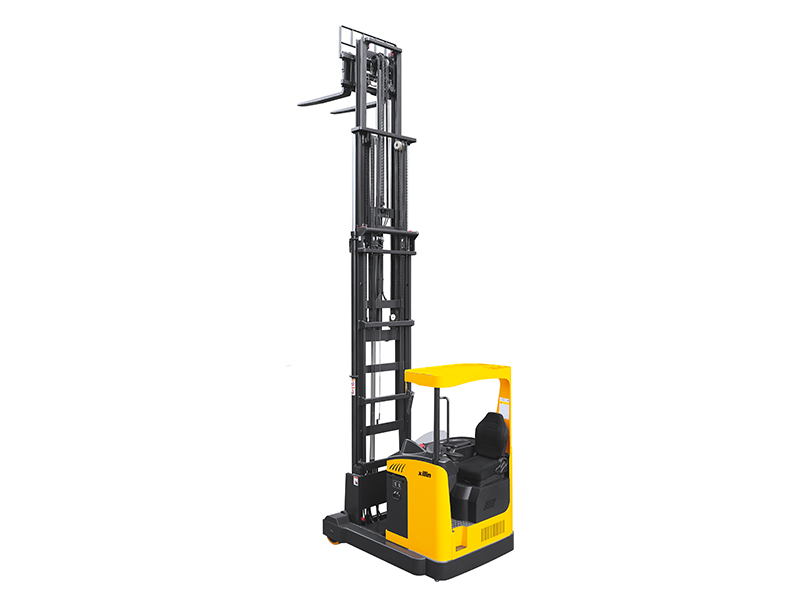

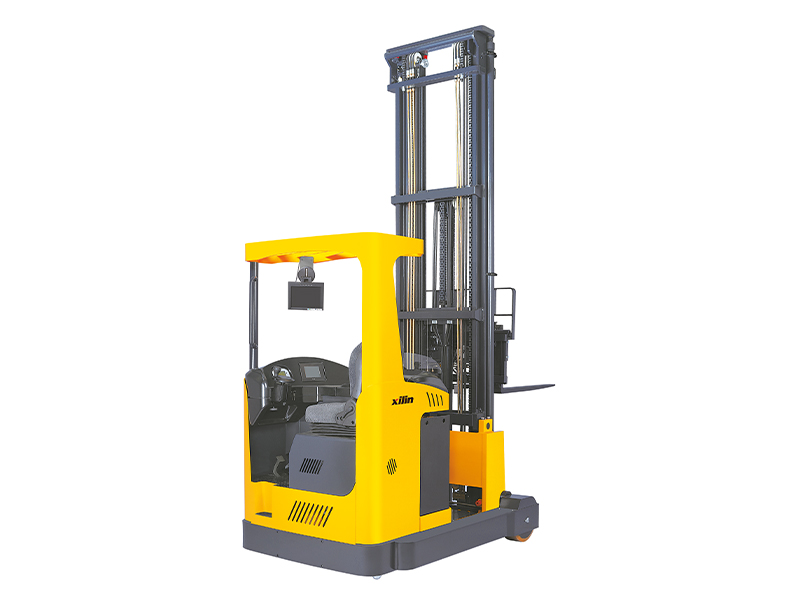

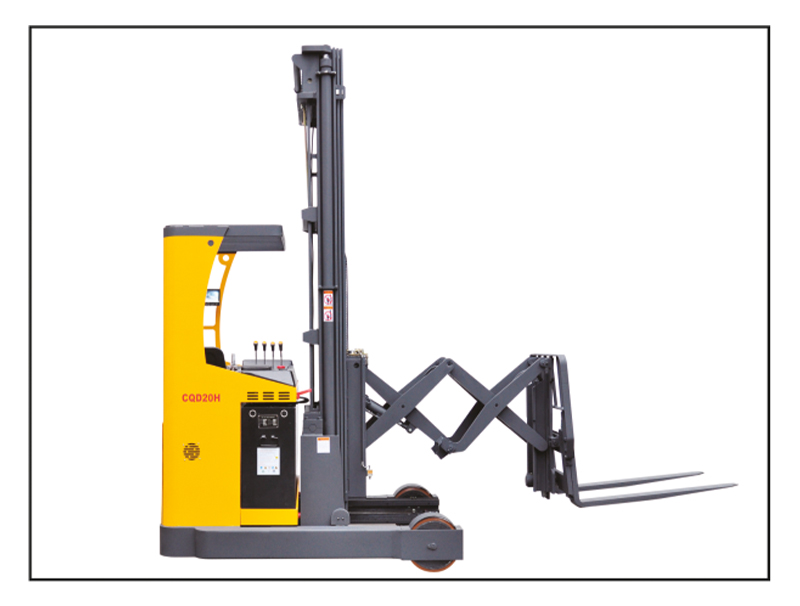

CQD20H(EPS) series are with wide and heavy duty chassis, advanced AC driving system, small turning radius 1820mm-1920mm, offers powerful driving and high performance, it is an ideal handling solution for narrow aisles storage applications, widely used in large warehouse with middle and high rack systems.
  • Electric Reach Truck  CQD20H
  • Electric Reach Truck  CQD20H
  • Electric Reach Truck  CQD20H
  • Electric Reach Truck  CQD20H
  • Electric Reach Truck  CQD20H
  • Electric Reach Truck  CQD20H
  • Electric Reach Truck  CQD20H

Advantage:

Standard:
● AC control system.
● Powering steering system (EPS). (standard for 10-12m, option for 8-9.5m)
● Electronic multi-valve.

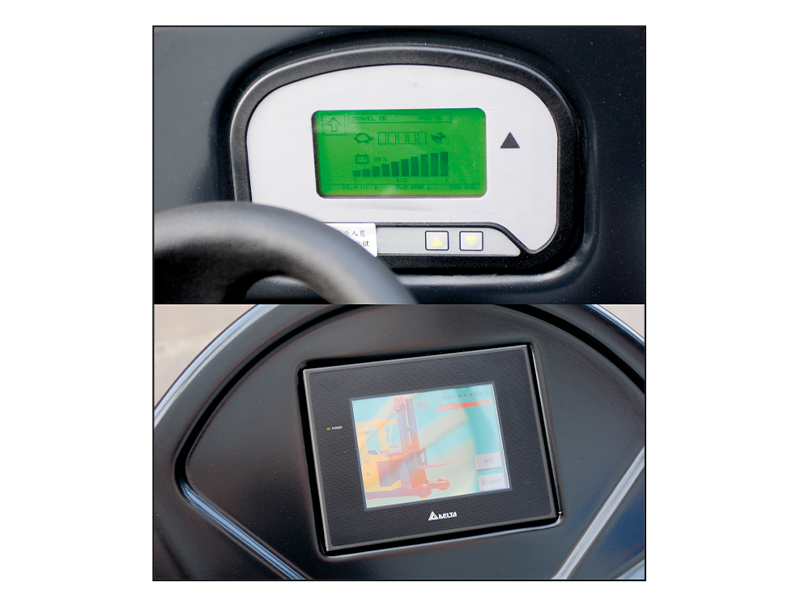

● Multi-function display can show: Brake status, Driving direction, Hour meter, Driving speed, Fault code, etc.

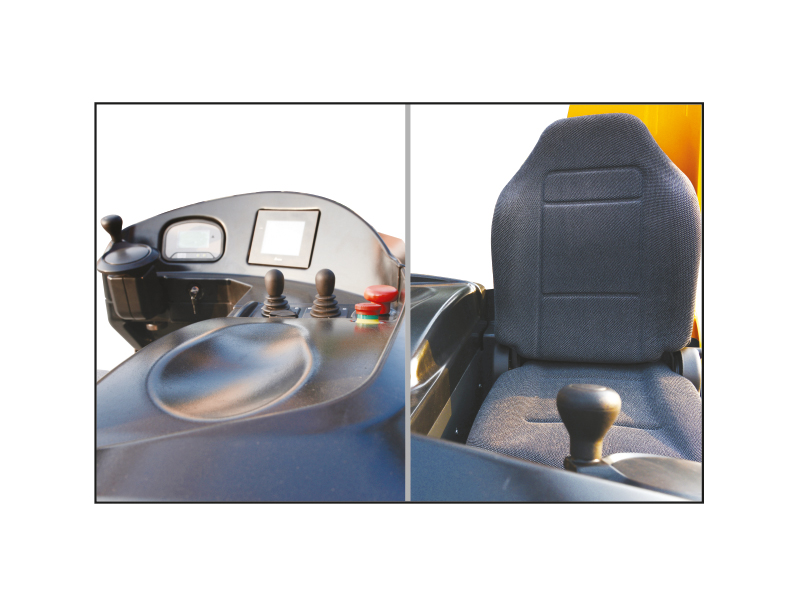

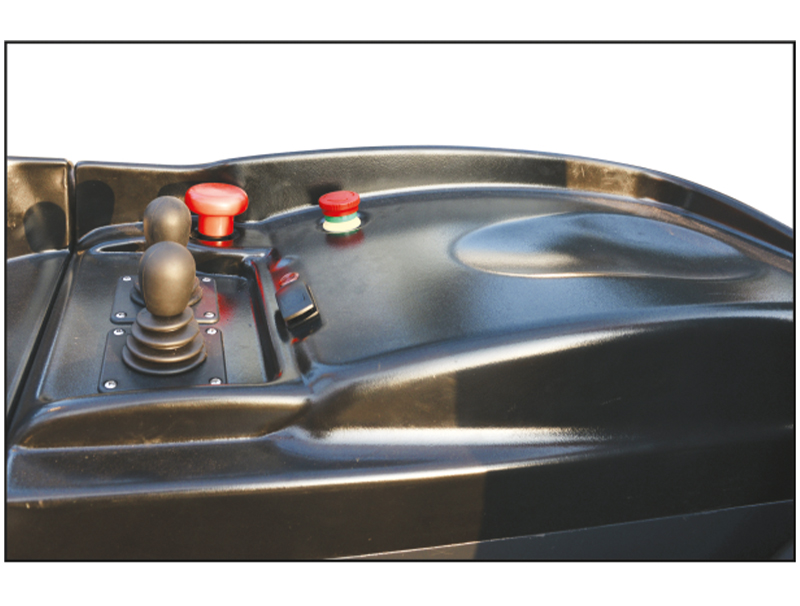

● Finger-tip control stick. (standard for 10-12m, option for 8-9.5m)
● Adjustable speed for forks lifting/lowering mast forward/backward and side shift right/left.
● German ZF brand gear box.
● Adjustable steering wheel.
● With traveling speed limited device when forks at high level.
● Electronic height limited device.
● Use "H" type mast steel is imported from Germany.
● Use double controllers to realize stepless speed regulation of sideshift , both lifting and traveling.
● Have safety traveling speed limited device in the mast.
Option:
● Side shift.
● Height selection and height position system.

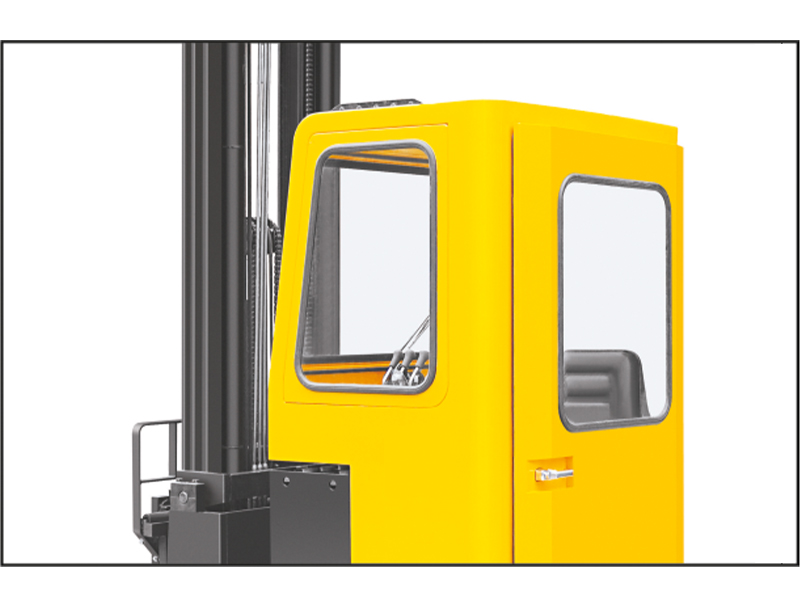

● LCD display and camera (LCD for cold storage are available).
● EX explosion proof type.
● Travel/back-up flashing lights.

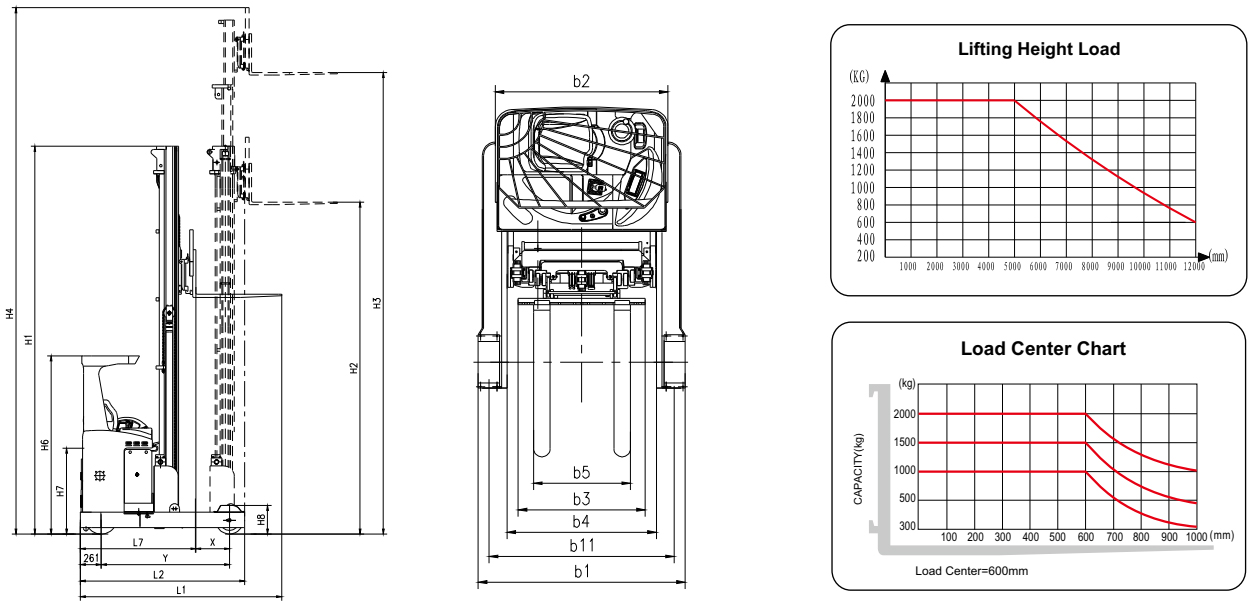

DIMENSION Drawing:

Manufacturer's type designition



CQD20H

Drive: electric (battery type, mains,…),diesel, petrol, fuel gas



Electric

Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Seated

Seated

Rated capacity/rated load

Q(kg)

2000

2000

Load centre distance

c (mm)

600

600

Load distance, centre of drive axle to fork

x(mm)

320

430

Wheelbase

y(mm)

1500

1600

Service weight

kg

4240

4840

Axle loading, unladen front/rear

kg

2620/1620

2950/1890

Axle loading, fork advanced, laden front/rear

kg

950/5290

1000/5840

Axle loading, fork retracted, laden front/rear

kg

2350/3890

2810/4030

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Polyurethane

Tyre size, front



Φ406x152

Φ406x152

Tyre size, rear



Φ340x134

Φ340x134

Wheels, number front/rear (x = driven wheels)



1x/2

1X/2

Tread, rear

b11(mm)

1350

1350

Tilt of mast/fork carriage forward/backward

a/b(°)

2/3 (fork)

2/3 (fork)

Height, mast lowered

h1(mm)

3390/3590/3890

4190/4490/4790

Free lift

h2(mm)

2590/2790/3090

3390/3690/3990

h2(*)(mm)

2700/2900/3200

3600/3900/4200

Max. lift height

h3(mm)

8000/8600/9500

10200/11100/12000

Height, mast extended

h4(mm)

8800/9400/10300

11000/11900/12800

Height of overhead guard (cabin)

h6(mm)

2200

2200

Overall length

l1(mm)

2510

2510

Length to face of forks

l2(mm)

1950

2050

Overall width

b1/b2(mm)

1510/1260

1510/1260

Fork dimensions DIN ISO 2331

s/e/l(mm)

40/120/1070

40/120/1070

Fork carriage ISO 2328, class/type A, B



2A

2A

Fork-carriage width

b3(mm)

928

928

Fork spread

b5(mm)

680

680

Distance between wheel arms/loading surfaces

b4(mm)

1090

1090

Reach distance

l4(mm)

600

675

Ground clearance, laden, below mast

m1(mm)

80

80

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2920

2920

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2980

2980

Turning radius

Wa(mm)

1820

1920

Length across wheel arms

l7(mm)

1950

2050

Travel speed, laden/unladen

km/h

8.0/8.3(electromagnetic valve with 9/9.3)

9.0/9.3

Lift speed, laden/unladen

m/s

0.24/0.30

0.24/0.30

Lowering speed, laden/unladen

m/s

0.40/0.30

0.40/0.30

Reaching speed, laden/unladen

m/s

0.10/0.10

0.10/0.10

Max. gradeability, laden/unladen

%

10/10

10/10

Service brake



Electromagnetic

Electromagnetic

Drive motor rating S2 60 min

kW

5.0(AC)

5.0(AC)

Lift motor rating at S3 15%

kW

8.2(DC), 8.2(AC)

8.2(AC)

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

48/500

48/500

Battery weight

kg

840

840

Sound pressure level at the driver's seat

dB(A)

70

70

* Option: Lithium battery 400AH (Charger 48V/100A)
