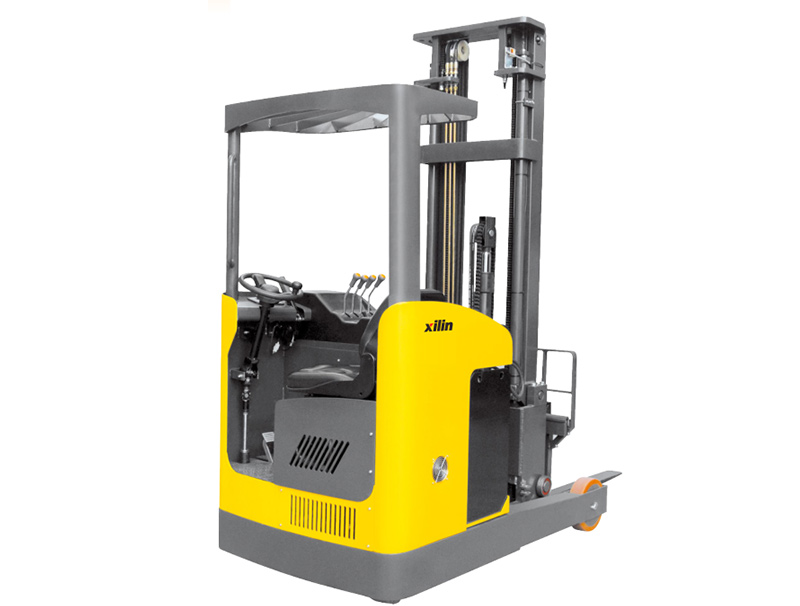

  • Seated Type Reach Truck CQD15M
Model

CQD15M

Seated Type Reach Truck

● The CQD series Counterbalanced Reach lift truck with innovative design and application-oriented functionality, low noise, no pollution and small turning radius. Widely used for high-shelves in narrow aisle warehouses, supermarkets, etc.
  • Seated Type Reach Truck CQD15M

Advantage:

Features
● Truck with small width from 1020-1100mm, turning radius from 1700-1740mm and narrow cabin to ensure trucks can be used in drive-in racks.
● Available in either DC or AC power options.
● For daily maintenance of the battery, you DON'T NEED to hang up the battery box. Simply using a battery handle controller, you can automatically remove and replace the battery box.
● Equipped with two separate floating devices, which enhances stability in terms of structure, reducing weight, and prolonging the working life of the driving wheels.
● Full hydraulic steering system, with integrative design of driving and steering, provides low-effort and flexible power steering.
● Integrated driving and turning systems.
● A fully hydraulic steering system ensures flexible turning, and requires less maintenance.
● Optional high-level video system places a camera in the top skid, allowing the operator enhanced visibility.
● Height selection and height positioning system is a high-level configuration, which with manual and automatic control, for automatic positioning with a keypad, enabling the operator to choose the appropriate lift height(optional).
Option
● AC power system.
● Joystick hydraulic controller.
● LCD display and camera.
● Height selection and height position system.

DIMENSION Drawing:

Manufacturer's type designition



CQD15M

Drive: electric (battery type, mains,…),diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Seated

Rated capacity/rated load

Q(kg)

1500

Load centre distance

c(mm)

500

Load distance, centre of drive axle to fork

x(mm)

395

Wheelbase

y(mm)

1470

Service weight

kg

2880

Axle loading, unladen front/rear

kg

1780/1100

Axle loading, fork advanced, laden front/rear

kg

720/3660

Axle loading, fork retracted, laden front/rear

kg

1680/2700

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Tyre size, front

mm

Φ280x100

Tyre size, rear

mm

Φ250x80

Additional wheels (dimensions)

mm

Φ160x55

Wheels, number front/rear (x = driven wheels)



1x+2/2

Tread, front

b10(mm)

740

Tread, rear

b11(mm)

996

Tilt of mast/fork carriage forward/backward

a/b(°)

2/2

Height, mast lowered

h1(mm)

2090/2340/2590/2240/2640

Free lift

h2(mm)

0/0/0/1440/1840

h2(*)(mm)

0/0/0/1700/2100

Max. lift height

h3(mm)

3000/3500/4000/5000/6200

Height, mast extended

h4(mm)

3800/4300/4800/5800/7000

Height of overhead guard (cabin)

h6(mm)

2114

Overall length

l1(mm)

2390

Length to face of forte

l2(mm)

1850

Overall width

b1/b2(mm)

1100/1100

Fork dimensions DIN ISO 2331

s/e/l (mm)

35/100/1070

Fork carriage ISO 2328, class/type A, B



2A

Fork-carriage width

b3(mm)

928

Fork spread

b5(mm)

680

Distance between wheel arms/loading surfaces

b4(mm)

800

Reach distance

l4(mm)

600

Ground clearance, laden, below mast

m1(mm)

90

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2800

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2850

Turning radius

Wa(mm)

1740

Length across wheel arms

l7(mm)

1885

Travel speed, laden/unladen

km/h

7.0/7.2

Lift speed, laden/unladen

m/s

0.20/0.40

Lowering speed, laden/unladen

m/s

0.40/0.30

Reaching speed, laden/unladen

m/s

0.10/0.10

Max. gradeability, laden/unladen

%

10/10

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

3.0(AC)

Lift motor rating at S3 15%

kW

8.2(DC), 8.2(AC)

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

48/400

Battery weight

kg

640

Sound pressure level at the driver's seat

dB (A)

70

(*) means without backrest
* Option: Lithium battery 350AH (Charger 48V/100A)
