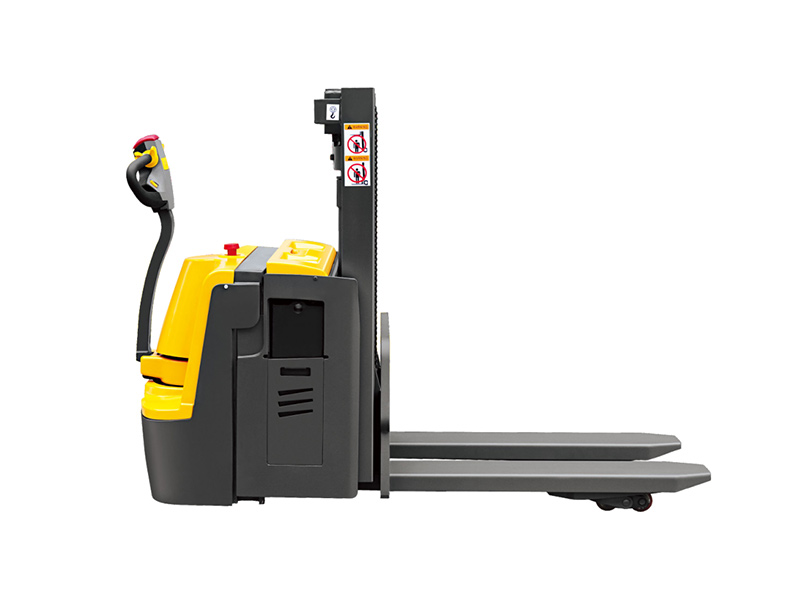

  • Double Decker Pallet Truck  CBD20S/CBD20S-III
  • Double Decker Pallet Truck  CBD20S/CBD20S-III
  • Double Decker Pallet Truck  CBD20S/CBD20S-III
Model

CBD20S/CBD20S-III

Double Decker Pallet Truck

● The CBD20S, with small turning radius and lowest height (1.08~1.38m), offers Double pallet Initial lifting, with Initial lift have 120mm lift to easily negotiate over ramps and bridging plates as well as the ability to transport a 2000kg load, widely used in low shelves warehouse and small supermarket etc.
  • Double Decker Pallet Truck  CBD20S/CBD20S-III
  • Double Decker Pallet Truck  CBD20S/CBD20S-III
  • Double Decker Pallet Truck  CBD20S/CBD20S-III

Advantage:

SAFETY AND EFFICIENCY:
● Carry two pallets at one single time.
● The tiller head is equipped with an emergency reverse direction switch, which provides safer operation.
● Built-in pressure relief valve protects the truck from overload, and increases the truck's safety.
● Stepless speed control and turtle speed switch.
STRUCTURAL:
● Vertical driving wheel offers small turning radius.
● Dividable and exchangeable mast.
● Adjustable floating balance wheel is resistant to wear and stable.
● Sliding rail connects the moving part of the front and rear, makes lifting and lowering stable.
EASY MAINTENANCE:
● Hall-effect throttle control eliminates ware components and prolongs its use time.
● The balance wheel is detachable, convenient to maintain.
● Integral and modularized electrical system makes the maintenance of the electrical parts convenient
Standard mast types
Three-stage mast
h1 h2 h3 h4
1082 - 1600 2118
1212 - 2000 2508
1382 - 2500 3018

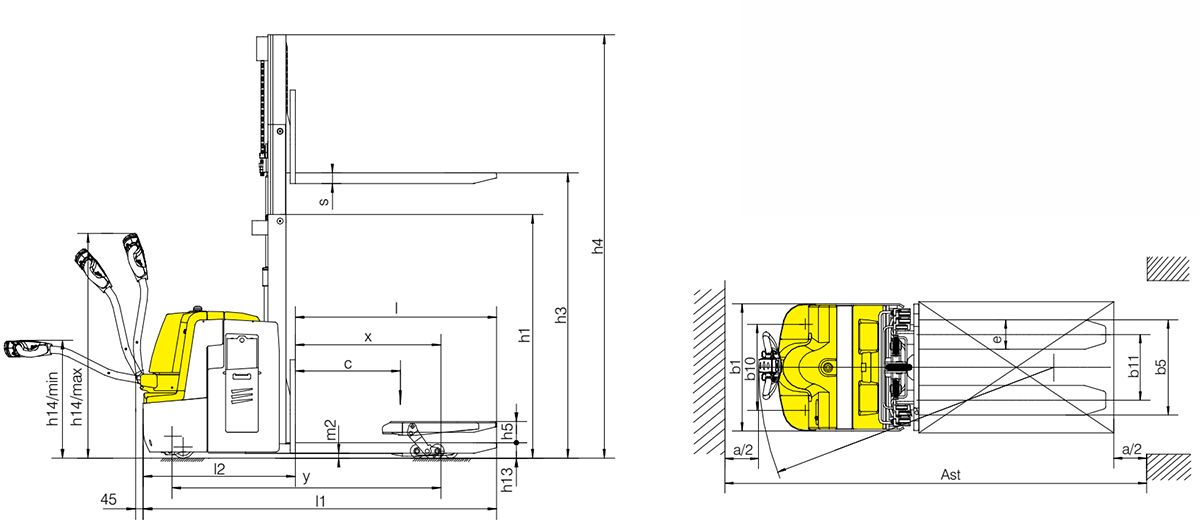

DIMENSION Drawing:

Model



CBD20S

CBD20S-III

Drive: electric (battery type, mains, ...), diesel, petrol, fuel gas



Electric

Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Pedestrian

Pedestrian

Rated capacity/rated load

Q(kg)

2000

2000

Rated capacity/rated load with mast lift

Q(kg)

1000

1000

Rated capacity/rated load with wheel arm lift

Q(kg)

2000

2000

Load centre distance

c(mm)

600

600

Load distance, centre of drive axle to fork

x(mm)

831

802

Wheelbase

y(mm)

1535

1255

Service weight

kg

950

600

Axle loading, laden front/rear

kg

1180/1770

800/1800

Axle loading, unladen front/rear

kg

650/300

460/140

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane (PU)

Polyurethane (PU)

Tyre size, front

mm

Φ250x70

Φ250x70

Tyre size, rear

mm

Φ80x70

Φ80x70

Additional wheels (dimensions)

mm

Φ127x57

Φ114x60

Wheels, number front/rear (x = driven wheels)



1X+2/4

1X+2/4

Tread, front

b10(mm)

541

476

Tread, rear

b1 (mm)

400/470

370

Max. lift height

h3(mm)

1600/2000/2500

800

Initial lift

h5(mm)

120

120

Height drawbar in driving position min./max.

h14(mm)

530/1230

780/1230

Height, lowered

h13(mm)

90

90

Height, mast lowered

h1(mm)

1082/1212/1382

/

Height, mast extended

h4(mm)

2118/2508/3018

/

Overall length

l1(mm)

1962

1760

Length to face of forks

l2(mm)

862

608

Overall width

b1/b2(mm)

775

682

Fork dimensions DIN ISO 2331

s/e/l(mm)

60/180/1100

60/180/1150

Fork spread

b5(mm)

570/650

550

Ground clearance, centre of wheelbase

m2(mm)

20

28

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2528

1972

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2449

2022

Turning radius

Wa(mm)

1705

1422

Travel speed, laden/unladen

km/h

5.5/5.6

5.5/5.6

Lift speed, laden/unladen

m/s

0.03/0.04

0.06/0.11

Lowering speed, laden/unladen

m/s

0.05/0.045

0.12/0.13

Max. gradeability. laden/unladen

%

6/12

8/20

Service brake



Electromagnetic

Electromagnetic

Drive motor rating S2 60 min

kW

1.2

1.2

Lift motor rating at S3 15%

kW

2.2

1.2

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/210

24/160

Battery weight

kg

195

160

Drive control



AC control

AC control

Sound pressure level at the driver's seat

dB(A)

70

70

*Option:
CBD20S Lithium battery 125AH/150AH (Charger 24V/50A)
CBD20S-III Lithium battery 100AH (Charger 24V/50A)
