Li-ion Powered Pallet Truck CBD15W-Lix Suppliers

home / product / Electric Pallet Truck / Li-ion Powered Pallet Truck
  • Li-ion Powered Pallet Truck CBD15W-Lix
  • Li-ion Powered Pallet Truck CBD15W-Lix
  • Li-ion Powered Pallet Truck CBD15W-Lix
Model

CBD15W-Lix

Li-ion Powered Pallet Truck

Indoor using type Li-ion powered pallet truck , with similar size as manual pallet truck , offer small turning radius , it is super light and easy to operate.
  • Li-ion Powered Pallet Truck CBD15W-Lix
  • Li-ion Powered Pallet Truck CBD15W-Lix
  • Li-ion Powered Pallet Truck CBD15W-Lix

Advantage:

● Multi-function Control Handle
incorporates butterfly-style thumb controls, emergency reverse button, horn button and key switch for ease of use.
● Integrated Rocker Arm
The rocker arm is casted in single piece, intensifying the strength and structure.
● Ergonomic Spring-loaded
steering handle with comfort grip for reduced operator fatigue.
● Compact Vehicle Design
Rugged and high-performing yet light weight body provides exceptional maneuverability in tight areas.
    ● With EM brake offers regenerative braking
    ●Less Wiring, Easy Service
    Mechanical and electronic components are easy to change and service.
    ● Plug-in Battery Design
    makes it easier to remove and change, no need additional tools or devices.
    ●Brushless Motor
    Equipped with horizontal type brushless driving motor and gear box, offers high drive speed and low torque output. wheel can be independently dismantled.

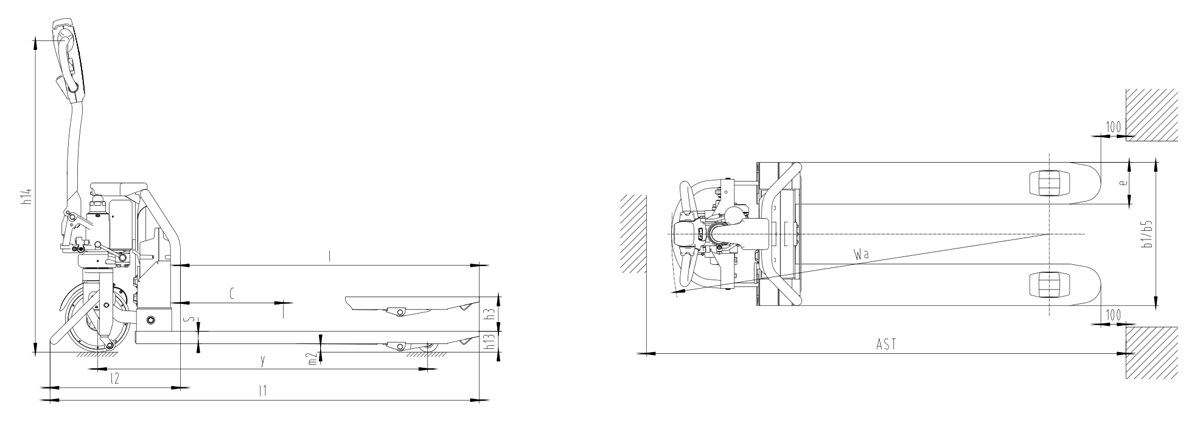

    DIMENSION Drawing:

    Model



    CBD15W-Lix

    Drive: electric (battery type, mains,...), diesel, petrol, fuel gas



    Electric

    Operator type: hand, pedestrian, standing, seated, order-picker



    Pedestrian

    Rated capacity/rated load

    Q(kg)

    1500

    Load centre distance

    c(mm)

    600

    Load distance, centre of drive axle to fork

    x(mm)

    951/1021

    Wheelbase

    y (mm)

    1270/1340

    Service weight

    kg

    135

    Axle loading, laden front/rear

    kg

    565/1070

    Axle loading, unladen front/rear

    kg

    105/30

    Tyres: solid rubber, super elastic, pneumatic, polyurethane



    Polyurethane (PU)

    Tyre size, front



    Φ210x70

    Tyre size, rear



    Φ80x93/Φ80x70

    Additional wheels (dimensions)



    44x17

    Wheels, number front/rear (x = driven wheels)



    1x+2/2(4)

    Tread, front

    b10(mm)

    321

    Tread, rear

    b11(mm)

    390/525

    Max. lift height

    h3(mm)

    110

    Height drawbar in driving position min./max.

    h14(mm)

    635/1200

    Height lowered

    h13(mm)

    80

    Overall length

    l1(mm)

    1623/1693

    Length to face of forks

    l2(mm)

    473

    Overall width

    b1/b2(mm)

    550/685

    Fork dimensions DIN ISO 2331

    s/e/l(mm)

    45/160/1150(1220)

    Fork spread

    b5(mm)

    550/685

    Ground clearance, centre of wheelbase

    m2(mm)

    35

    Aisle width for pallets 1000 x 1200 crossways

    Ast(mm)

    2226/2294

    Aisle width for pallets 800 x 1200 lengthways

    Ast(mm)

    2095/2132

    Turning radius

    Wa(mm)

    1424/1494

    Travel speed, laden/unladen

    km/h

    4.8/5

    Lift speed, laden/unladen

    m/s

    0.03/0.035

    Max. gradeability. laden/unladen

    %

    5/20

    Service brake



    Electromagnetic

    Drive motor rating S2 60 min

    kW

    0.65

    Lift motor rating at S3 15%

    kW

    0.8

    Battery voltage/nominal capacity K5

    (V)/(Ah) or kWh

    48/20

    Battery weight

    kg

    8.5

    Sound pressure level at the driver's seat

    dB(A)

    70
