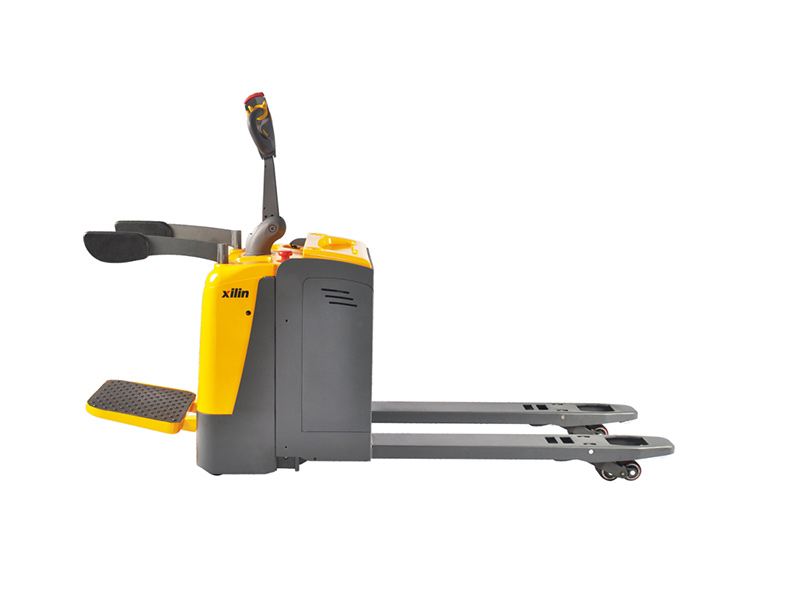

  • Heavy-duty Electric Pallet Truck CBD30R-II
Model

CBD30R-II

Heavy-duty Electric Pallet Truck

CBD30R-II is the innovation type rider pallet truck for heavy duty work of pallet moving , high-speed load transport and loading dock work.
  • Heavy-duty Electric Pallet Truck CBD30R-II

Advantage:

SAFETY AND PRODUCTIVITY:
● AC control system eliminates
motor brushes and directional contactors, which minimizes maintenance requirements.
● Multi-function display: battery status, hour meter, fault code, etc.
● Side-way battery with roll-out system is very convenient to replace batteries.
● Emergency reversing device.
● The platform with speed sensor under platform, ensure safety driving .
● Built-in pressure relief valve protects the truck from overloads.
● Braking applied with handle upright and horizontal position.
● Emergency power disconnect switch.
● Low speed switch in the handle( option with bypass function )
● Stepless speed control.
STRUCTURAL:
● Parallel motor mounting on vertical drive wheel ensures convenience for inspection and maintenance while also ensuring a small turning radius.
● The structure of motor is water-proof and dust-proof, which makes the brake and motor more durable and reliable.
● Combined balance wheels and driving system increase steadiness, preventing the truck from being rocked from side to side.
● The balance wheels loading capacity can be adjusted according to different situations.
● One-piece heavy gauge steel is formed for maximum strength forks.

SERVICEABILITY:
● Adjustable integrated balance wheel can be disassembled from truck separately, easy to maintain.
● The platform can be removed from the truck easily for replacement or repair.
● Low battery voltage cut off protection.

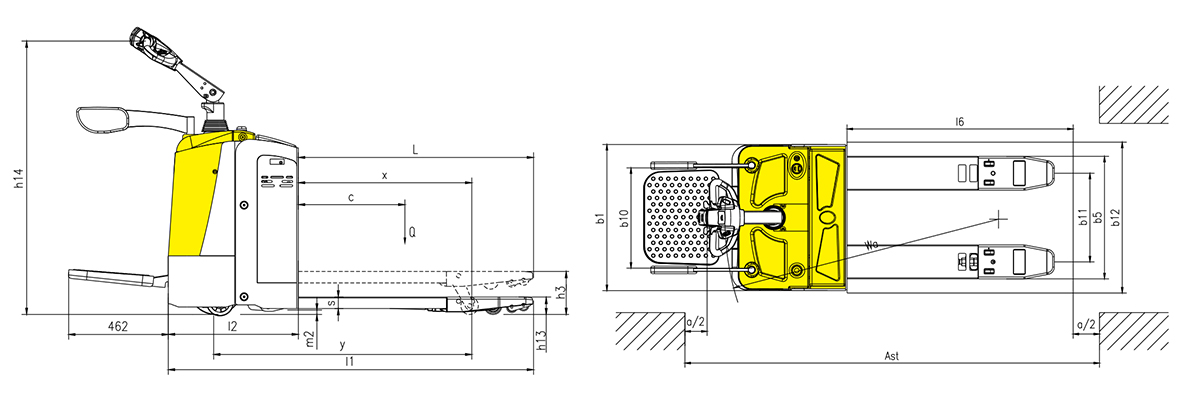

DIMENSION Drawing:

Model



CBD30R-II

Drive: electric (battery type, mains,...), diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Standing

Rated capacity/rated load

Q (kg)

3000

Load centre distance

c(mm)

600

Load distance, centre of drive axle to fork

x(mm)

914/964/1034

Wheelbase

y(mm)

1286/1336/1406

Service weight

kg

820

Axle loading, laden front/rear

kg

1720/2100

Axle loading, unladen front/rear

kg

660/160

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane (PU)

Tyre size, front

mm

Φ250x80

Tyre size, rear

mm

Φ82x126(98)

Additional wheels (dimensions)

mm

Φ127x57

Wheels, number front/rear (x = driven wheels)



1X+2/2(4)

Tread, front

b10(mm)

537

Tread, rear

b11 (mm)

340/370/470/505

Max. lift height

h3 (mm)

120

Height drawbar in driving position min./max.

h14 (mm)

1050/1450

Height lowered

h13 (mm)

82

Overall length

l1 (mm)

1785/1835/1905

Length to face of forks

l2 (mm)

685

Overall width

b1/b2 (mm)

775

Fork dimensions DIN ISO 2331

s/e/l (mm)

54/180/1100(1150/1220)

Fork spread

b5(mm)

520/550/650/685

Ground clearance, centre of wheelbase

m2 (mm)

28

Aisle width for pallets 1000 x 1200 crossways

Ast (mm)

2435/2480/2550

Aisle width for pallets 800 x 1200 lengthways

Ast (mm)

2320/2345/2380

Turning radius

Wa(mm)

1625/1675/1745

Travel speed, laden/unladen

km/h

7.0/7.1

Lift speed, laden/unladen

m/s

0.039/0.056

Lowering speed, laden/unladen

m/s

0.064/0.050

Max. gradeability, laden/unladen

%

8/20

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

2.2

Lift motor rating at S3 15%

kW

2.2

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/240(280)

Battery weight

kg

235/275

Drive control



AC control

Sound pressure level at the driver's seat

dB (A)

70

*Option:
Battery 240Ah / 400Ah; Drive speed 9.5-10km/h
Option with EPS drive wheel size is 250x80mm
CBD20R-II/CBD25R-II Lithium battery 150AH/230AH (Charger 24V/50A)
CBD30R-II Lithium battery 230AH (Charger 24V/100A)
