  • Electric Walkie Pallet Truck CBD15W-E/CBD20W-E
Model

CBD15W-E/CBD20W-E

Electric Walkie Pallet Truck

● The Mini type with same size as hand pallet truck widely used in narrow aisle workshop, supermarket & cargo containers.
  • Electric Walkie Pallet Truck CBD15W-E/CBD20W-E

Advantage:

● Adopting floating balance wheel can prevent the side swing of the truck when traveling.
● Travel smoothly and no swing; great anti-vibration.
● The whole balance wheel can be removed, easy to maintain.
● The rocker arm mechanism integral structure which improves the structure strength effectively, meanwhile,share and adjust the even force from the fork.Reduce the obvious deflection in fork height after a long use and when loading.
● The drive wheel adopts horizontal type structure which makes the layout position of the motor higher off the ground to prevent the water、dust and greasy dirt gluing on the motor effectively and improve working condition of the motor.The truck is equipped with a height limit switch.

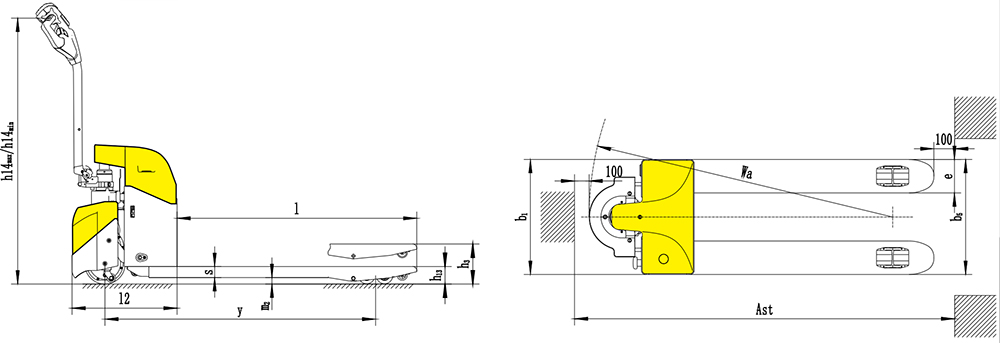

DIMENSION Drawing:

Model



CBD15W-E

CBD20W-E

Drive: electric (battery type, mains, ...), diesel, petrol, fuel gas



Electric

Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Pedestrian

Pedestrian

Rated capacity/rated load

Q(kg)

1500

2000

Load centre distance

c(mm)

600

600

Load distance, centre of drive axle to fork

x(mm)

951/1021

935/1005

Wheelbase

y(mm)

1287/1357

1283/1353

Service weight



205

220

Axle loading, laden front/rear



505/1200

6001620

Axle loading, unladen front/rear



165/40

170/50

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane (PU)

Polyurethane (PU)

Tyre size, front



Φ195x70

Φ195x70

Tyre size, rear



single Φ80x93/74x93 tandem Φ80x70/74x70

single Φ80x93/74x93 tandem Φ80x70/74x70

Additional wheels (dimensions)



44x17

44x17

Wheels, number front/rear (× = driven wheels)



1X+2/2(4)

1X+2/2(4)

Tread, front

b10(mm)

284

284

Tread, rear

b11(mm)

360/390/525

360/390/525

Max. lift height

h3(mm)

110

110

Height drawbar in driving position min./max

h14(mm)

700/1250

700/1250

Height lowered

h13(mm)

85/75

85/75

Overall length

l1(mm)

1654/1724

1654/1724

Length to face of forks

l2(mm)

504

504

Overall width

b1/b2(mm)

685/562

685/562

Fork dimensions DIN ISO 2331

s/e/l(mm)

53/160/1150(1220)

53/160/1150(1220)

Fork spread

b5(mm)

520/550/685

520/550/685

Ground clearance, centre of wheelbase

m2(mm)

32/22

32/22

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2260/2328

2244/2310

Aisle width for pallets 800 × 1200 lengthways

Ast(mm)

2128/2365

2120/2155

Turning radius

Wa(mm)

1454/1424

1440/1510

Travel speed, laden/unladen

km/h

4.3/4.8

4.3/4.8

Lift speed, laden/unladen

m/s

0.025/0.03

0.025/0.03

Lowering speed, laden/unladen

m/s

0.035/0.025

0.035/0.025

Max. gradeability, laden/unladen

%

5/20

5/20

Service brake



Electromagnetic

Electromagnetic

Drive motor rating S2 60 min

kW

0.65

0.75

Lift motor rating at S3 15%

kW

0.8

0.8

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/65

24/105

Battery weight

kg

36

49

Sound pressure level at the driver’s seat

dB(A)

70

70

 *Option: Lithium battery 24V/50AH ( charger 24V/20A )
