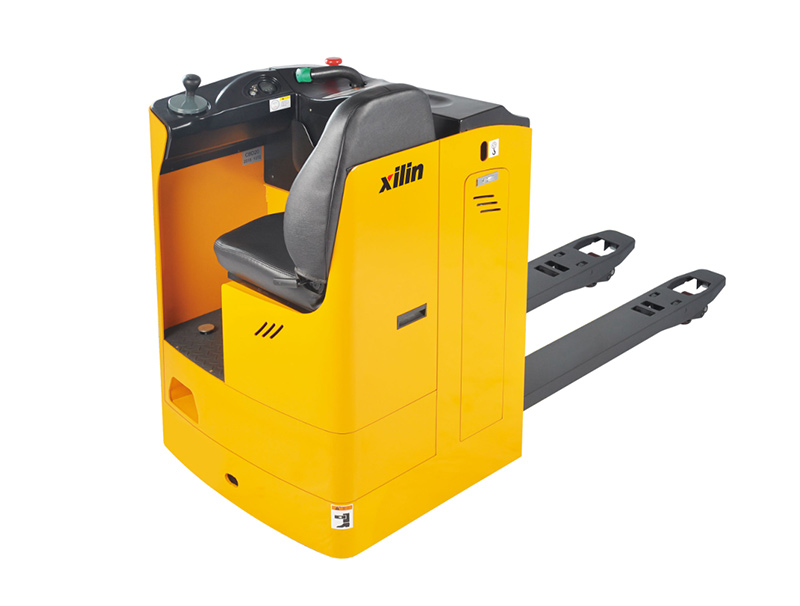

  • Electric Seated Pallet Truck CBD20Z/CBD25Z
Model

CBD20Z/CBD25Z

Electric Seated Pallet Truck

  • Electric Seated Pallet Truck CBD20Z/CBD25Z

Advantage:

SAFETY AND PRODUCTIVITY:
● 2000/2500kgs load capacity.
● Advanced AC control with reliable performance is easy to maintain. Speed frequency control makes good control performance.
● Electric power steering system(EPS).
● Intelligentized regenerative brake system combined with electromagnetic system allows safe and reliable brake and prolongs life time.
● Side battery with roll out system, convenient to handle.
● Connecting rod will not bend and deform at working, and the length can be adjust accurately and conveniently.
● The guide wheel on fork head makes convenient pallet work.
● High level configuration of motor power and battery capacity, max travel speed under laden arrives 7.5-7.8km/h, greatly improved work efficiency and reliability.
● With good looking and small turning radius.
● The key components is set compact and reasonable, which is convenient to maintenance.

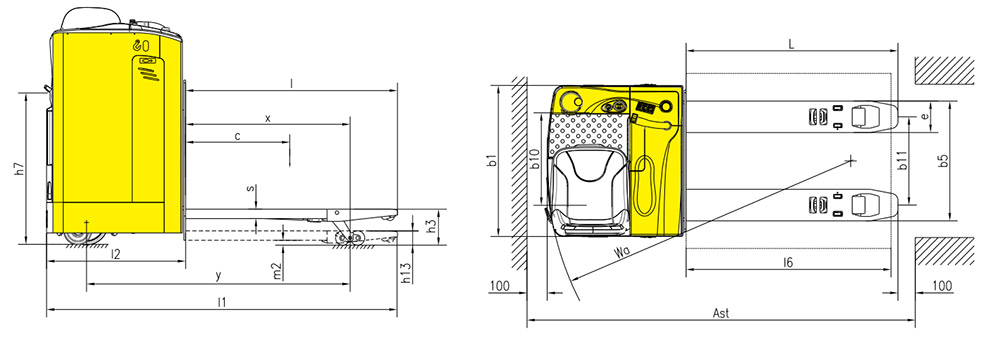

DIMENSION Drawing:

Model



CBD20Z

CBD25Z

Drive: electric (battery type, mains,...), diesel, petrol, fuel gas



Electric

Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Seated

Seated

Rated capacity/rated load

Q(kg)

2000

2500

Load centre distance

c(mm)

600

600

Load distance, centre of drive axle to fork

x(mm)

914/964/1034

914/964/1034

Wheelbase

y(mm)

1395/1445/1515

1395/1445/1515

Service weight

kg

900

900

Axle loading, laden front/rear

kg

1240/2160

1240/2160

Axle loading, unladen front/rear

kg

670/230

670/230

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane (PU)

Polyurethane (PU)

Tyre size, front

mm

Φ250x80

Φ250x80

Tyre size, rear

mm

Φ82x126(98)

Φ82x126(98)

Additional wheels (dimensions)

mm

Φ160x55

Φ160x55

Wheels, number front/rear (x = driven wheels)



1X+1/2(4)

1X+1/2(4)

Tread, front

b10(mm)

530

530

Tread, rear

b11(mm)

340/370/470/505

340/370/470/505

Max. lift height

h3(mm)

135

135

Height drawbar in driving position min./max.

h14(mm)

900

900

Height, lowered

h13(mm)

82

82

Overall length

l1(mm)

1900/1950/2020

1900/1950/2020

Length to face of forks

l2(mm)

800

800

Overall width

b1/b2(mm)

864

864

Fork dimensions DIN ISO 2331

s/e/l(mm)

54/180/1100(1150/1220)

54/180/1100(1150/1220)

Fork spread

b5(mm)

864

864

Ground clearance, centre of wheelbase

m2(mm)

28

28

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2465/2505/2565

2465/2505/2565

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2385/2400/2430

2385/2400/2430

Turning radius

Wa(mm)

1630/1680/1750

1630/1680/1750

Travel speed, laden/unladen

km/h

7.5/8.0

7.5/8.0

Lift speed, laden/unladen

m/s

0.040/0.055

0.040/0.055

Lowering speed, laden/unladen

m/s

0.060/0.050

0.060/0.050

Max. gradeability, laden/unladen

%

8/16

8/16

Service brake



Electromagnetic

Electromagnetic

Drive motor rating S2 60 min

kW

1.5

1.5

Lift motor rating at S3 15%

kW

2.2

2.2

Battery voltage/nominal capacity K5

(V)/(Ah)or kWh

24/240

24/300

Battery weight

kg

240

270

Drive control



AC control

AC control

Sound pressure level at the driver's seat

dB(A)

70

70

*Option:CBD25Z Lithium battery 230AH (Charger 24V/100A)
