Electric Walkie Pallet Truck

Model

CBD18KD(19)
(US Type)

CBD18KD(19)
(EU Type)

CBD18KD(19)
(EU type Lithium)

Power source

Battery

Battery

Battery

Operator type

Pedestrian

Pedestrian

Pedestrian

Rated load capacity

Q(kg)

1800

1800

1800

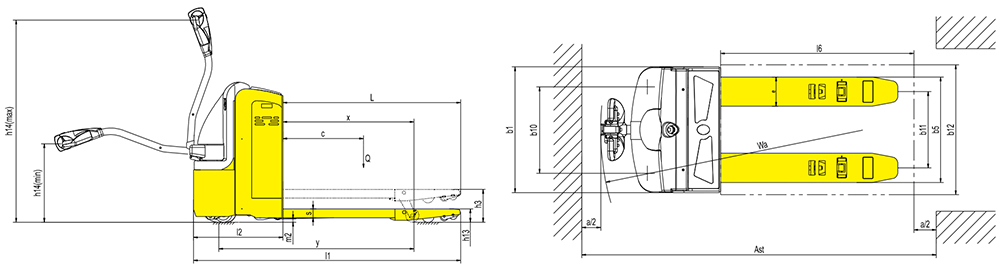

Load center distance

c(mm)

600

600

600

Load distance, center of drive axle to fork

x(mm)

987/1057

987/1057

987/1057

Wheelbase

Y(mm)

1376/1446

1330/1400

1330/1400

Service weight (with battery)

kg

398

420

315

Axle loading with max. load, drive side/load side

kg

978/1220

992/1228

911/1204

Axle loading without load, drive side/load side

kg

310/88

324/96

243/72

Tyres

Polyurethane

Polyurethane

Polyurethane

Tyre size, drive side

Φ230×100

Φ230×100

Φ230×100

Tyre size, load side, single(double)

Φ82×106(78)

Φ82x106(78)

Φ82x106(78)

Balance wheel dimensions

/

478

478

Number of wheels, drive/load side (x=driven)

1X/2(4)

1X+2/2(4)

1X+2/2(4)

Track width (center of tyres), drive side

/

478

478

Track width (center of tyres), load side

37S/515

375/515

375/515

Lift height

h3(mm)

120

120

120

Height of tiller in drive position (min./max.)

h14(mm)

750/1250

750/1250

750/1250

Lowered fork height

h13(mm)

78/82

78/82

78/82

Overall length

l1(mm)

1710/1780

1666/1736

1666/1736

Length to face of forks

l2(mm)

559

516

516

Overall width

b1(mm)

710

710

710

Fork dimensions

s/e/l(mm)

74X170X1150(1220)

74X170X1150(1220)

74X170X1150(122

Width overall forks

b5(mm)

550/685

550/685

550/685

Ground clearance at center of wheelbase, (forks lowered)

m2(mm)

375/515

375/515

375/515

Aisle width for pallets 1000x1200 crossways

Ast(mm)

2346/2418

2302/2374

2302/2374

Aisle width for pallets 800x1200 lengthways

Ast(mm)

2200/2242

2156/2198

2156/2198

Turning radius

Wa(mm)

1548/1618

1504/1574

1504/1574

Travel speed, laden/unladen

Km/h

5.8/6

5.8/6

5.8/6

Lifting speed, laden/unladen

m/s

0.03/0.038

0.03/0.038

0.03/0.038

Lowering speed, laden/unladen

m/s

0.04/0.036

0.04/0.036

0.04/0.036

Max.gradeability, laden/unladen

%

8/20

8/20

8/20

Service brake

Electric Magnetic

Electric Magnetic

Electric Magnetic

Drive motor

kW

1.2

1.2

1.2

Lift motor

kW

0.8

0.8

0.8

Battery voltage/capacity K5

V/Ah

24/180(ACID)

24/160(ACID)

24/100(LITHIUM)

Battery weight

Kg

128

170

65

Noise level at the driver's ear meet the DIN12053

dB(A)

70

70

70

Model

CBD20KD-I

CBD20KD-II

Drive: electric (battery type, mains, ...), diesel, petrol, fuel gas

Electric

Electric

Operator type: hand, pedestrian, standing, seated, order-picker

Pedestrian

Pedestrian

Rated capacity/rated load

Q (kg)

2000

2000

Load centre distance

c (mm)

600

600

Load distance, centre of drive axle to fork

x(mm)

914/965/1034

914/965/1034

Wheelbase

y(mm)

1309/1359/1429

1339/1389/1459

Service weight

kg

620

570

Axle loading, laden front/rear

kg

1170/1450

1140/1430

Axle loading, unladen front/rear

kg

470/150

430/130

Tyres: solid rubber, superplastic, pneumatic, polyurethane

Polyurethane (PU)

Polyurethane (PU)

Tyre size, front

Φ250x70

Φ250x70

Tyre size, rear

Φ82x126(98)

Φ82x126(98)

Additional wheels (dimensions)

Φ127x57

Φ127x57

Wheels, number front/rear (x = driven wheels)

1X+2/2(4)

1X+2/2(4)

Tread, front

b10 (mm)

510

510

Tread, rear

b11 (mm)

340/370/470/505

340/370/470/505

Max. lift height

h3 (mm)

120

120

Height drawbar in driving position min./max.

h14 (mm)

530/1230

530/1230

Height lowered

h13(mm)

82

82

Overall length

l1 (mm)

1655/1705/1775

1685/1735/1805

Length to face of forks

l2 (mm)

555

585

Overall width

b1/b2 (mm)

775

775

Fork dimensions DIN ISO 2331

s/e/l (mm)

54/180/1100(1150/1220)

54/180/1100(1150/1220)

Fork spread

b5 (mm)

520/550/685

550/685

Ground clearance, centre of wheelbase

m2 (mm)

28

28

Aisle width for pallets 1000 x 1200 crossways

Ast (mm)

2275/2320/2385

2305/2350/2415

Aisle width for pallets 800 x 1200 lengthways

Ast (mm)

2160/2180/2220

2190/2210/2250

Turning radius

Wa(mm)

1470/1520/1590

1500/1550/1620

Travel speed, laden/unladen

km/h

5.5/5.6

5.5/5.6

Lift speed, laden/unladen

m/s

0.025/0.035

0.025/0.035

Lowering speed, laden/unladen

m/s

0.035/0.030

0.035/0.030

Max. gradeability, laden/unladen

%

8/20

8/20

Service brake

Electromagnetic

Electromagnetic

Drive motor rating S2 60 min

kW

1.2

1.2

Lift motor rating at S3 15%

kW

0.8/1.2

0.8/1.2

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/210

24/200

Battery weight

kg

195

128

Sound pressure level at the driver’s seat

dB (A)

70

70
