Electric Cart BD05 Suppliers

home / product / Tow Tractor / Electric Cart
  • Electric Cart BD05
Model

BD05

Electric Cart

● Designed for versatile application, with tough and dependable solution. Provide transportation for executive, supervisors, security and other workers whose job keeps them on the go.
  • Electric Cart BD05

Advantage:

● Combining personnel carrier to burden carrier in one truck. With carry capacity of two people or 300kgs (660lbs) of load on the job site .
● Truck body is with steel welded structures, the unitized body and frame prolong the using time .
● With small body easy to operate, driver won’t feel tired after operating for a long time.
● With ergonomics bucket seat with disassembled back rest, it is comfortable and convenient for two people use.
● Multi-function display with BDI , hour meter.
● Adopt DC motor with perfect performance

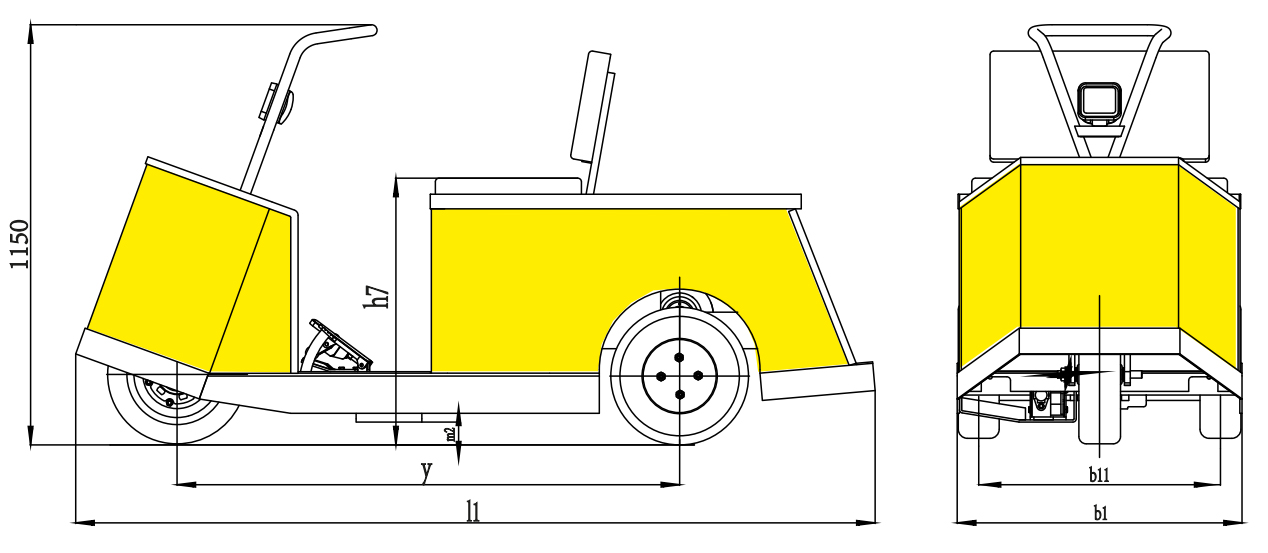

DIMENSION Drawing:

Manufacturer's type designition



BD05

Drive: electric, diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Seated

Rated capacity/rated load

Q(kg)

500

Wheelbase

y(mm)

1360

Service weight

kg

450

Axle loading, unladen front/rear

kg

160/310

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Solid rubber

Tyre size, front



15x4 1/2-8

Tyre size, rear



15x4 1/2-8

Wheels, number front/rear (x = driven wheels)



2x+1

Tread, rear

b11(mm)

662

Seat height relating to SIP/stand height

h7(mm)

730

Overall length

l1(mm)

2190

Overall width

b1/b2(mm)

780

Ground clearance, centre of wheelbase

m2(mm)

63

Turning radius

Wa(mm)

1850

Travel speed, laden/unladen

km/h

8/14

Service brake



Hydraulic

Drive motor rating S2 60 min

kW

3.2

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/210

Battery weight

kg

96

Sound pressure level at the driver’s seat

dB(A)

70
