Model

QDD20E/QDD30E/ QDD50E/QDD60E

Electric Tow Tractor

Advantage:

● New advanced car outline, completely opened cover, distinguished and beautiful.
● Full AC electric system has brake-releasing function, more easy and comfortable to operate;
● Maintenance-free motor completely solves the problem of DC motor carbon brush.
● New large-screen display instrument provides all kinds of information more clearly and directly for the operator.
● New opened high-range steering design, light to steering and easy to maintain.
● The parking brake adopts electromagnetic brake. lt locks the truck automatically after parking, which avoids the sliding danger of the truck caused by forgetting to use the hand brake.
● Side-way battery (Optional).

OPTION:

● Seat with OPS(operator presence system)
● Front LED work lamp
● Blue light
● AC power system
● Rear mirrors

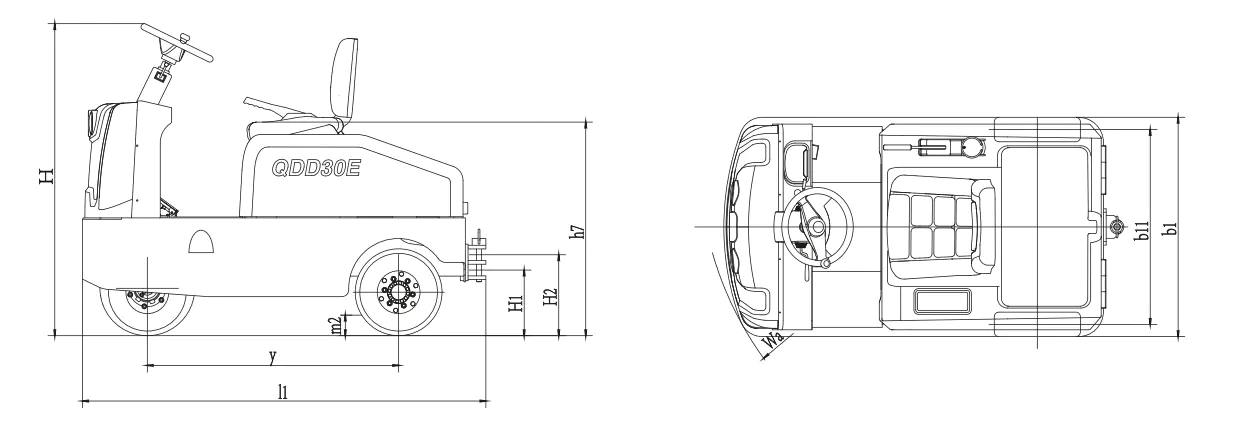

DIMENSION Drawing:

Manufacturer's type designition		QDD20E	QDD30E
Drive: electric, diesel, petrol, fuel gas		Electric	Electric
Operator type: hand, pedestrian, standing, seated,order-picker		Seated	Seated
Rated capacity/rated load	Q(kg)	2000	3000
Rated drawbar pull	F(N)	500	750
Wheelbase	y(mm)	1055	1055
Service weight	kg	740	780
Axle loading, unladen front/rear	kg	300/440	310/470
Tyres: solid rubber, superelastic, pneumatic, polyurethane		Solid rubber	Solid rubber
Tyre size, front		15*4 ½-8	15*4 ½-8
Tyre size, rear		15*4 ½-8	15*4 ½-8
Wheels, number front/rear(×=driven wheels)		2x+1	2x+1
Tread, front	b10(mm)	-	-
Tread, rear	b11(mm)	860	860
Height of overhead guard (cabin)	h6(mm)	Optional	Optional
Seat height relating to SIP/stand height	h7(mm)	910	910
Overalllength	l1(mm)	1720	1720
Overall width	b1/b2(mm)	968	968
Ground clearance, centre of wheelbase	m2(mm)	90	90
Turning radius	Wa(mm)	1500	1500
Travel speed,laden/unladen	km/h	7/10	7/10
Max.gradeability,laden/unladen	%	7/12	7/12
Service brake		Hydraulic	Hydraulic
Drive motor rating S260 min	kW	3.0(AC)	3.0(AC)
Battery voltage/nominal capacity K5	(V)/(Ah)or kWh	36/200	36/250
Battery weight	kg	200	250
Sound pressure level at the driver's seat	dB(A)	70	70
Drawbar center height	h1/h2(mm)	280/350	280/350
Rear hanging distance	l2(mm)	382	382
Overall height	h(mm)	1270	1270

Manufacturer's type designition		QDD50E	QDD60E
Drive: electric, diesel, petrol, fuel gas		Electric	Electric
Operator type: hand, pedestrian, standing, seated,order-picker		Seated	Seated
Rated capacity/rated load	Q(kg)	5000	6000
Rated drawbar pull	F(N)	1250	1500
Wheelbase	y(mm)	1140	1140
Service weight	kg	1100	1170
Axle loading, unladen front/rear	kg	350/750	360/810
Tyres: solid rubber, superelastic, pneumatic, polyurethane		Solid rubber	Solid rubber
Tyre size, front		15*4 ½-8	15*4 ½-8
Tyre size, rear		4.00-8	4.00-8
Wheels, number front/rear(×=driven wheels)		2x+1	2x+1
Tread, front	b10(mm)	-	-
Tread, rear	b11(mm)	860	860
Height of overhead guard (cabin)	h6(mm)	Optional	Optional
Seat height relating to SIP/stand height	h7(mm)	970	970
Overalllength	l1(mm)	1765	1765
Overall width	b1/b2(mm)	968	968
Ground clearance, centre of wheelbase	m2(mm)	80	80
Turning radius	Wa(mm)	1580	1580
Travel speed,laden/unladen	km/h	7/10	6.5/10
Max.gradeability,laden/unladen	%	7/12	7/12
Service brake		Hydraulic	Hydraulic
Drive motor rating S260 min	kW	5.0(AC)	5.0(AC)
Battery voltage/nominal capacity K5	(V)/(Ah)or kWh	48/300	48/345
Battery weight	kg	-	-
Sound pressure level at the driver's seat	dB(A)	70	70
Drawbar center height	h1/h2(mm)	305/370	305/370
Rear hanging distance	l2(mm)	342	342
Overall height	h(mm)	1335	1335
