Electric Tow Tractor QDD Suppliers

home / product / Tow Tractor / Electric Tow Tractor
  • Electric Tow Tractor  QDD
  • Electric Tow Tractor  QDD
Model

QDD

Electric Tow Tractor

  • Electric Tow Tractor  QDD
  • Electric Tow Tractor  QDD

Advantage:

STABILITY : OPTION:
● New advanced car outline, completely opened cover, distinguished and beautiful.
● Full AC electric system has brake-releasing function, more easy and comfortable to operate; Maintenance-free motor completely solves the problem of DC motor carbon brush.
● New large-screen display instrument provides all kinds of information more clearly and directly for the operator.
● New opened high-range steering design, light to steering and easy to maintain.
● The parking brake adopts electromagnetic brake. It locks the truck automatically after parking, which avoids the sliding danger of the truck caused by forgetting to use the hand brake.
● Side-way battery (Optional).
● Seat with OPS(operator presence system)
● Front LED work lamp
● Blue light
● AC power system
● Rear mirrors
● "H" type axle design gives a good stability.
● Batteries located in the lowest part of frame, low center of gravity ensures excellent stability.
● Multi-function display: battery status, hour meter, error code etc.
● The application of hand brake and hydraulic brake improve the safety level.
● Easy-open back cover to open for maintenance and replacement of parts such as drive wheel, oil tube, accelerator, controller etc.

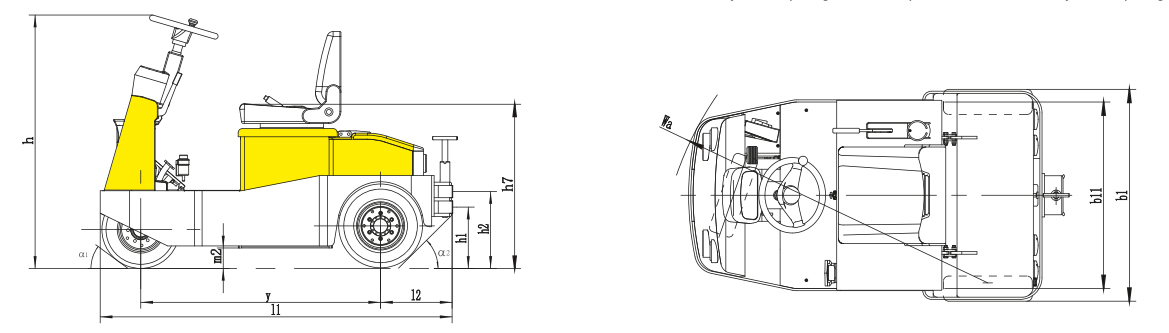

DIMENSION Drawing:

Model   QDD20 QDD30 QDD50 QDD60 QDD100
Drive type   battery battery battery battery battery
Rated traction weight(60 minutes rated) kg 2000 3000 5000 6000 10000
Drawbar center height h1/h2(mm) 280/350 280/350 280/350 280/350 320/400
Weight kg 930 980 1160 1280 2180
Axle loading, front kg 330 350 410 450 750
Axle loading, rear kg 600 630 750 830 1440
Tyre number front/rear X=Driven wheels 1/2X 1/2X 1/2X 1/2X 2/2X
Tyre size, front solid rubber 15*4½-8 15*4½-8 15*4½-8 15*4½-8 5.00-8-10PR
Tyre size, rear solid rubber 15*4½-8 15*4½-8 4.00-8 4.00-8 6.50-10-12PR
Wheel base L1(mm) 1170 1170 1280 1280 1300
Rear hanging distance L2(mm) 350 350 500 500 700
Seat height L3(mm) 850 850 910 910 1050
Overall length L(mm) 1720 1720 1975 1975 2485
Overall width W(mm) 970 970 1100 1100 1160
Overall height h(mm) 1250 1250 1250 1250 1480
Min. ground height X(mm) 90 90 90 90 138
Min. turning radius wa(mm) 1520 1520 1650 1650 2200
Travel speed (laden/unladen) km/h 8 7 8 7 6.5
Max. gradeability (laden/unladen)   6/15 6/15 6/15 6/15 6/15
Battery voltage, nominal capacity K5 V/Ah 48/240 48/270 48/360 48/400 48/540
Battery weight kg 350 400 530 610 950
Traction bolt   Traction bolt Traction bolt Traction bolt Traction bolt Traction bolt
* Option: QDD20 Lithium battery 200AH (Charger 48V/100A) / QDD30 Lithium battery 250AH (Charger 48V/100A)
QDD50 Lithium battery 300AH (Charger 48V/100A) / QDD60 Lithium battery 350AH (Charger 48V/100A)
1KG=2.205LB 1INCH=25.40MM
Model   QDD50(AC) QDD60(AC)
Drive type   battery battery
Rated traction weight(60 minutes rated) kg 5000 6000
Drawbar center height h1/h2(mm) 280/350 280/350
Weight kg 1160 1280
Axle loading, front kg 410 450
Axle loading, rear kg 750 830
Tyre number front/rear X=Driven wheels 1/2x 1/2x
Tyre size, front solid rubber 15*4½-8 15*4½-8
Tyre size, rear solid rubber 4.00-8 4.00-8
Wheel base L1(mm) 1280 1208
Rear hanging distance L2(mm) 500 450
Seat height h3(mm) 910 910
Overall length L(mm) 1975 1940
Overall width w(mm) 1100 1100
Overall height H(mm) 1250 1250
Min. ground height x(mm) 90 100
Min. turning radius wa(mm) 1650 1650
Travel speed (laden/unladen) km/h 8/14 7/14
Max. gradeability (laden/unladen)   6/15 6/15
Battery voltage, nominal capacity K5 V/Ah 48/360 48/400
Battery weight kg 530 610
Traction bolt   Traction bolt Traction bolt
