Electric Platform Truck BD10S/20SE Suppliers

home / product / Tow Tractor / Electric Platform Truck

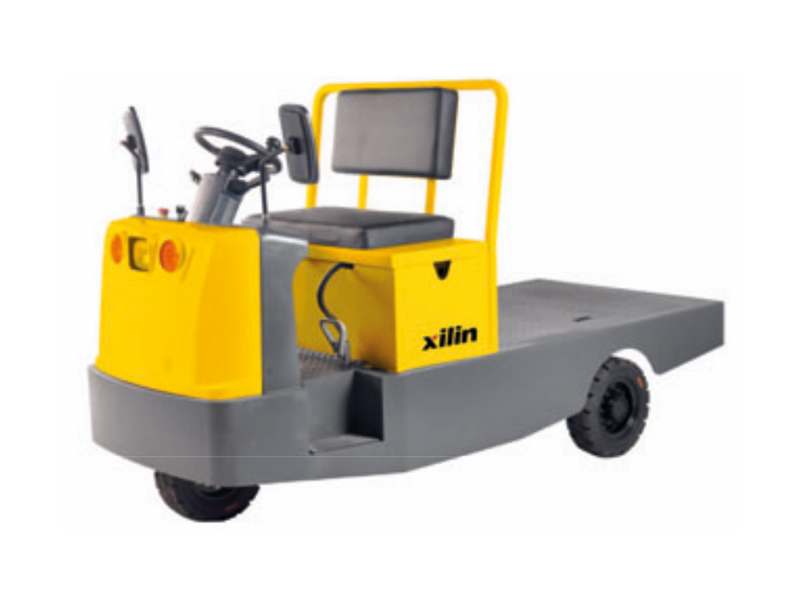

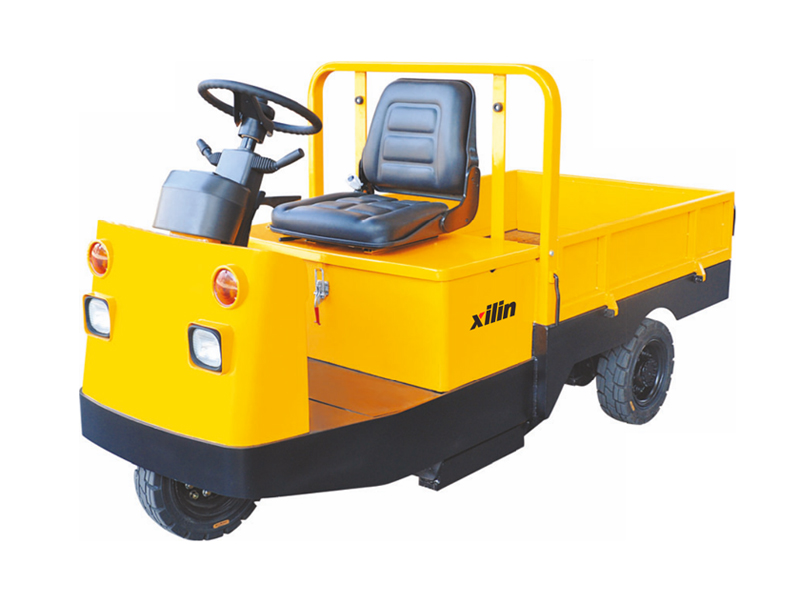

  • Electric Platform Truck  BD10S/20SE
  • Electric Platform Truck  BD10S/20SE
Model

BD10S/20SE

Electric Platform Truck

  • Electric Platform Truck  BD10S/20SE
  • Electric Platform Truck  BD10S/20SE

Advantage:

● Remark: Special size can be made according to customer's requirement.

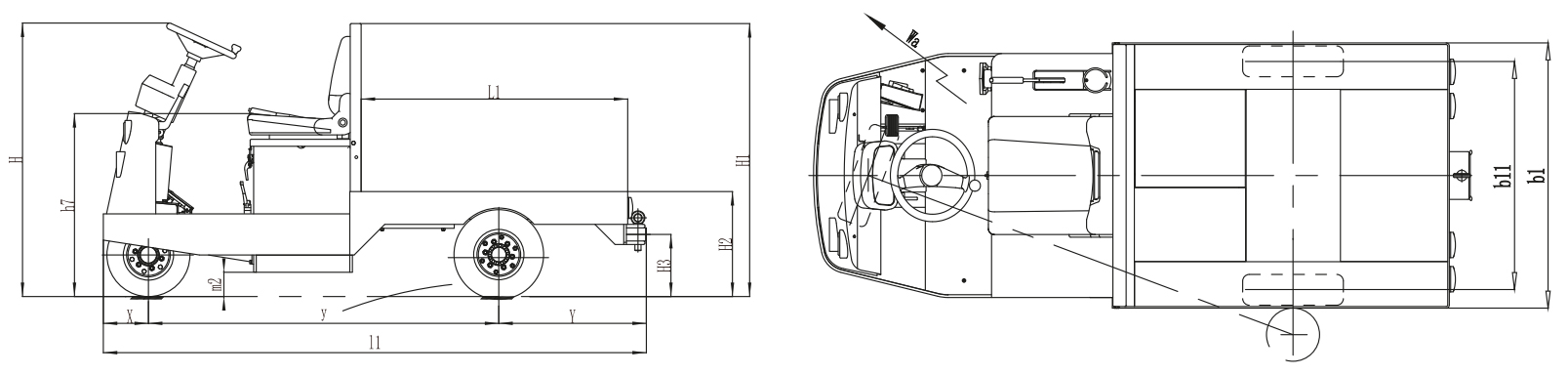

DIMENSION Drawing:

Manufacturer's type designition



BD10S

BD20SE

Drive: electric, diesel, petrol, fuel gas



Electric

Electric

Operator type: hand, pedestrian, standing, seated, order-picker

Seated

Seated

Rated capacity/rated load

Q(kg)

1000

2000

Wheelbase

y(mm)

1600

1470

Service weight

kg

980

820

Axle loading, unladen front/rear

kg



 400/420

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Solid rubber

Solid rubber

Tyre size, front



15x4 ½-8

15x4 ½-8

Tyre size, rear



15x4 ½-8

15x4 ½-8

Wheels, number front/rear (x = driven wheels)



2x+1

2x+1

Tread, rear

b11(mm)

860

860

Seat height relating to SIP/stand height

h7(mm)

835

940

Overall length

l1(mm)

2485

2410

Overall width

b1/b2(mm)

1000

1000

Ground clearance, centre of wheelbase

m2(mm)

100

80

Turning radius

Wa(mm)

1998

1865

Travel speed, laden/unladen

km/h

12/13

6.5/11

Max. gradeability, laden/unladen

%

12/15

7/15

Service brake



Hydraulic

Hydraulic

Drive motor rating S2 60 min

kW

3.0

3.0

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

48/240

36/250

Battery weight

kg

350

202

Sound pressure level at the driver’s seat

dB(A)

70

70
