Electric Tow Tractor QDD45H Suppliers

home / product / Tow Tractor / Electric Tow Tractor
  • Electric Tow Tractor  QDD45H
  • Electric Tow Tractor  QDD45H
  • Electric Tow Tractor  QDD45H
Model

QDD45H

Electric Tow Tractor

  • Electric Tow Tractor  QDD45H
  • Electric Tow Tractor  QDD45H
  • Electric Tow Tractor  QDD45H

Advantage:

● Easy operation and flexible steering, safe and reliable.
● With powerful traction, when the traction weight reaches 2000kg/4400lbs, can climb 8% slope maximum.
● Shock-proof and non-slip pedal reversible cushions in the back, reduce fatigue and ergonomic.
● The automatic power-off function works when the driver leaves the truck.
● Speed mode: manual, stepless speed.
● Equipped with warning lights.
● Sideway battery easy for replacement.

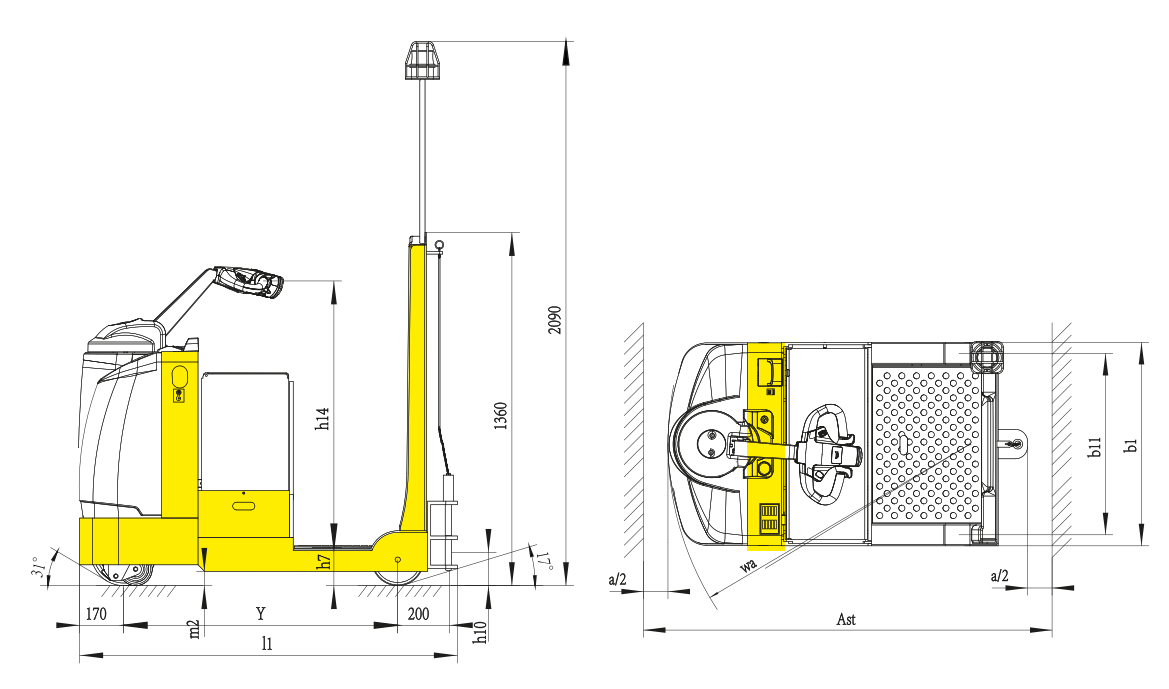

DIMENSION Drawing:

Manufacturer's type designition



QDD45H

Drive: electric, diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Standing

Rated capacity/rated load

Q(kg)

4500

Rated drawbar pull

F(N)

1100

Wheelbase

y(mm)

1054

Service weight

kg

1000

Axle loading, laden front/rear

kg

560/440

Axle loading, unladen front/rear

kg

580/420

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Solid rubber (rear), Polyurethane (front)

Tyre size, front



Φ250x80

Tyre size, rear



Φ200x50

Wheels, number front/rear (x = driven wheels)



1x+2/2

Tread, rear

b11(mm)

740

Height drawbar in driving position min./max.

h14(mm)

1070/1370

Overall length

l1(mm)

1450

Overall width

b1/b2(mm)

830

Ground clearance, centre of wheelbase

m2(mm)

55

Turning radius

Wa(mm)

1235

Travel speed, laden/unladen, backwards

km/h

9.5/10

Max. drawbar pull, laden/unladen

N

3000

Max. gradeability, laden/unladen

%

4/20

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

4.0(AC)

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/560

Battery weight

kg

559

Sound pressure level at the driver’s seat

dB (A)

70
