LIGHT-DUTY TOW TRACTOR QDD10W-Li Suppliers

home / product / Tow Tractor / LIGHT-DUTY TOW TRACTOR
  • LIGHT-DUTY TOW TRACTOR  QDD10W-Li
  • LIGHT-DUTY TOW TRACTOR  QDD10W-Li
Model

QDD10W-Li

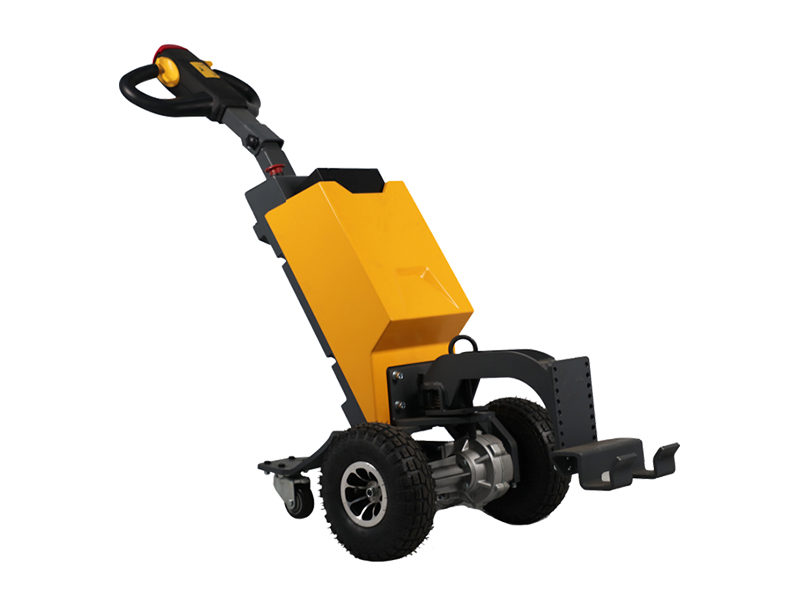

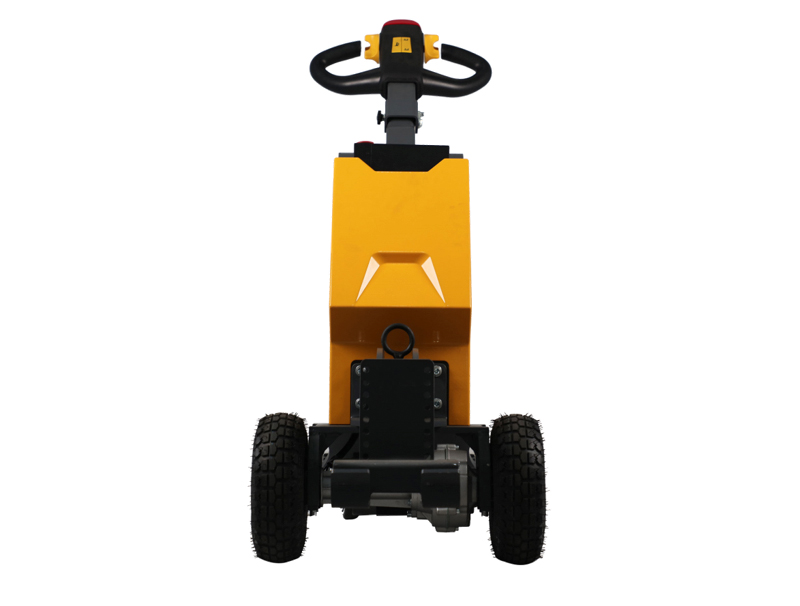

LIGHT-DUTY TOW TRACTOR

  • LIGHT-DUTY TOW TRACTOR  QDD10W-Li
  • LIGHT-DUTY TOW TRACTOR  QDD10W-Li

Advantage:

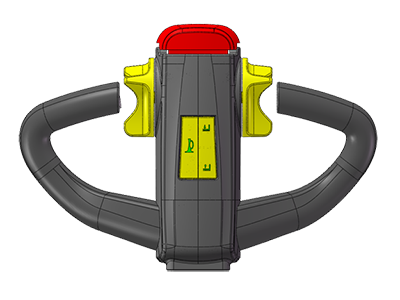

HANDLE TILLER

◆Proven technical handle with multi-function
1) Lifting & Lowering & Horn buttons
2) Emergency reverse button
◆ Easy operation

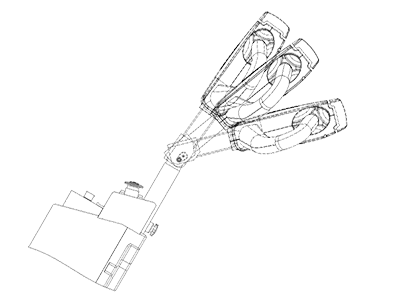

Optional 3 different operating height to meet different operator’s habits

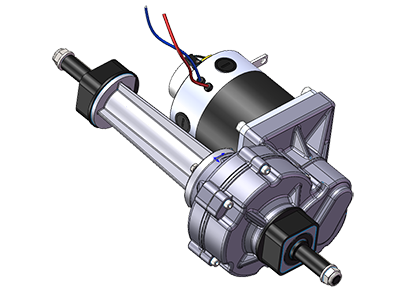

GRIVE AXLE


Proven technology and stable quality drive axle makes driving smoothly

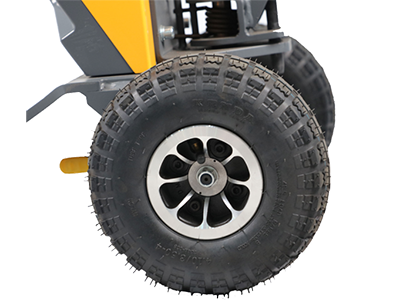

WHEELS


Driving wheel
Size: 250*80mm
Material: Rubber

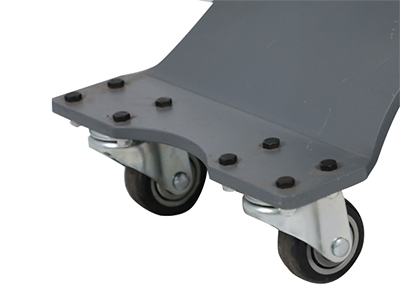

Tandem PU balance wheel to ensure the stability
TECHNICAL PARTS

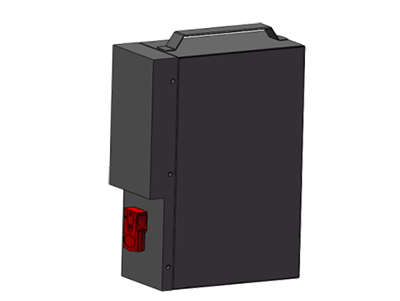

Standard battery: lithium-ion
Capacity: 24V/30AH

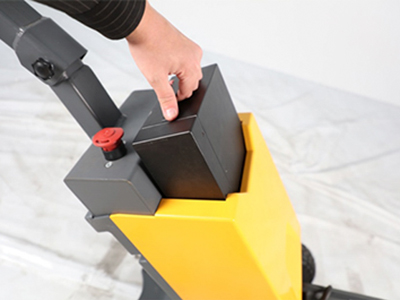

◆Battery can be replaced quickly
◆The replaced battery can be charged separately to ensure conscious using the truck

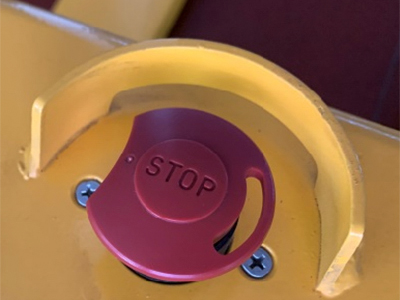

Emergency stop switch

DIMENSION Drawing:

Model





QDD10W-Li

Drive: electric (battery type, mains, ...), diesel, petrol, fuel gas





Electric

Operator type: hand, pedestrian, standing, seated, order-picker





Pedestrian

Rated capacity

Q

 kg

1000

Rated traction



N

200

Wheelbase

y

mm

340

Service weight(with battery)



kg

75

Axle loading, laden front/rear



kg

75/0

Axle loading, unladen front/rear



kg

50/25

Tyres: solid rubber, super elastic, pneumatic, polyurethane





Rubber(pneumatic)

Tyre size, front



mm

250x80

Tyre size, rear



mm

75x32

Wheels, number front/rear (× = driven wheels)



mm

2x/2

Tread, front

b10

mm

428

Tread, rear

b11

mm

217

Overal height

h15

mm

990-1130-1200

Height drawbar in driving position min./max.

h14

mm

940-1050-1110

Coupling height

h10

mm

-

Overall length

l1

mm

1210-1280-1345

Overrall width

b1/b2

mm

520

Ground clearance, centre of wheelbase

m2

mm

35

Travel speed, laden/unladen



Km/h

4.5/5

Drawbar pull, laden/unladen



N

200

Max. drawbar pull, laden/unladen



N

600

Max. gradeability, laden/unladen



3/16

Service brake





EM brake

Drive motor rating S2 60 min



kW

0.4

Battery voltage/nominal capacity K5



V/Ah

Lithium 24/30

Battery weight



kg

9

Type of drive unit





DCBL

Type of steering





Mechanical

Noise level at operator’s ear, according to DIN12053



dB(A)

68

Watch overview
