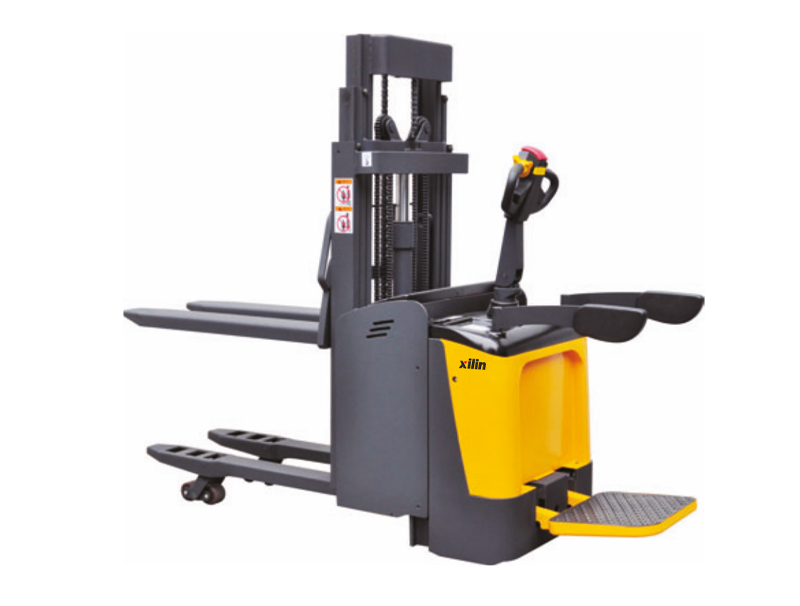

  • Double Decker Pallet Truck CBD20SR
Model

CBD20SR

Double Decker Pallet Truck

The CBD20SR type Electric pallet Stacker with initial lifting, the leg can lift up to 120mm to easily negotiate over ramps and bridging plates, with small turning radius and lowest height (1.08-1.38m), can carry two pallets at same time, widely used in low shelves warehouse and small supermarket.

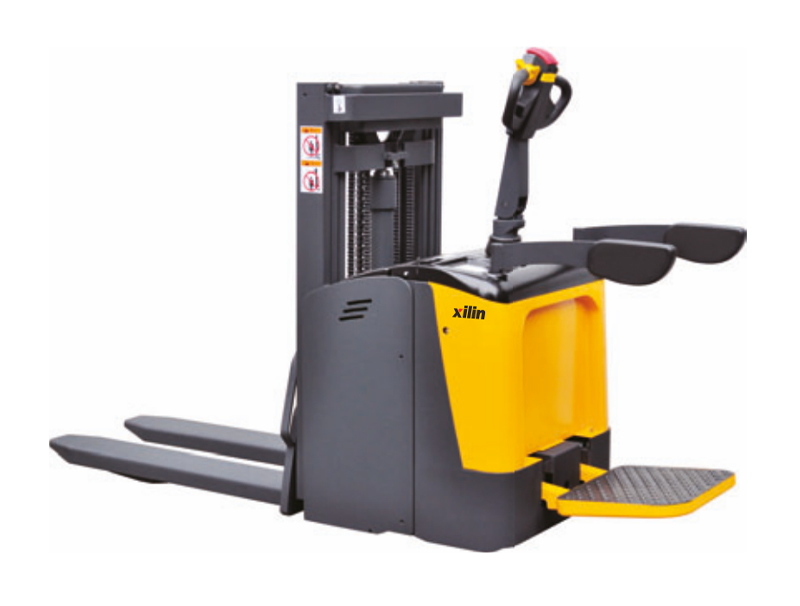

  • Double Decker Pallet Truck CBD20SR

Advantage:

SAFETY AND PRODUCTIVITY:
● Advanced AC control system eliminates the motor brushes and directional contactors, which makes the minimal maintenance requirements. Intelligentized regenerative brake system.
● With guard on both sides, protect operator when drive at high speed of the trucks.
● Emergency reversing device.
● Built-in pressure relief valve protects the trucks from overloads.
● Emergency power disconnect.
● With speed sensor under platform can switch drive speed to Low/high speed when platform is closed/opened.
● Multi-function display, includes BDI(battery discharge indicator), working hours, battery status.
● The bevel design of the bottom provides good trafficability characteristic. The truck could pass max. 22% slope without laden. And the max gradeability can achieve 8% when laden.
● With Electric Power Steering system (EPS) , makes truck steering very smoothly and light.
STRUCTURAL:
● Hard steel rear cover, anti-collision, easy disassembly, provides the maintenance for the electrical system very convenient.
● Only 90mm lowered fork height, the truck is with good applicability.
● With vertical driving wheel offers small turning radius.
● With floating design for drive axle provides good anti-vibration.
● Side-way battery with roll-out system is very convenient to replace batteries. Achieves the continuity of working.
● When the truck jolts, the connecting rod will never be crooked because of the pull function.
SERVICEABILITY:
● Low battery protection setting prolongs the battery life.
● With Integration electric layout, it is very easy to maintenance. Reliable and shockproof electric system.
● Easy replacement and maintenance for the steering wheel.

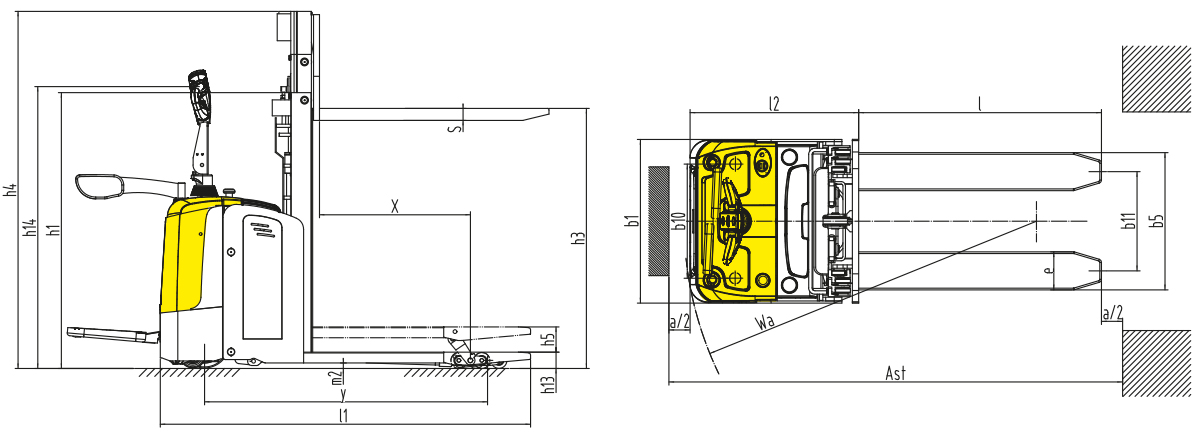

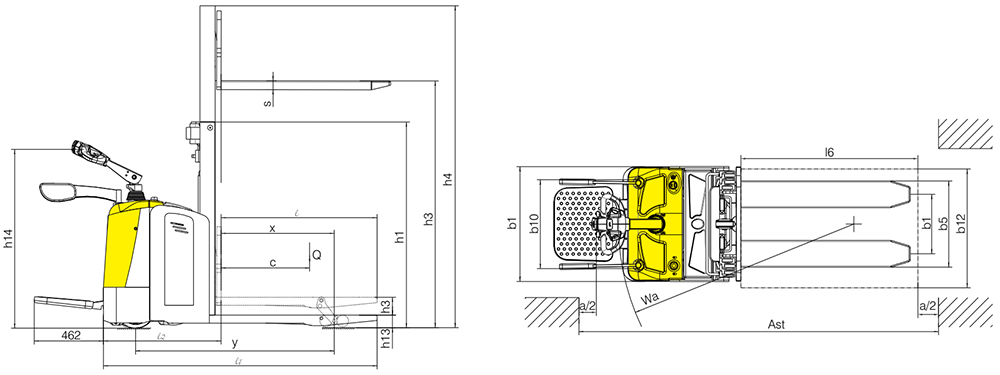

DIMENSION Drawing:

Model



CBD20SR

Drive: electric (battery type, mains, ...), diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Standing

Rated capacity/rated load

Q(kg)

2000

Rated capacity/rated load with mast lift

Q(kg)

1000

Rated capacity/rated load with wheel arm lift

Q(kg)

2000

Load centre distance

c(mm)

600

Load distance, centre of drive axle to fork

x(mm)

767

Wheelbase

y(mm)

1348

Service weight

kg

1130

Axle loading, laden front/rear

kg

1090/2040

Axle loading, unladen front/rear

kg

840/290

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane (PU)

Tyre size, front

mm

Φ250x80

Tyre size, rear

mm

Φ80x70

Additional wheels (dimensions)

mm

Φ127x57

Wheels, number front/rear (x = driven wheels)



1X+2/4

Tread, front

b10(mm)

490

Tread, rear

b11(mm)

400/470

Max. lift height

h3(mm)

1600/2000/2500

Initial lift

h5(mm)

120

Height drawbar in driving position min./max.

h14(mm)

1150/1430

Height, lowered

h13(mm)

90

Height, mast lowered

h1(mm)

1082/1212/1382

Height, mast extended

h4(mm)

2118/2508/3018

Overall length

l1(mm)

1898/1948

Length to face of forks

l2(mm)

798

Overall width

b1/b2(mm)

775

Fork dimensions DIN ISO 2331

s/e/l(mm)

54/180/1100(1150)

Fork spread

b5(mm)

570/650

Ground clearance, centre of wheelbase

m2(mm)

28

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2490

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2407

Turning radius

Wa(mm)

1670

Travel speed, laden/unladen

km/h

7/7.1

Lift speed, laden/unladen

m/s

0.11/0.15

Lowering speed, laden/unladen

m/s

0.18/0.18

Max. gradeability, laden/unladen

%

8/20

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

1.5

Lift motor rating at S3 15%

kW

2.2

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/240

Battery weight

kg

235

Sound pressure level at the driver's seat

dB(A)

70

*Option:CBD20SR Lithium battery 125AH/230AH
